Track plate 5mm VW T5 T6 T6.1 Bus Brake conversion 5x120 5x112

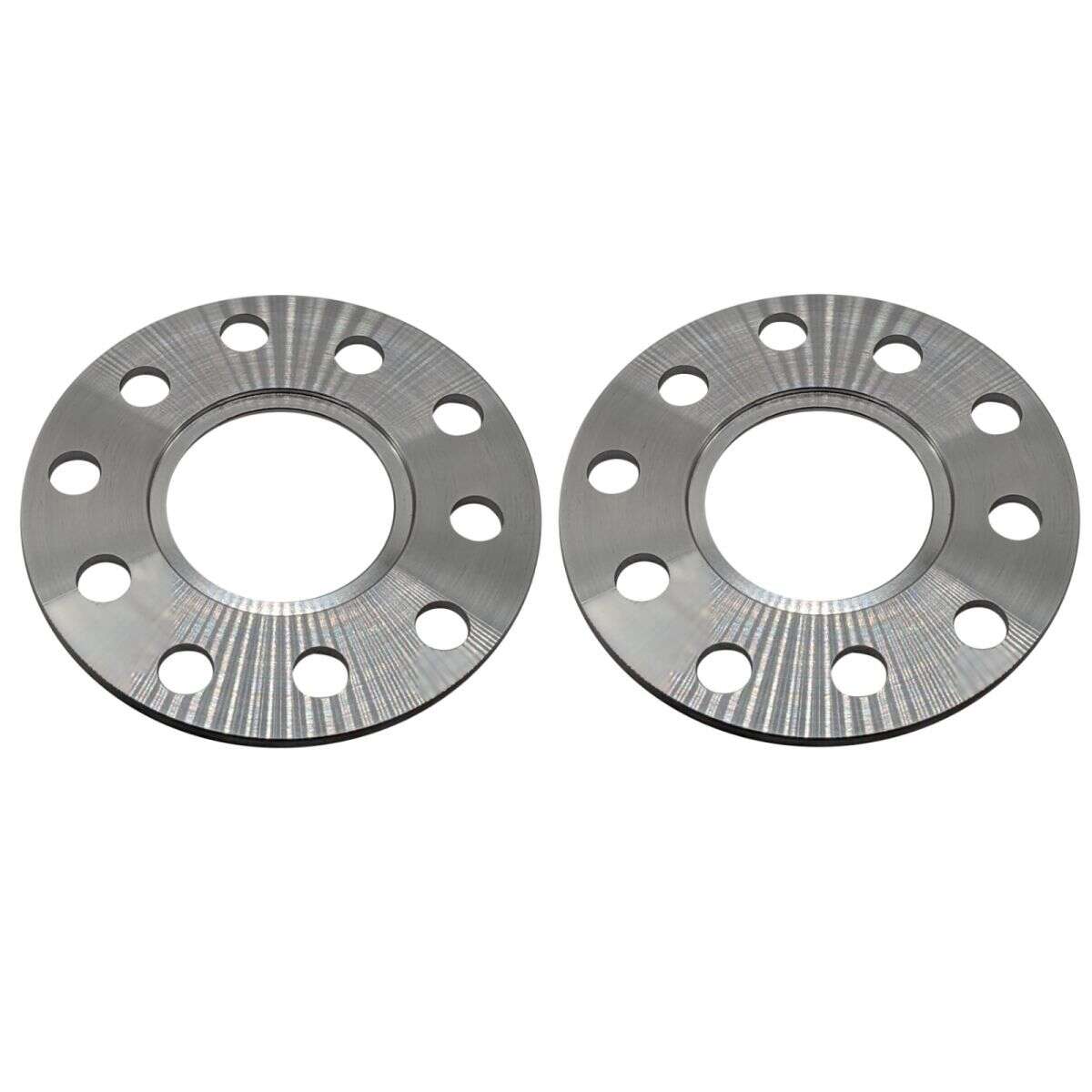

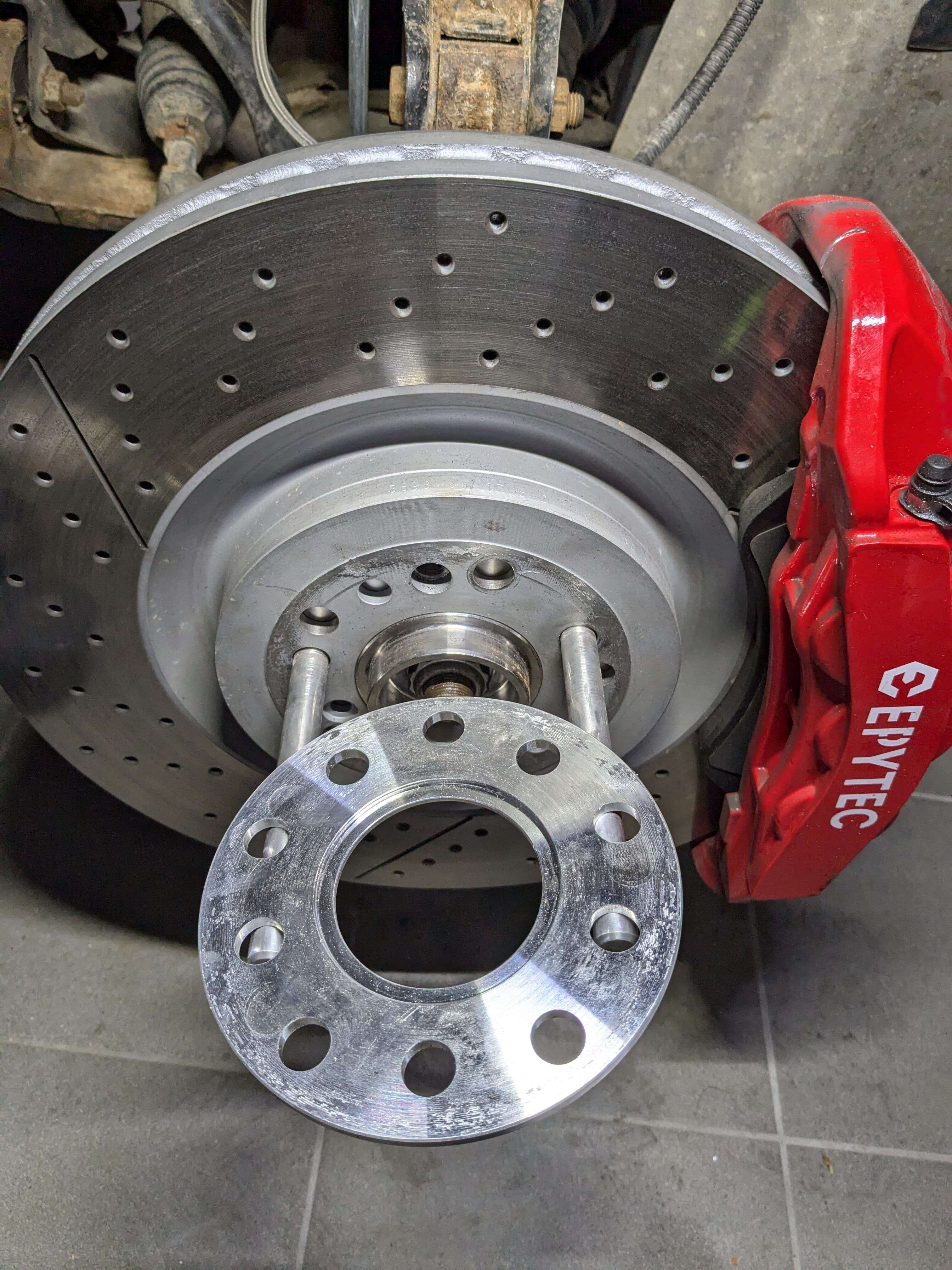

2x 5mm track plates which are mounted over the brake disc, made of high-strength aluminium.

With our high-quality track plates, you not only achieve a more striking look thanks to a wider track, but also benefit from noticeably more stable handling - especially when cornering. Installation is simple and accurate thanks to precise manufacturing and exact adjustment to your car model.


The plate is urgently needed when converting the brakes to the large brake system, as the new brake discs are thinner in the wheel mount than the original ones. The special milling in the plate compensates for this difference, so that all rims can lie clean and flat again.

The matching brake calliper adapters for this track plate can be found in the matching accessories for this adapter plate

Thanks to the TÜV certificate (technical report) included in the scope of delivery, registration can be carried out via individual approval.

Technical data:

  • Plate thickness: 5mm
  • Bolt circle: 5x112 and 5x120
  • Brake disc centring vehicle: 76mm
  • Rim centring vehicle: 65mm

Scope of delivery:

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Bolt circle (wheel hub): 5x120
Widening per wheel: 5
Bolt circle (wheel hub): 5x120
Widening per wheel: 5

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


  • Can I also use other brake calipers as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:

  • Can I also use other brake discs as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
