BMW E46 Brake Caliper Adapter Porsche Cayenne Rear Brake Caliper E46 M3 CSL 345x28 Brake Disc
- ✓ 345x28 34112282445 BMW E46 M3 CSL brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ front axle
€241.02*
- Express shopping
- Save your data and settings
- Order overview and shipping information
- Manage your newsletter subscription
- 19 Jahre Expertenwissen
Product information "BMW E46 Brake Caliper Adapter Porsche Cayenne Rear Brake Caliper E46 M3 CSL 345x28 Brake Disc"

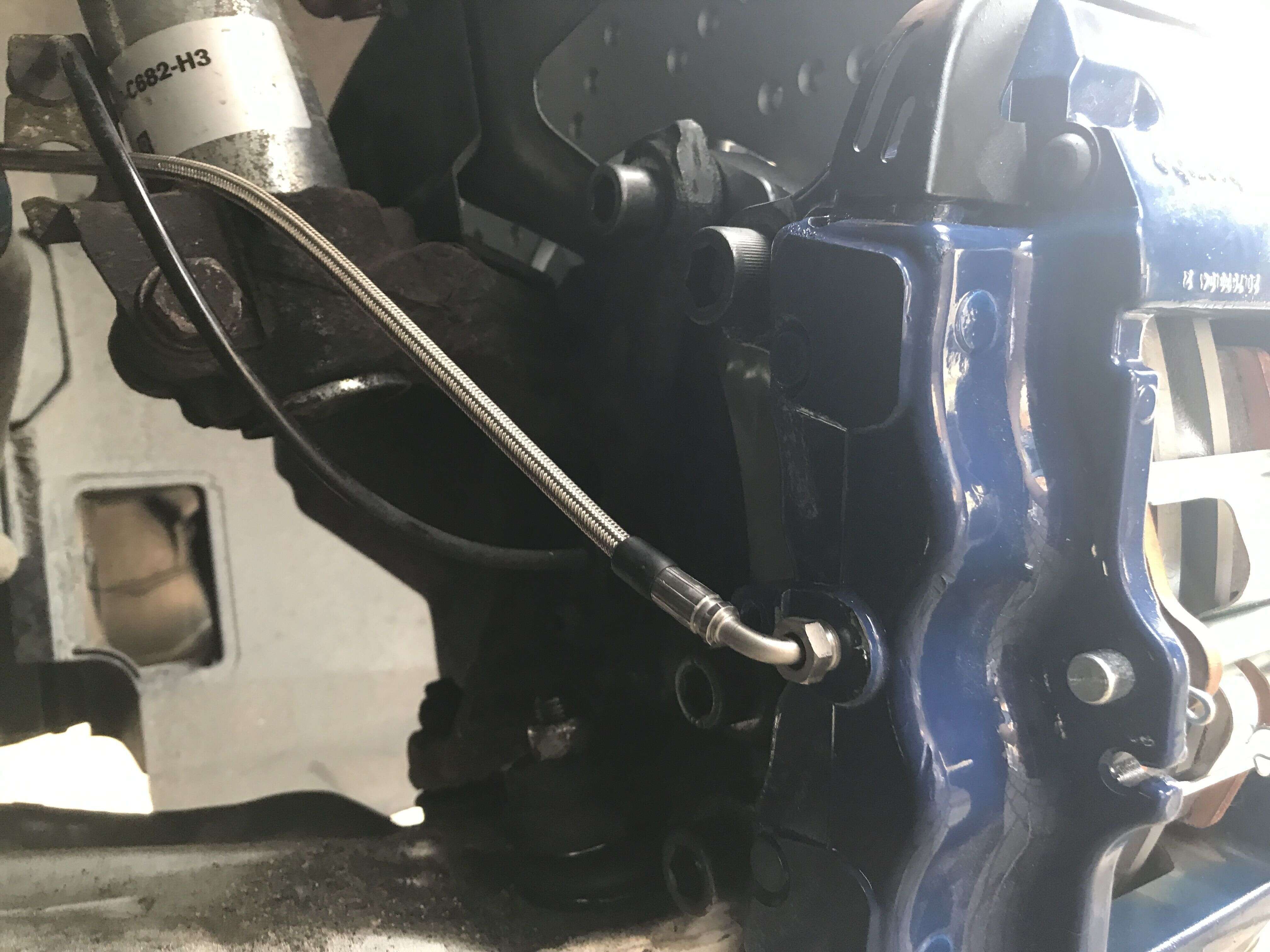

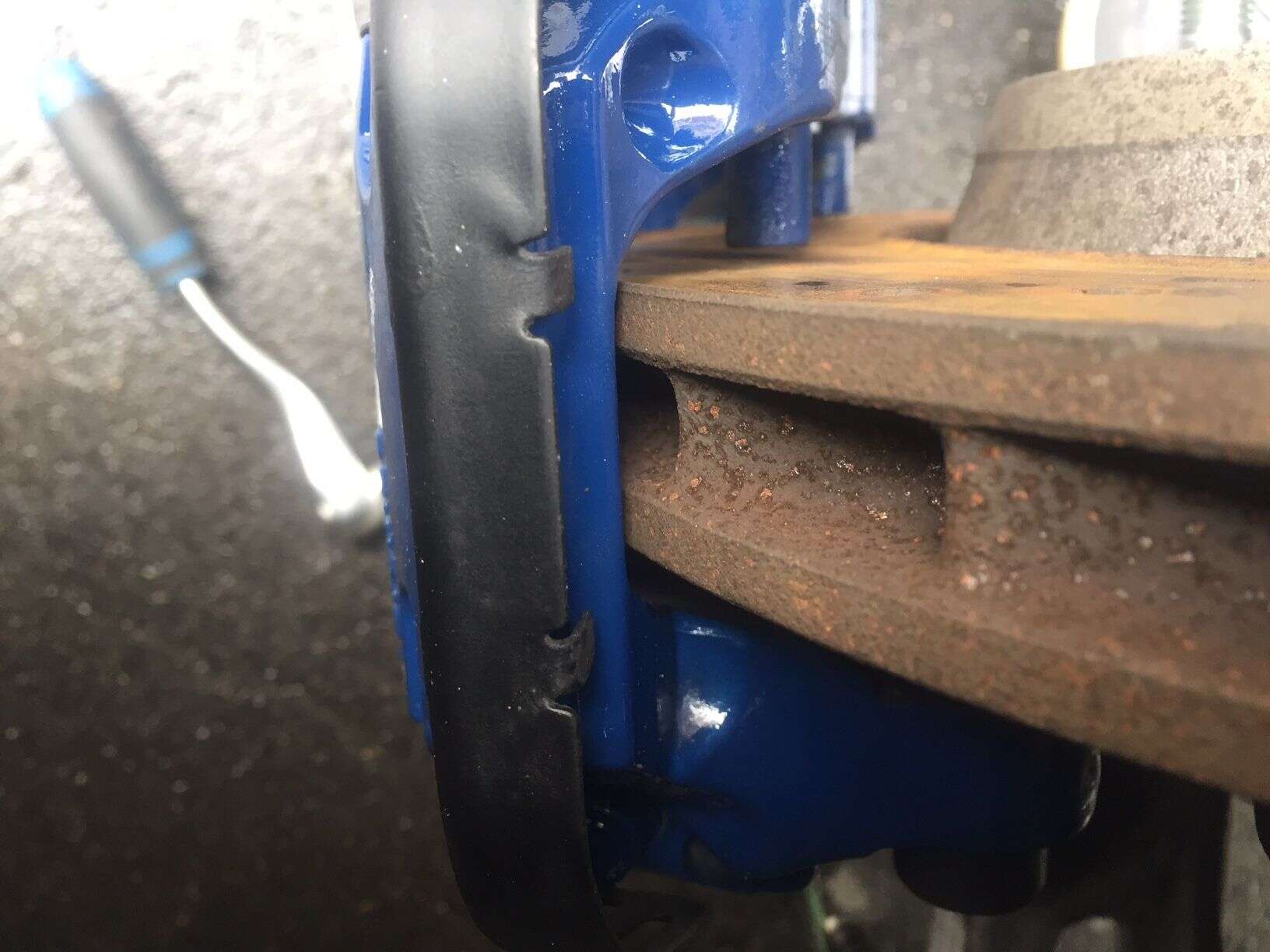

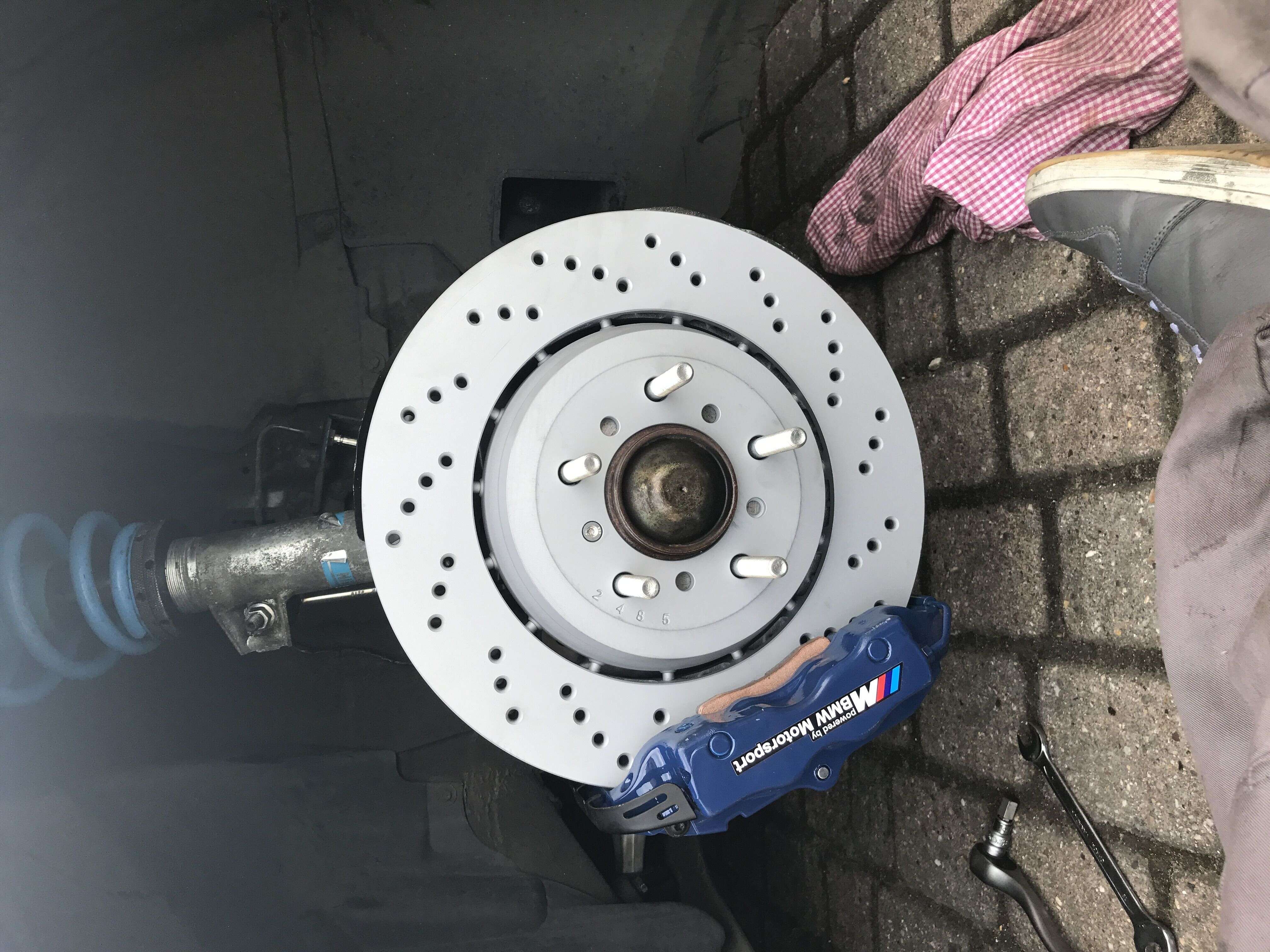

Brake caliper adapter on BMW E46, front axle, for conversion to BMW E46 M3 CSL brake discs (345x28mm), combined with the rear brake calipers from Porsche Cayenne.
Suitable for all E46 models without modifications.
Advantages of this brake system:
- high deceleration
- thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
- directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
- our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling
Required components::

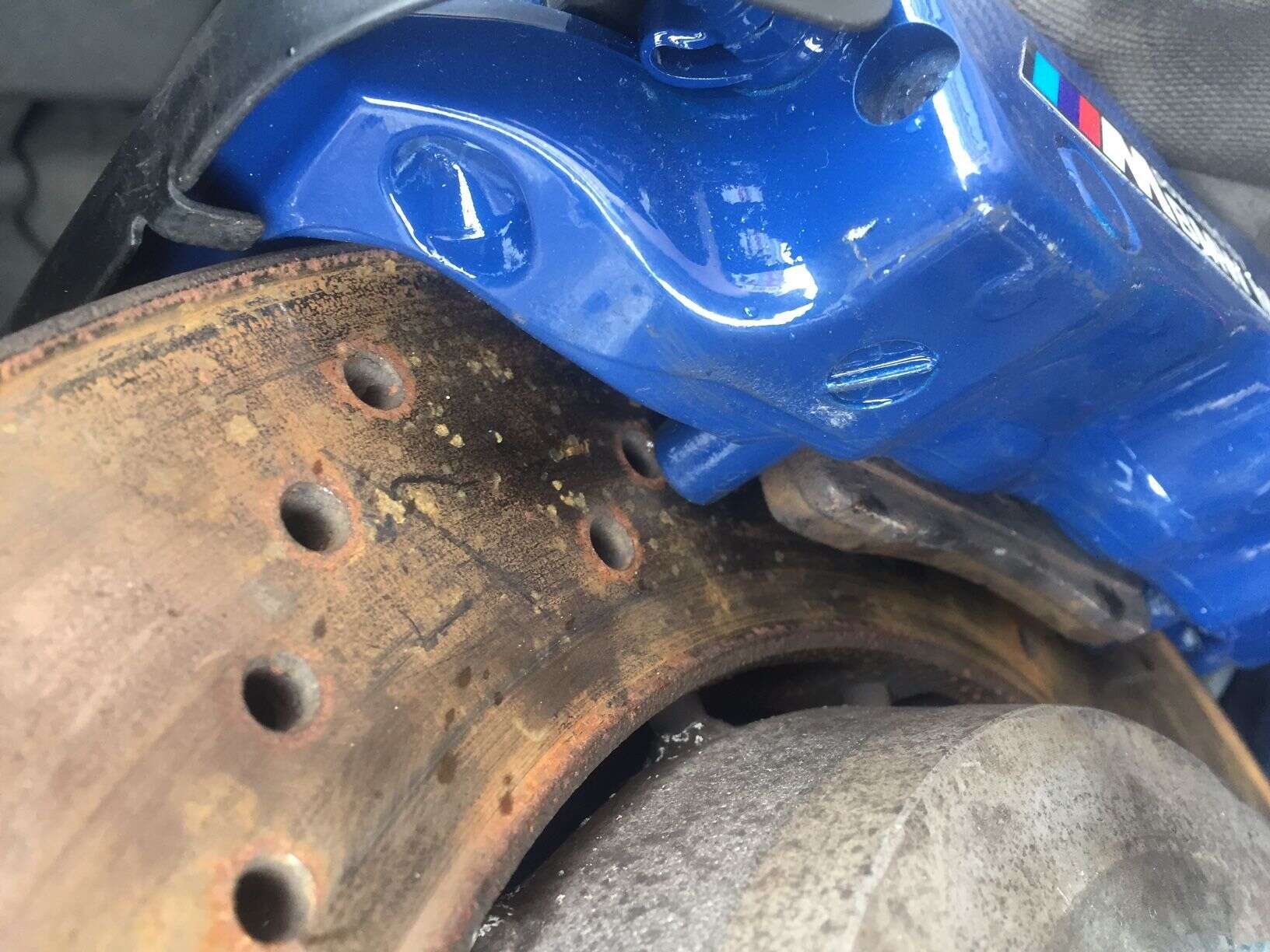

- brake caliper: Porsche Cayenne rear , reference ( stands on the calipers, rear number distinguishes right and left caliper) 955.352.421 + 955.352.422 (only 100% compatible with the specified Porsche calipers) / Brembo left: 20.7673.03 , right 20.7673.04

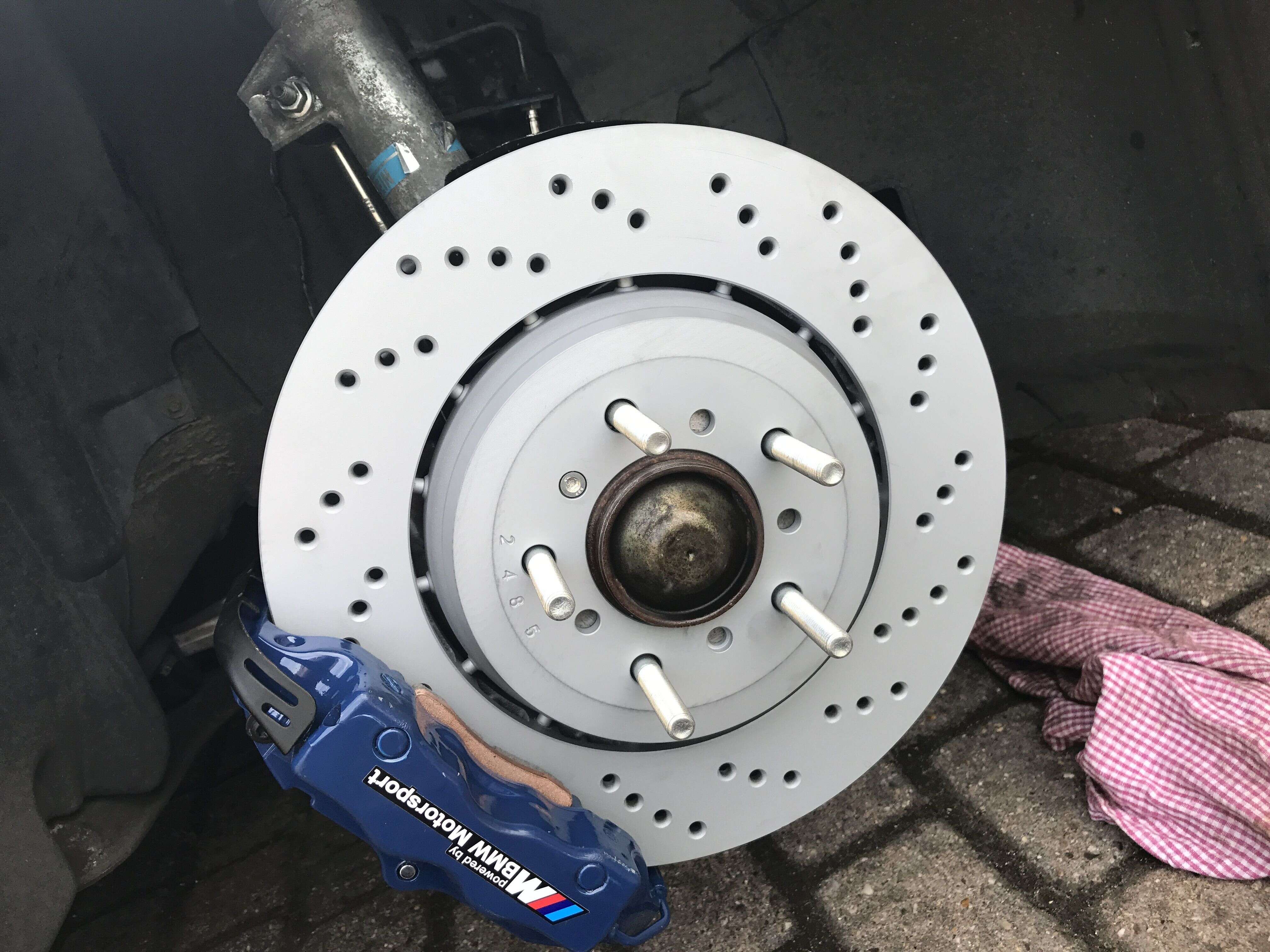

- brake disc: BMW E46 M3 CSL 345x28mm , front axle, reference 34 11 2 282 445

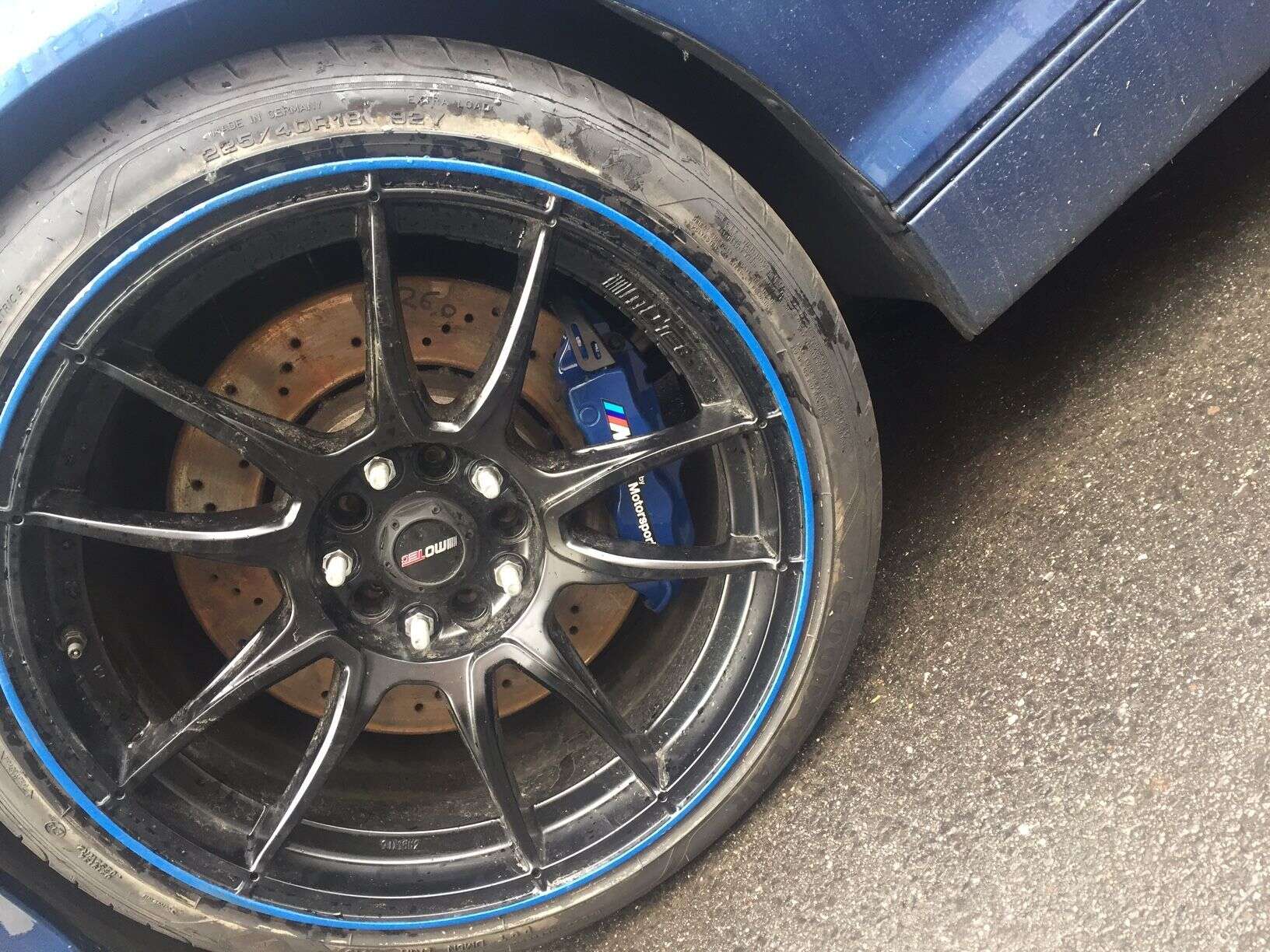

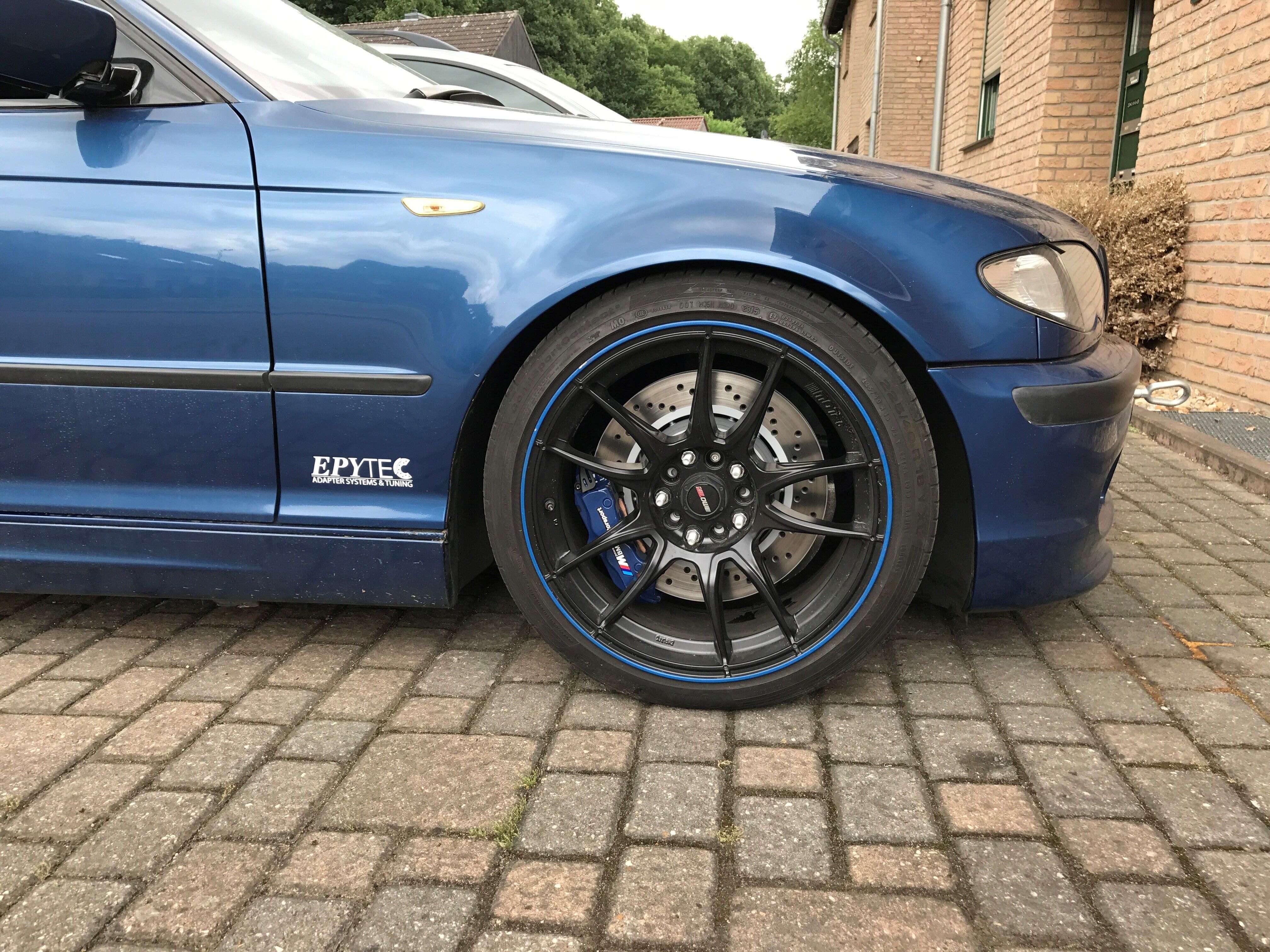

Rims: at least 17 inch
Delivery:
- 2x brake caliper adapters for BMW E46 M3
- high strength mounting screws
- material certificate
Tips, information and hints:
- For a better ventilation of the brake system, we recommend removing the dust cover plates and brake anchor plates.
- We can generally not answer, which rim size you can mount after your brake conversion. There are simply too many different rims.
- In rare cases it is possible that the rims touch minimal the brake caliper, then you can simply use spacers.

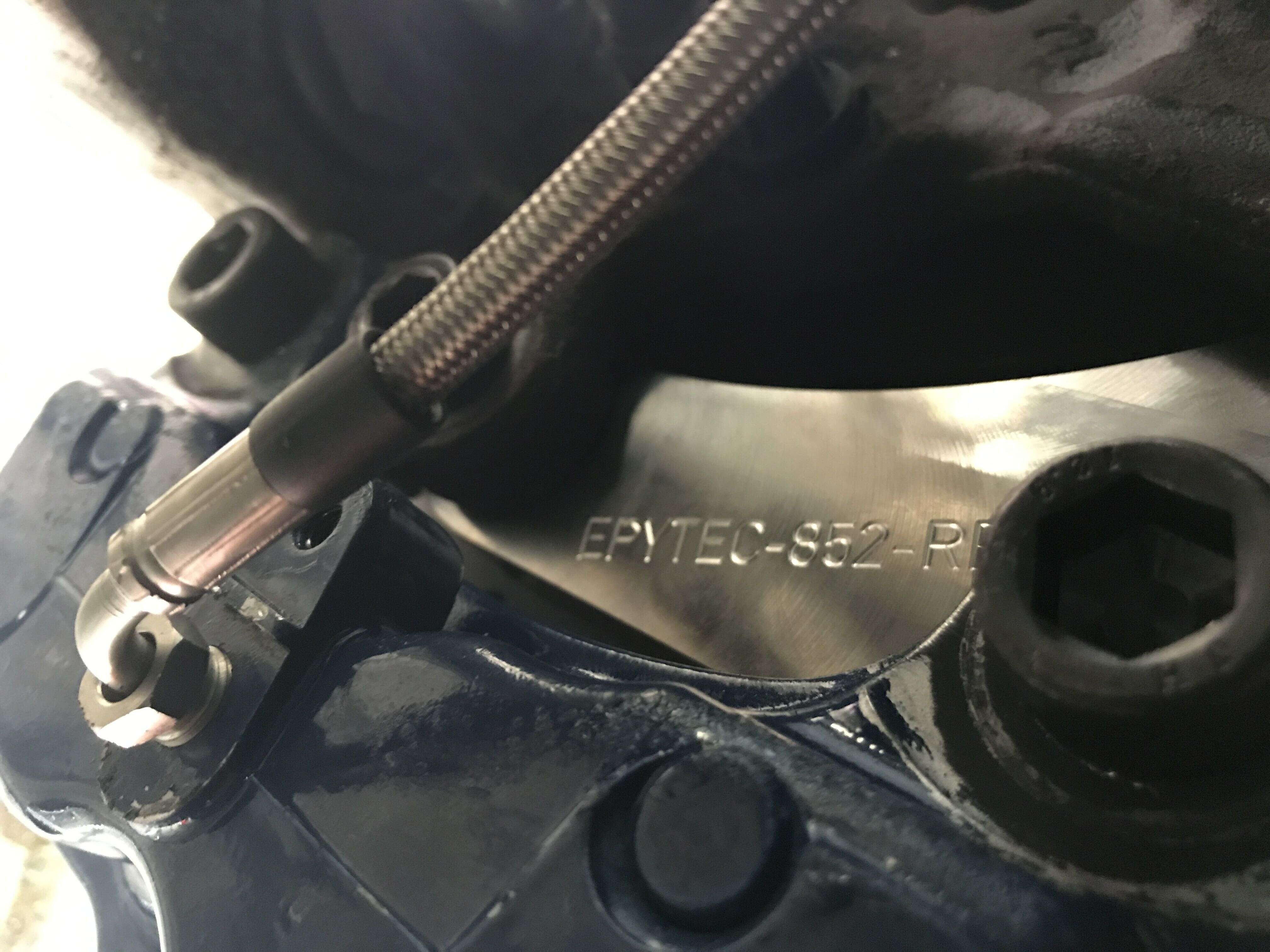

>> Now directly to spacers << - Install the adapter with the necessary components and then check if new brake lines are required. Because, depending on the vehicle, the lines may be too short or the line tips may not suitable. We advise you to change to steel braided brake line because of the quality and technical advantage. Specifically for this, we have developed an online brake line configurator, where you can assemble the type of steel braided brake lines you want. Click here to go to the configurator
>> Configure steel braided brake lines <<
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
