Braided steel brake hose BMW 1 Series 2 Series 3 Series 4 Series F20 F21 F22 F23 F30 F31 F32 F33 F34 F36 Convertible Coupe 4 Piston Brake Caliper
€103.78*
Longer steel braided brake line with parts certificate for conversion to larger brake systems, e.g., Brembo 4-piston brake calipers.
Fits the front axle of the following models:
- 1 Series BMW F20 / F21
- 2 Series BMW F22 / F23
- 3 Series BMW F30 / F31 / F34 / F35
- 4 Series BMW F32 / F33 / F36
Advantages over original brake lines:
- No pressure loss when braking, resulting in a noticeably precise pressure point.
- Easy installation; the original line is simply replaced with the steel braided line.
- No swelling like with rubber lines.
- Cost savings, as steel braided lines have a virtually unlimited service life and don't need to be replaced every 3-5 years.
- Shorter braking distance.
- Marten resistance.
- Includes parts certificate for easy registration.
- Great appearance.
Technical specifications:
- Length: 61 cm

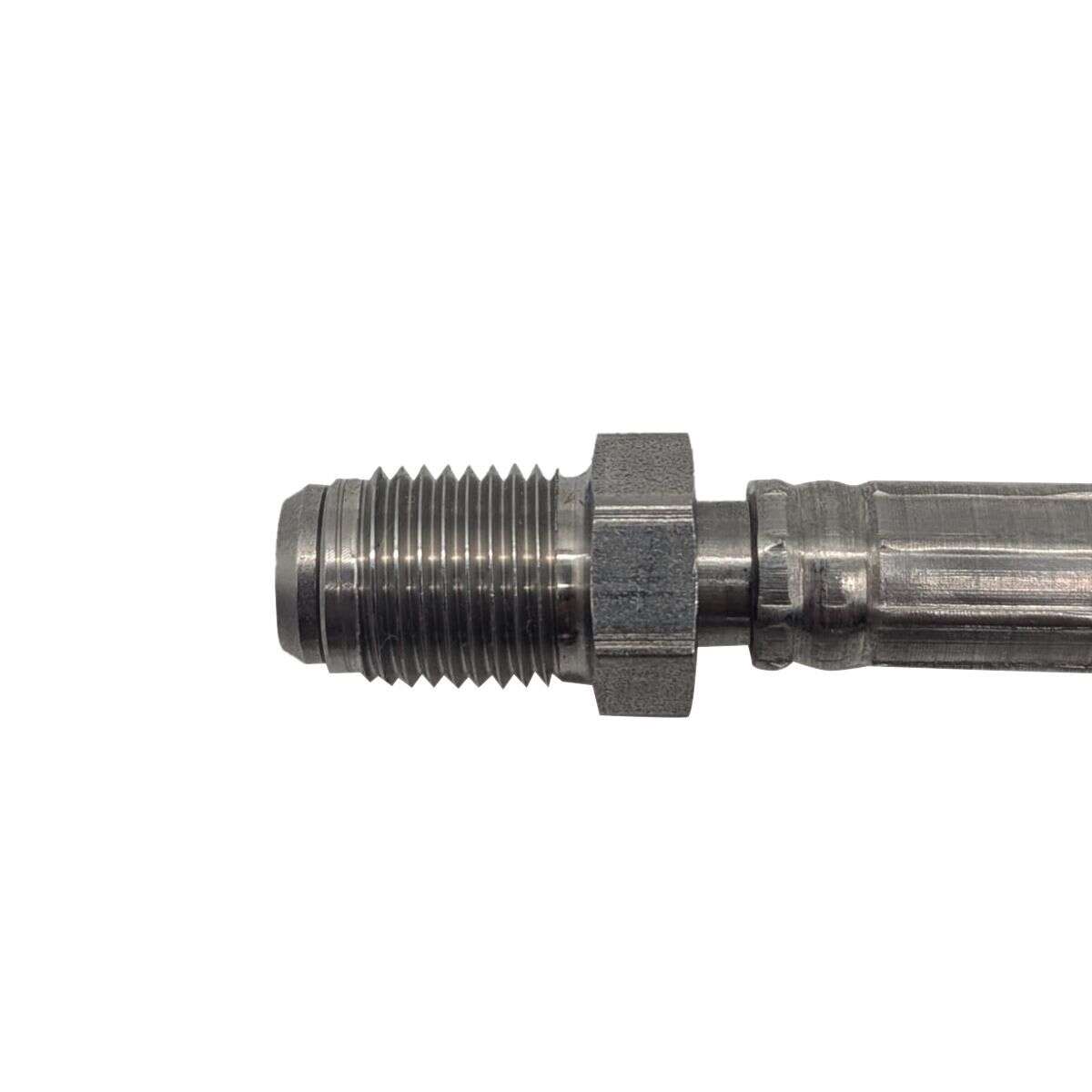

- Connection 1: M10x1 straight external thread.

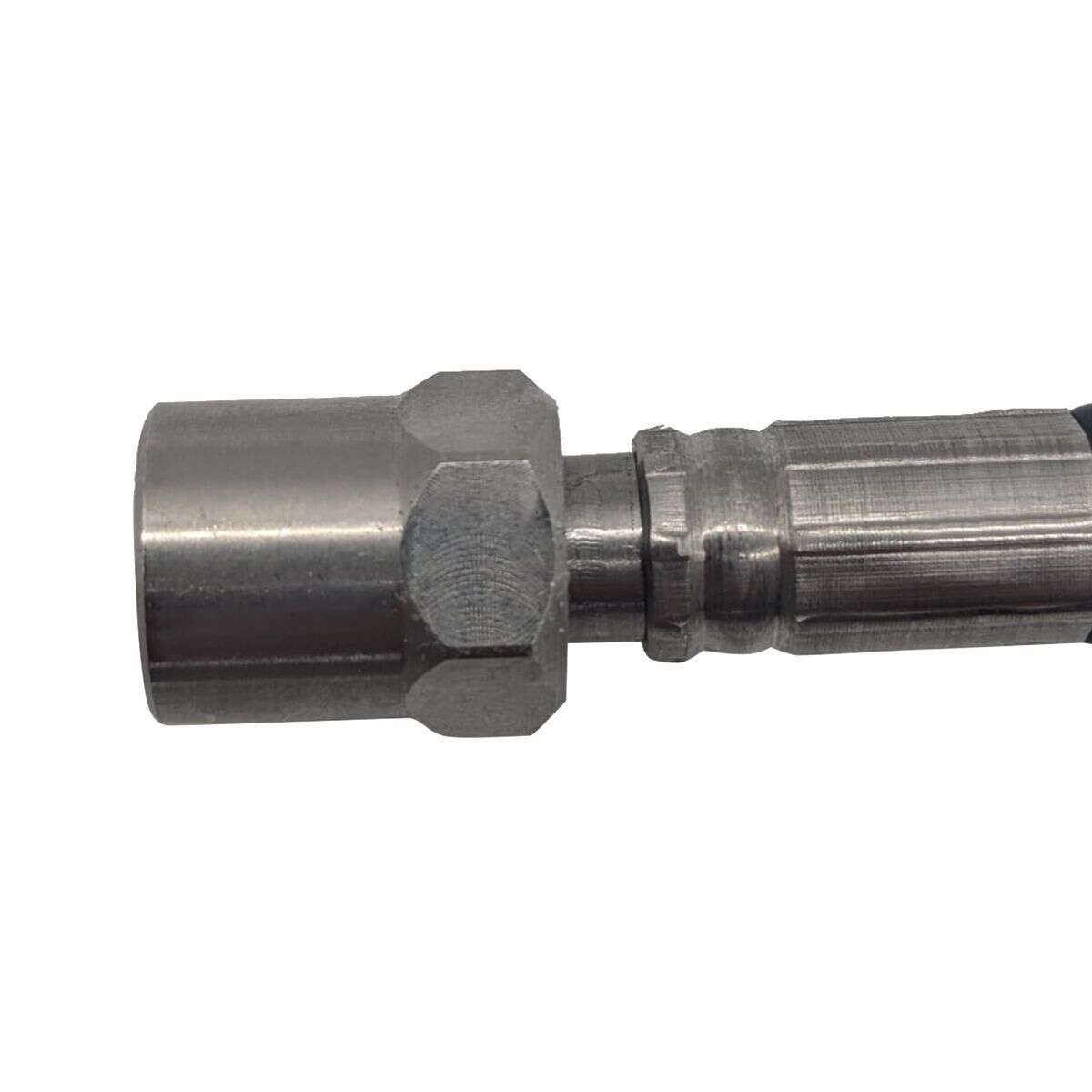

- Connection 2: M10x1 internal thread. Straight
- 90° flare. Our fittings are so-called hybrids, meaning every connection fits, whether concave or convex.
Scope of delivery:
- 2x steel braided brake lines for the BMW 1 Series, 2 Series, F20, F21, F22, and F23, as well as the 3 Series and 4 Series, F30, F31, F32, F33, F34, and F36.
- Including parts certificate for easy registration.
We also manufacture to your specifications. With our steel braided brake line configurator (click here), you can configure your steel braided brake line according to your wishes (length, color, and connections).
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Login
- Does the steel braided line also fit other vehicles?
Yes – basically the braided steel line can also fit many other vehicles if the connection data matches. In practice, many manufacturers use very similar thread sizes for brake line fittings, so using them across different models is often possible.
What really matters
To ensure the line fits securely and tightly, you need to match three main points:
Thread size / connection
The key factor is what thread your vehicle has at the connection points (e.g., at the fixed line connection or brake caliper).
This thread size must match the fittings of the line.
Sealing surface (concave or convex)
Often, the problem is not the thread, but the sealing shape on the counterpart:
concave (valley) or
convex (hill)
Our fittings are so-called “hybrid” connections. This means: Each connection is designed to reliably seal with both concave and convex sealing surfaces. This makes the line significantly more versatile.

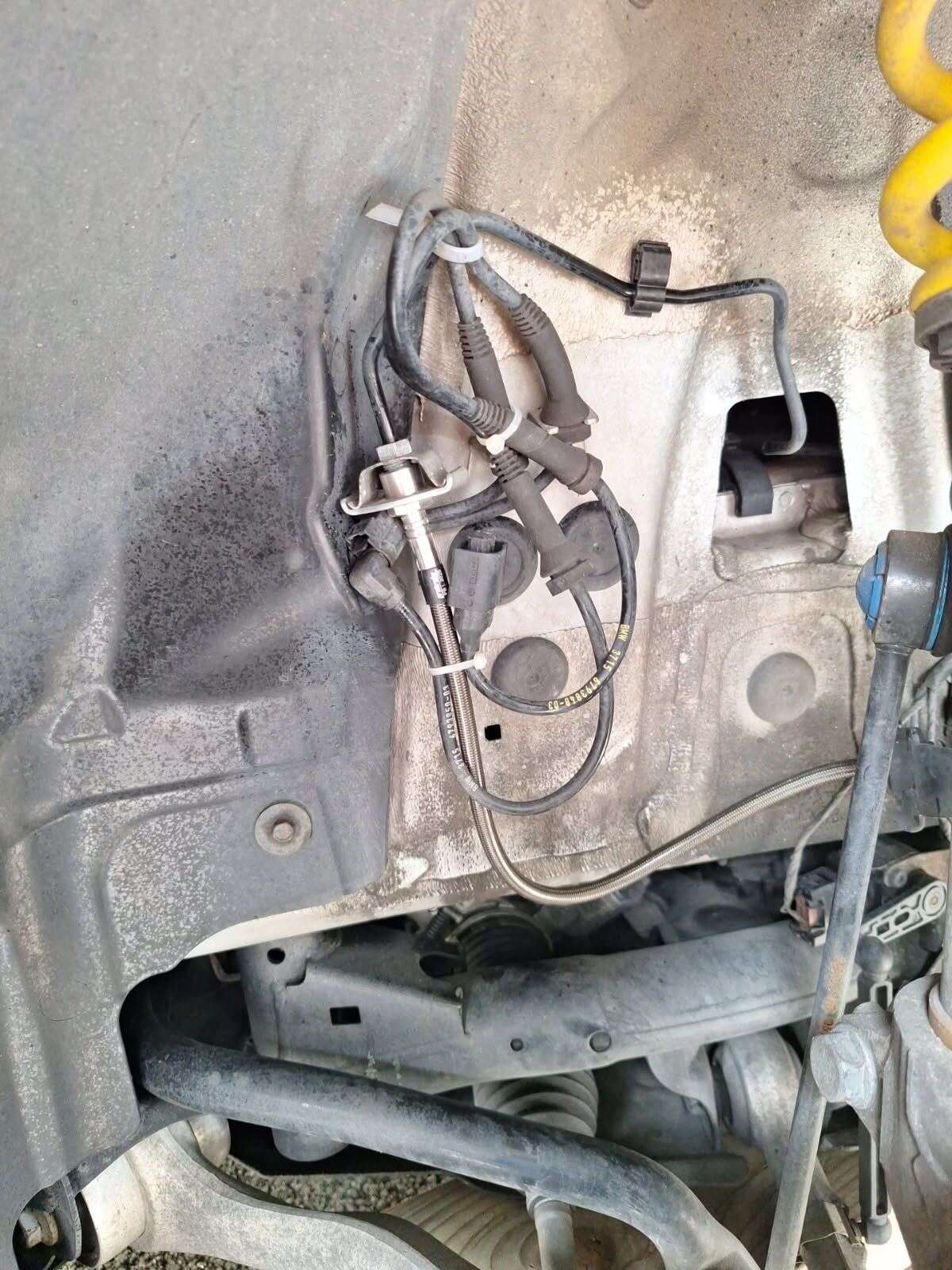

Length and routing
You need to determine the required length suitable for your vehicle (ideally as described above: fully extend, simulate routing, check steering).
Only if the line is long enough and can be routed cleanly is it truly suitable.
How to quickly check if it fits
Determine the thread size on the vehicle (and compare it with the data of the line)
Measure the line length
Check the technical data in the product description – there you will find all the details about the line and the connections.
- Two lens gaskets were supplied with the Steelflex lines. Where exactly are these installed?
The 2 lens seals are not automatically always installed, but only when they are needed to compensate for the sealing cone on the respective counterpart. Background: Depending on the vehicle/connection, there are different flaring or sealing shapes – and that's exactly why the lenses are always provided as a precaution.

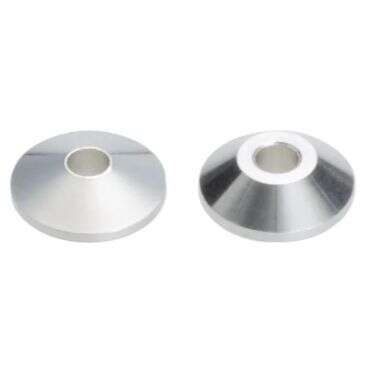

What are the lens seals for?
They serve as a compensating piece when the cone on the connection (counterpart) does not perfectly match the steel braided hose. This ensures that the connection seals cleanly.
Where are they used?
If needed, the lens seals are placed directly into the connection with internal thread – that is, into the “female” fitting on the vehicle/distributor/brake caliper, before you screw in the hose.
The hose presses the lens into its seat when tightened, thus creating the seal.When do you need them – and when not?
F flare (DIN/ISO cone, usually fits):
→ Lens seals are not needed.
The hose usually seals directly over the matching cone here.E flare:
→ Lens seals must be used.
Simply place it into the internal thread, then screw in the hose and tighten as usual.
Installation note
The installation direction does not matter – you can install the lens either way, it makes no difference.
| Motor | Motorcode |
|---|---|
| 425d | F83|218PS(160KW) |
| 420d | F33|190PS(140KW) |
| 420i | F83|184PS(135KW) |
| 430i | F83|252PS(185KW) |
| 440i | F83|360PS(265KW) |
| 435i | F83|306PS(225KW) |
| 430i | F33|252PS(185KW) |
| 435i | F33|340PS(250KW) |
| 420d | F83|184PS(135KW) |
| 435i | F83|340PS(250KW) |
| 420d | F33|200PS(147KW) |
| 420i | F33|184PS(135KW) |
| 420d | F83|163PS(120KW) |
| 430d | F33|258PS(190KW) |
| 430d | F83|258PS(190KW) |
| 430d | F33|286PS(210KW) |
| 420d | F83|190PS(140KW) |
| 428i | F83|245PS(180KW) |
| 425d | F83|211PS(155KW) |
| 430d | F83|286PS(210KW) |
| 420d | F33|163PS(120KW) |
| 425d | F33|211PS(155KW) |
| 425d | F83|224PS(165KW) |
| 428i | F33|245PS(180KW) |
| 440i | F33|326PS(240KW) |
| 440i | F33|360PS(265KW) |
| 420i | F83|163PS(120KW) |
| 440i | F83|326PS(240KW) |
| 435i | F33|306PS(225KW) |
| 425d | F33|224PS(165KW) |
| 420d | F33|184PS(135KW) |
| 420i | F33|163PS(120KW) |
| 425d | F33|218PS(160KW) |
| 420d | F83|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 320i | F30|184PS(135KW) |
| 335i | F30|306PS(225KW) |
| 330e | F80|184PS(135KW) |
| 330d | F30|286PS(210KW) |
| 325d | F80|224PS(165KW) |
| 328i | F80|245PS(180KW) |
| 340i | F80|326PS(240KW) |
| M3 CS | F30|460PS(338KW) |
| 318d | F80|143PS(105KW) |
| 325d | F80|218PS(160KW) |
| 320d | F80|200PS(147KW) |
| 316d | F30|116PS(85KW) |
| 318d | F30|143PS(105KW) |
| 330i | F80|252PS(185KW) |
| M3 CS | F80|460PS(338KW) |
| 335i | F80|340PS(250KW) |
| M3 | F80|431PS(317KW) |
| 340i | F30|360PS(265KW) |
| 318d | F80|150PS(110KW) |
| 318d | F80|136PS(100KW) |
| 318i | F80|136PS(100KW) |
| 325d | F80|211PS(155KW) |
| 316i | F30|136PS(100KW) |
| 320d | F30|184PS(135KW) |
| 320d | F30|163PS(120KW) |
| 328i | F30|245PS(180KW) |
| 335i | F80|306PS(225KW) |
| 325d | F30|224PS(165KW) |
| 320d | F30|200PS(147KW) |
| M3 | F30|431PS(317KW) |
| 330d | F80|258PS(190KW) |
| 320d | F80|163PS(120KW) |
| 330d | F30|258PS(190KW) |
| 325d | F30|218PS(160KW) |
| 330d | F80|286PS(210KW) |
| 335i | F30|326PS(240KW) |
| 320i | F80|184PS(135KW) |
| 318i | F30|136PS(100KW) |
| 335i | F30|340PS(250KW) |
| 318d | F30|136PS(100KW) |
| 325d | F30|211PS(155KW) |
| 330i | F30|252PS(185KW) |
| 320d | F80|184PS(135KW) |
| 330e | F30|184PS(135KW) |
| 340i | F80|360PS(265KW) |
| 316i | F80|136PS(100KW) |
| 320d | F30|190PS(140KW) |
| 320d | F80|190PS(140KW) |
| 340i | F30|326PS(240KW) |
| 316d | F80|116PS(85KW) |
| 335i | F80|326PS(240KW) |
| 318d | F30|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| M 135i | F20|326PS(240KW) |
| 120d | F21|184PS(135KW) |
| 125i | F20|238PS(175KW) |
| 120d | F20|200PS(147KW) |
| 116i | F20|109PS(80KW) |
| 125d | F20|218PS(160KW) |
| 125i | F20|218PS(160KW) |
| 125i | F21|224PS(165KW) |
| 120d | F21|163PS(120KW) |
| 114d | F20|95PS(70KW) |
| 118d | F20|150PS(110KW) |
| 116d | F21|116PS(85KW) |
| M 135i | F21|320PS(235KW) |
| 120i | F21|184PS(135KW) |
| 125d | F21|211PS(155KW) |
| 118i | F20|136PS(100KW) |
| 116i | F21|109PS(80KW) |
| 120d | F20|163PS(120KW) |
| 125d | F21|224PS(165KW) |
| 118i | F21|136PS(100KW) |
| 120d | F20|190PS(140KW) |
| 120i | F20|184PS(135KW) |
| 114i | F20|102PS(75KW) |
| 114d | F21|95PS(70KW) |
| 116i | F20|136PS(100KW) |
| 125d | F21|218PS(160KW) |
| M 140i | F20|340PS(250KW) |
| 120d | F21|200PS(147KW) |
| 116d | F20|116PS(85KW) |
| 116i | F21|136PS(100KW) |
| 120d | F20|184PS(135KW) |
| 125d | F20|224PS(165KW) |
| 118i | F21|170PS(125KW) |
| 120i | F21|177PS(130KW) |
| 118d | F21|136PS(100KW) |
| 118d | F20|136PS(100KW) |
| 118d | F21|143PS(105KW) |
| 118d | F21|150PS(110KW) |
| 118d | F20|143PS(105KW) |
| M 135i | F21|326PS(240KW) |
| 114i | F21|102PS(75KW) |
| 120d | F21|190PS(140KW) |
| 125i | F21|218PS(160KW) |
| 125d | F20|211PS(155KW) |
| 125i | F20|224PS(165KW) |
| M 135i | F20|320PS(235KW) |
| 118i | F20|170PS(125KW) |
| 120i | F20|177PS(130KW) |
| M 140i | F21|340PS(250KW) |
| 125i | F21|238PS(175KW) |
| Motor | Motorcode |
|---|---|
| 418d | F32|136PS(100KW) |
| 430i | F82|252PS(185KW) |
| 435i | F82|306PS(225KW) |
| 428i | F82|245PS(180KW) |
| 435i | F32|306PS(225KW) |
| 430d | F82|258PS(190KW) |
| 425d | F82|211PS(155KW) |
| 425d | F32|218PS(160KW) |
| 440i | F32|326PS(240KW) |
| 418i | F82|136PS(100KW) |
| 418i | F32|136PS(100KW) |
| 420d | F32|200PS(147KW) |
| 430i | F32|252PS(185KW) |
| 420d | F32|190PS(140KW) |
| 420i | F82|163PS(120KW) |
| 440i | F82|360PS(265KW) |
| 420i | F32|163PS(120KW) |
| 425d | F32|224PS(165KW) |
| 430d | F82|286PS(210KW) |
| 420d | F82|200PS(147KW) |
| 420i | F82|184PS(135KW) |
| 420i | F32|184PS(135KW) |
| 428i | F32|245PS(180KW) |
| 430d | F32|286PS(210KW) |
| 418d | F32|150PS(110KW) |
| 420d | F32|184PS(135KW) |
| 440i | F82|326PS(240KW) |
| 420d | F32|163PS(120KW) |
| 435i | F82|340PS(250KW) |
| 440i | F32|360PS(265KW) |
| 430d | F32|258PS(190KW) |
| 420d | F82|163PS(120KW) |
| 420d | F82|184PS(135KW) |
| 418d | F82|150PS(110KW) |
| 425d | F32|211PS(155KW) |
| 425d | F82|218PS(160KW) |
| 418d | F82|136PS(100KW) |
| 435i | F32|340PS(250KW) |
| 420d | F82|190PS(140KW) |
| 425d | F82|224PS(165KW) |
| Motor | Motorcode |
|---|---|
| 316d | F31|116PS(85KW) |
| 330i | F31|252PS(185KW) |
| 325d | F31|211PS(155KW) |
| 328i | F31|245PS(180KW) |
| 330d | F31|258PS(190KW) |
| 335i | F31|326PS(240KW) |
| 316i | F31|136PS(100KW) |
| 318d | F31|143PS(105KW) |
| 320d | F31|200PS(147KW) |
| 325d | F31|218PS(160KW) |
| 330d | F31|286PS(210KW) |
| 320d | F31|184PS(135KW) |
| 340i | F31|326PS(240KW) |
| 318d | F31|150PS(110KW) |
| 325d | F31|224PS(165KW) |
| 318i | F31|136PS(100KW) |
| 320d | F31|190PS(140KW) |
| 320d | F31|163PS(120KW) |
| 320i | F31|184PS(135KW) |
| 335i | F31|340PS(250KW) |
| 340i | F31|360PS(265KW) |
| 335i | F31|306PS(225KW) |
| 318d | F31|136PS(100KW) |
| Motor | Motorcode |
|---|---|
| 320d | F34|190PS(140KW) |
| 325d | F34|218PS(160KW) |
| 320d | F34|200PS(147KW) |
| 325d | F34|211PS(155KW) |
| 328i | F34|245PS(180KW) |
| 320i | F34|163PS(120KW) |
| 340i | F34|360PS(265KW) |
| 340i | F34|326PS(240KW) |
| 330i | F34|252PS(185KW) |
| 335i | F34|326PS(240KW) |
| 320i | F34|184PS(135KW) |
| 318d | F34|136PS(100KW) |
| 335i | F34|340PS(250KW) |
| 320d | F34|184PS(135KW) |
| 335i | F34|306PS(225KW) |
| 330d | F34|258PS(190KW) |
| 330d | F34|286PS(210KW) |
| 318d | F34|150PS(110KW) |
| 318d | F34|143PS(105KW) |
| 320d | F34|163PS(120KW) |
| 325d | F34|224PS(165KW) |
| Motor | Motorcode |
|---|---|
| 420d | F36|184PS(135KW) |
| 420i | F36|184PS(135KW) |
| 418d | F36|150PS(110KW) |
| 420d | F36|163PS(120KW) |
| 435i | F36|340PS(250KW) |
| 420d | F36|190PS(140KW) |
| 440i | F36|326PS(240KW) |
| 418d | F36|136PS(100KW) |
| 430i | F36|252PS(185KW) |
| 420d | F36|200PS(147KW) |
| 430d | F36|286PS(210KW) |
| 435i | F36|306PS(225KW) |
| 425d | F36|211PS(155KW) |
| 420i | F36|163PS(120KW) |
| 418d | F36|143PS(105KW) |
| 430d | F36|258PS(190KW) |
| 428i | F36|245PS(180KW) |
| 425d | F36|224PS(165KW) |
| 418i | F36|136PS(100KW) |
| 440i | F36|360PS(265KW) |
| Motor | Motorcode |
|---|---|
| 220d | F87|184PS(135KW) |
| 218i | F87|136PS(100KW) |
| 218d | F22|143PS(105KW) |
| 220i | F22|184PS(135KW) |
| 225d | F22|218PS(160KW) |
| 230i | F87|252PS(185KW) |
| 218d | F87|150PS(110KW) |
| 225d | F22|224PS(165KW) |
| 220i | F87|184PS(135KW) |
| 230i | F22|252PS(185KW) |
| 228i | F22|245PS(180KW) |
| 220d | F22|190PS(140KW) |
| 218d | F87|143PS(105KW) |
| 228i | F87|245PS(180KW) |
| M 235i | F87|326PS(240KW) |
| 220d | F87|163PS(120KW) |
| 220d | F87|200PS(147KW) |
| 218d | F22|150PS(110KW) |
| M 235i | F22|326PS(240KW) |
| 220d | F22|184PS(135KW) |
| 225d | F87|224PS(165KW) |
| 225d | F87|218PS(160KW) |
| 218i | F22|136PS(100KW) |
| 220d | F87|190PS(140KW) |
| 220d | F22|200PS(147KW) |
| 220d | F22|163PS(120KW) |
| 218d | F22|136PS(100KW) |
| 218d | F87|136PS(100KW) |
| Motor | Motorcode |
|---|---|
| 425d | F83|218PS(160KW) |
| 420d | F33|190PS(140KW) |
| 420i | F83|184PS(135KW) |
| 430i | F83|252PS(185KW) |
| 440i | F83|360PS(265KW) |
| 435i | F83|306PS(225KW) |
| 430i | F33|252PS(185KW) |
| 435i | F33|340PS(250KW) |
| 420d | F83|184PS(135KW) |
| 435i | F83|340PS(250KW) |
| 420d | F33|200PS(147KW) |
| 420i | F33|184PS(135KW) |
| 420d | F83|163PS(120KW) |
| 430d | F33|258PS(190KW) |
| 430d | F83|258PS(190KW) |
| 430d | F33|286PS(210KW) |
| 420d | F83|190PS(140KW) |
| 428i | F83|245PS(180KW) |
| 425d | F83|211PS(155KW) |
| 430d | F83|286PS(210KW) |
| 420d | F33|163PS(120KW) |
| 425d | F33|211PS(155KW) |
| 425d | F83|224PS(165KW) |
| 428i | F33|245PS(180KW) |
| 440i | F33|326PS(240KW) |
| 440i | F33|360PS(265KW) |
| 420i | F83|163PS(120KW) |
| 440i | F83|326PS(240KW) |
| 435i | F33|306PS(225KW) |
| 425d | F33|224PS(165KW) |
| 420d | F33|184PS(135KW) |
| 420i | F33|163PS(120KW) |
| 425d | F33|218PS(160KW) |
| 420d | F83|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 320i | F30|184PS(135KW) |
| 335i | F30|306PS(225KW) |
| 330e | F80|184PS(135KW) |
| 330d | F30|286PS(210KW) |
| 325d | F80|224PS(165KW) |
| 328i | F80|245PS(180KW) |
| 340i | F80|326PS(240KW) |
| M3 CS | F30|460PS(338KW) |
| 318d | F80|143PS(105KW) |
| 325d | F80|218PS(160KW) |
| 320d | F80|200PS(147KW) |
| 316d | F30|116PS(85KW) |
| 318d | F30|143PS(105KW) |
| 330i | F80|252PS(185KW) |
| M3 CS | F80|460PS(338KW) |
| 335i | F80|340PS(250KW) |
| M3 | F80|431PS(317KW) |
| 340i | F30|360PS(265KW) |
| 318d | F80|150PS(110KW) |
| 318d | F80|136PS(100KW) |
| 318i | F80|136PS(100KW) |
| 325d | F80|211PS(155KW) |
| 316i | F30|136PS(100KW) |
| 320d | F30|184PS(135KW) |
| 320d | F30|163PS(120KW) |
| 328i | F30|245PS(180KW) |
| 335i | F80|306PS(225KW) |
| 325d | F30|224PS(165KW) |
| 320d | F30|200PS(147KW) |
| M3 | F30|431PS(317KW) |
| 330d | F80|258PS(190KW) |
| 320d | F80|163PS(120KW) |
| 330d | F30|258PS(190KW) |
| 325d | F30|218PS(160KW) |
| 330d | F80|286PS(210KW) |
| 335i | F30|326PS(240KW) |
| 320i | F80|184PS(135KW) |
| 318i | F30|136PS(100KW) |
| 335i | F30|340PS(250KW) |
| 318d | F30|136PS(100KW) |
| 325d | F30|211PS(155KW) |
| 330i | F30|252PS(185KW) |
| 320d | F80|184PS(135KW) |
| 330e | F30|184PS(135KW) |
| 340i | F80|360PS(265KW) |
| 316i | F80|136PS(100KW) |
| 320d | F30|190PS(140KW) |
| 320d | F80|190PS(140KW) |
| 340i | F30|326PS(240KW) |
| 316d | F80|116PS(85KW) |
| 335i | F80|326PS(240KW) |
| 318d | F30|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| M 135i | F20|326PS(240KW) |
| 120d | F21|184PS(135KW) |
| 125i | F20|238PS(175KW) |
| 120d | F20|200PS(147KW) |
| 116i | F20|109PS(80KW) |
| 125d | F20|218PS(160KW) |
| 125i | F20|218PS(160KW) |
| 125i | F21|224PS(165KW) |
| 120d | F21|163PS(120KW) |
| 114d | F20|95PS(70KW) |
| 118d | F20|150PS(110KW) |
| 116d | F21|116PS(85KW) |
| M 135i | F21|320PS(235KW) |
| 120i | F21|184PS(135KW) |
| 125d | F21|211PS(155KW) |
| 118i | F20|136PS(100KW) |
| 116i | F21|109PS(80KW) |
| 120d | F20|163PS(120KW) |
| 125d | F21|224PS(165KW) |
| 118i | F21|136PS(100KW) |
| 120d | F20|190PS(140KW) |
| 120i | F20|184PS(135KW) |
| 114i | F20|102PS(75KW) |
| 114d | F21|95PS(70KW) |
| 116i | F20|136PS(100KW) |
| 125d | F21|218PS(160KW) |
| M 140i | F20|340PS(250KW) |
| 120d | F21|200PS(147KW) |
| 116d | F20|116PS(85KW) |
| 116i | F21|136PS(100KW) |
| 120d | F20|184PS(135KW) |
| 125d | F20|224PS(165KW) |
| 118i | F21|170PS(125KW) |
| 120i | F21|177PS(130KW) |
| 118d | F21|136PS(100KW) |
| 118d | F20|136PS(100KW) |
| 118d | F21|143PS(105KW) |
| 118d | F21|150PS(110KW) |
| 118d | F20|143PS(105KW) |
| M 135i | F21|326PS(240KW) |
| 114i | F21|102PS(75KW) |
| 120d | F21|190PS(140KW) |
| 125i | F21|218PS(160KW) |
| 125d | F20|211PS(155KW) |
| 125i | F20|224PS(165KW) |
| M 135i | F20|320PS(235KW) |
| 118i | F20|170PS(125KW) |
| 120i | F20|177PS(130KW) |
| M 140i | F21|340PS(250KW) |
| 125i | F21|238PS(175KW) |
| Motor | Motorcode |
|---|---|
| 418d | F32|136PS(100KW) |
| 430i | F82|252PS(185KW) |
| 435i | F82|306PS(225KW) |
| 428i | F82|245PS(180KW) |
| 435i | F32|306PS(225KW) |
| 430d | F82|258PS(190KW) |
| 425d | F82|211PS(155KW) |
| 425d | F32|218PS(160KW) |
| 440i | F32|326PS(240KW) |
| 418i | F82|136PS(100KW) |
| 418i | F32|136PS(100KW) |
| 420d | F32|200PS(147KW) |
| 430i | F32|252PS(185KW) |
| 420d | F32|190PS(140KW) |
| 420i | F82|163PS(120KW) |
| 440i | F82|360PS(265KW) |
| 420i | F32|163PS(120KW) |
| 425d | F32|224PS(165KW) |
| 430d | F82|286PS(210KW) |
| 420d | F82|200PS(147KW) |
| 420i | F82|184PS(135KW) |
| 420i | F32|184PS(135KW) |
| 428i | F32|245PS(180KW) |
| 430d | F32|286PS(210KW) |
| 418d | F32|150PS(110KW) |
| 420d | F32|184PS(135KW) |
| 440i | F82|326PS(240KW) |
| 420d | F32|163PS(120KW) |
| 435i | F82|340PS(250KW) |
| 440i | F32|360PS(265KW) |
| 430d | F32|258PS(190KW) |
| 420d | F82|163PS(120KW) |
| 420d | F82|184PS(135KW) |
| 418d | F82|150PS(110KW) |
| 425d | F32|211PS(155KW) |
| 425d | F82|218PS(160KW) |
| 418d | F82|136PS(100KW) |
| 435i | F32|340PS(250KW) |
| 420d | F82|190PS(140KW) |
| 425d | F82|224PS(165KW) |
| Motor | Motorcode |
|---|---|
| 316d | F31|116PS(85KW) |
| 330i | F31|252PS(185KW) |
| 325d | F31|211PS(155KW) |
| 328i | F31|245PS(180KW) |
| 330d | F31|258PS(190KW) |
| 335i | F31|326PS(240KW) |
| 316i | F31|136PS(100KW) |
| 318d | F31|143PS(105KW) |
| 320d | F31|200PS(147KW) |
| 325d | F31|218PS(160KW) |
| 330d | F31|286PS(210KW) |
| 320d | F31|184PS(135KW) |
| 340i | F31|326PS(240KW) |
| 318d | F31|150PS(110KW) |
| 325d | F31|224PS(165KW) |
| 318i | F31|136PS(100KW) |
| 320d | F31|190PS(140KW) |
| 320d | F31|163PS(120KW) |
| 320i | F31|184PS(135KW) |
| 335i | F31|340PS(250KW) |
| 340i | F31|360PS(265KW) |
| 335i | F31|306PS(225KW) |
| 318d | F31|136PS(100KW) |
| Motor | Motorcode |
|---|---|
| 320d | F34|190PS(140KW) |
| 325d | F34|218PS(160KW) |
| 320d | F34|200PS(147KW) |
| 325d | F34|211PS(155KW) |
| 328i | F34|245PS(180KW) |
| 320i | F34|163PS(120KW) |
| 340i | F34|360PS(265KW) |
| 340i | F34|326PS(240KW) |
| 330i | F34|252PS(185KW) |
| 335i | F34|326PS(240KW) |
| 320i | F34|184PS(135KW) |
| 318d | F34|136PS(100KW) |
| 335i | F34|340PS(250KW) |
| 320d | F34|184PS(135KW) |
| 335i | F34|306PS(225KW) |
| 330d | F34|258PS(190KW) |
| 330d | F34|286PS(210KW) |
| 318d | F34|150PS(110KW) |
| 318d | F34|143PS(105KW) |
| 320d | F34|163PS(120KW) |
| 325d | F34|224PS(165KW) |
| Motor | Motorcode |
|---|---|
| 420d | F36|184PS(135KW) |
| 420i | F36|184PS(135KW) |
| 418d | F36|150PS(110KW) |
| 420d | F36|163PS(120KW) |
| 435i | F36|340PS(250KW) |
| 420d | F36|190PS(140KW) |
| 440i | F36|326PS(240KW) |
| 418d | F36|136PS(100KW) |
| 430i | F36|252PS(185KW) |
| 420d | F36|200PS(147KW) |
| 430d | F36|286PS(210KW) |
| 435i | F36|306PS(225KW) |
| 425d | F36|211PS(155KW) |
| 420i | F36|163PS(120KW) |
| 418d | F36|143PS(105KW) |
| 430d | F36|258PS(190KW) |
| 428i | F36|245PS(180KW) |
| 425d | F36|224PS(165KW) |
| 418i | F36|136PS(100KW) |
| 440i | F36|360PS(265KW) |
| Motor | Motorcode |
|---|---|
| 220d | F87|184PS(135KW) |
| 218i | F87|136PS(100KW) |
| 218d | F22|143PS(105KW) |
| 220i | F22|184PS(135KW) |
| 225d | F22|218PS(160KW) |
| 230i | F87|252PS(185KW) |
| 218d | F87|150PS(110KW) |
| 225d | F22|224PS(165KW) |
| 220i | F87|184PS(135KW) |
| 230i | F22|252PS(185KW) |
| 228i | F22|245PS(180KW) |
| 220d | F22|190PS(140KW) |
| 218d | F87|143PS(105KW) |
| 228i | F87|245PS(180KW) |
| M 235i | F87|326PS(240KW) |
| 220d | F87|163PS(120KW) |
| 220d | F87|200PS(147KW) |
| 218d | F22|150PS(110KW) |
| M 235i | F22|326PS(240KW) |
| 220d | F22|184PS(135KW) |
| 225d | F87|224PS(165KW) |
| 225d | F87|218PS(160KW) |
| 218i | F22|136PS(100KW) |
| 220d | F87|190PS(140KW) |
| 220d | F22|200PS(147KW) |
| 220d | F22|163PS(120KW) |
| 218d | F22|136PS(100KW) |
| 218d | F87|136PS(100KW) |
- ✓ 380x30 34112284809 34112284810 Brake disc

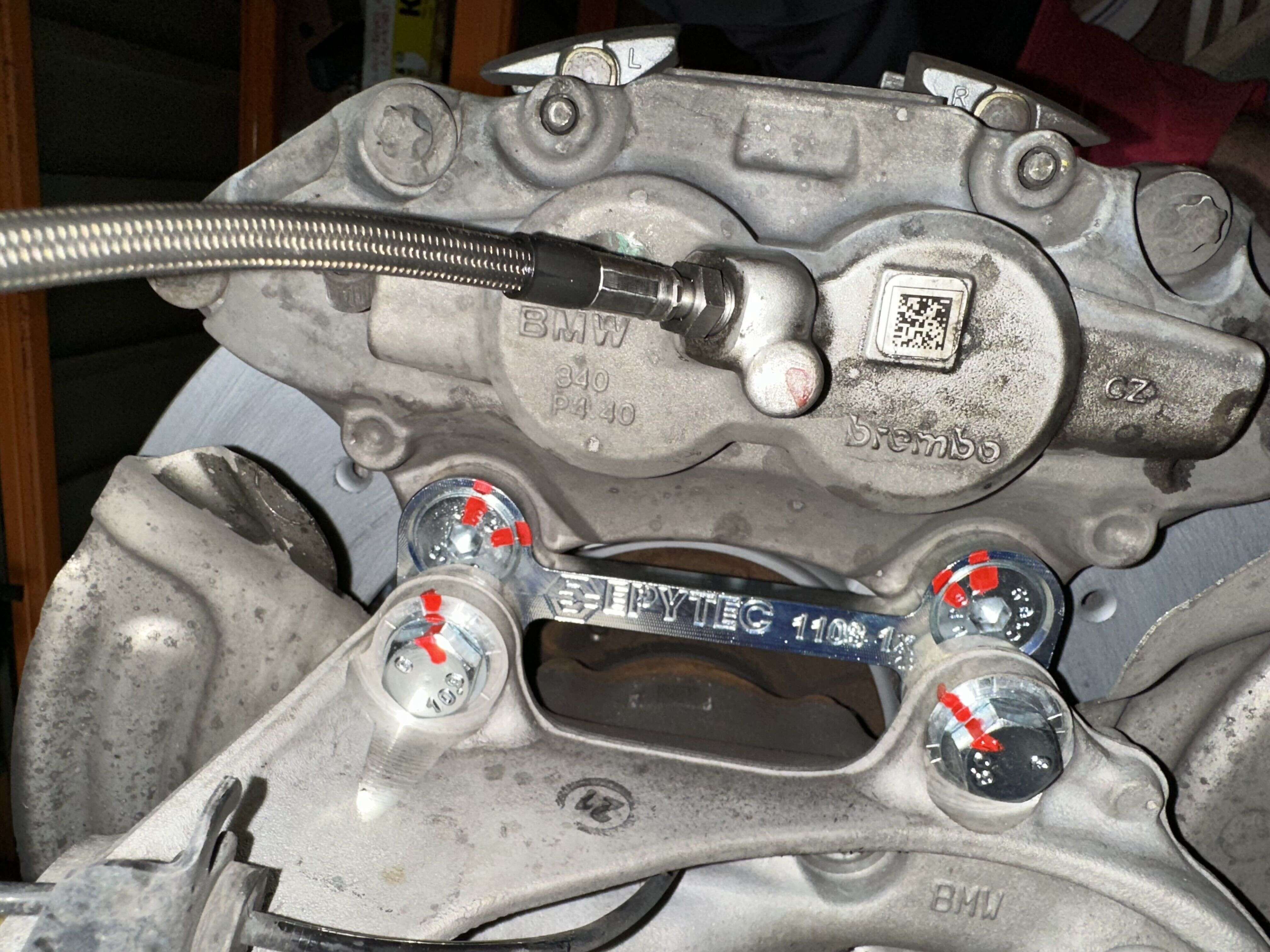

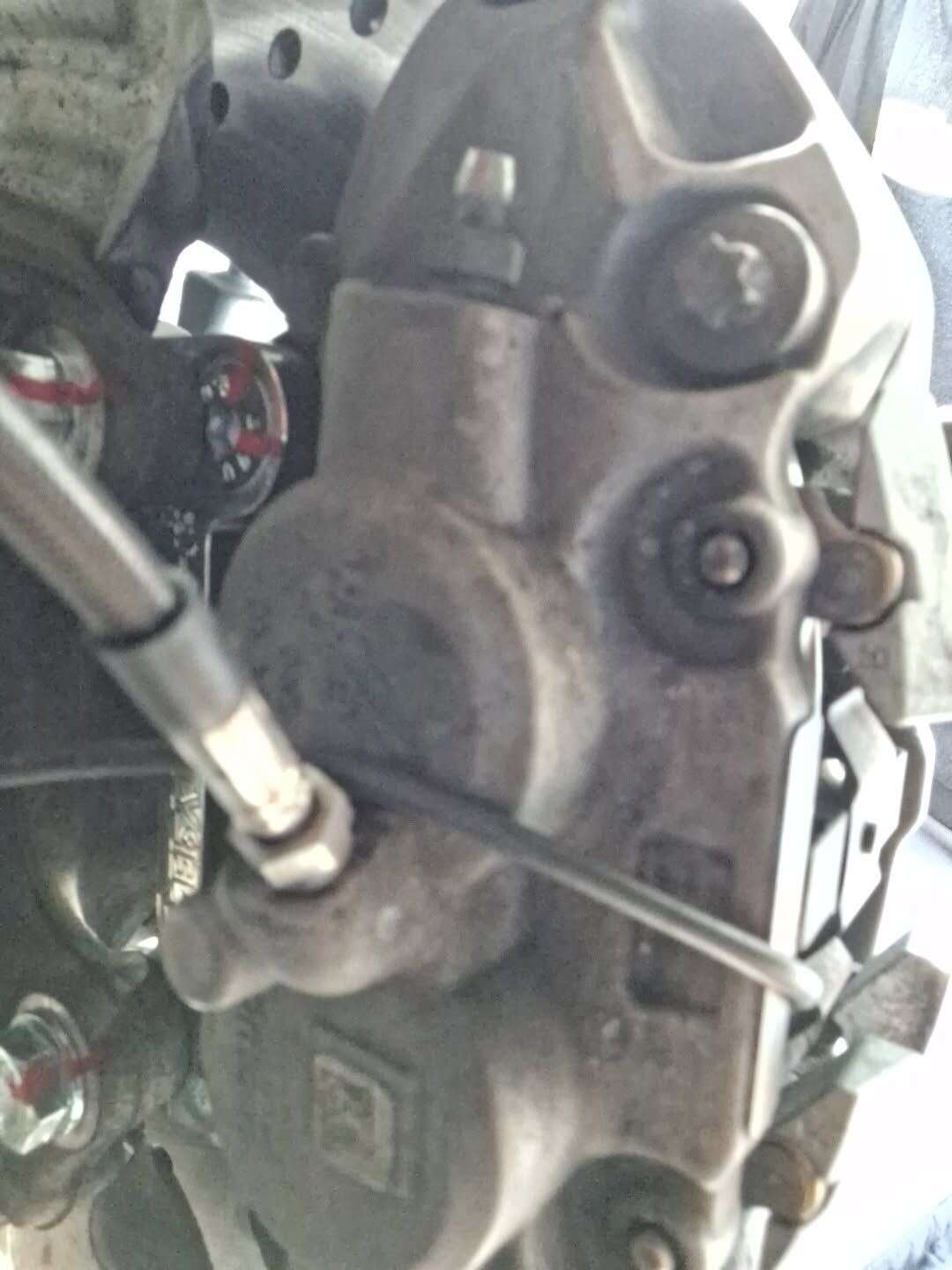

- ✓ 4-piston F20 34116799465 34116799466 Brake calipers
- ✓ front axle
- ✓ clutch pin, clutch locking bolt
- ✓ BMW E30 E46 E81 E88 and much more
- ✓ high durability
- ✓ 400x36 34118072017 / 34118072018 BMW M2 brake disc
- ✓ 6-piston 34117845747 / 34117845748 BMW F10 M5 brake caliper
- ✓ front axle
- ✓ Hole circle: 5x120
- ✓ Thickness: 12mm
- ✓ Centering 72.5->79.0
- ✓ 370x30
- ✓ 79mm centering
- ✓ 73mm height
- ✓ 380x30
- ✓ 79mm centering
- ✓ 62mm height
