Opel Kadett Vectra Calibra 16V Camber correction plates -1.0G negative
- ✓ Camber correction plates for installation on rear axle.Allow a perfect camber adjustment on your vehicle.
£86.52*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty
⚠️ Important Notice:
This item is produced exclusively upon request. As it is a made-to-order special production based on demand, there is no right of withdrawal pursuant to § 312g (2) No. 1 of the German Civil Code (BGB).
Therefore, returns or exchanges are excluded.
Correction plates for installation on rear axle.
Tailor-made for all Opel vehicles with front-whel drive and equipped with 16V axle as:
- Kadett E
- Calibra
- Vectra
- Astra F / H

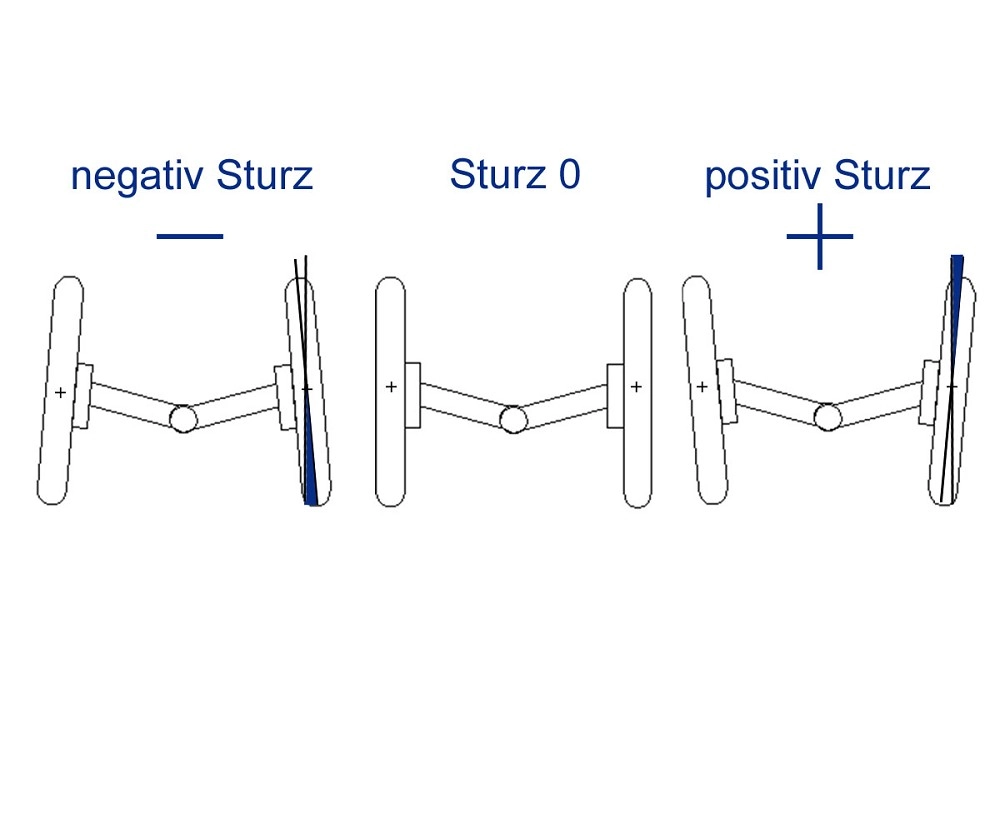

Allow a perfect camber adjustment.This guarantees a even consumption of your tires.
Recommanded for sporty driving on public road and for any kind of partecipation in races.
Technical information:
- The correction plates are installed between axle and axle tap. Installation is simple and it’s excution doesn’t require much time.
- The wheel lane widens only 3mm on every side.
- The degree of tilt of every plate is negativ of 1,0.
- Any plate typ with different degree of tilt can be delivered upon request.
Scope of delivery:

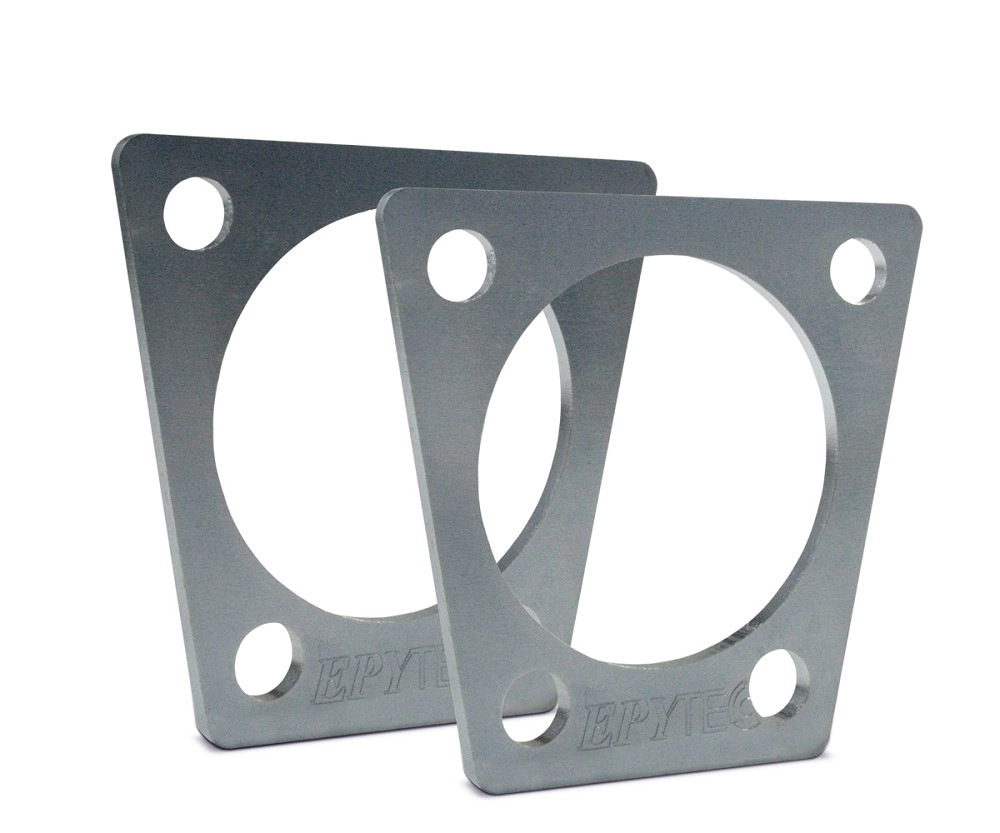

- 2x Correction plates for camber adjustment, galvanized.
Login
12 February 2018 13:47
jaycent_91
Alles bestens, sehr schnelle Lieferung, gerne wieder! 👍🏻
2 May 2021 19:00
hoffe_hoffendlich
Vielen dank! Alles super!
12 February 2021 20:49
pirelli.gti.83
Alles ok, schneller Versand
13 November 2016 21:52
getawayfan
Fast shipping, item as described. All OK.
8 August 2017 14:13
schnuffsopel
Schneller Versand. Top Ware. Gerne wieder.
6 November 2022 19:52
alesscasa32
Immer wieder gerne 👍
21 July 2018 08:42
astrafx16xel
Alles bestens. Top Qualität.
1 February 2021 22:01
xs-powercrew
Alles perfekt gelaufen 👍
27 April 2022 06:22
Christian H
Ich bin vom Bestellvorgabg bis zur Lieferung super zufrieden! Das Materiall macht einen super Eindruck. Ich würde ihn jedem empfehlen der sein Auto zum Kurven räubern und nicht zum Autobahn schrubben oder 1/4 Meile fahren hat! Habe diesen Satz schon einmal verschenkt und war so zufrieden mit der Bearbeitung auch den Unterlagen. Jetzt wollte ich es selbst probieren ;) eingebaut bringt es extrem viel Spaß. Kurvenlage und Fahrverhalten definitiv verbessert.
10 January 2021 12:26
mbrandl2012
Alles super. Gerne wieder
- Does the ABS still function after installing the camber correction?
Yes, basically the ABS will continue to function after installing a camber correction. The important thing is: If you significantly change the camber, the geometry between the ABS sensor and the ABS ring (impulse ring) can shift in such a way that the sensor no longer operates optimally "at the correct angle" or parallel to the ring.
Why can there be problems?
The ABS sensor reads the ABS ring with a defined distance and alignment angle. With a significant camber change (often from about 1°, depending on the vehicle and axle design), it can happen that:
the sensor no longer lines up correctly, or
the air gap between the sensor and the ring is no longer within the target range.
Then the ABS can basically continue to work, but there can be, for example, ABS/ESP warning messages, sporadic interventions, or error memory entries.
What needs to be done then?
If something like this occurs, a small adjustment is usually sufficient:
Slightly correct the position of the ABS sensor (e.g., slightly reposition/align it on the mount)
Check seating and attachment (sensor must be flat and securely seated)
Check the air gap (not rubbing, not too large)
Then it is best to read/clear the error memory and take a short test drive.
Practical Tip
After the conversion, it is recommended to have an axle alignment. If you are using camber values in the range > 1°, it is advisable to check the ABS sensor area directly so that no surprises arise later.
- Do I need longer screws or can the old ones remain.
With Epytec camber correction plates, you can continue to use the original screws up to +-2°. For camber correction plates over 2°, we recommend slightly sanding a washer and placing it under the screw head so that it continues to sit flush on the camber correction plate. Of course, if the camber correction plate is thicker, new screws may be needed directly.
- Can camber correction plates be installed on drum brakes?
Yes, this is possible provided that a stub axle is installed on the rear axle. In this case, our Epytec camber correction plates can also be easily mounted on drum brakes. The functionality and installation are largely the same as for vehicles with disc brakes.
It is important that the mounting points of the stub axle match the execution of the camber correction plates.
| Motor | Motorcode |
|---|---|
| 1.8 E | 35|100PS(74KW) |
| 1.5 TD | T85|72PS(53KW) |
| 1.6 S | T85|90PS(66KW) |
| 1.5 TD | 36|72PS(53KW) |
| 1.3i Cat | 45|60PS(44KW) |
| 1.4i | 35|60PS(44KW) |
| 1.8 S | T85|84PS(62KW) |
| 1.8 E | 36|100PS(74KW) |
| 1.5 TD | 45|72PS(53KW) |
| 1.4i | T85|60PS(44KW) |
| 1.2 | T85|55PS(40KW) |
| 1.6i Cat | 36|75PS(55KW) |
| 1.4i | 45|60PS(44KW) |
| 1.8i | 46|90PS(66KW) |
| 1.3 S | 36|75PS(55KW) |
| 1.6i Cat | 45|75PS(55KW) |
| 2.0i Cat | 45|115PS(85KW) |
| 1.6i Cat | 35|75PS(55KW) |
| 1.6 D | 46|54PS(40KW) |
| 1.8 E | 45|100PS(74KW) |
| 1.4 S | T85|75PS(55KW) |
| 2.0i Cat | 36|115PS(85KW) |
| 1.5 TD | 46|72PS(53KW) |
| 1.8 E | T85|100PS(74KW) |
| 1.3i Cat | 46|60PS(44KW) |
| 1.3i Cat | T85|60PS(44KW) |
| 1.3 S | T85|75PS(55KW) |
| 1.6 | T85|82PS(60KW) |
| 1.6 D | 35|54PS(40KW) |
| 1.5 TD | 35|72PS(53KW) |
| 1.3 S | 45|75PS(55KW) |
| 1.3 S | 35|75PS(55KW) |
| 1.4i | 36|60PS(44KW) |
| 1.6i Cat | T85|75PS(55KW) |
| 1.8i | 45|90PS(66KW) |
| 1.6i Cat | 46|75PS(55KW) |
| 2.0i Cat | T85|115PS(85KW) |
| 1.6 D | 36|54PS(40KW) |
| 1.6 D | T85|54PS(40KW) |
| 1.8i | 36|90PS(66KW) |
| 1.3 N | T85|60PS(44KW) |
| 2.0i Cat | 35|115PS(85KW) |
| 1.8 E | 46|100PS(74KW) |
| 1.6i | T85|75PS(55KW) |
| 1.3i Cat | 35|60PS(44KW) |
| 1.8i | 35|90PS(66KW) |
| 1.6 D | 45|54PS(40KW) |
| 2.0i Cat | 46|115PS(85KW) |
| 1.3i Cat | 36|60PS(44KW) |
| 1.7 D | T85|57PS(42KW) |
| 1.3 S | 46|75PS(55KW) |
| 1.4i | 46|60PS(44KW) |
| 1.8i | T85|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.7 D | T92|57PS(42KW) |
| 1.8i | T92|90PS(66KW) |
| 1.6i | T92|75PS(55KW) |
| 1.8i 16V | 56|125PS(92KW) |
| 1.6i 16V | 57|100PS(74KW) |
| 1.8i 16V | 57|125PS(92KW) |
| 1.6i | 57|71PS(52KW) |
| 2.0i | T92|115PS(85KW) |
| 1.8i 16V | 57|116PS(85KW) |
| 1.7 TD | T92|68PS(50KW) |
| 1.4i | 57|60PS(44KW) |
| 1.6i | 56|75PS(55KW) |
| 1.4i | 56|60PS(44KW) |
| 1.7 TDS | 57|82PS(60KW) |
| 1.4i | T92|60PS(44KW) |
| 1.4i 16V | 57|90PS(66KW) |
| 1.4 Si | T92|82PS(60KW) |
| 2.0i 16V | T92|136PS(100KW) |
| 1.8i | 57|90PS(66KW) |
| 1.6i | 56|71PS(52KW) |
| 1.8i | 56|90PS(66KW) |
| 1.6i | T92|71PS(52KW) |
| 1.7 TDS | T92|82PS(60KW) |
| 1.4 Si | 56|82PS(60KW) |
| 1.7 TDS | 56|82PS(60KW) |
| 1.6i | 57|75PS(55KW) |
| 1.8i 16V | T92|125PS(92KW) |
| 1.6i 16V | 56|100PS(74KW) |
| 1.4 Si | 57|82PS(60KW) |
| 1.7 D | T92|60PS(44KW) |
| 2.0i | 57|115PS(85KW) |
| 1.4i 16V | 56|90PS(66KW) |
| 1.8i 16V | 56|116PS(85KW) |
| 2.0i | 56|115PS(85KW) |
| 1.8i 16V | T92|116PS(85KW) |
| 1.4i 16V | T92|90PS(66KW) |
| 1.6i 16V | T92|100PS(74KW) |
| Motor | Motorcode |
|---|---|
| 1.8i 16V | T92|116PS(85KW) |
| 1.4i | 52|60PS(44KW) |
| 1.7 D | T92|57PS(42KW) |
| 1.8i 16V | 52|125PS(92KW) |
| 2.0i 16V | 51|150PS(110KW) |
| 2.0i 16V | 51|136PS(100KW) |
| 1.8i | 51|90PS(66KW) |
| 2.0i | T92|115PS(85KW) |
| 1.4 Si | 51|82PS(60KW) |
| 1.6i | 52|71PS(52KW) |
| 1.7 TDS | 52|82PS(60KW) |
| 1.4 Si | 52|82PS(60KW) |
| 1.8i 16V | 52|116PS(85KW) |
| 1.7 TDS | T92|82PS(60KW) |
| 2.0i | 52|115PS(85KW) |
| 2.0i 16V | 52|150PS(110KW) |
| 1.7 D | T92|60PS(44KW) |
| 2.0i 16V | T92|150PS(110KW) |
| 1.6i | 51|71PS(52KW) |
| 1.6i | 52|75PS(55KW) |
| 1.4i 16V | 51|90PS(66KW) |
| 1.8i 16V | T92|125PS(92KW) |
| 1.6i | 51|75PS(55KW) |
| 1.8i | T92|90PS(66KW) |
| 1.6i 16V | 52|100PS(74KW) |
| 1.6i 16V | 51|100PS(74KW) |
| 1.4i 16V | 52|90PS(66KW) |
| 1.6i | T92|71PS(52KW) |
| 2.0i 16V | T92|136PS(100KW) |
| 1.8i 16V | 51|125PS(92KW) |
| 2.0i 16V | 52|136PS(100KW) |
| 1.8i 16V | 51|116PS(85KW) |
| 2.0i | 51|115PS(85KW) |
| 1.8i | 52|90PS(66KW) |
| 1.6i 16V | T92|100PS(74KW) |
| 1.7 TDS | 51|82PS(60KW) |
| 1.4i | T92|60PS(44KW) |
| 1.4i | 51|60PS(44KW) |
| 1.4i 16V | T92|90PS(66KW) |
| 1.7 TD | T92|68PS(50KW) |
| 1.4 Si | T92|82PS(60KW) |
| 1.6i | T92|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.4 LPG | A04|90PS(66KW) |
| 1.7 CDTi | A04|101PS(74KW) |
| 1.6 | A04|116PS(85KW) |
| 1.6 Turbo | A04|180PS(132KW) |
| 1.7 CDTi | A04|110PS(81KW) |
| 1.4 | L35|75PS(55KW) |
| 1.6 | A04|105PS(77KW) |
| 1.7 CDTi | A04|80PS(59KW) |
| 1.7 CDTi | A04|125PS(92KW) |
| 1.6 LPG | A04|116PS(85KW) |
| 1.9 CDTi | A04|150PS(110KW) |
| 1.4 LPG | L35|90PS(66KW) |
| 1.4 | A04|75PS(55KW) |
| 1.9 CDTi | A04|120PS(88KW) |
| 1.4 | A04|90PS(66KW) |
| 2.0 Turbo | A04|200PS(147KW) |
| 1.8 | A04|140PS(103KW) |
| 2.0 Turbo | A04|170PS(125KW) |
| 1.8 | A04|125PS(92KW) |
| 1.6 LPG | L35|116PS(85KW) |
| 1.9 CDTi | A04|100PS(74KW) |
| 1.3 CDTi | A04|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.6 D | T85|54PS(40KW) |
| 1.6 D | 39|54PS(40KW) |
| 1.3i Cat | 49|60PS(44KW) |
| 1.6i Cat | 49|75PS(55KW) |
| 1.5 TD | 49|72PS(53KW) |
| 1.7 D | T85|57PS(42KW) |
| 1.6 D | 49|54PS(40KW) |
| 1.8 S | T85|84PS(62KW) |
| 1.4 S | T85|75PS(55KW) |
| 1.3 N | T85|60PS(44KW) |
| 1.3i Cat | 39|60PS(44KW) |
| 1.2 | T85|55PS(40KW) |
| 1.8i | T85|100PS(74KW) |
| 1.8i | T85|90PS(66KW) |
| 2.0i | T85|115PS(85KW) |
| 1.6 S | 49|90PS(66KW) |
| 1.4i | T85|60PS(44KW) |
| 1.8i | 49|100PS(74KW) |
| 1.5 TD | 39|72PS(53KW) |
| 1.8i | 49|90PS(66KW) |
| 1.5 TD | T85|72PS(53KW) |
| 2.0i Cat | 49|115PS(85KW) |
| 1.6i Cat | T85|75PS(55KW) |
| 1.8i | 39|90PS(66KW) |
| 1.6 S | T85|90PS(66KW) |
| 1.3i Cat | T85|60PS(44KW) |
| 1.6 S | T85|82PS(60KW) |
| 1.6 S | 39|90PS(66KW) |
| 1.3 S | T85|75PS(55KW) |
| 1.6i Cat | 39|75PS(55KW) |
| 2.0i Cat | 39|115PS(85KW) |
| 1.8i | 39|100PS(74KW) |
| 2.0i Cat | T85|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.8 | 87|84PS(62KW) |
| 1.3 S | 88|75PS(55KW) |
| 1.8 | J82|84PS(62KW) |
| 1.3 N | 81|60PS(44KW) |
| 1.8 E | 87|100PS(74KW) |
| 1.6 | 87|75PS(55KW) |
| 2.0i GT | J82|130PS(95KW) |
| 1.6 S | 81|90PS(66KW) |
| 1.8i | 88|115PS(85KW) |
| 1.6 D | J82|54PS(40KW) |
| 1.3 S | J82|75PS(55KW) |
| 1.8i | 81|115PS(85KW) |
| 1.6 S | 88|90PS(66KW) |
| 1.8i | 86|115PS(85KW) |
| 1.3 S | 86|75PS(55KW) |
| 1.8 | 81|84PS(62KW) |
| 2.0i | 87|100PS(74KW) |
| 1.3 N | 87|60PS(44KW) |
| 1.8 | 86|84PS(62KW) |
| 2.0i | 81|100PS(74KW) |
| 1.8 | 88|84PS(62KW) |
| 1.6 S | 87|90PS(66KW) |
| 2.0i | 88|115PS(85KW) |
| 1.6 | 81|75PS(55KW) |
| 2.0i Cat | J82|116PS(85KW) |
| 1.6 D | 87|54PS(40KW) |
| 1.8 E | 88|100PS(74KW) |
| 1.6 | 88|75PS(55KW) |
| 1.6 S | 86|90PS(66KW) |
| 2.0i GT | 87|130PS(95KW) |
| 2.0i | 81|115PS(85KW) |
| 1.8i | J82|115PS(85KW) |
| 2.0i GT | 86|130PS(95KW) |
| 1.3 N | 88|60PS(44KW) |
| 1.6 | 86|82PS(60KW) |
| 1.6 S | J82|90PS(66KW) |
| 2.0i | 86|115PS(85KW) |
| 1.3 N | 86|60PS(44KW) |
| 1.8 E | J82|100PS(74KW) |
| 1.6 | J82|82PS(60KW) |
| 2.0i | 87|115PS(85KW) |
| 2.0i GT | 81|130PS(95KW) |
| 1.6 | 86|75PS(55KW) |
| 1.6 D | 81|54PS(40KW) |
| 1.6 D | 86|54PS(40KW) |
| 1.6 | 87|82PS(60KW) |
| 2.0i GT | 88|130PS(95KW) |
| 1.6i Cat | J82|75PS(55KW) |
| 1.3 N | J82|60PS(44KW) |
| 1.8i | 87|115PS(85KW) |
| 1.3 S | 87|75PS(55KW) |
| 2.0i | 86|100PS(74KW) |
| 1.3 S | 81|75PS(55KW) |
| 1.6 | 88|82PS(60KW) |
| 1.8 E | 81|100PS(74KW) |
| 2.0i | J82|100PS(74KW) |
| 1.6 | 81|82PS(60KW) |
| 1.8 E | 86|100PS(74KW) |
| 1.6 D | 88|54PS(40KW) |
| 2.0i | 88|100PS(74KW) |
| Motor | Motorcode |
|---|---|
| 1.9 CDTi | A04|150PS(110KW) |
| 1.6 | A04|105PS(77KW) |
| 1.7 CDTi | A04|80PS(59KW) |
| 1.4 LPG | L48|90PS(66KW) |
| 1.8 | A04|125PS(92KW) |
| 1.4 | L48|75PS(55KW) |
| 1.6 Turbo | A04|180PS(132KW) |
| 1.8 | A04|140PS(103KW) |
| 1.7 CDTi | A04|110PS(81KW) |
| 1.4 | A04|90PS(66KW) |
| 1.9 CDTi | A04|100PS(74KW) |
| 1.4 LPG | A04|90PS(66KW) |
| 2.0 Turbo | A04|200PS(147KW) |
| 1.7 CDTi | A04|125PS(92KW) |
| 1.4 | A04|75PS(55KW) |
| 2.0 Turbo | A04|240PS(177KW) |
| 1.9 CDTi | A04|120PS(88KW) |
| 1.7 CDTi | A04|100PS(74KW) |
| 1.3 CDTi | A04|90PS(66KW) |
| 2.0 Turbo | A04|170PS(125KW) |
| 1.6 | A04|116PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.6i | 43B|82PS(60KW) |
| 1.4 S | T85|75PS(55KW) |
| 1.6i | T85|75PS(55KW) |
| 1.4 S | 43B|75PS(55KW) |
| 2.0i Cat | 43B|116PS(85KW) |
| 1.6i | T85|82PS(60KW) |
| 1.6i Cat | T85|75PS(55KW) |
| 2.0i Cat | T85|116PS(85KW) |
| 1.3 S | T85|75PS(55KW) |
| 1.6i Cat | 43B|75PS(55KW) |
| 1.3 S | 43B|75PS(55KW) |
| 2.0i | T85|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.7 D | J89|60PS(44KW) |
| 2.0i | 86|129PS(95KW) |
| 1.7 TD | J89|82PS(60KW) |
| 2.0i Cat | 87|116PS(85KW) |
| 2.0i | J89|129PS(95KW) |
| 2000/GT 16V Cat | 87|150PS(110KW) |
| 2.0 | 86|100PS(74KW) |
| 2.0 | J89|100PS(74KW) |
| 2.5 V6 | 87|170PS(125KW) |
| 2.0i | J89|115PS(85KW) |
| 1.6 | 87|82PS(60KW) |
| 2.0i Cat | J89|116PS(85KW) |
| 1.8 S | J89|88PS(65KW) |
| 1.7 TD | 86|82PS(60KW) |
| 2000/GT 16V Cat | 86|150PS(110KW) |
| 2.5 V6 | J89|170PS(125KW) |
| 1.8 S | 86|88PS(65KW) |
| 1.6 | 86|82PS(60KW) |
| 1.8 S | 87|88PS(65KW) |
| 2000/GT 16V Cat | J89|150PS(110KW) |
| 2.0i 16V | J89|136PS(100KW) |
| 1.8 S | 86|90PS(66KW) |
| 2.0i | 87|129PS(95KW) |
| 1.7 TD | 87|82PS(60KW) |
| 1.8 S | 87|90PS(66KW) |
| 1.7 D | J89|57PS(42KW) |
| 2.0i Cat | 86|116PS(85KW) |
| 1.8 S | J89|90PS(66KW) |
| 1.6 | J89|82PS(60KW) |
| 2.0 | 87|100PS(74KW) |
| 2.5 V6 | 86|170PS(125KW) |
| Motor | Motorcode |
|---|---|
| 1.4i 16V | T92|90PS(66KW) |
| 1.6i | 53 B|71PS(52KW) |
| 1.6i | T92|75PS(55KW) |
| 1.6i | T92|71PS(52KW) |
| 1.4i 16V | 53 B|90PS(66KW) |
| 1.4 Si | T92|82PS(60KW) |
| 1.8i 16V | 53 B|116PS(85KW) |
| 1.4 Si | 53 B|82PS(60KW) |
| 2.0i | T92|115PS(85KW) |
| 1.8i 16V | T92|116PS(85KW) |
| 1.6i | 53 B|75PS(55KW) |
| 2.0i | 53 B|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.7 D | T85|57PS(42KW) |
| 1.2 | T85|55PS(40KW) |
| 1.6i | T85|75PS(55KW) |
| 1.6 D | T85|54PS(40KW) |
| 1.3 N | T85|60PS(44KW) |
| 1.8i | T85|90PS(66KW) |
| 1.4i | T85|60PS(44KW) |
| Motor | Motorcode |
|---|---|
| 2.0i 16V | 85|150PS(110KW) |
| 2.0i 16V | C89|136PS(100KW) |
| 2.0i 16V | C89|150PS(110KW) |
| 2.0i 16V | 85|136PS(100KW) |
| Motor | Motorcode |
|---|---|
| 1.8 E | 35|100PS(74KW) |
| 1.5 TD | T85|72PS(53KW) |
| 1.6 S | T85|90PS(66KW) |
| 1.5 TD | 36|72PS(53KW) |
| 1.3i Cat | 45|60PS(44KW) |
| 1.4i | 35|60PS(44KW) |
| 1.8 S | T85|84PS(62KW) |
| 1.8 E | 36|100PS(74KW) |
| 1.5 TD | 45|72PS(53KW) |
| 1.4i | T85|60PS(44KW) |
| 1.2 | T85|55PS(40KW) |
| 1.6i Cat | 36|75PS(55KW) |
| 1.4i | 45|60PS(44KW) |
| 1.8i | 46|90PS(66KW) |
| 1.3 S | 36|75PS(55KW) |
| 1.6i Cat | 45|75PS(55KW) |
| 2.0i Cat | 45|115PS(85KW) |
| 1.6i Cat | 35|75PS(55KW) |
| 1.6 D | 46|54PS(40KW) |
| 1.8 E | 45|100PS(74KW) |
| 1.4 S | T85|75PS(55KW) |
| 2.0i Cat | 36|115PS(85KW) |
| 1.5 TD | 46|72PS(53KW) |
| 1.8 E | T85|100PS(74KW) |
| 1.3i Cat | 46|60PS(44KW) |
| 1.3i Cat | T85|60PS(44KW) |
| 1.3 S | T85|75PS(55KW) |
| 1.6 | T85|82PS(60KW) |
| 1.6 D | 35|54PS(40KW) |
| 1.5 TD | 35|72PS(53KW) |
| 1.3 S | 45|75PS(55KW) |
| 1.3 S | 35|75PS(55KW) |
| 1.4i | 36|60PS(44KW) |
| 1.6i Cat | T85|75PS(55KW) |
| 1.8i | 45|90PS(66KW) |
| 1.6i Cat | 46|75PS(55KW) |
| 2.0i Cat | T85|115PS(85KW) |
| 1.6 D | 36|54PS(40KW) |
| 1.6 D | T85|54PS(40KW) |
| 1.8i | 36|90PS(66KW) |
| 1.3 N | T85|60PS(44KW) |
| 2.0i Cat | 35|115PS(85KW) |
| 1.8 E | 46|100PS(74KW) |
| 1.6i | T85|75PS(55KW) |
| 1.3i Cat | 35|60PS(44KW) |
| 1.8i | 35|90PS(66KW) |
| 1.6 D | 45|54PS(40KW) |
| 2.0i Cat | 46|115PS(85KW) |
| 1.3i Cat | 36|60PS(44KW) |
| 1.7 D | T85|57PS(42KW) |
| 1.3 S | 46|75PS(55KW) |
| 1.4i | 46|60PS(44KW) |
| 1.8i | T85|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.7 D | T92|57PS(42KW) |
| 1.8i | T92|90PS(66KW) |
| 1.6i | T92|75PS(55KW) |
| 1.8i 16V | 56|125PS(92KW) |
| 1.6i 16V | 57|100PS(74KW) |
| 1.8i 16V | 57|125PS(92KW) |
| 1.6i | 57|71PS(52KW) |
| 2.0i | T92|115PS(85KW) |
| 1.8i 16V | 57|116PS(85KW) |
| 1.7 TD | T92|68PS(50KW) |
| 1.4i | 57|60PS(44KW) |
| 1.6i | 56|75PS(55KW) |
| 1.4i | 56|60PS(44KW) |
| 1.7 TDS | 57|82PS(60KW) |
| 1.4i | T92|60PS(44KW) |
| 1.4i 16V | 57|90PS(66KW) |
| 1.4 Si | T92|82PS(60KW) |
| 2.0i 16V | T92|136PS(100KW) |
| 1.8i | 57|90PS(66KW) |
| 1.6i | 56|71PS(52KW) |
| 1.8i | 56|90PS(66KW) |
| 1.6i | T92|71PS(52KW) |
| 1.7 TDS | T92|82PS(60KW) |
| 1.4 Si | 56|82PS(60KW) |
| 1.7 TDS | 56|82PS(60KW) |
| 1.6i | 57|75PS(55KW) |
| 1.8i 16V | T92|125PS(92KW) |
| 1.6i 16V | 56|100PS(74KW) |
| 1.4 Si | 57|82PS(60KW) |
| 1.7 D | T92|60PS(44KW) |
| 2.0i | 57|115PS(85KW) |
| 1.4i 16V | 56|90PS(66KW) |
| 1.8i 16V | 56|116PS(85KW) |
| 2.0i | 56|115PS(85KW) |
| 1.8i 16V | T92|116PS(85KW) |
| 1.4i 16V | T92|90PS(66KW) |
| 1.6i 16V | T92|100PS(74KW) |
| Motor | Motorcode |
|---|---|
| 1.8i 16V | T92|116PS(85KW) |
| 1.4i | 52|60PS(44KW) |
| 1.7 D | T92|57PS(42KW) |
| 1.8i 16V | 52|125PS(92KW) |
| 2.0i 16V | 51|150PS(110KW) |
| 2.0i 16V | 51|136PS(100KW) |
| 1.8i | 51|90PS(66KW) |
| 2.0i | T92|115PS(85KW) |
| 1.4 Si | 51|82PS(60KW) |
| 1.6i | 52|71PS(52KW) |
| 1.7 TDS | 52|82PS(60KW) |
| 1.4 Si | 52|82PS(60KW) |
| 1.8i 16V | 52|116PS(85KW) |
| 1.7 TDS | T92|82PS(60KW) |
| 2.0i | 52|115PS(85KW) |
| 2.0i 16V | 52|150PS(110KW) |
| 1.7 D | T92|60PS(44KW) |
| 2.0i 16V | T92|150PS(110KW) |
| 1.6i | 51|71PS(52KW) |
| 1.6i | 52|75PS(55KW) |
| 1.4i 16V | 51|90PS(66KW) |
| 1.8i 16V | T92|125PS(92KW) |
| 1.6i | 51|75PS(55KW) |
| 1.8i | T92|90PS(66KW) |
| 1.6i 16V | 52|100PS(74KW) |
| 1.6i 16V | 51|100PS(74KW) |
| 1.4i 16V | 52|90PS(66KW) |
| 1.6i | T92|71PS(52KW) |
| 2.0i 16V | T92|136PS(100KW) |
| 1.8i 16V | 51|125PS(92KW) |
| 2.0i 16V | 52|136PS(100KW) |
| 1.8i 16V | 51|116PS(85KW) |
| 2.0i | 51|115PS(85KW) |
| 1.8i | 52|90PS(66KW) |
| 1.6i 16V | T92|100PS(74KW) |
| 1.7 TDS | 51|82PS(60KW) |
| 1.4i | T92|60PS(44KW) |
| 1.4i | 51|60PS(44KW) |
| 1.4i 16V | T92|90PS(66KW) |
| 1.7 TD | T92|68PS(50KW) |
| 1.4 Si | T92|82PS(60KW) |
| 1.6i | T92|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.4 LPG | A04|90PS(66KW) |
| 1.7 CDTi | A04|101PS(74KW) |
| 1.6 | A04|116PS(85KW) |
| 1.6 Turbo | A04|180PS(132KW) |
| 1.7 CDTi | A04|110PS(81KW) |
| 1.4 | L35|75PS(55KW) |
| 1.6 | A04|105PS(77KW) |
| 1.7 CDTi | A04|80PS(59KW) |
| 1.7 CDTi | A04|125PS(92KW) |
| 1.6 LPG | A04|116PS(85KW) |
| 1.9 CDTi | A04|150PS(110KW) |
| 1.4 LPG | L35|90PS(66KW) |
| 1.4 | A04|75PS(55KW) |
| 1.9 CDTi | A04|120PS(88KW) |
| 1.4 | A04|90PS(66KW) |
| 2.0 Turbo | A04|200PS(147KW) |
| 1.8 | A04|140PS(103KW) |
| 2.0 Turbo | A04|170PS(125KW) |
| 1.8 | A04|125PS(92KW) |
| 1.6 LPG | L35|116PS(85KW) |
| 1.9 CDTi | A04|100PS(74KW) |
| 1.3 CDTi | A04|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.6 D | T85|54PS(40KW) |
| 1.6 D | 39|54PS(40KW) |
| 1.3i Cat | 49|60PS(44KW) |
| 1.6i Cat | 49|75PS(55KW) |
| 1.5 TD | 49|72PS(53KW) |
| 1.7 D | T85|57PS(42KW) |
| 1.6 D | 49|54PS(40KW) |
| 1.8 S | T85|84PS(62KW) |
| 1.4 S | T85|75PS(55KW) |
| 1.3 N | T85|60PS(44KW) |
| 1.3i Cat | 39|60PS(44KW) |
| 1.2 | T85|55PS(40KW) |
| 1.8i | T85|100PS(74KW) |
| 1.8i | T85|90PS(66KW) |
| 2.0i | T85|115PS(85KW) |
| 1.6 S | 49|90PS(66KW) |
| 1.4i | T85|60PS(44KW) |
| 1.8i | 49|100PS(74KW) |
| 1.5 TD | 39|72PS(53KW) |
| 1.8i | 49|90PS(66KW) |
| 1.5 TD | T85|72PS(53KW) |
| 2.0i Cat | 49|115PS(85KW) |
| 1.6i Cat | T85|75PS(55KW) |
| 1.8i | 39|90PS(66KW) |
| 1.6 S | T85|90PS(66KW) |
| 1.3i Cat | T85|60PS(44KW) |
| 1.6 S | T85|82PS(60KW) |
| 1.6 S | 39|90PS(66KW) |
| 1.3 S | T85|75PS(55KW) |
| 1.6i Cat | 39|75PS(55KW) |
| 2.0i Cat | 39|115PS(85KW) |
| 1.8i | 39|100PS(74KW) |
| 2.0i Cat | T85|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.8 | 87|84PS(62KW) |
| 1.3 S | 88|75PS(55KW) |
| 1.8 | J82|84PS(62KW) |
| 1.3 N | 81|60PS(44KW) |
| 1.8 E | 87|100PS(74KW) |
| 1.6 | 87|75PS(55KW) |
| 2.0i GT | J82|130PS(95KW) |
| 1.6 S | 81|90PS(66KW) |
| 1.8i | 88|115PS(85KW) |
| 1.6 D | J82|54PS(40KW) |
| 1.3 S | J82|75PS(55KW) |
| 1.8i | 81|115PS(85KW) |
| 1.6 S | 88|90PS(66KW) |
| 1.8i | 86|115PS(85KW) |
| 1.3 S | 86|75PS(55KW) |
| 1.8 | 81|84PS(62KW) |
| 2.0i | 87|100PS(74KW) |
| 1.3 N | 87|60PS(44KW) |
| 1.8 | 86|84PS(62KW) |
| 2.0i | 81|100PS(74KW) |
| 1.8 | 88|84PS(62KW) |
| 1.6 S | 87|90PS(66KW) |
| 2.0i | 88|115PS(85KW) |
| 1.6 | 81|75PS(55KW) |
| 2.0i Cat | J82|116PS(85KW) |
| 1.6 D | 87|54PS(40KW) |
| 1.8 E | 88|100PS(74KW) |
| 1.6 | 88|75PS(55KW) |
| 1.6 S | 86|90PS(66KW) |
| 2.0i GT | 87|130PS(95KW) |
| 2.0i | 81|115PS(85KW) |
| 1.8i | J82|115PS(85KW) |
| 2.0i GT | 86|130PS(95KW) |
| 1.3 N | 88|60PS(44KW) |
| 1.6 | 86|82PS(60KW) |
| 1.6 S | J82|90PS(66KW) |
| 2.0i | 86|115PS(85KW) |
| 1.3 N | 86|60PS(44KW) |
| 1.8 E | J82|100PS(74KW) |
| 1.6 | J82|82PS(60KW) |
| 2.0i | 87|115PS(85KW) |
| 2.0i GT | 81|130PS(95KW) |
| 1.6 | 86|75PS(55KW) |
| 1.6 D | 81|54PS(40KW) |
| 1.6 D | 86|54PS(40KW) |
| 1.6 | 87|82PS(60KW) |
| 2.0i GT | 88|130PS(95KW) |
| 1.6i Cat | J82|75PS(55KW) |
| 1.3 N | J82|60PS(44KW) |
| 1.8i | 87|115PS(85KW) |
| 1.3 S | 87|75PS(55KW) |
| 2.0i | 86|100PS(74KW) |
| 1.3 S | 81|75PS(55KW) |
| 1.6 | 88|82PS(60KW) |
| 1.8 E | 81|100PS(74KW) |
| 2.0i | J82|100PS(74KW) |
| 1.6 | 81|82PS(60KW) |
| 1.8 E | 86|100PS(74KW) |
| 1.6 D | 88|54PS(40KW) |
| 2.0i | 88|100PS(74KW) |
| Motor | Motorcode |
|---|---|
| 1.9 CDTi | A04|150PS(110KW) |
| 1.6 | A04|105PS(77KW) |
| 1.7 CDTi | A04|80PS(59KW) |
| 1.4 LPG | L48|90PS(66KW) |
| 1.8 | A04|125PS(92KW) |
| 1.4 | L48|75PS(55KW) |
| 1.6 Turbo | A04|180PS(132KW) |
| 1.8 | A04|140PS(103KW) |
| 1.7 CDTi | A04|110PS(81KW) |
| 1.4 | A04|90PS(66KW) |
| 1.9 CDTi | A04|100PS(74KW) |
| 1.4 LPG | A04|90PS(66KW) |
| 2.0 Turbo | A04|200PS(147KW) |
| 1.7 CDTi | A04|125PS(92KW) |
| 1.4 | A04|75PS(55KW) |
| 2.0 Turbo | A04|240PS(177KW) |
| 1.9 CDTi | A04|120PS(88KW) |
| 1.7 CDTi | A04|100PS(74KW) |
| 1.3 CDTi | A04|90PS(66KW) |
| 2.0 Turbo | A04|170PS(125KW) |
| 1.6 | A04|116PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.6i | 43B|82PS(60KW) |
| 1.4 S | T85|75PS(55KW) |
| 1.6i | T85|75PS(55KW) |
| 1.4 S | 43B|75PS(55KW) |
| 2.0i Cat | 43B|116PS(85KW) |
| 1.6i | T85|82PS(60KW) |
| 1.6i Cat | T85|75PS(55KW) |
| 2.0i Cat | T85|116PS(85KW) |
| 1.3 S | T85|75PS(55KW) |
| 1.6i Cat | 43B|75PS(55KW) |
| 1.3 S | 43B|75PS(55KW) |
| 2.0i | T85|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.7 D | J89|60PS(44KW) |
| 2.0i | 86|129PS(95KW) |
| 1.7 TD | J89|82PS(60KW) |
| 2.0i Cat | 87|116PS(85KW) |
| 2.0i | J89|129PS(95KW) |
| 2000/GT 16V Cat | 87|150PS(110KW) |
| 2.0 | 86|100PS(74KW) |
| 2.0 | J89|100PS(74KW) |
| 2.5 V6 | 87|170PS(125KW) |
| 2.0i | J89|115PS(85KW) |
| 1.6 | 87|82PS(60KW) |
| 2.0i Cat | J89|116PS(85KW) |
| 1.8 S | J89|88PS(65KW) |
| 1.7 TD | 86|82PS(60KW) |
| 2000/GT 16V Cat | 86|150PS(110KW) |
| 2.5 V6 | J89|170PS(125KW) |
| 1.8 S | 86|88PS(65KW) |
| 1.6 | 86|82PS(60KW) |
| 1.8 S | 87|88PS(65KW) |
| 2000/GT 16V Cat | J89|150PS(110KW) |
| 2.0i 16V | J89|136PS(100KW) |
| 1.8 S | 86|90PS(66KW) |
| 2.0i | 87|129PS(95KW) |
| 1.7 TD | 87|82PS(60KW) |
| 1.8 S | 87|90PS(66KW) |
| 1.7 D | J89|57PS(42KW) |
| 2.0i Cat | 86|116PS(85KW) |
| 1.8 S | J89|90PS(66KW) |
| 1.6 | J89|82PS(60KW) |
| 2.0 | 87|100PS(74KW) |
| 2.5 V6 | 86|170PS(125KW) |
| Motor | Motorcode |
|---|---|
| 1.4i 16V | T92|90PS(66KW) |
| 1.6i | 53 B|71PS(52KW) |
| 1.6i | T92|75PS(55KW) |
| 1.6i | T92|71PS(52KW) |
| 1.4i 16V | 53 B|90PS(66KW) |
| 1.4 Si | T92|82PS(60KW) |
| 1.8i 16V | 53 B|116PS(85KW) |
| 1.4 Si | 53 B|82PS(60KW) |
| 2.0i | T92|115PS(85KW) |
| 1.8i 16V | T92|116PS(85KW) |
| 1.6i | 53 B|75PS(55KW) |
| 2.0i | 53 B|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.7 D | T85|57PS(42KW) |
| 1.2 | T85|55PS(40KW) |
| 1.6i | T85|75PS(55KW) |
| 1.6 D | T85|54PS(40KW) |
| 1.3 N | T85|60PS(44KW) |
| 1.8i | T85|90PS(66KW) |
| 1.4i | T85|60PS(44KW) |
| Motor | Motorcode |
|---|---|
| 2.0i 16V | 85|150PS(110KW) |
| 2.0i 16V | C89|136PS(100KW) |
| 2.0i 16V | C89|150PS(110KW) |
| 2.0i 16V | 85|136PS(100KW) |
- ✓ C20XE engines
- ✓ 228 clutch
- ✓ lightens 3.8 kg
Camber correction plates for installation on rear axle.Allow a perfect camber adjustment on your vehicle.
Camber correction plates for installation on rear axle.Allow a perfect camber adjustment on your vehicle.
- ✓ Reinforced version
- ✓ Opel Kadett / Corsa
- ✓ 485mm diameter
- ✓ Camber correction plates for installation on rear axle.Allow a perfect camber adjustment on your vehicle.
- ✓ Opel 2.0l 16V engine
- ✓ 350NM torque
- ✓ hub profile: 18.3x20.7-24NN
- ✓ C20XE engine
- ✓ 228mm clutch
- ✓ 350NM torque
- ✓ camber adjustement plate for rear axle, in order to adjust the camber. With the help of these plates you can change the camber of the rear wheels, negative or positive.
- ✓ 260x10
- ✓ 57mm centering
- ✓ 69mm height
- ✓ 370x32 8J0615301F TTRS brake disc
- ✓ 4-piston 8J061507 / 8J0615108 TTRS brake caliper
- ✓ front axle
- ✓ Opel 2.0l 16V engine
- ✓ 380NM torque
- ✓ hub profile: 18.3x20.7-24N
