Which brake pads should be used?

The original brake pads from the brake caliper, which is required for our conversion kit, must always be used.

Can I use other brake calipers as indicated in the required components?

No, unfortunately that is not possible, the reason being that all brake calipers have different height and depth measurements. If another brake disc is installed, the brake caliper would either not fit the adapter at all or not run centrally to the brake disc. If you want to install a different brake caliper, we also have an option for you. You can have a custom-made product manufactured, check out the following link for more information:

Can I also use other discs as specified in the required components?

No, unfortunately that is not possible. The reason is simply that all brake calipers have different height and depth measurements. If a different brake disc is installed, the brake caliper would either not fit on the adapter at all or would not be centered with the brake disc. However, if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product produced, have a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

My brake caliper is not exactly centered over the brake disc - what should I do?

If your brake caliper is not exactly centered over the brake disc, in most cases it is not a problem. Depending on the vehicle, model year, and mileage, axle tolerances can occur – and this even in newer vehicles.The most important thing is:👉 The brake caliper must have sufficient clearance on the left and right to the brake disc so that nothing rubs or permanently touches it.Many brake calipers also have locking bolts. It may happen that:there is very little clearance on one side or the bolt lightly toucheswhile on the other side there is more playThis is generally not critical.🔧 This is how you proceed:Install brake pads:First check if the brake pads can be inserted cleanly and without resistance on both sides.If everything fits:If installation is possible without problems, you can simply gently push back the locking bolts – this usually resolves the issue.If it jams:If the brake pads cannot be installed, or only with difficulty, on one side, action is required.In this case, you can:slightly shim the adapter with suitable bushings to adjust the brake caliperor – depending on the situation – slightly mill the adapter so that the brake caliper is correctly centered again👉 The goal is always that the brake caliper is evenly aligned with the brake disc and the brake pads are seated freely and cleanly.

EPYTEC Performance Brake Caliper Adapters Audi RS Q3 Audi Q3 VW Tiguan Seat Tarraco Skoda Kodiaq Conversion to RS Q3 Single-Piston Brake System 356x22 mm

Name: EPYTEC Performance Brake Caliper Adapters Audi RS Q3 Audi Q3 VW Tiguan Seat Tarraco Skoda Kodiaq Conversion to RS Q3 Single-Piston Brake System 356x22 mm
Brand: EPYTEC
SKU: 1378
Price: 171.21 GBP
Availability: InStock

£171.21*

Prices incl. VAT plus shipping costs

Available

Product number: 1378

Delivery by Wednesday, 12.08.2026 if you order within the next 6 Hours.

Express shopping
Save your data and settings
Order overview and shipping information
Manage your newsletter subscription
19 Jahre Expertenwissen

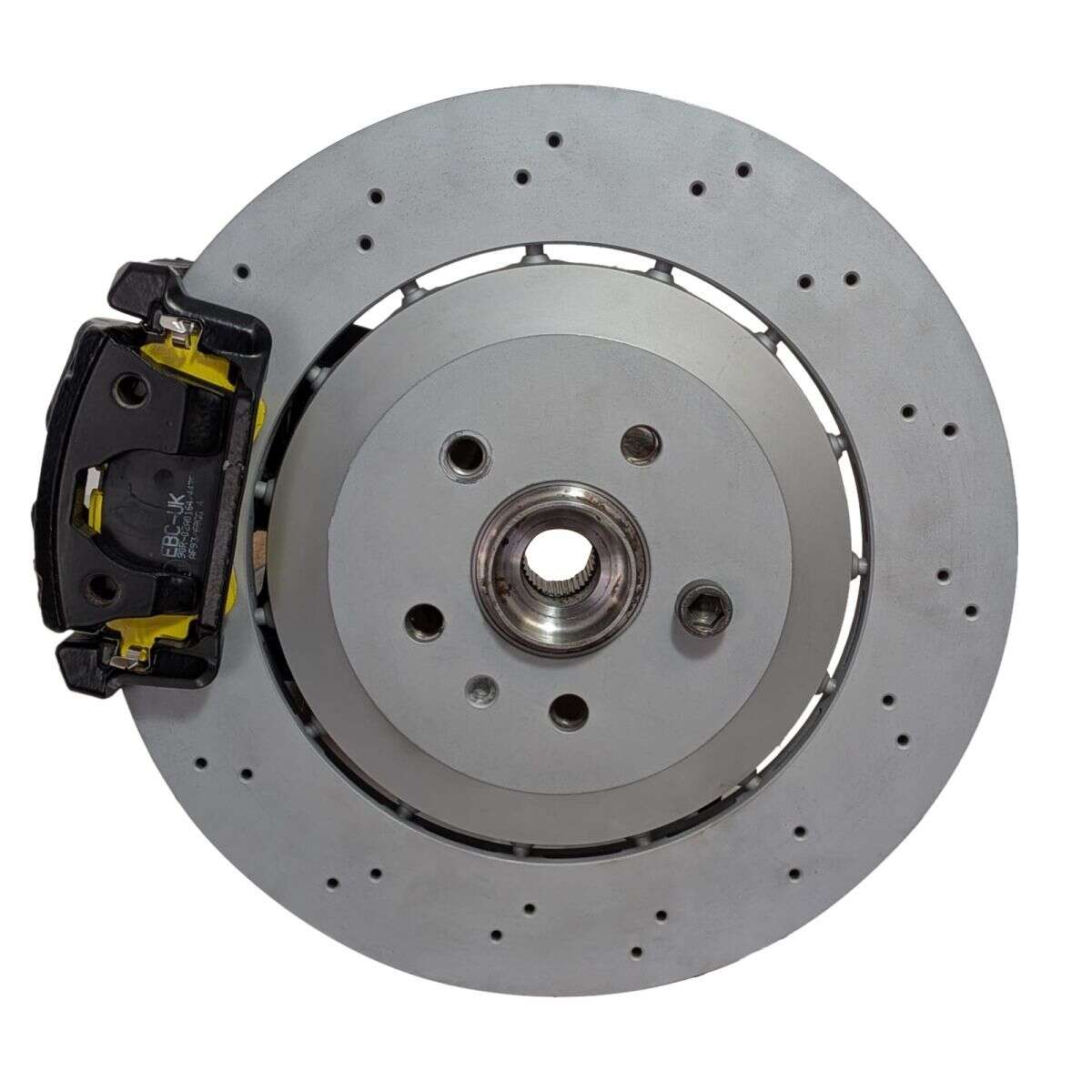

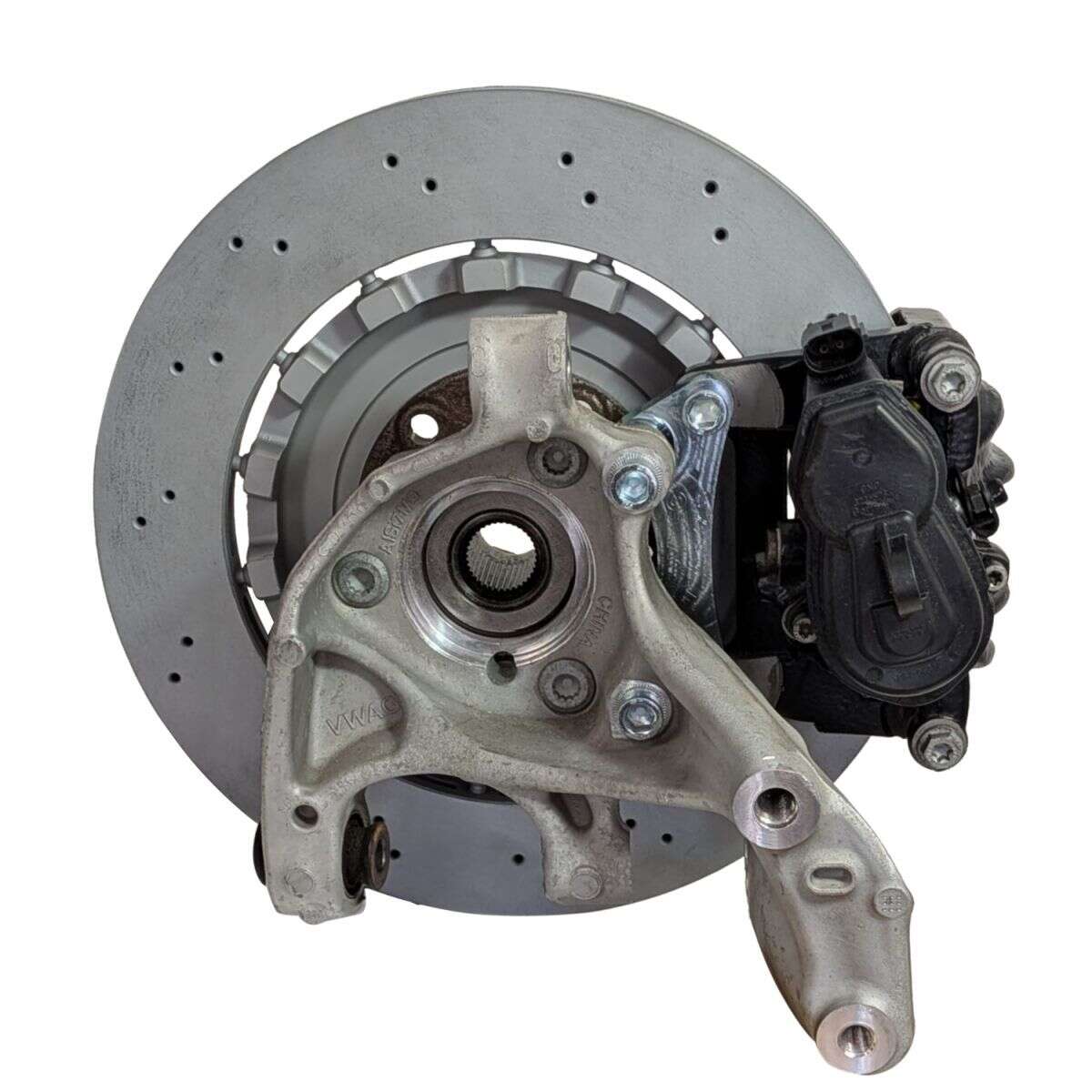

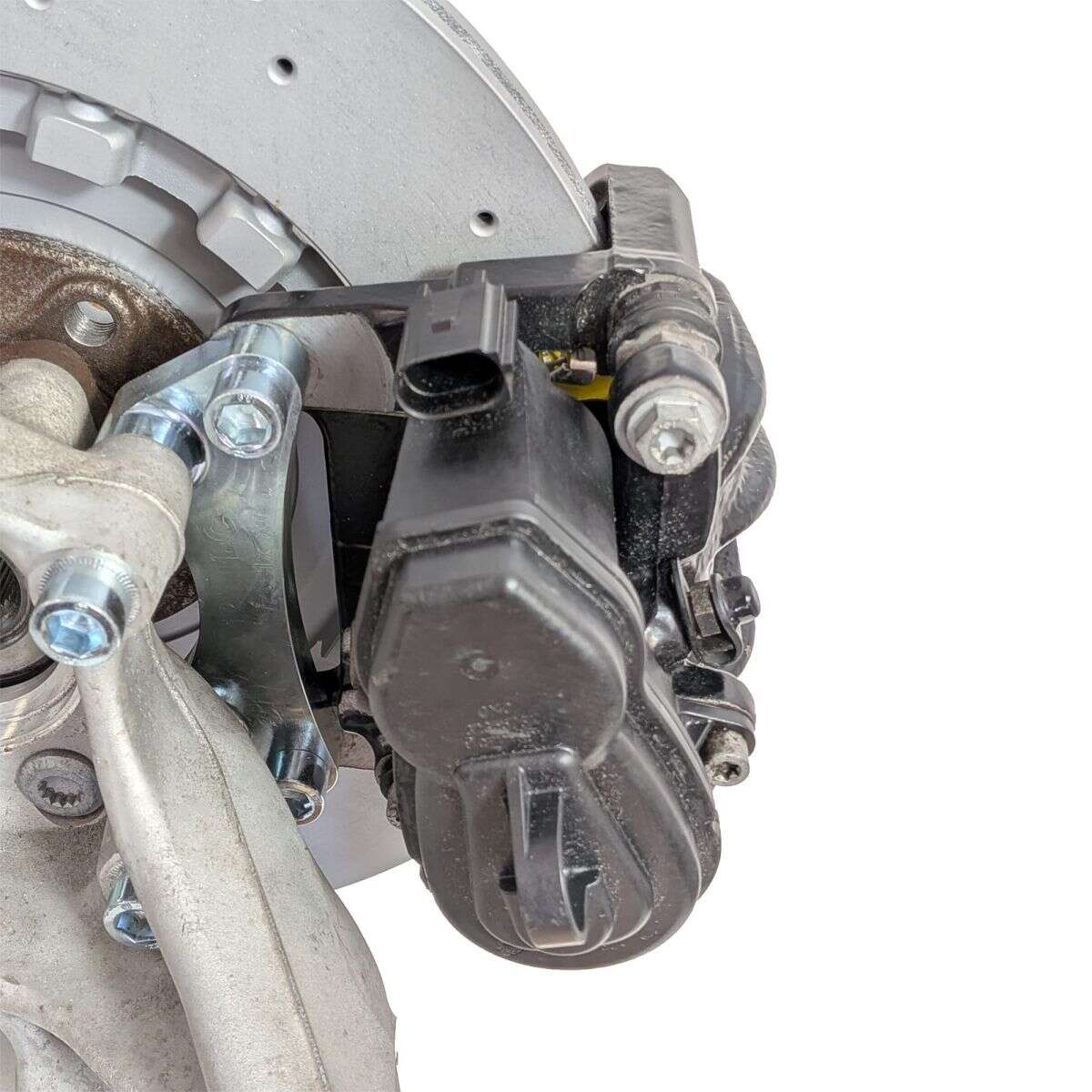

Brake Caliper Adapters for the Rear Axle of the Audi RS Q3 and Many Other Models for Conversion to the RS Q3 Single-Piston Brake System with 356x22 mm Brake Discs

The Epytec brake caliper adapters enable the professional conversion of the rear axle of the Audi RS Q3 and many other models to the high-performance original RS Q3 single-piston brake system in combination with large 356x22 mm brake discs. This upgrade provides a significantly better braking system, improved braking performance, and a sportier appearance for the rear axle.

In combination with the 356x22 mm brake discs, this creates a big brake kit that impresses both in everyday driving and under sporty conditions with excellent durability and outstanding braking performance. This conversion is the ideal solution for anyone looking to achieve maximum performance and a high-quality braking system in the field of tuning.

The adapters fit the following vehicles with this wheel bearing housing part number: 5QF505435H

Audi RS Q3
Audi Q3
Audi Q3 Sportback
Seat Tarraco
Skoda Kodiaq 1
VW Tiguan 2
VW Tiguan Allspace

Advantages of this brake system:

Our components, such as brake calipers and brake discs, are sourced from production vehicles and are OE parts. This makes brake replacement simple and straightforward while also facilitating TÜV approval.

Significantly improved braking performance thanks to the powerful RS Q3 single-piston brake calipers
Optimized heat dissipation and reduced brake fade thanks to the large 356x22 mm brake discs
Direct installation on the models listed above, fully reversible at any time
No vehicle modifications required – plug & play solution
EPYTEC brake caliper adapters require no exchange of original parts, no welding, machining, or drilling

Required components:

Brake calipers – Audi RS Q3 single-piston brake system:

Brake caliper: 8U0615404C
Brake caliper carrier: 8U0615425A

Brake pads:

DP42435R

356x22 mm brake discs:

Zimmermann: 100.3397.70
OE reference: 4H0 615 601 F
Suitable for: Audi A6 C7, Audi A7, and Audi A8 D4

Scope of delivery:

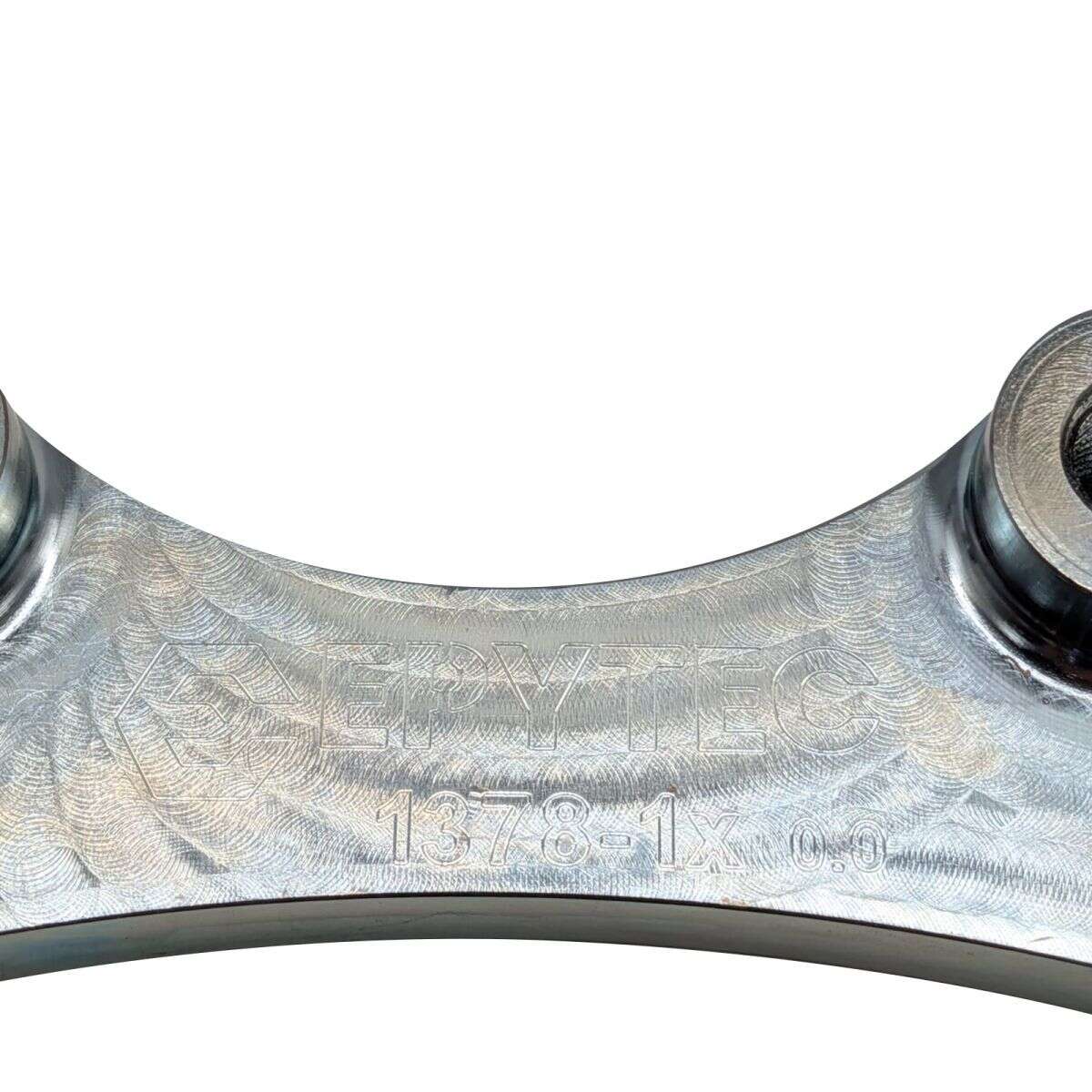

2x Epytec brake caliper adapters for the rear axle of the Audi RS Q3 and many other models
High-strength mounting hardware
Material certificate for individual TÜV approval

With this high-quality brake upgrade, the Audi RS Q3 and many other models benefit from a significantly better braking system, a sportier appearance, and noticeably improved driving dynamics. Thanks to the precisely manufactured Epytec adapters, the conversion is simple and requires no vehicle modifications. The system can be reverted to the original configuration at any time, making it the perfect solution for demanding tuning enthusiasts seeking a big brake kit and maximum braking performance.

We provide a material certificate for this adapter, allowing the TÜV inspector to easily register the adapter.

FAQ: Häufige Fragen

Sollte ich die Anker- bzw. Staubbleche entfernen?

Wir empfehlen das Entfernen der Bleche, da sie die Belüftung einschränken. Ohne diese Barriere wird die Bremse effizienter gekühlt und bleibt auch bei starker Beanspruchung leistungsfähig.

Wie erleichtere ich mir die Felgenmontage?

Mit Radmontagehilfen gelingt das Ausrichten und Aufsetzen der Felge einfacher und präziser. Das schützt Gewinde und Felge und spart Zeit.

Radmontagehilfe ansehen

Benötige ich Spurverbreiterungen nach dem Umbau?

Welche Felgengröße passt, lässt sich pauschal nicht sagen. Streift die Felge minimal am Bremssattel, schaffen Spurverbreiterungen den nötigen Abstand.

Spurverbreiterungen ansehen

Brauche ich neue Bremsleitungen?

Für optimale Passform und stabile Bremswirkung empfehlen wir Stahlflex. Diese sind konfigurierbar und liefern konstantere Ergebnisse als Gummileitungen.

Stahlflex konfigurieren

Warum unsere Adapter die beste Wahl sind

Wusstest du, dass sich dein EPYTEC-Adapter oft schon nach dem ersten Verschleißteilwechsel komplett bezahlt macht?

Das liegt daran, dass du mit unseren Adaptern auf OE-Bremsscheiben und -Sättel setzt, die wir bewusst bei der Entwicklung der Adapter ausgewählt haben. Diese Komponenten sind nicht nur in höchster Qualität gefertigt und in Serienfahrzeugen im Einsatz, sondern durch ihre Großserienproduktion auch günstig und jederzeit verfügbar.

Für dich bedeutet das: erstklassige Bremsleistung ohne Abhängigkeit von teuren Speziallösungen anderer Hersteller.

Und selbst beim TÜV hast du es leichter, denn unsere OE-Komponenten sind bereits offiziell abgenommen – der Prüfer kann sich direkt darauf beziehen, sodass deine Eintragung unkompliziert und sicher abläuft.

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Brake caliper hole spacing: 90

Hole spacing steering knuckle: 120

Manufacturer: Epytec

Mounting location: rear!
