Big brake system KIT rear axle Golf 8 Audi A3 Seat Leon Porsche Cayenne 4-piston caliper VW Golf 8R handbrake caliper 356x22 brake disc with parts certificate - Colour brake caliper: Painted in colour of choice
£1,596.14*
Name | Title | Surcharge |
---|---|---|
Desired color: |

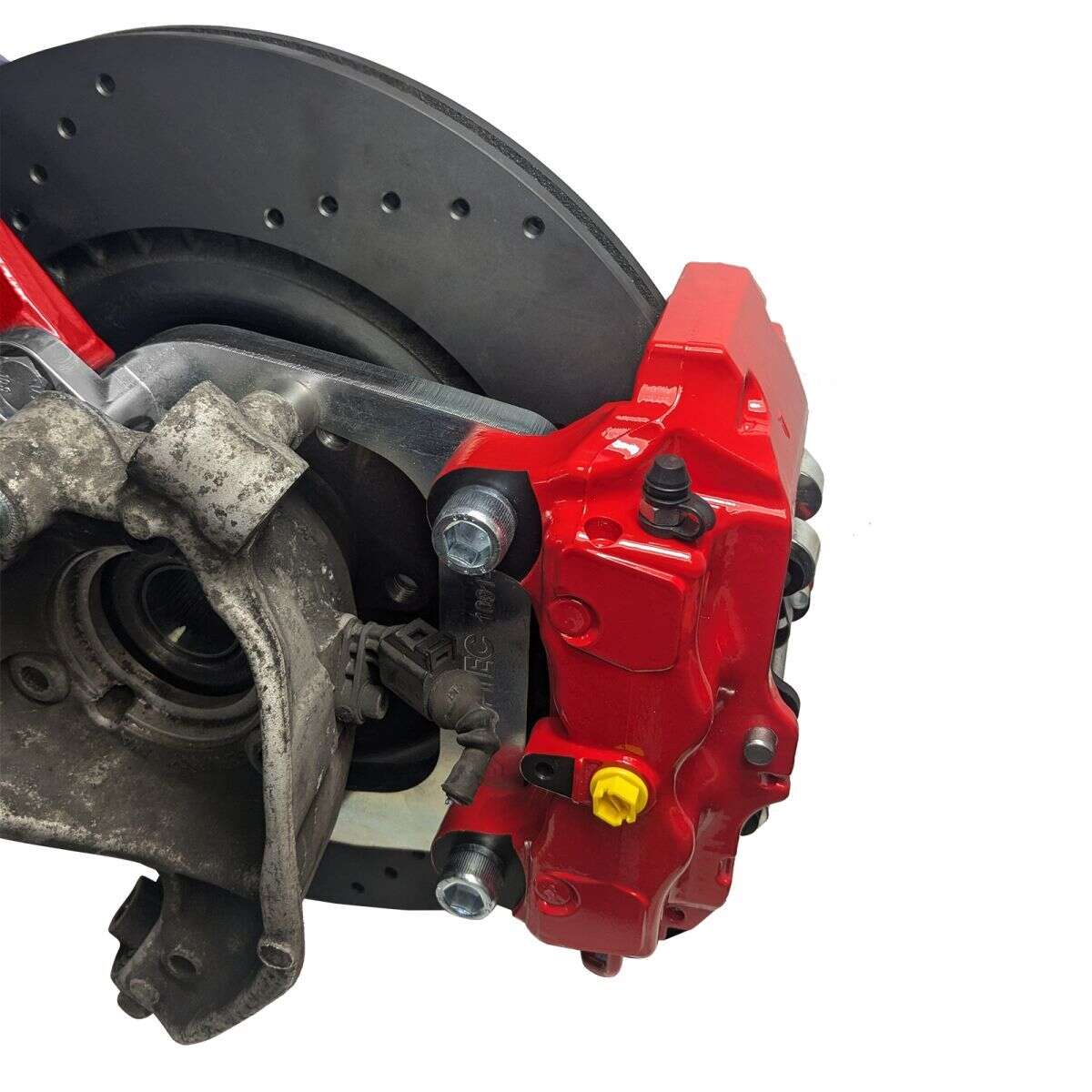

With our big brakekit for the VW Golf 8, Seat Leon and Audi A3, you can convert your rear axle to a 4-piston brake system in conjunction with the VW Golf 8R handbrake caliper and achieve ideal performance
With this high performance brake kit you can use the Porsche Cayenne 4-piston Brembo brake calipers and the VW Golf 8R handbrake calliper in conjunction with the 356x22 mm brake discs from the Audi A6 A7 on the VW Golf 8, Seat Leon and Audi A3.
Another advantage of our brake system kit is that it is equipped with the same original brake calipers and brake discs that are installed in series-production cars. These OE parts not only make the replacement of the brakes simple and uncomplicated, but also facilitate the registration with the TÜV.
This set includes a parts certificate for simple registration in accordance with §19.3 StVZO, so that trouble-free approval by TÜV, DEKRA, KÜS or GTÜ is possible.
The big brake kit is not only sporty, but also suitable for everyday use and, thanks to the perforated sports brake discs in conjunction with our ceramic lining, enables ideal performance while reducing brake dust, temperature and wear.
With this high-performance big brake kit, you can get started straight away and have everything you need to convert your front axle to a 6-piston brake system.
The high performance big brake kit is suitable for the following cars with aluminium axle stub:
- VW Golf 8
- Audi A3 (8YA)
- Seat Leon (5F1)
Advantages of this big brake kit:
- Simple TÜV registration with parts certificate
- our components, such as brake callipers and brake discs, come from series-production cars and are OE parts. This makes replacing the brakes simple and uncomplicated and facilitates registration with the TÜV.
- The material certificate included in the scope of delivery enables registration by individual acceptance even for series-production cars.
- High-performance brake pads with longer service life than the original pads
- extreme deceleration values also in combination with our rear axle brake system
- directly fitting to the above mentioned models and therefore easily rebuildable to original condition at any time
- our EPYTEC brake caliper adapters require no sending in of your stock parts, no re-welding, re-milling or re-drilling.
Save money on registration:
- A normal individual TÜV approval for brake systems often costs more than €600. Thanks to our TÜV-approved parts certificates, you usually only pay around €90 for the registration of the brake system*!
Here you have a report on the successful creation of the parts certificate at the TÜV (click here)
Note:
Please note that these brake calipers are delivered in the color of your choice according to your specifications.
Get our high performance brake kit now and experience ideal performance and durability.
Suitable for all vehicles listed that have an aluminium axle stub (not suitable for vehicles with steel axle stub)
VW Golf 8R handbrake calliper is not included in the scope of delivery. If not already fitted as original, this must still be obtained:
- original brake callipers with carrier for handbrake from Golf 8R part number:
- part number brake caliper: 5WA615423B
- part number brake caliper support: 1K0 615 425 AC, 1K0 615 425 K, 1K0 615 425 M, 1K0 615 425 Q, 1K0 615 425 R, 1K0 615 425 T, 3C0 615 425 B
Scope of delivery:
- 2x Porsche Cayenne brake calipers part number: 955.352.421/ 955.352.422 (left/right) Brembo 20.7673.03/20.7673.04(left/right) including complete new brake caliper bracket kit in the color of your choice
- passender Satz Rotinger 356x22mm Sport Bremsscheiben Audi A6 A7 Teilenr.: 4H0 615 601 F
- 2x ceramic brake pads for less brake dust and longer lifetime
- 2x brake caliper adapter for VW Golf 8, Seat Leon and Audi A3 with alu axle
- 2x matching steel braided lines
- Assembly aid for brake disc assembly
- high strength bolt material
- Material certificate
- incl. parts certificate for registration with TÜV, DEKRA, KÜS or GTÜ
- Stress analysis / FEM calculation for registration
Tipps, Infos und Hinweise:
- Zur besseren Belüftung der Bremsanlage empfehlen wir die Ankerbleche/Bremsstaubbleche zu entfernen.
- Für eine einfache Montage der Felge, empfehlen wir, zwei unserer Radmontagehilfen gleich mit zukaufen >>hier gehts direkt zum Artikel<<
- Welche Felgengröße du nach deinem Bremsenumbau fahren kannst, können wir pauschal nicht beantworten. Es gibt einfach zu viele unterschiedliche Felgen. Es kann in seltenen Fällen vorkommen, dass die Felgen am Bremssattel minimal anliegt, dann können einfach Spurverbreiterungen verwendet werden.
>> Jetzt direkt zu Spurverbreiterungen nach Wunsch << - Das Handbremsseil muss immer vom verbauten Sattel verwendet werden, das heißt, es kann sein, dass das neue Handbremsseil noch etwas angepasst werden muss. Bei Umbauten in dem der Originalsattel weiterverwendet wird und das Original Handbremsseil verwendet werden kann, kann es sein, dass du es auf direkterem Weg verlegen musst um den größeren Scheibendurchmesser und den Längeren weg auszugleichen
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
