Opel Kadett Astra Omega Porsche Brake calipers Adapter Brake system Brake caliper adapter for front axle

  • ✓ 347x30 4F24F5PR1ZL A8 A6 S8 brake disc
  • ✓ 6-piston Z18 955351421 / 955351422 brake caliper
  • ✓ front axle

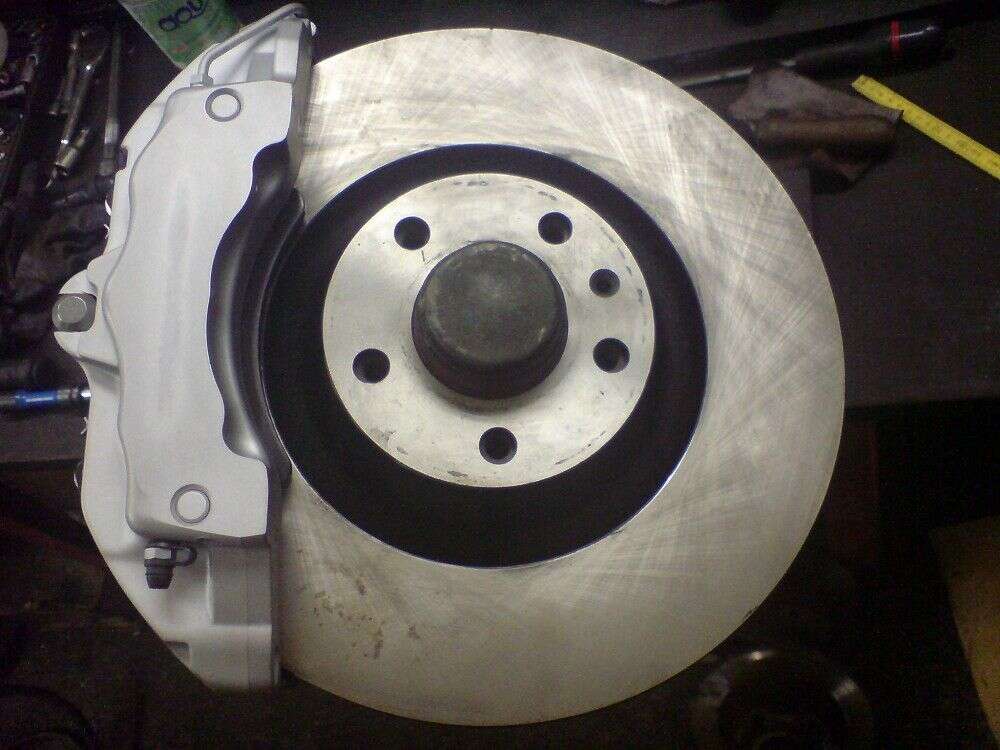

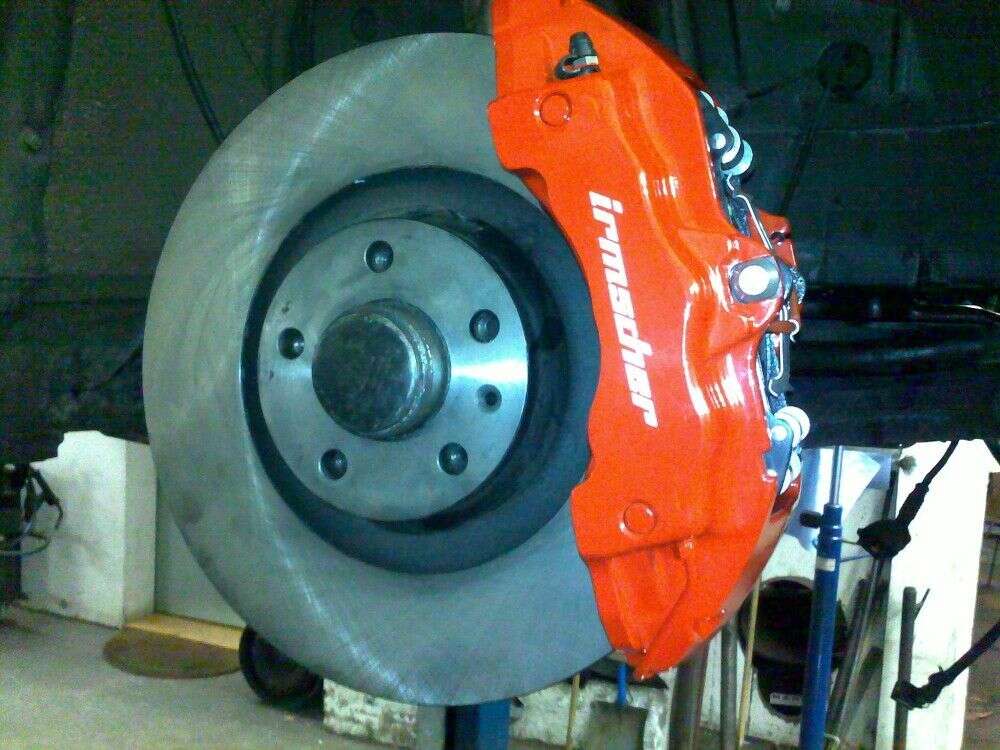

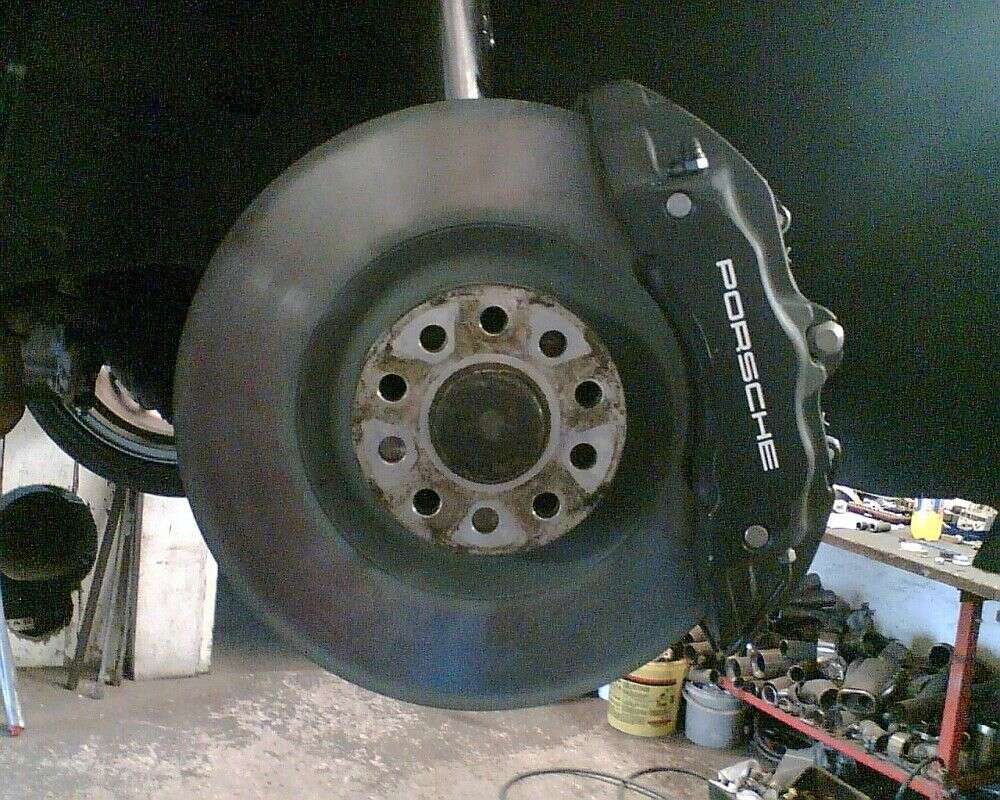

Brake caliper adapter to use Porsche 6-piston calipers from the Porsche Cayenne (18 inch) part number 955.351.421 / 955.351.422, in conjunction with the brake discs from the A8 A6 S8 with the dimensions 347x30 part no. 4F2 4F5 PR 1ZL these only have to be attached to the centering can be adjusted.

Perfect fit for all Omega A B.

With wheel hub conversion to 5x110 bolt circle on all Opel models e.g. Astra, Calibra, Kadett & Vectra struts to mount.

Relatively low conversion effort for enormous braking power

Advantages:

  • Extreme deceleration values also in connection with our rear axle brake system
  • The material certificate included in the scope of delivery enables entry by individual acceptance even for series vehicles
  • Directly suitable for the above models and can therefore be restored to the original condition at any time without any problems
  • Our EPYTEC brake caliper adapters do not require your standard parts to be sent in, no re-welding - re-milling or re-drilling.

tipps und tricks:

The Audi brake disc fits despite the different bolt circle of 5x112 because there are M14 holes in the brake disc. The brake disc only has to be turned to the centering diameter from 68mm (Audi) to 70mm (Opel). This means the disc is perfectly centered 8can also be done in-house.

Info: The pre-facelift wheel hubs are larger in diameter than the facelift wheel hubs, so they either have to be turned off in the outer diameter or the facelift wheel hubs with wheel bearings must simply be used.

The included bushings are optional because there were two different axle types, but in most cases they are not required.

Scope of delivery:

  • 2 x caliper adapters
  • Set of high-strength screws
  • materials certificate
  • Stress analysis for better registration

Tips, information and hints:

  • For a better ventilation of the brake system, we recommend removing the dust cover plates and brake anchor plates.

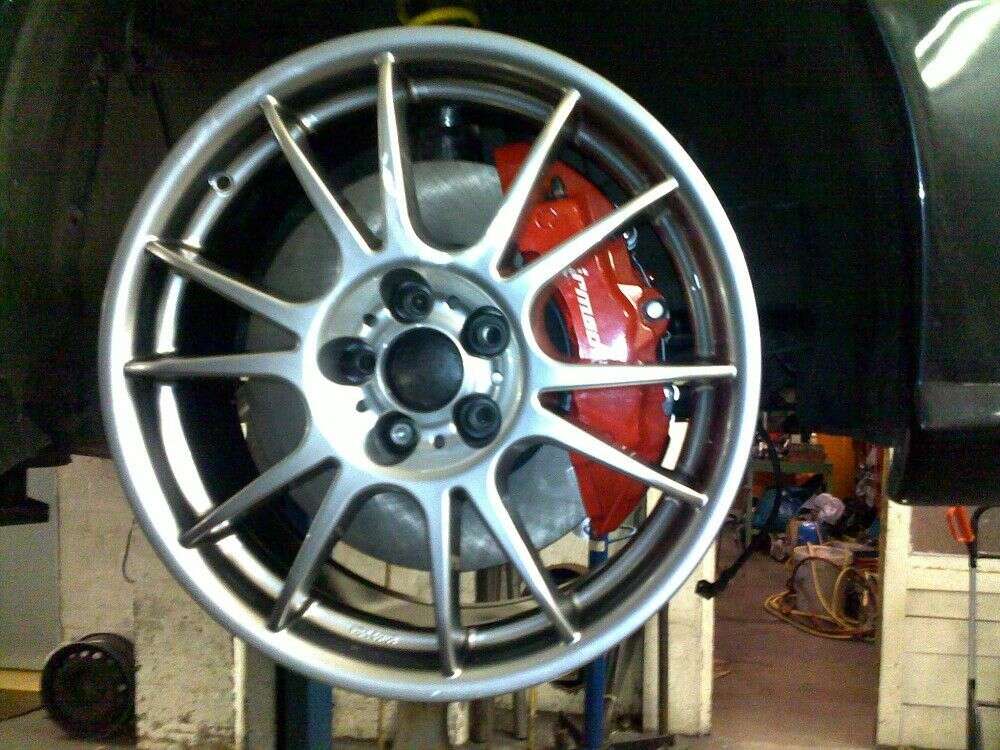

  • We can generally not answer, which rim size you can mount after your brake conversion. There are simply too many different rims.
  • In rare cases it is possible that the rims touch minimal the brake caliper, then you can simply use spacers. >> Now directly to spacers <<
  • Install the adapter with the necessary components and then check if new brake lines are required. Because, depending on the vehicle, the lines may be too short or the line tips may not suitable. We advise you to change to steel braided brake line because of the quality and technical advantage. Specifically for this, we have developed an online brake line configurator, where you can assemble the type of steel braided brake lines you want. Click here to go to the configurator >> Configure steel braided brake lines <<

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Einbauort: vorne
Lochabstand Achsschenkel: 76mm
Lochabstand Bremssattel : 146mm
Einbauort: vorne
Lochabstand Achsschenkel: 76mm
Lochabstand Bremssattel : 146mm

3 of 3 reviews

Average rating of 5 out of 5 stars


100%

0%

0%

0%

0%


Leave a review!

Share your experiences with other customers.


24 April 2018 06:59

Review with rating of 5 out of 5 stars

Manuel G

Top Qualität!! Phantastischer Service !

26 August 2020 17:17

Review with rating of 5 out of 5 stars

David V

Producto perfecto y rápido en recibir

19 August 2020 09:45

Review with rating of 5 out of 5 stars

STEFFEN M

Ihre Adapter machen einen sehr Hochwertigen Eindruck, Eingebaut haben wir sie aus Zeizmangel noch nicht. Und nun meine Frage: Können sie ihre Produktpalette erweitern und die Adapter auch für den OPEL GT Roadster anbieten ? MFG Hr. Meißner

  • Can I also use other brake discs as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

  • Can I also use other brake calipers as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
