Brake caliper adapter Passat B8 Arteon Skoda Supherb brake disc 356x22 Audi A6 Porsche Cayenne 4-piston brake caliper with TÜV parts certificate
€492.51*

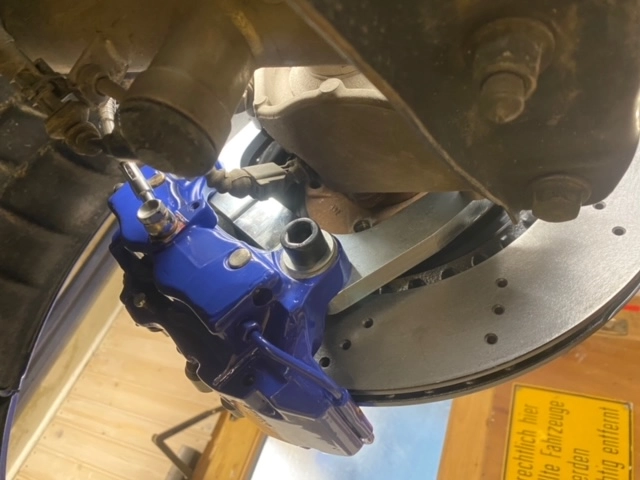

Brake caliper adapter to convert the rear axle of the Passat B8, VW Arteon, Skoda Supherb series to Porsche Cayenne brake calipers.
The combination is installed in conjunction with the Audi A6 A7 brake discs 356x22 mm.

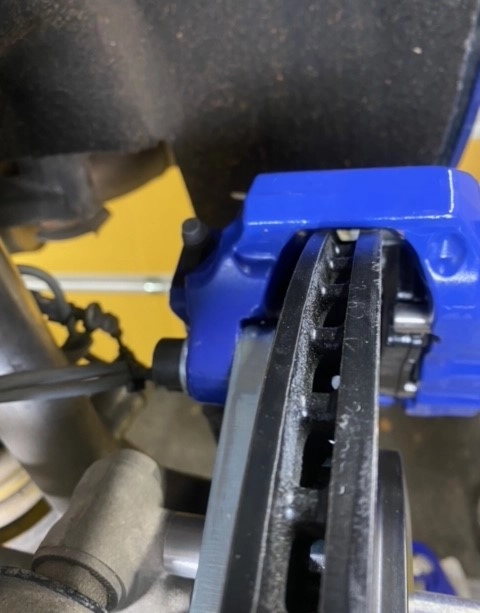

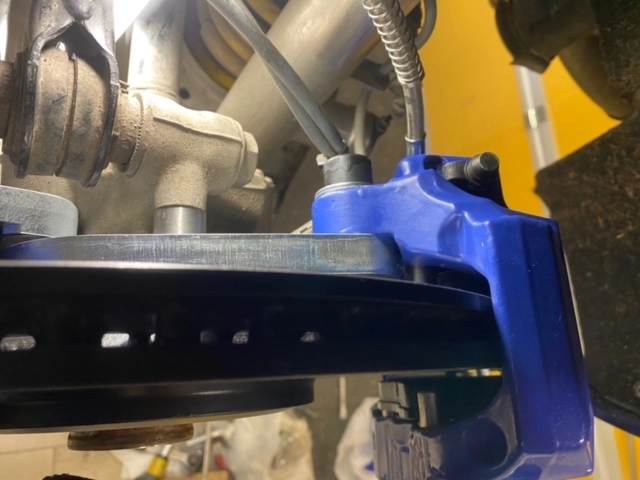

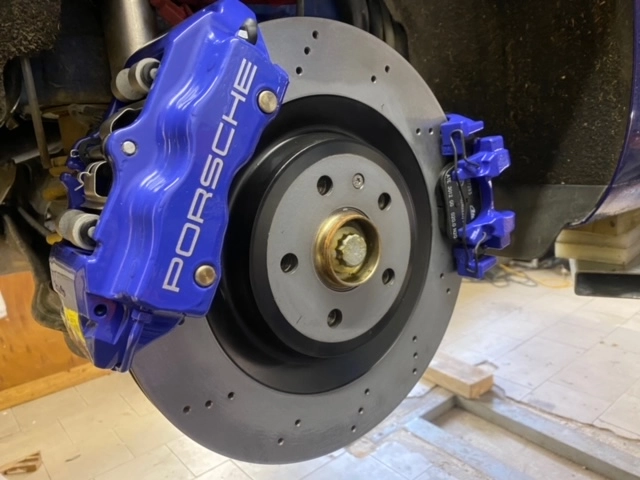

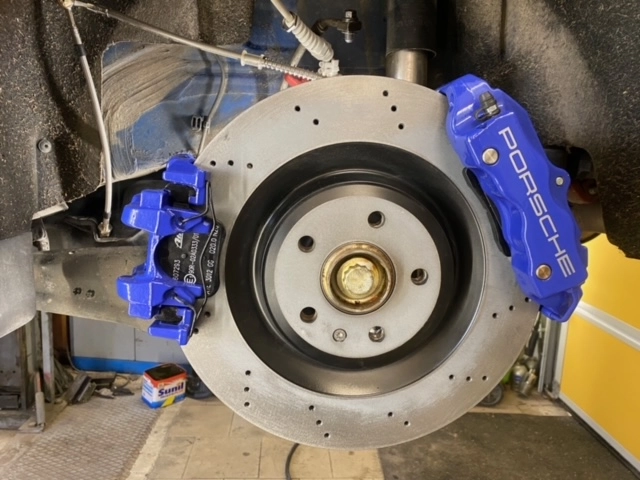

The Porsche callipers are connected to the vehicle's hydraulic system and can therefore develop enormous braking power. However, as these do not have handbrake functions, the rear Golf 7R is also used as a handbrake calliper. The hydraulic connection is sealed with a dummy plug. This therefore only serves as a handbrake calliper.
This set includes a parts certificate for simple registration in accordance with §19.3 StVZO, so that trouble-free approval by TÜV, DEKRA, KÜS or GTÜ is possible.
Adapters are suitable for the following VW and Seat models with aluminium axle OE: 3Q0 505 436M / 3Q0 505 435M
- VW Passat B8 Limousine
- VW Passat B8 Variant
- VW Passat B8 Alltrack
- VW Arteon
- VW Arteon Shooting Brake
- Skoda Supherb III Schrägheck
- Skoda Supherb III Kombi
Advantages of this brake system:
- Parts certificate for simple and problem-free registration
- Top deceleration values, no comparison to conventional rear brake discs
- A must for performance upgrades
- Material certificate is supplied
Save money on registration:
- A normal individual TÜV approval for brake systems often costs more than €600. Thanks to our TÜV-approved parts certificates, you usually only pay around €90 for the registration of the brake system*!
Required components:
- Brake calipers from Porsche Cayenne rear axle part no.: (written on the calipers, rear number distinguishes right and left caliper) 955.352.421 + 955.352.422 (only 100% compatible with the specified Porsche calipers) Brembo Left: 20.7673.03 Right: 20.7673.04original brake callipers with carrier for handbrake from Golf 7R parts no:
- Part number brake caliper: 5Q0615424 / 5Q0615424
- Part number brake calliper carrier: 5Q0615425 / 8V0615425B
- original Audi A6 A7 brake disc 356x22 mm part number: 4H0 615 601 F
Scope of delivery:

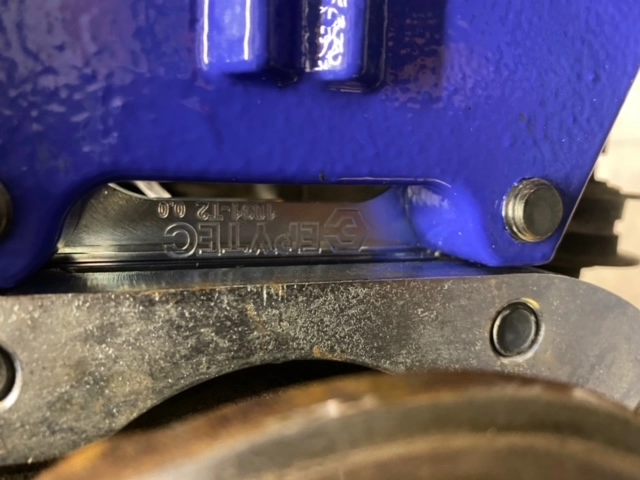

- 2x brake calliper adapter for rear axle Passat B8, VW Arteon, Skoda Supherb series
- 2x matching centring ring
- High-strength fastening screw material
- Material certificate
- Stress analysis / FEM calculation for registration
- including parts certificate for registration with TÜV, DEKRA, KÜS or GTÜ
- Installation instructions (click here)
*The stated price of €90 relates exclusively to the registration of the brake system. Additional costs may be incurred for additional registrations, e.g. wheel/tyre combinations
Tipps, Infos und Hinweise:
- Zur besseren Belüftung der Bremsanlage empfehlen wir die Ankerbleche/Bremsstaubbleche zu entfernen.
- Für eine einfache Montage der Felge, empfehlen wir, zwei unserer Radmontagehilfen gleich mit zukaufen >>hier gehts direkt zum Artikel<<
- Welche Felgengröße du nach deinem Bremsenumbau fahren kannst, können wir pauschal nicht beantworten. Es gibt einfach zu viele unterschiedliche Felgen. Es kann in seltenen Fällen vorkommen, dass die Felgen am Bremssattel minimal anliegt, dann können einfach Spurverbreiterungen verwendet werden.
>> Jetzt direkt zu Spurverbreiterungen nach Wunsch << - Den Adapter mit den benötigten Komponenten zu verbauen, um anschließend zu prüfen, ob ggf. neue Bremsleitungen benötigt werden, da es je nach Modell sein kann, das die alten nicht lang genug sind, oder vom Anschluss her nicht passen. Wir empfehlen durch den deutlich besseren Wirkungsgrad auf Stahlflexleitugen zu wechseln, eigens für diese Funktionsweise haben wir dafür einen Stahlflexkonfigurator entwickelt, indem du diese nach deinen Wünschen zusammenstellen und anschließend verlegen kannst.
Hier geht’s zum Stahlflexkonfigurator >> Stahlflex-Bremsleitung konfigurieren << - Das Handbremsseil muss immer vom verbauten Sattel verwendet werden, das heißt, es kann sein, dass das neue Handbremsseil noch etwas angepasst werden muss. Bei Umbauten in dem der Original Sattel weiterverwendet wird und das Original Handbremsseil verwendet werden kann, kann es sein, dass du es auf direkterem Weg verlegen musst um den größeren Scheibendurchmesser und den längeren Weg auszugleichen
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
| Motor | Motorcode |
|---|---|
| 2.0 TDI 4motion | 3G5|200PS(147KW) |
| 2.0 TDI 4motion | CB5|190PS(140KW) |
| 2.0 TSI 4motion | CB5|220PS(162KW) |
| 1.4 TSI 4motion | CB5|150PS(110KW) |
| 2.0 TDI 4motion | CB5|200PS(147KW) |
| 2.0 TSI 4motion | CB5|280PS(206KW) |
| 2.0 TDI 4motion | CB5|240PS(176KW) |
| 2.0 TSI 4motion | CB5|272PS(200KW) |
| 1.4 TSI 4motion | 3G5|150PS(110KW) |
| 2.0 TDI 4motion | CB5|150PS(110KW) |
| 2.0 TDI 4motion | 3G5|240PS(176KW) |
| 2.0 TSI 4motion | 3G5|272PS(200KW) |
| 2.0 TSI 4motion | 3G5|280PS(206KW) |
| 2.0 TDI 4motion | 3G5|190PS(140KW) |
| 2.0 TDI 4motion | 3G5|150PS(110KW) |
| 2.0 TSI 4motion | 3G5|220PS(162KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI 4motion | CB2|240PS(176KW) |
| 2.0 TSI 4motion | CB2|272PS(200KW) |
| 2.0 TDI 4motion | 3G2|240PS(176KW) |
| 2.0 TDI 4motion | 3G2|200PS(147KW) |
| 2.0 TSI 4motion | 3G2|272PS(200KW) |
| 1.4 TSI 4motion | CB2|150PS(110KW) |
| 2.0 TSI 4motion | 3G2|280PS(206KW) |
| 2.0 TSI 4motion | CB2|280PS(206KW) |
| 2.0 TDI 4motion | 3G2|150PS(110KW) |
| 1.4 TSI 4motion | 3G2|150PS(110KW) |
| 2.0 TDI 4motion | 3G2|190PS(140KW) |
| 2.0 TDI 4motion | CB2|190PS(140KW) |
| 2.0 TDI 4motion | CB2|150PS(110KW) |
| 2.0 TDI 4motion | CB2|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI 4motion | 3H8|190PS(140KW) |
| 2.0 TDI 4motion | 3H8|240PS(176KW) |
| 2.0 TSI 4motion | 3H8|272PS(200KW) |
| 2.0 TDI 4motion | 3H8|200PS(147KW) |
| 2.0 TDI 4motion | 3H7|200PS(147KW) |
| 2.0 TSI 4motion | 3H8|280PS(206KW) |
| 2.0 TDI 4motion | 3H7|240PS(176KW) |
| 2.0 TSI R | 3H7|320PS(235KW) |
| 2.0 TDI 4motion | 3H7|190PS(140KW) |
| 2.0 TSI R | 3H8|320PS(235KW) |
| 2.0 TSI 4motion | 3H7|272PS(200KW) |
| 2.0 TSI 4motion | 3H7|280PS(206KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI 4motion | 3G5|240PS(176KW) |
| 2.0 TSI 4motion | 3G5|280PS(206KW) |
| 2.0 TDI 4motion | CB5|190PS(140KW) |
| 2.0 TDI 4motion | CB5|240PS(176KW) |
| 2.0 TDI 4motion | CB5|150PS(110KW) |
| 2.0 TDI 4motion | CB5|200PS(147KW) |
| 2.0 TSI 4motion | 3G5|272PS(200KW) |
| 2.0 TDI 4motion | 3G5|150PS(110KW) |
| 2.0 TDI 4motion | 3G5|200PS(147KW) |
| 2.0 TSI 4motion | CB5|280PS(206KW) |
| 1.4 TSI 4motion | 3G5|150PS(110KW) |
| 1.4 TSI 4motion | CB5|150PS(110KW) |
| 2.0 TSI 4motion | CB5|272PS(200KW) |
| 2.0 TDI 4motion | 3G5|190PS(140KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TSI R | 3H9|320PS(235KW) |
| 2.0 TDI 4motion | 3H9|190PS(140KW) |
| 2.0 TDI 4motion | 3H9|200PS(147KW) |
| 2.0 TSI 4motion | 3H9|272PS(200KW) |
| 2.0 TSI 4motion | 3H9|280PS(206KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI 4x4 | 3V5|150PS(110KW) |
| 2.0 TDI 4x4 | 3V5|200PS(147KW) |
| 2.0 TSI 4x4 | 3V5|280PS(206KW) |
| 2.0 TDI 4x4 | 3V5|190PS(140KW) |
| 2.0 TSI 4x4 | 3V5|272PS(200KW) |
| 2.0 TDI 4x4 | 3V5|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TSI 4x4 | 3V3|272PS(200KW) |
| 2.0 TDI 4x4 | 3V3|200PS(147KW) |
| 2.0 TDI 4x4 | 3V3|150PS(110KW) |
| 2.0 TDI 4x4 | 3V3|190PS(140KW) |
| 2.0 TSI 4x4 | 3V3|280PS(206KW) |
| 1.4 TSI 4x4 | 3V3|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI 4motion | 3G5|200PS(147KW) |
| 2.0 TDI 4motion | CB5|190PS(140KW) |
| 2.0 TSI 4motion | CB5|220PS(162KW) |
| 1.4 TSI 4motion | CB5|150PS(110KW) |
| 2.0 TDI 4motion | CB5|200PS(147KW) |
| 2.0 TSI 4motion | CB5|280PS(206KW) |
| 2.0 TDI 4motion | CB5|240PS(176KW) |
| 2.0 TSI 4motion | CB5|272PS(200KW) |
| 1.4 TSI 4motion | 3G5|150PS(110KW) |
| 2.0 TDI 4motion | CB5|150PS(110KW) |
| 2.0 TDI 4motion | 3G5|240PS(176KW) |
| 2.0 TSI 4motion | 3G5|272PS(200KW) |
| 2.0 TSI 4motion | 3G5|280PS(206KW) |
| 2.0 TDI 4motion | 3G5|190PS(140KW) |
| 2.0 TDI 4motion | 3G5|150PS(110KW) |
| 2.0 TSI 4motion | 3G5|220PS(162KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI 4motion | CB2|240PS(176KW) |
| 2.0 TSI 4motion | CB2|272PS(200KW) |
| 2.0 TDI 4motion | 3G2|240PS(176KW) |
| 2.0 TDI 4motion | 3G2|200PS(147KW) |
| 2.0 TSI 4motion | 3G2|272PS(200KW) |
| 1.4 TSI 4motion | CB2|150PS(110KW) |
| 2.0 TSI 4motion | 3G2|280PS(206KW) |
| 2.0 TSI 4motion | CB2|280PS(206KW) |
| 2.0 TDI 4motion | 3G2|150PS(110KW) |
| 1.4 TSI 4motion | 3G2|150PS(110KW) |
| 2.0 TDI 4motion | 3G2|190PS(140KW) |
| 2.0 TDI 4motion | CB2|190PS(140KW) |
| 2.0 TDI 4motion | CB2|150PS(110KW) |
| 2.0 TDI 4motion | CB2|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI 4motion | 3H8|190PS(140KW) |
| 2.0 TDI 4motion | 3H8|240PS(176KW) |
| 2.0 TSI 4motion | 3H8|272PS(200KW) |
| 2.0 TDI 4motion | 3H8|200PS(147KW) |
| 2.0 TDI 4motion | 3H7|200PS(147KW) |
| 2.0 TSI 4motion | 3H8|280PS(206KW) |
| 2.0 TDI 4motion | 3H7|240PS(176KW) |
| 2.0 TSI R | 3H7|320PS(235KW) |
| 2.0 TDI 4motion | 3H7|190PS(140KW) |
| 2.0 TSI R | 3H8|320PS(235KW) |
| 2.0 TSI 4motion | 3H7|272PS(200KW) |
| 2.0 TSI 4motion | 3H7|280PS(206KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI 4motion | 3G5|240PS(176KW) |
| 2.0 TSI 4motion | 3G5|280PS(206KW) |
| 2.0 TDI 4motion | CB5|190PS(140KW) |
| 2.0 TDI 4motion | CB5|240PS(176KW) |
| 2.0 TDI 4motion | CB5|150PS(110KW) |
| 2.0 TDI 4motion | CB5|200PS(147KW) |
| 2.0 TSI 4motion | 3G5|272PS(200KW) |
| 2.0 TDI 4motion | 3G5|150PS(110KW) |
| 2.0 TDI 4motion | 3G5|200PS(147KW) |
| 2.0 TSI 4motion | CB5|280PS(206KW) |
| 1.4 TSI 4motion | 3G5|150PS(110KW) |
| 1.4 TSI 4motion | CB5|150PS(110KW) |
| 2.0 TSI 4motion | CB5|272PS(200KW) |
| 2.0 TDI 4motion | 3G5|190PS(140KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TSI R | 3H9|320PS(235KW) |
| 2.0 TDI 4motion | 3H9|190PS(140KW) |
| 2.0 TDI 4motion | 3H9|200PS(147KW) |
| 2.0 TSI 4motion | 3H9|272PS(200KW) |
| 2.0 TSI 4motion | 3H9|280PS(206KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI 4x4 | 3V5|150PS(110KW) |
| 2.0 TDI 4x4 | 3V5|200PS(147KW) |
| 2.0 TSI 4x4 | 3V5|280PS(206KW) |
| 2.0 TDI 4x4 | 3V5|190PS(140KW) |
| 2.0 TSI 4x4 | 3V5|272PS(200KW) |
| 2.0 TDI 4x4 | 3V5|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TSI 4x4 | 3V3|272PS(200KW) |
| 2.0 TDI 4x4 | 3V3|200PS(147KW) |
| 2.0 TDI 4x4 | 3V3|150PS(110KW) |
| 2.0 TDI 4x4 | 3V3|190PS(140KW) |
| 2.0 TSI 4x4 | 3V3|280PS(206KW) |
| 1.4 TSI 4x4 | 3V3|150PS(110KW) |
- ✓ 390x36 1664210512 Mercedes GL 500 brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
- ✓ front axle
- ✓ 375x36 1664210912 Mercedes ML / GL brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
- ✓ front axle
- ✓ 360x32 8D0615302B Audi RS4 B5 brake disc
- ✓ 8-piston 8E0615107 / 8E0615108 Audi RS4 RS5 brake caliper
- ✓ front axle
- ✓ Length: 50cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ 35% better braking performance
- ✓ 75% more service life
- ✓ low dust generation

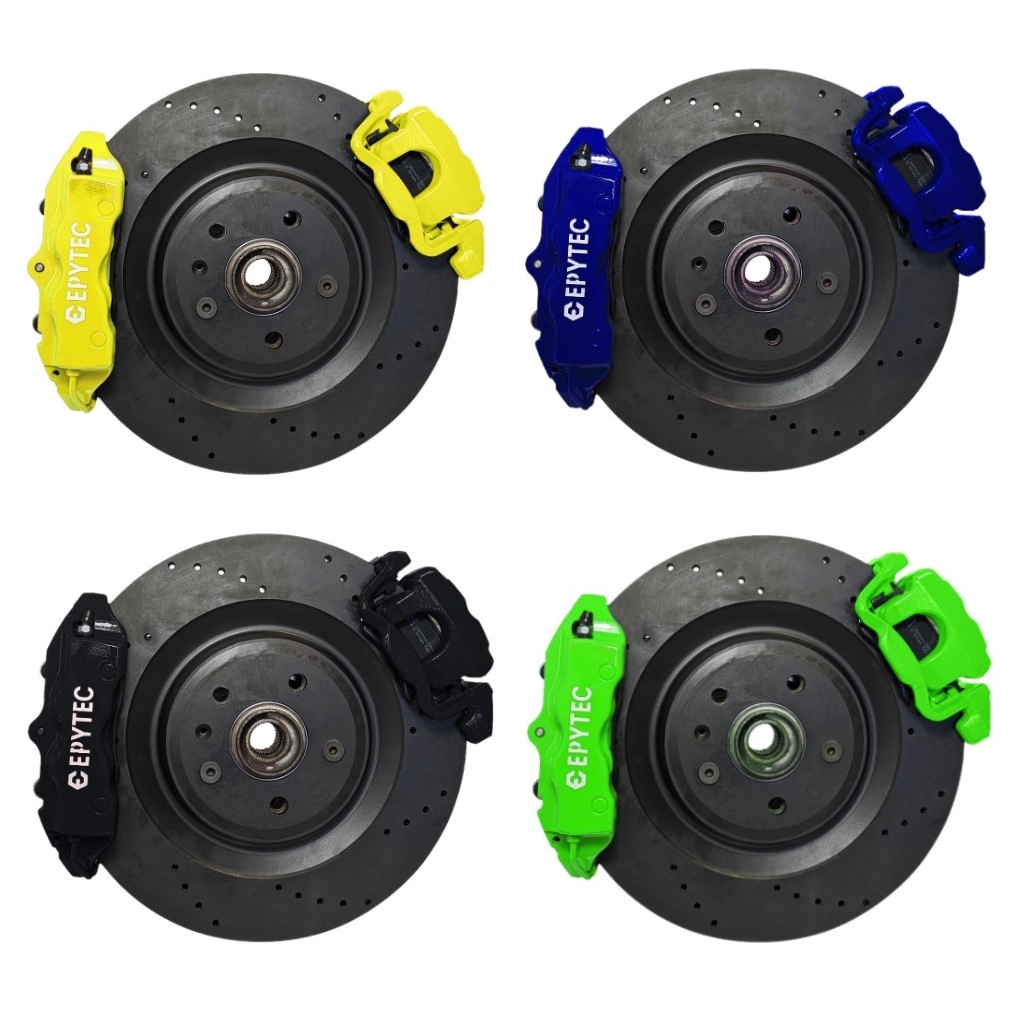

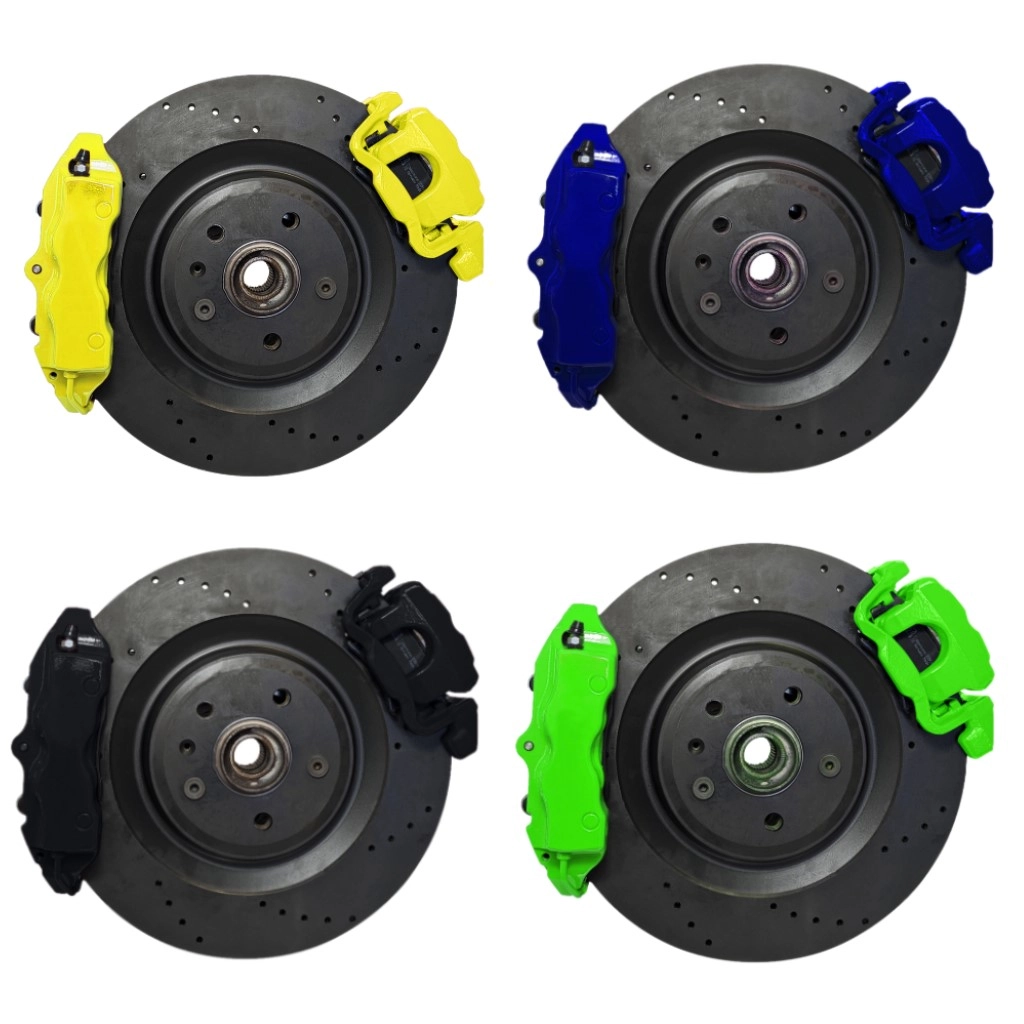

- ✓ Choice of color
