Honda Prelude BA4 16V Bj.1990 Conversion to brake caliper adapter in combination with the brake system from Honda Civic EE9 (yoc 1990)
The customer's request / problem
Our customer Wilhelm would like to install the following brake system with these components on the front axle of his Honda Prelude BA4 16V yoc 1990:- 2-piston caliper Honda Civic EE9 year 1990 (207784 Brembo 2-piston caliper (accessory) for a Honda Civic EE9 yoc 1990)
- Brake disc Honda Civic EE9 year 1990 (Brembo 328mm identification number 911008 for a Honda Civic EE9 yoc1990)
Our conversion
Solution through our brake caliper configurator:
- in our brake caliper configurator you can enter all measurements and will be guided step by step what to do.
- Based on the entered measurements, a file is automatically generated for our 3D printer. This saves Wilhelm the money for a drawing.
- With our configurator you can always see the current price and delivery time for your brake caliper adapter.
- You will receive a matching material certificate for each custom-made product via our configurator.

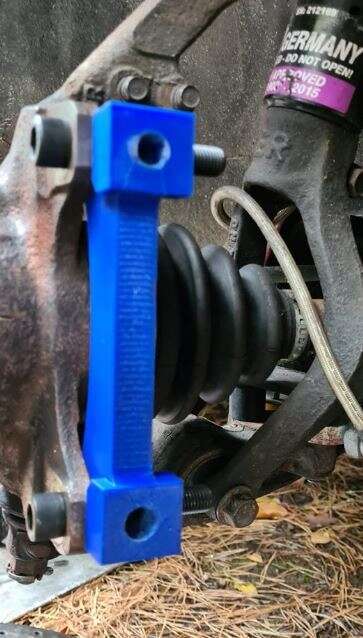

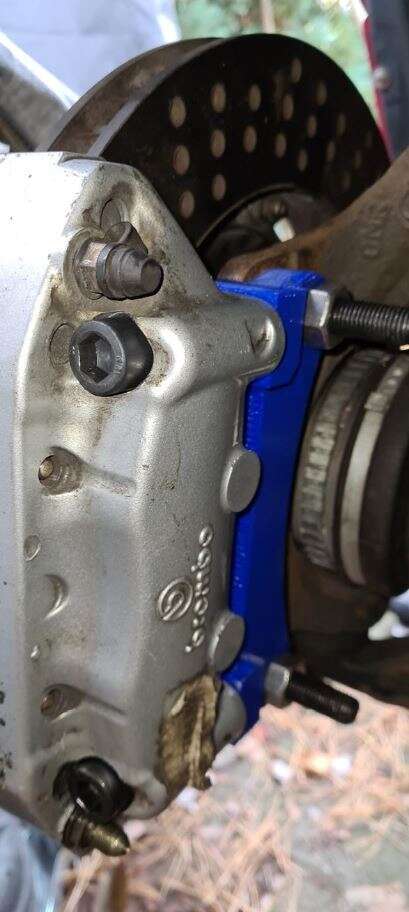

3-D Prototyping
The finished prototype is sent to Wilhelm in advance so that it can be checked whether everything fits perfectly and the brake system of the Honda Civic EE9 (yoc 1990) fits perfectly.
Wilhelm told us after the test fitting that 1-2 small changes should be made so that everything fits perfectly. We implemented these directly and can now start with the production of the tuning adapters. This is exactly why we work with a 3D model. It often happens that certain dimensions or conditions are not taken into account in advance. This way we can be sure that everything fits.
Production
- After the approval of Wilhelm we machine the tuning adapter for the Honda Prelude BA4 16V yoc 1990.
- After completion of the tuning adapter we send it to our surface refiner, who galvanises it, so that the surface is protected against corrosion.
Installation and test
- The Tuning Adapter has been returned to us by the surface refiner and was sent directly to Wilhelm.
- He assembled everything and sent us great pictures of his new tuning adapter - thank you very much!

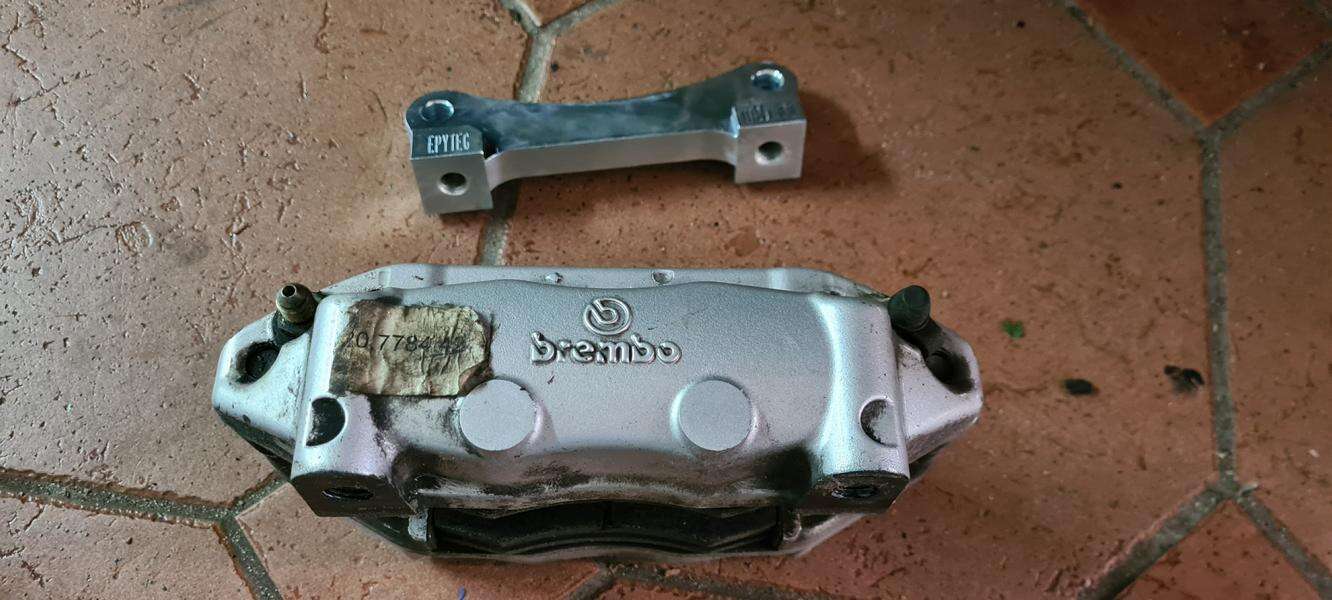

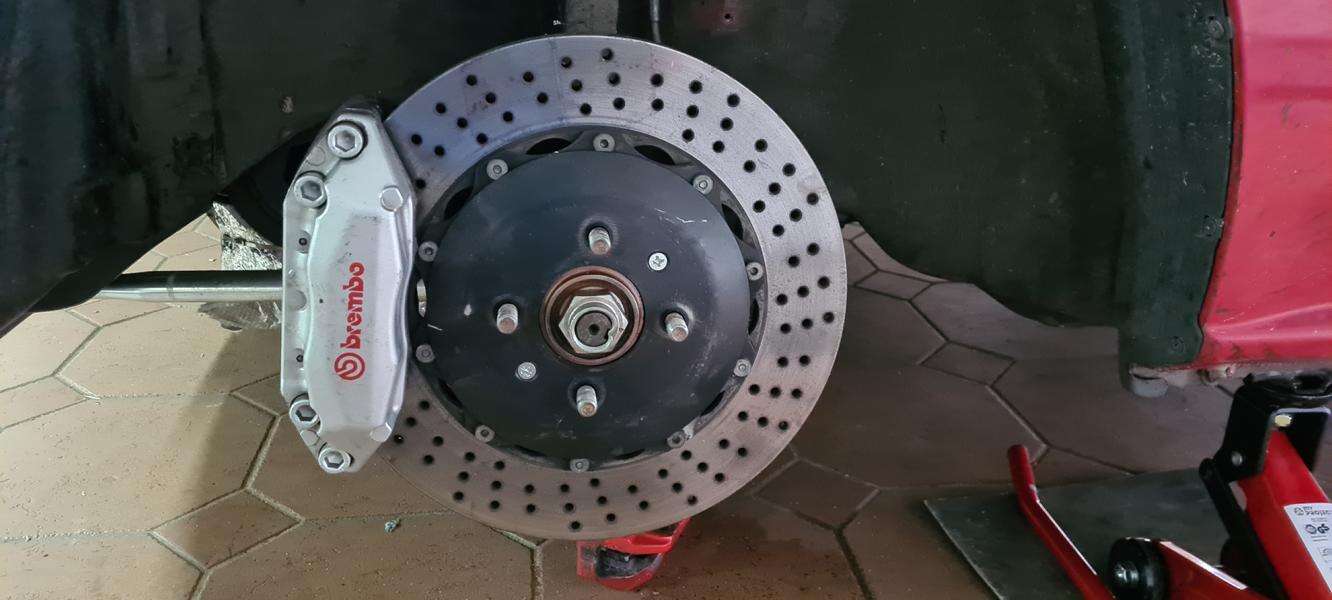

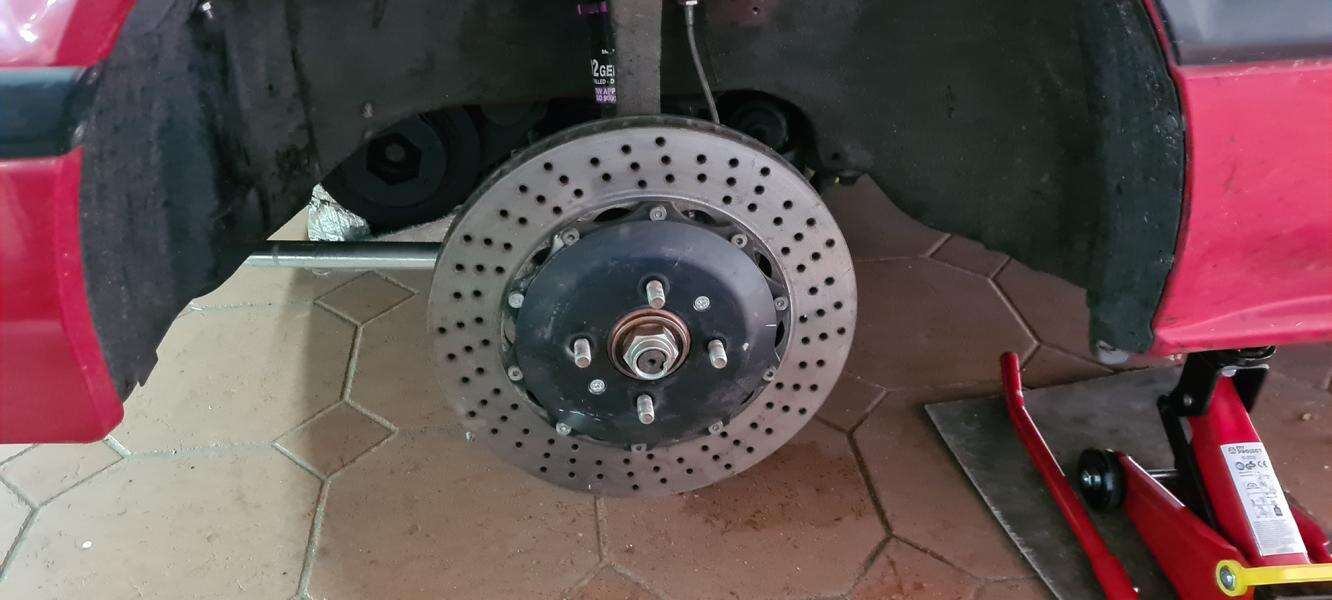

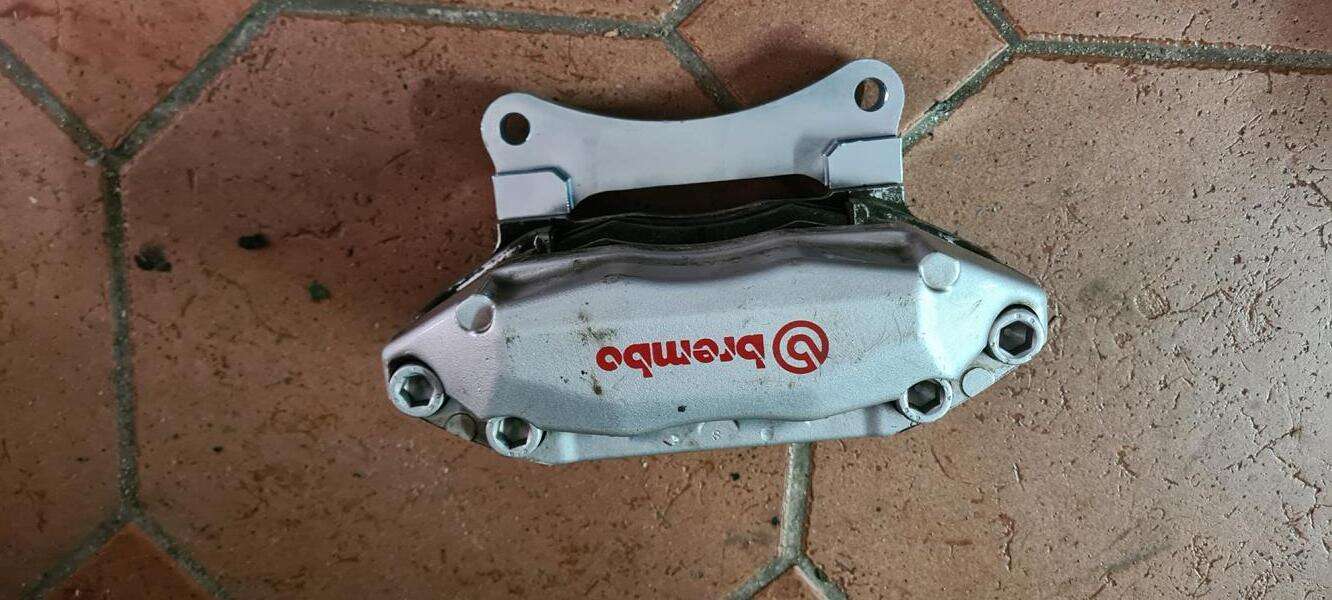

Here you can see some tuning pictures of the Honda Prelude BA4 16V year 1990 on the brake system of the Honda Civic EE9 (year 1990).
We can also help you with your individual solution
Do you also want to have a tuning conversion of your brake system made by us according to your wishes, like Wilhelm? Then simply get in touch with us via our contact form or click here to go directly to our brake caliper configurator for custom-made products to make your conversion dream come true.
With more than 15 years of experience in the production of tuning parts, we can carry out your conversion quickly and cost-effectively. We look forward to your enquiries!
If you would like to have the same brake combination for the identical car, please send us a message via our contact form with the reference 111961 and we will send you an offer.
