Complete brake upgrade on the Audi S1 E2 to the original 4-piston Alcon brake system

Complete brake upgrade on Audi S1 E2 to the original 4 piston Alcon brake system (139287)

The customer request / problem:

Our customer Alex would like to install the following brake system with these components on the front and rear axle of his Audi S1 E2:

Front axle:

4 piston Alcon brake system
330x36mm friction ring

Rear axle

4 piston Alcon brake system
280x26mm friction ring

Did you know that the Audi S1 E2 was only produced 25 times?

Our realisation / solution:

Our customer Alex sent us the wheel bearing housings from the Audi S1 E2 and the complete original Alcon 4-piston brake system including friction rings and old brake disc pots for the front and rear axle

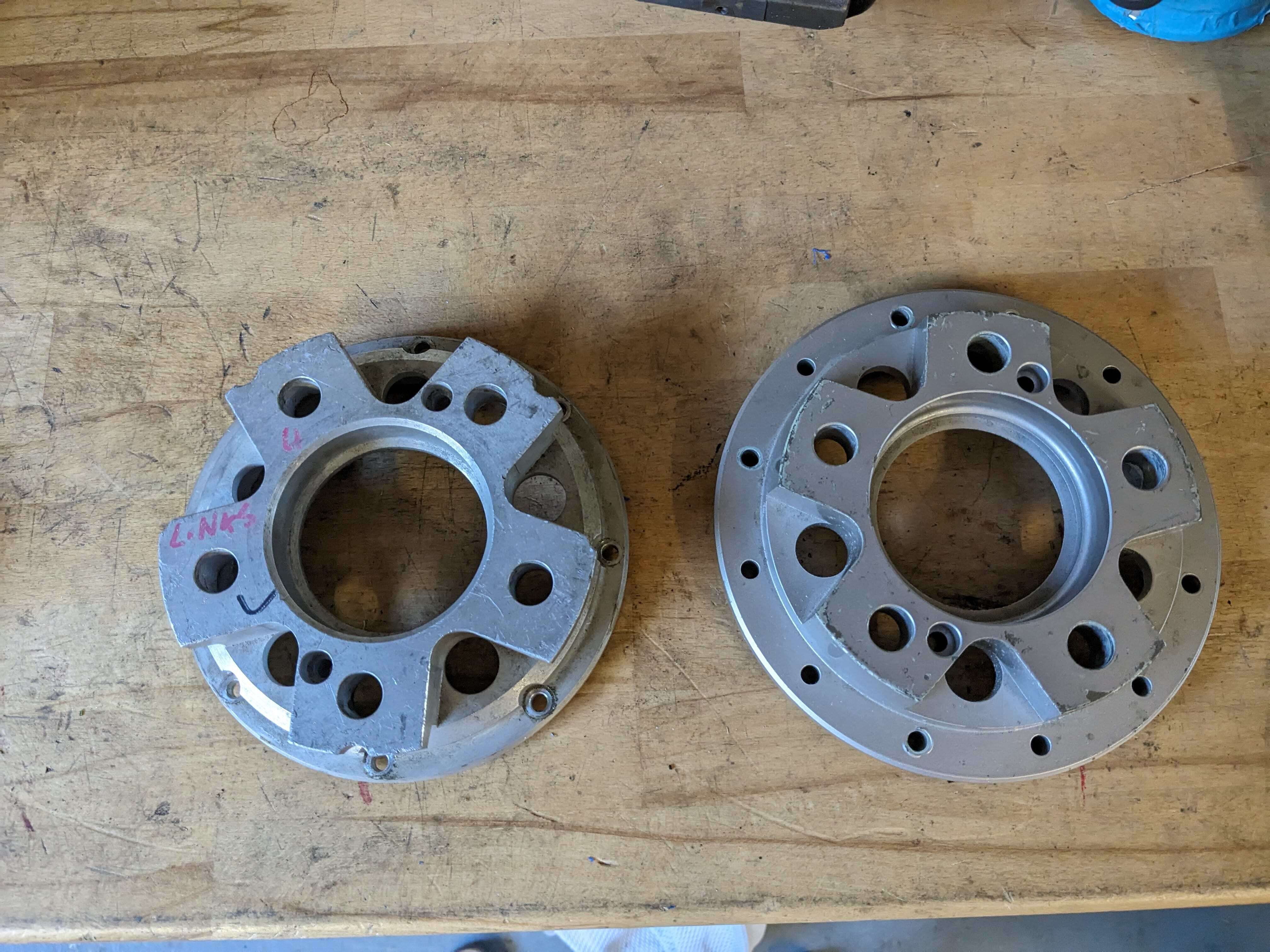

So that Alex can install the original 4-piston Alcon brake system on his Audi S1 E2, we have to produce new customised brake disc pots for the front and rear axles.
On the rear axle, in addition to the custom-made brake disc pots, we have to install brake caliper tuning adapters so that the 4-piston Alcon brake system with the 280x26mm friction rings can be fitted.

3-D Prototyping front axle

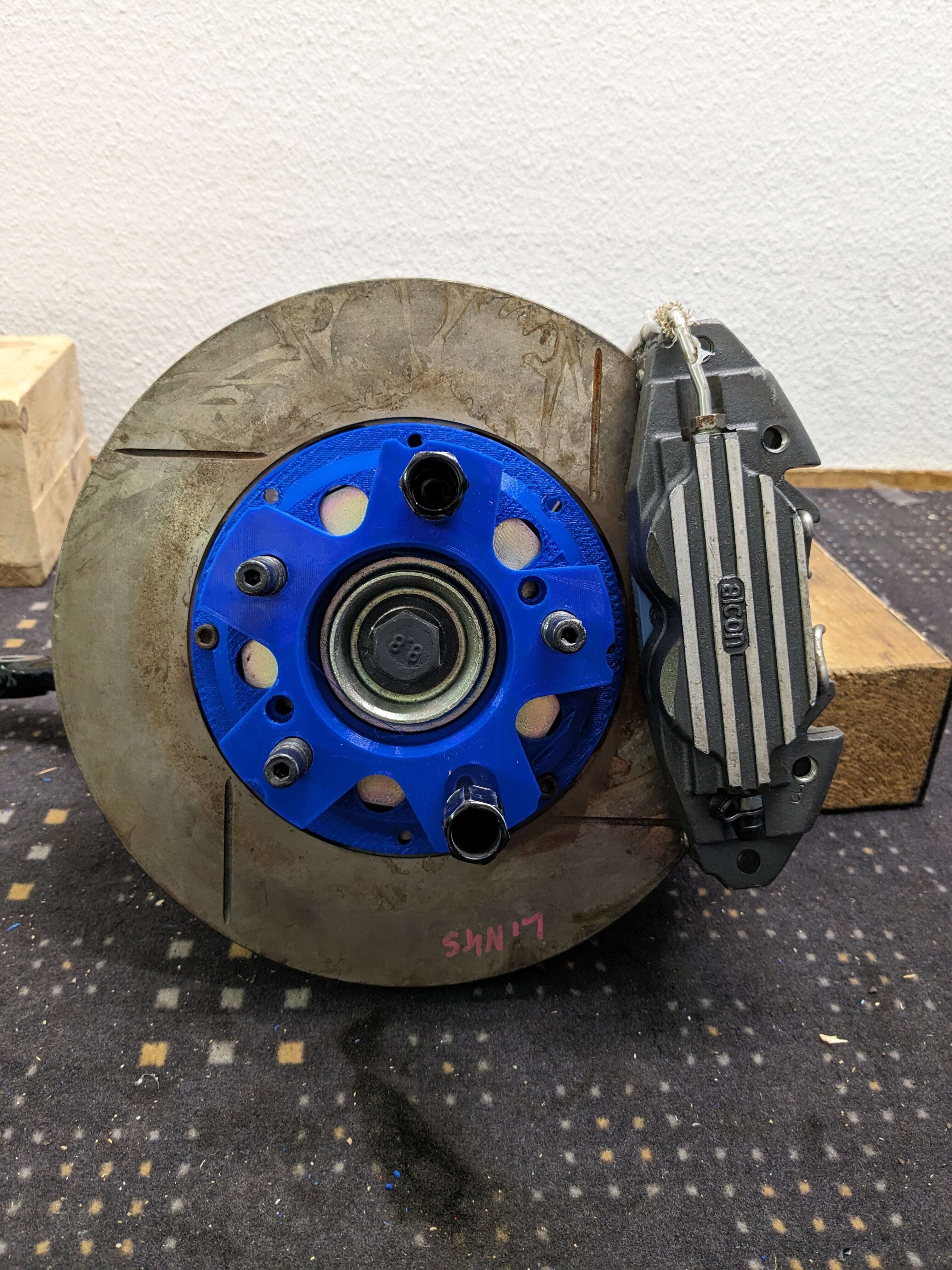

To achieve this, we adapted the old brake disc pots to the dimensions of the 330x36mm friction ring so that the original Alcon brake system can be fitted.

The final 3D brake disc pot for the front axle of the Audi S1 E2 is tested in our workshop to check that everything fits perfectly with the 4-piston Alcon brake system and the 330x36mm brake disc and that there are no defects.

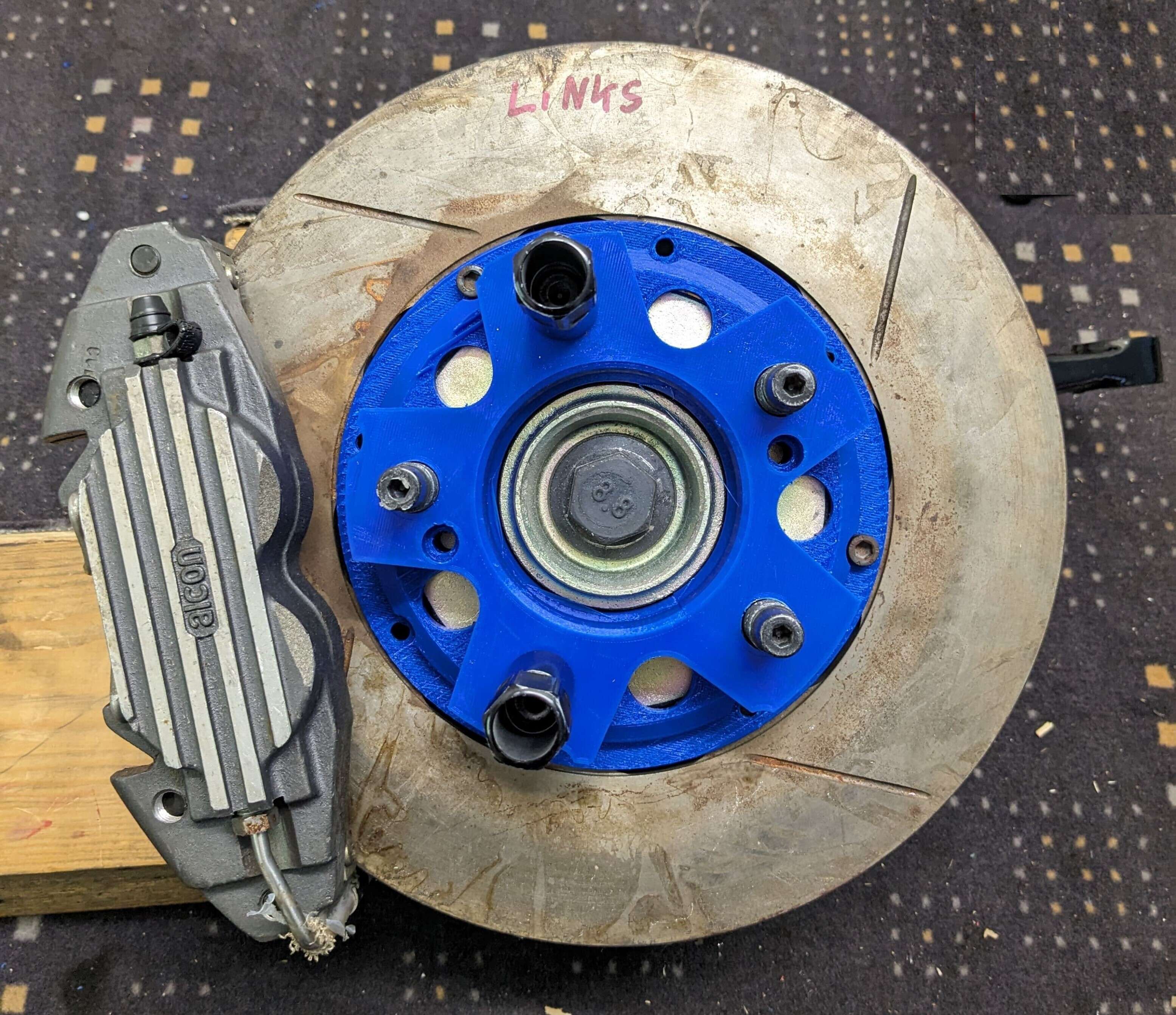

3-D Prototyping rear axle

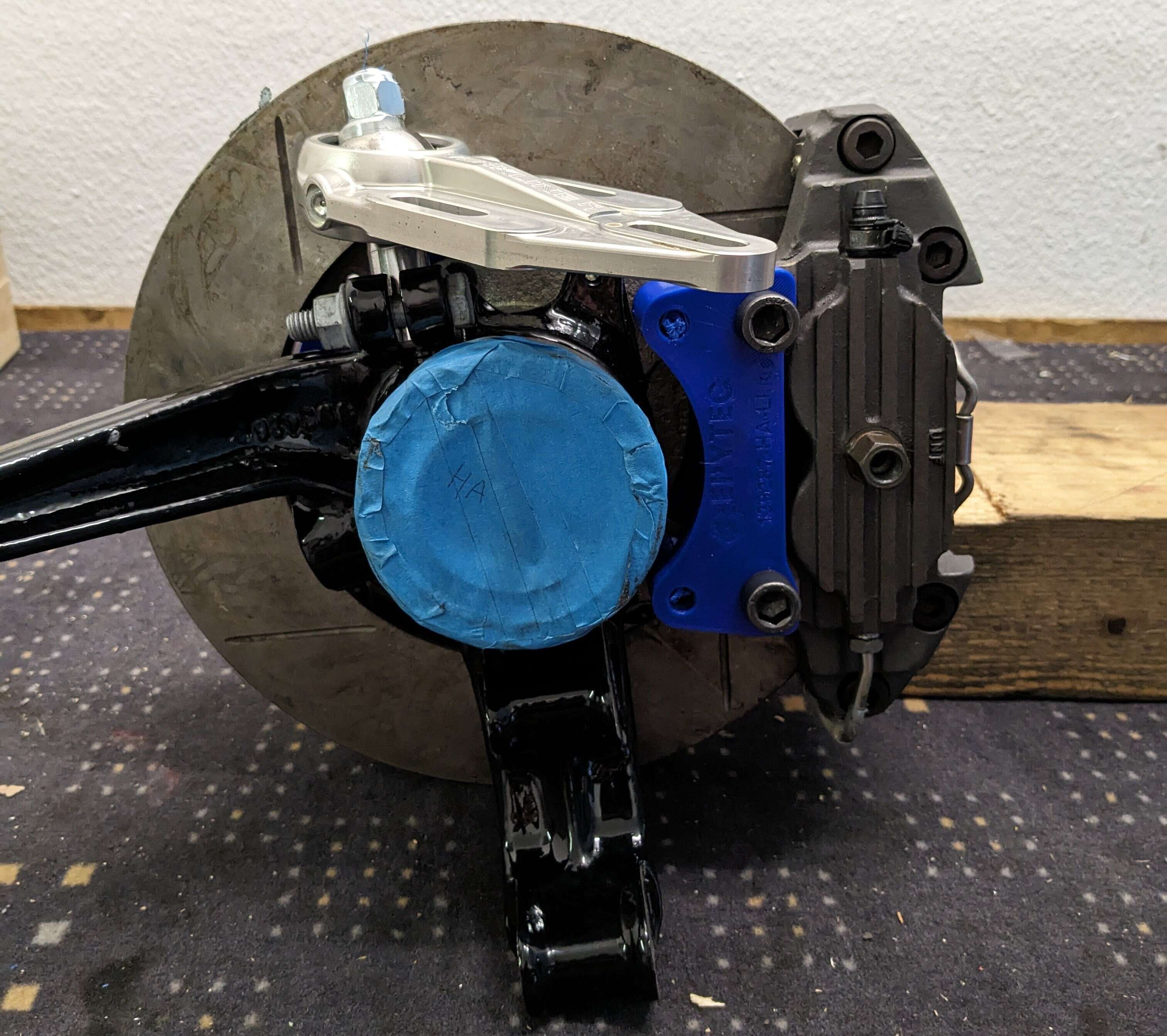

The final 3D prototypes, in the form of brake disc pots and brake caliper tuning adapters, are tested directly in our workshop to check that everything fits perfectly with the 4-piston Alcon brake system and the 280x26mm friction rings and that there are no defects.

We always work with 3D models in advance, as it often happens that certain dimensions and conditions cannot be taken into account on the tuning adapter in advance. Thanks to the 3D model, we can be sure that everything fits.

Production

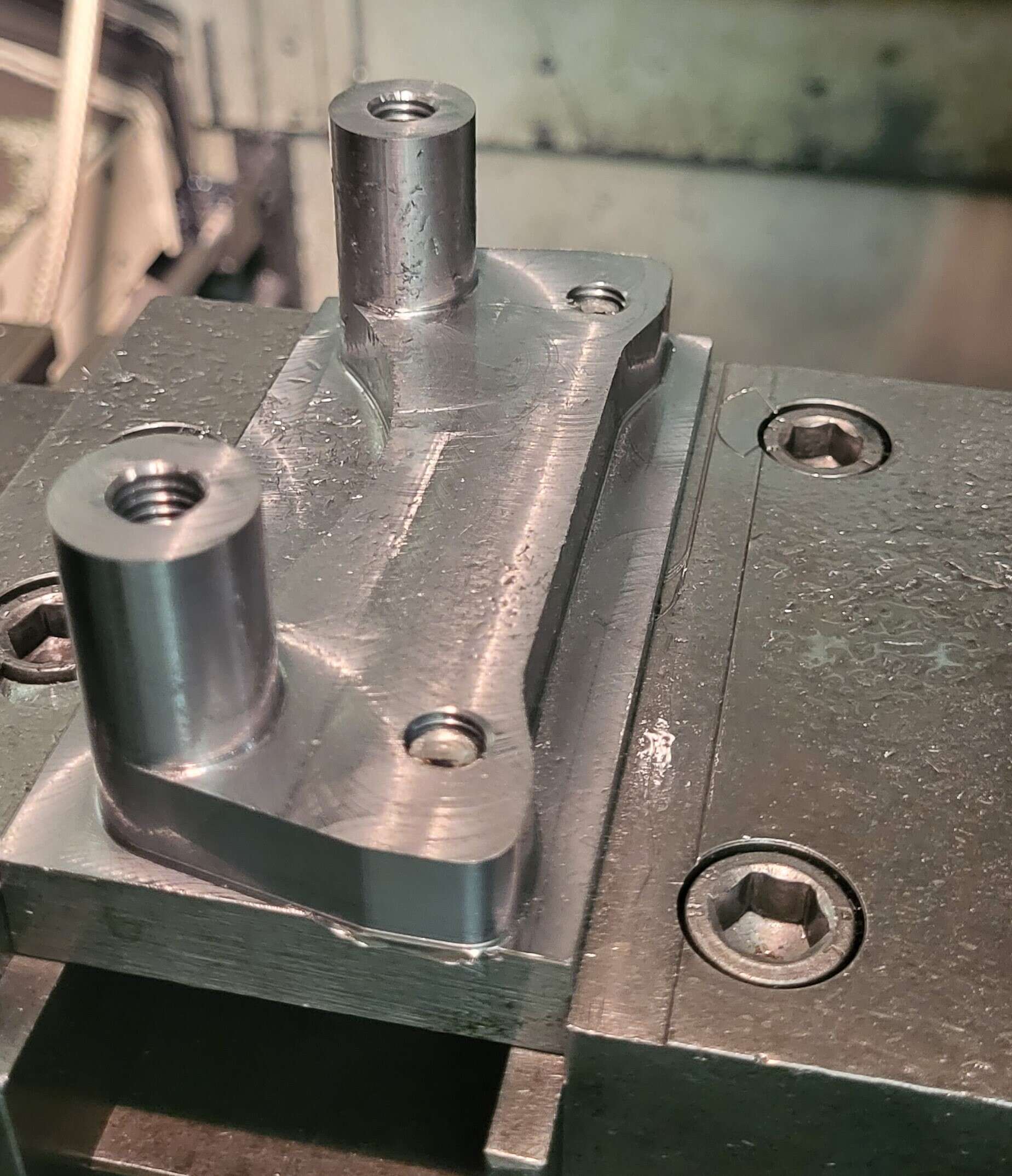

After we have tested the 3D prototypes in our workshop, we can mill the customised brake disc pots and brake caliper tuning adapters for the front and rear axle to fit the Audi S1 E2 precisely in order to install the Alcon 4-piston brake system.

The customised brake disc pots and the tuning adapters have arrived back at our factory from the surface refiner and were trial-fitted directly in our workshop.

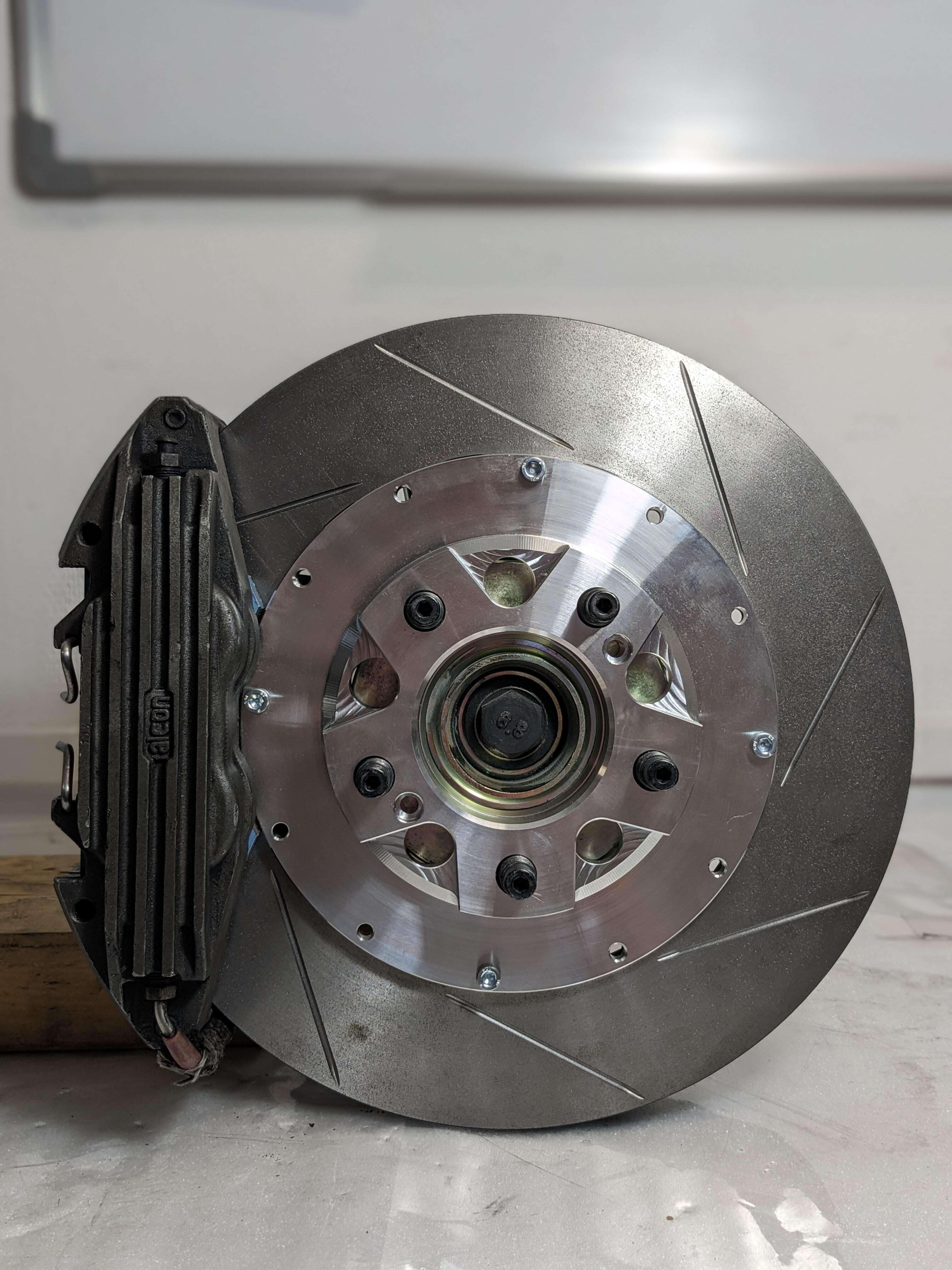

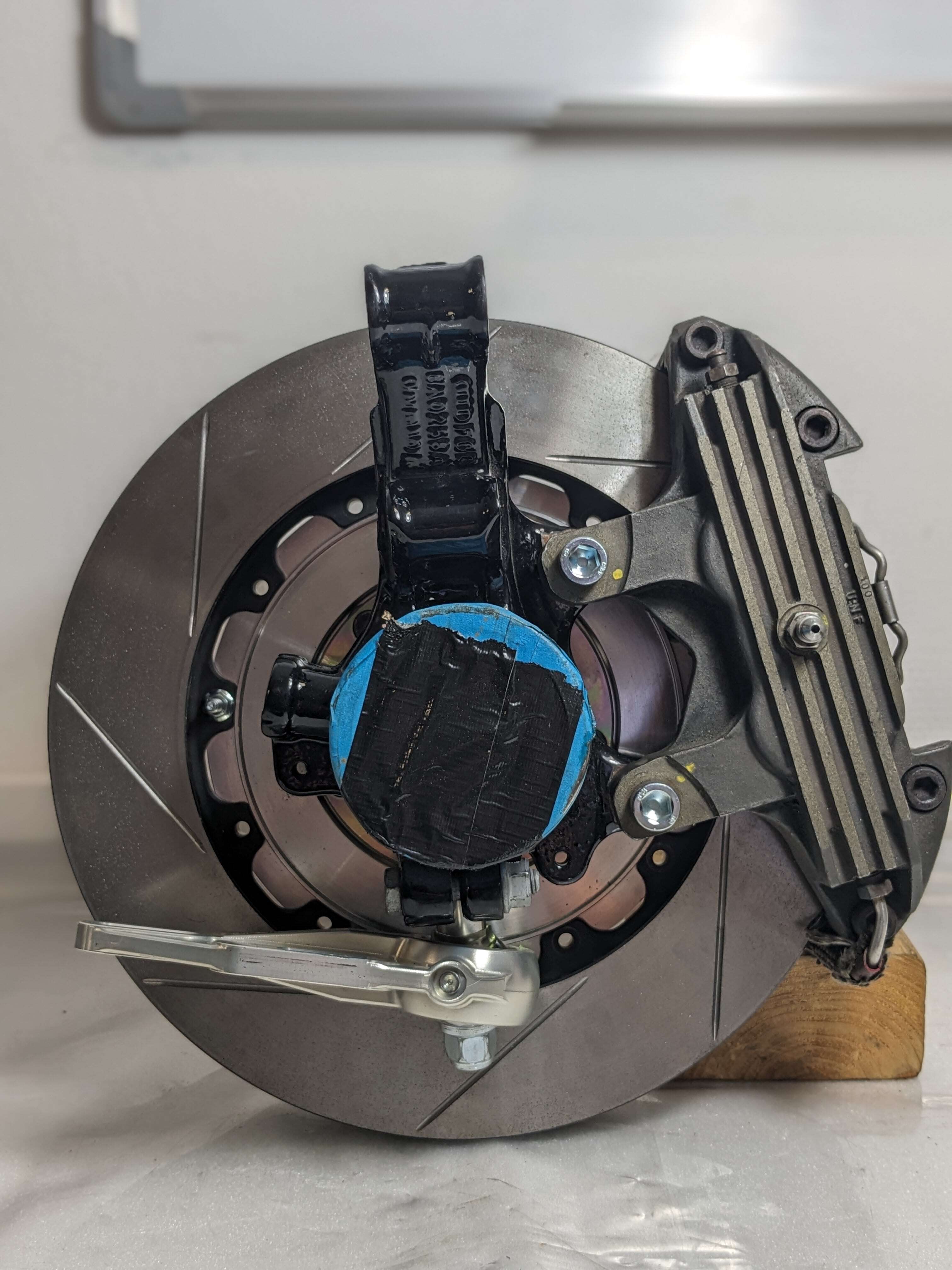

Test fitting of the Alcon 4-piston brake system on the front axle of the Audi S1 E2

the brake system and the friction rings can be fitted directly to the front axle using the customised brake disc pots

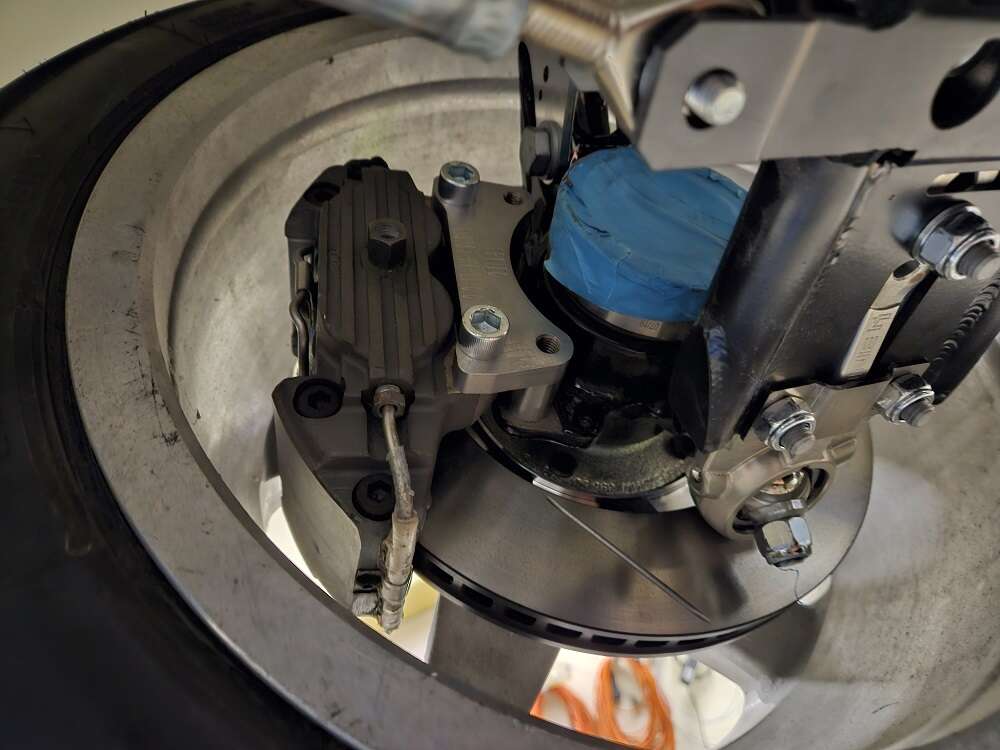

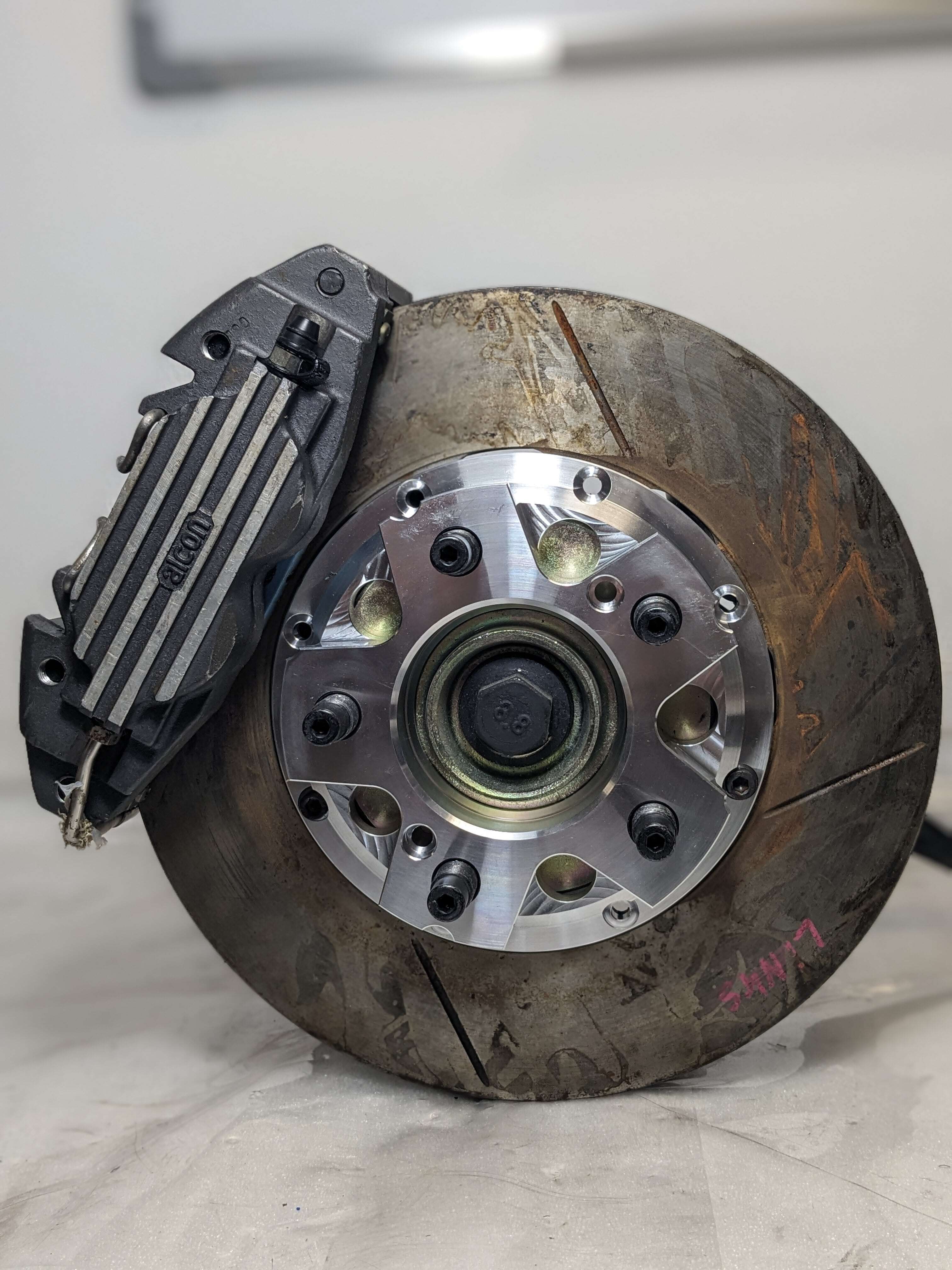

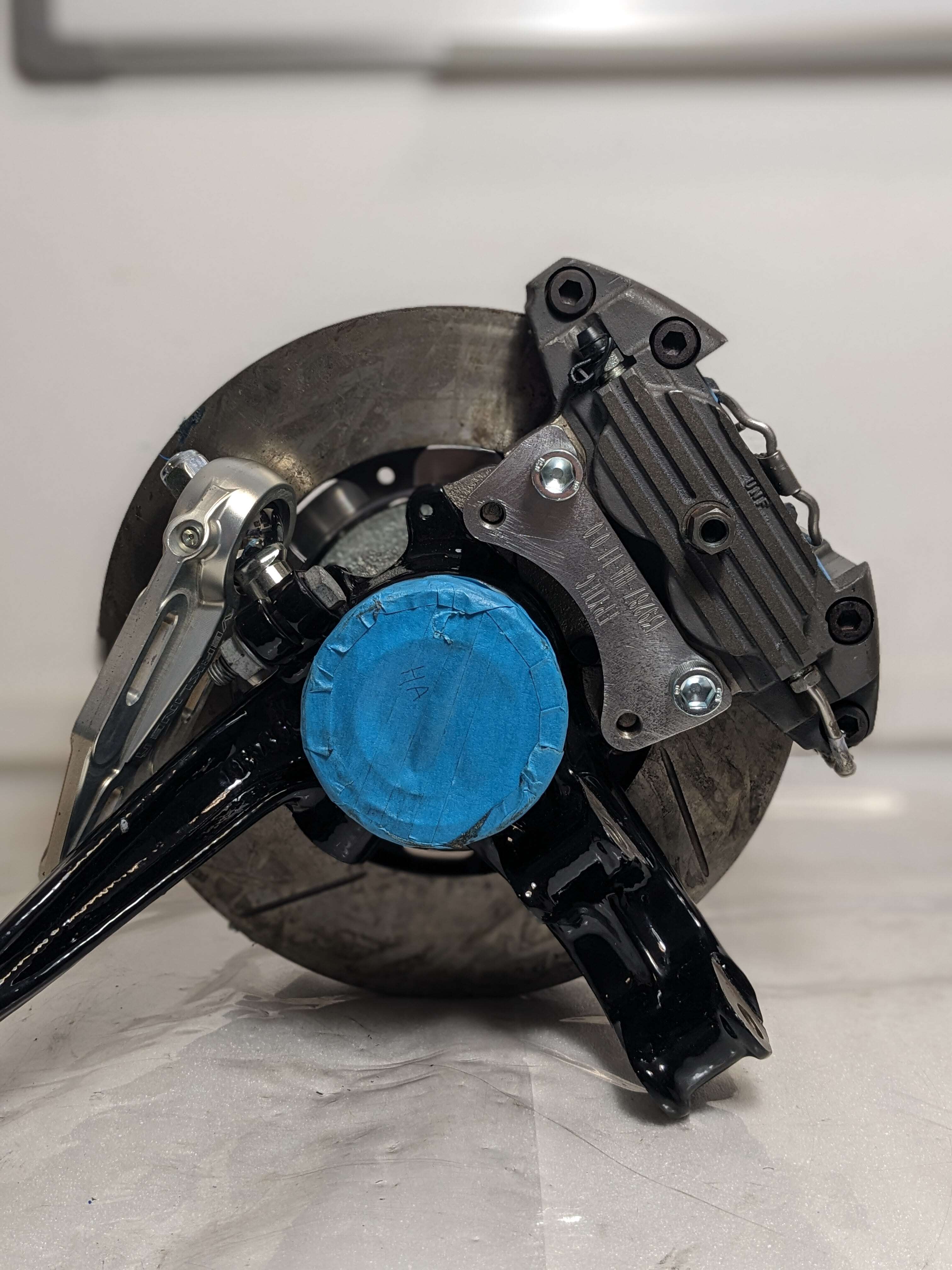

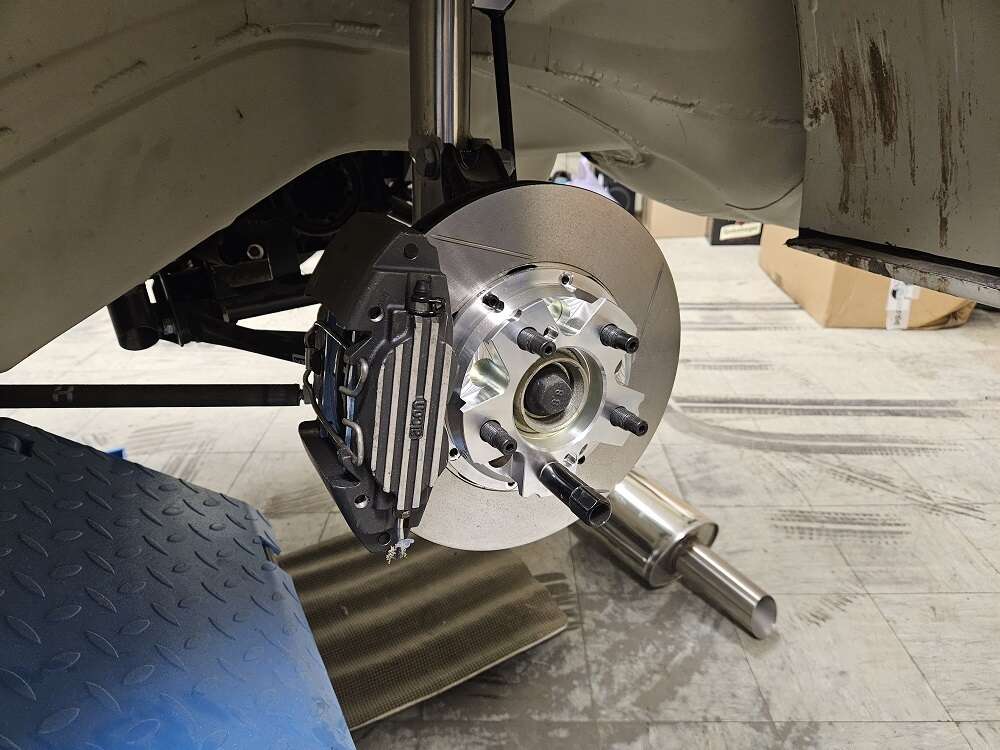

Test fitting of the Alcon 4-piston brake system on the rear axle of the Audi S1 E2

A brake caliper tuning adapter must be installed on the rear axle in addition to the customised brake disc pots.

Installation pictures from Alex

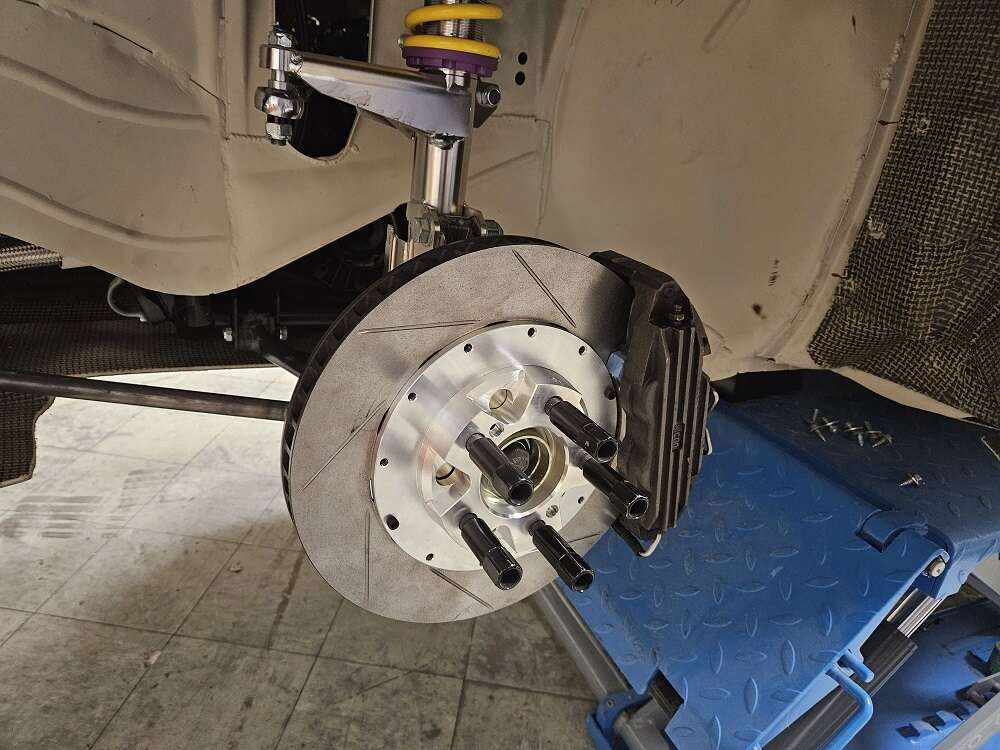

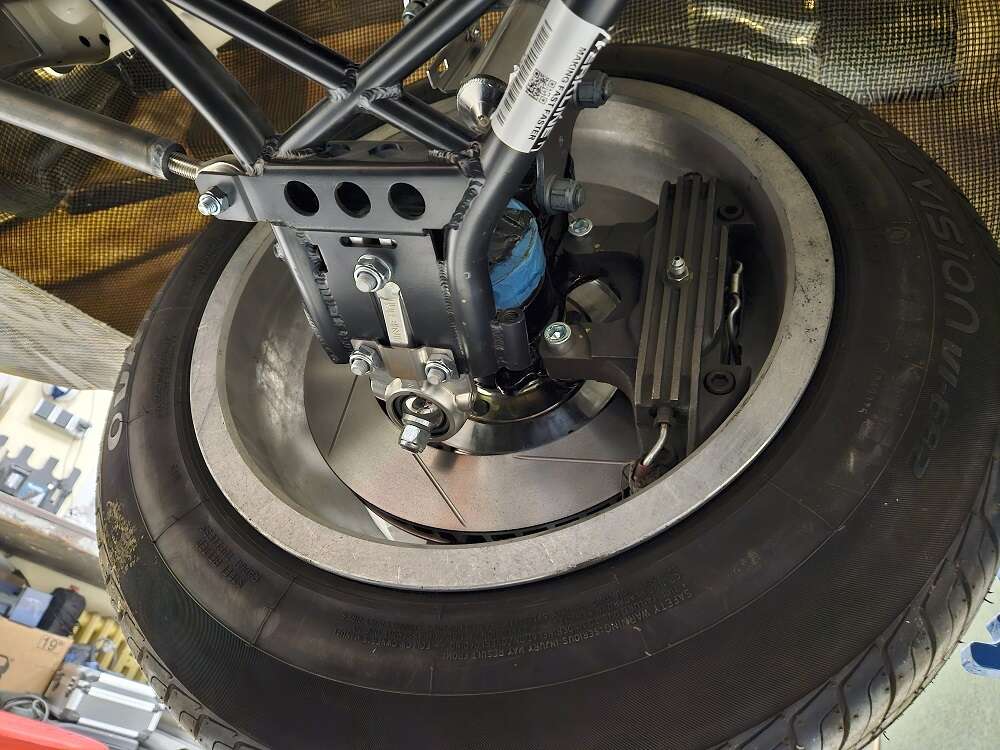

Here you can see more installation pictures of the Audi S1 E2 brake system conversion, with the help of custom-made brake disc pots and Epytec brake caliper adapters.

We can also help you with your customised solution

If, like Alex, you would like to have a tuning conversion of your brake system made by us according to your wishes, then simply get in touch with us via our contact form and we will help you to realise your conversion dream. Thanks to our more than 15 years of experience in the manufacture of tuning parts, we can carry out your conversion quickly and cost-effectively. We look forward to your enquiry!

Would you like to have the same brake system for the Audi S1 E2? Then please send us a message via our contact form with the reference (139287) and we will send you an offer for your customised product.
