Audi S2 brake conversion to the Audi A4 B8 323mm brake disc with the Audi RS2 4-piston caliper

Complete brake upgrade on front and rear axle of Audi 80 B2 (104403)

Our customer Felix wants to do a complete brake upgrade on the front and rear axle of his Audi 80 B2. Here you can find out how we supported him and how you can also realise this.(104403)

The customer's request / problem:

Our customer Felix would like to install the following brake system with these components on his Audi 80.

Front axle with the stub axle from the Audi A4 B5 (OEM 8D0501653B)

Alfa Romeo Brera 3.2 4-Kolben brake caliper, OEM 77363536

Alfa Romeo Brera 3.2 brake pads, OEM 71765647

323x30mm brake disc from Audi S6 Plus C4 front, OEM 4D0 615 301 A

Rear axle

269x22mm brake disc from Audi S6 Plus C4, OEM 857 615 601
brake caliper from Audi A4 / S4 B5, OEM: 8D0 615 423
Caliper bracket from Audi V8, Audi A8 und Audi A6, OEM 447615425B 5x112
Wheel hubs, OEM 4A0501653C

Our realisation for the front and rear axle of the Audi 80 B2:

Solution through our brake caliper configurator

In our brake caliper configurator you will find out how to get your custom-made caliper step by step.
Based on the entered dimensions, a prototype is created with our 3D printer. This saves Felix the money for a CAD drawing.

You will receive a matching material certificate for every custom-made product.

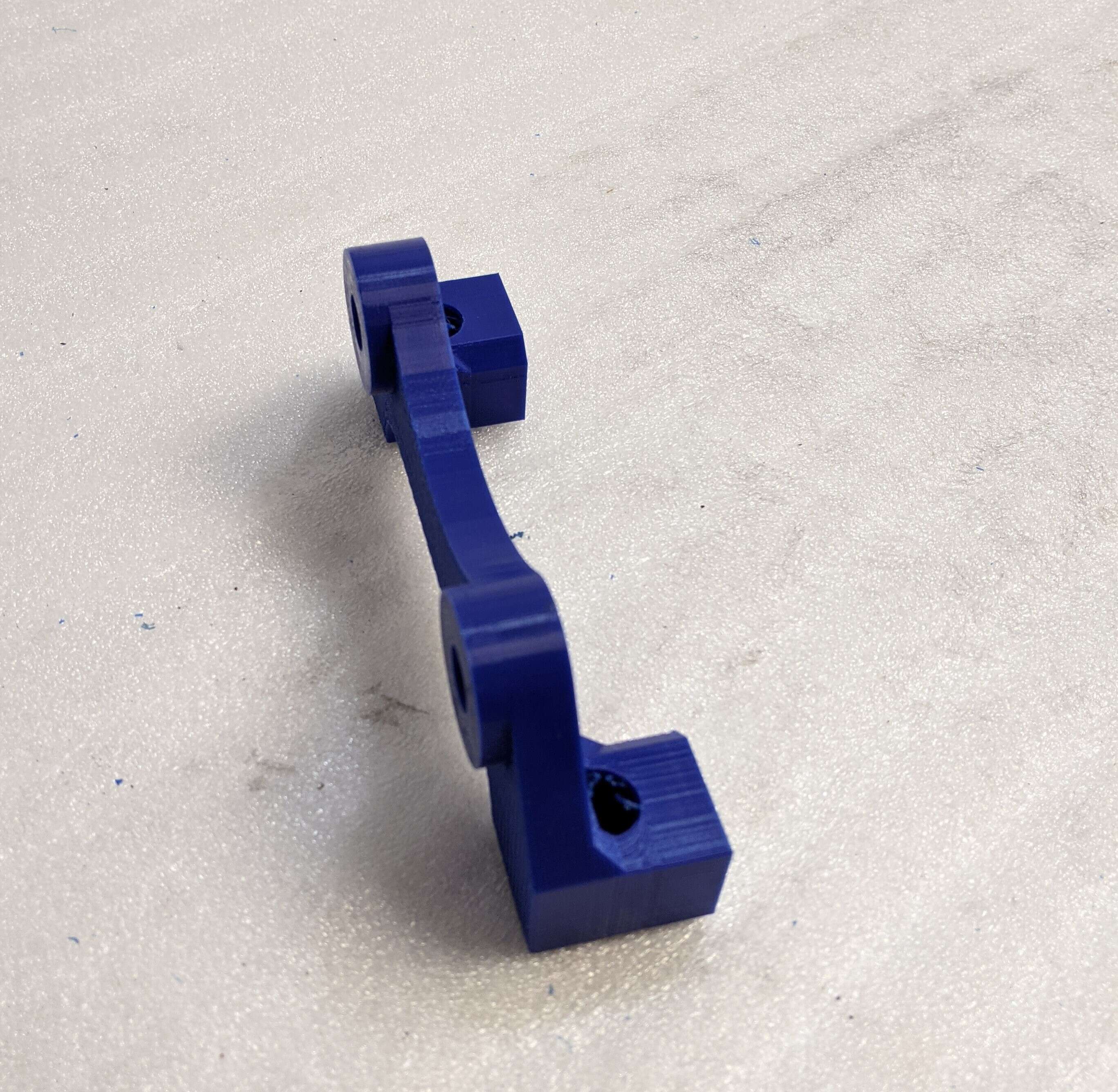

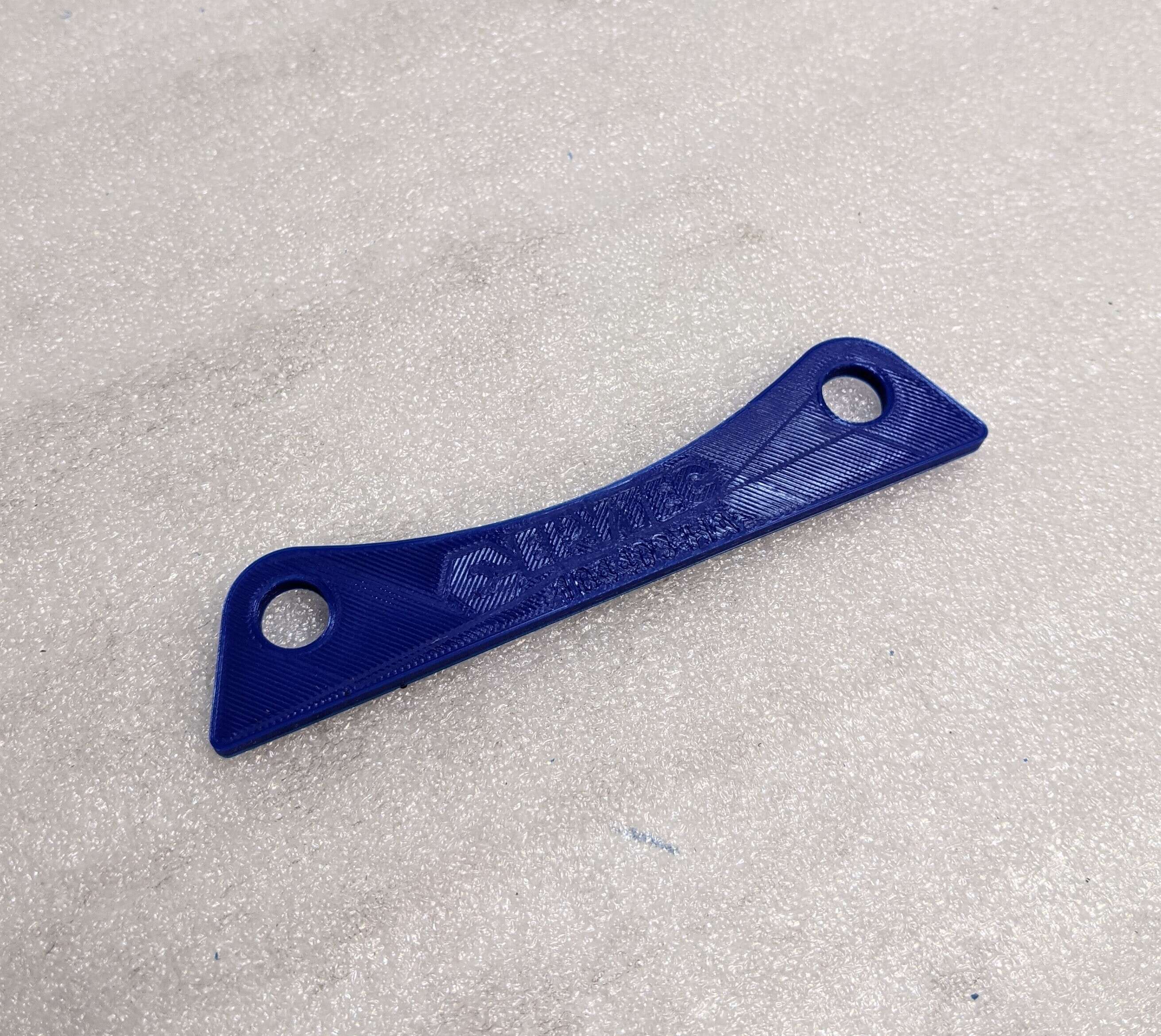

3-D Prototyping

The finished prototype is sent to Felix advance so that we can test whether everything fits exactly and the brake system fits on his Audi A80 . Felix also told us that 1-2 small changes have to be made to the tuning adapter so that everything fits 100%.

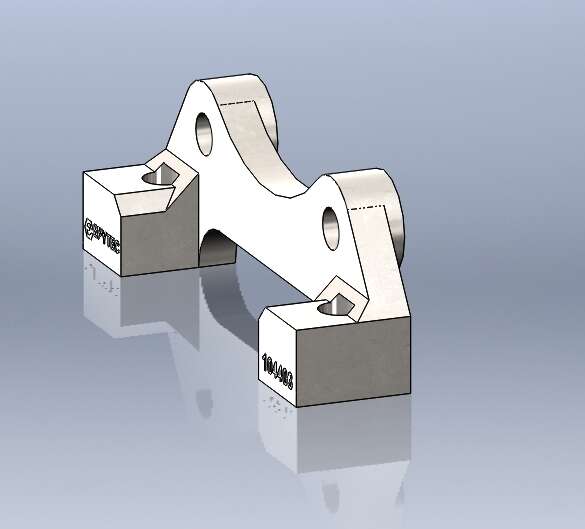

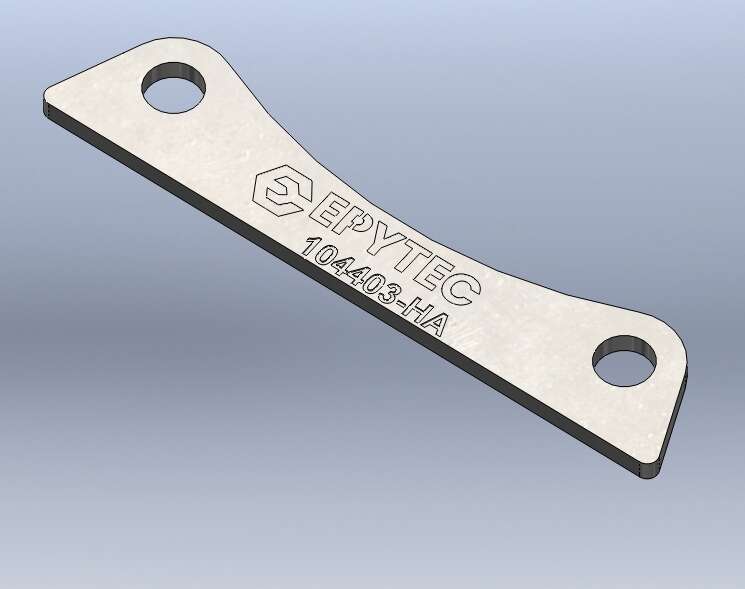

We always work with a 3D model in advance, because it always happens that certain dimensions and conditions cannot be taken into account on the tuning adapter in advance. With the 3D model, we can be sure that everything fits.

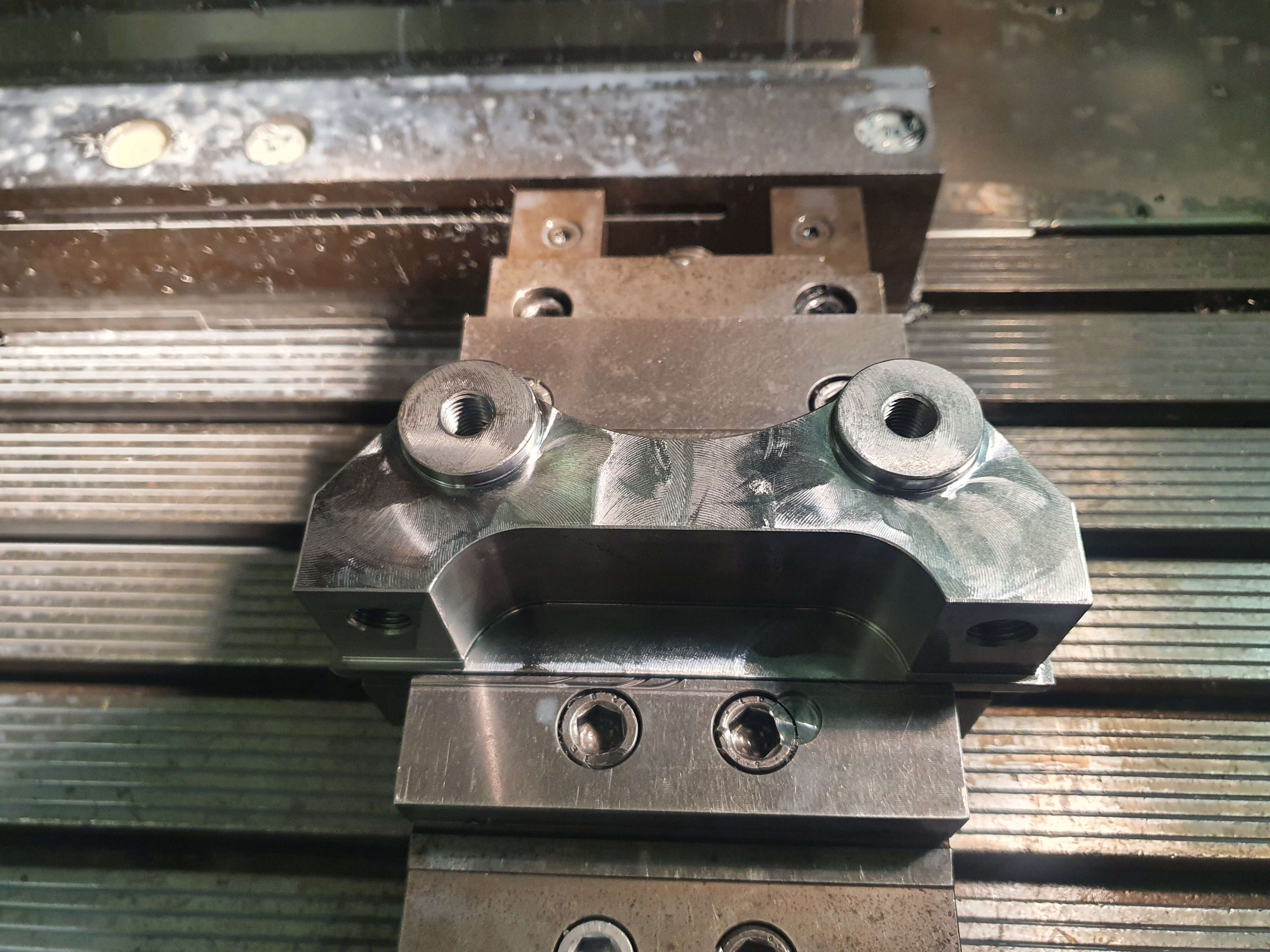

Manufacturing

After Felix approval, now we machine the tuning adapter for the Audi A80 B2 exactly. Then he's taken to the surface refiner.

Installation and test

The brake tuning adapter arrived back from the surface refiner and was sent directly to Felix He installed everything and sent us great installation pictures of his new tuning adapter - many thanks for that!

We can help you also with your individual solution

If you want, as Felix to have a tuning conversion of your category made by us according to your wishes, just contact us. Simply use our contact form and we will help you to realise your dream conversion. With more than 15 years of experience in the production of tuning parts, we can carry out your conversion quickly and cost-effectively. We look forward to your enquiry!

If you would like to have the same brake system for the identical car Audi 80 B2? please send us a message via our contact form with the reference (104403) and we will send you an offer for your custom-made product.
