Flywheel Kit VW Polo Lupo 9N 1,6l 16V 5-speed 6-speed 220mm Flywheel Clutch Pressure Plate Organic

  • ✓ 1.6l 16V 5 and 6 speed engine
  • ✓ 220mm clutch
  • ✓ 520NM torque

Clutch kit for VW Polo Lupo 9N 1,6l 16V 5 and 6-speed

Consists of:

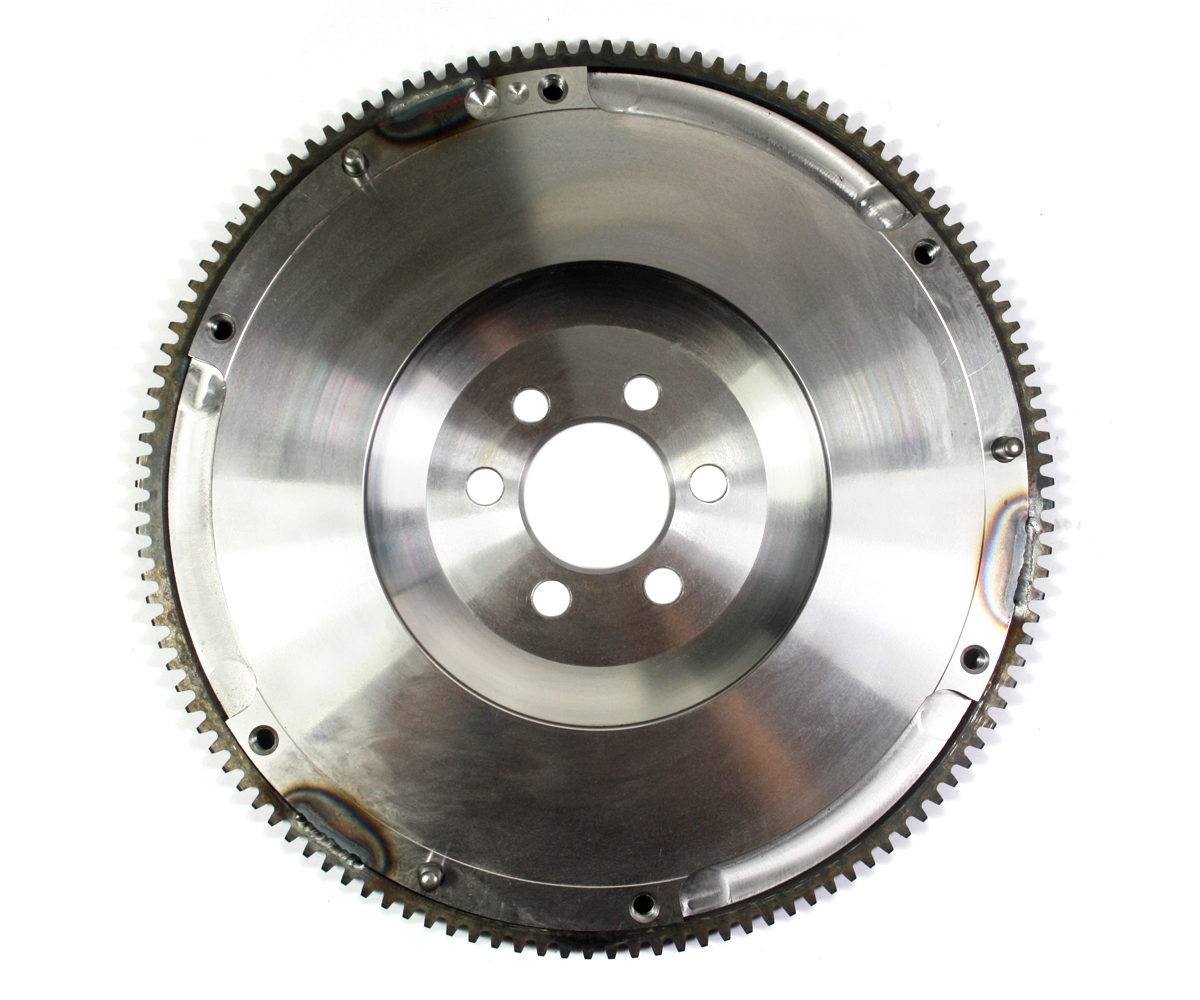

  • lightened high strength chrome molybdenum flywheel EPYTEC

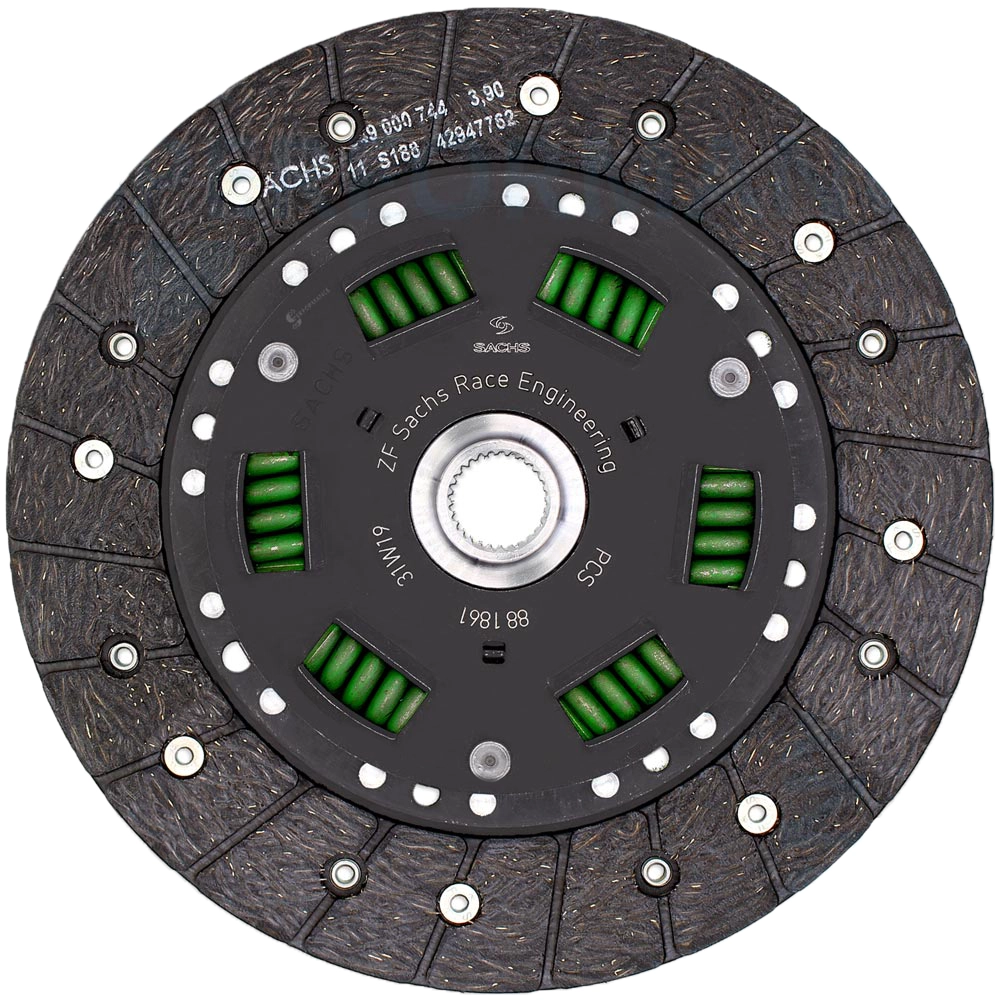

  • rigid, sinterpad clutch disc SACHS

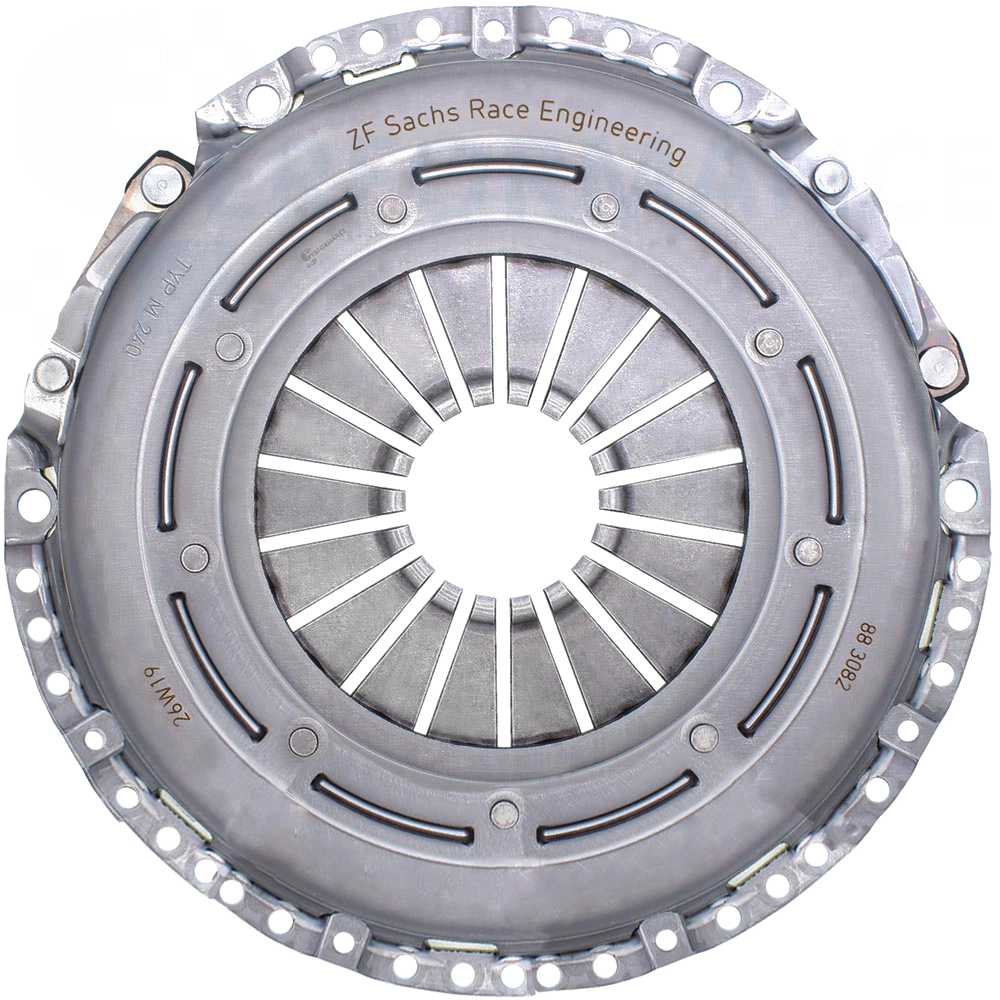

  • clutch pressure plate, reinforced design SACHS

For the following engine:

  • 1,6l 16V 5 and 6-speed

Advantages of our clutch kit with lightened flywheel

  • our flywheel weighs only 3.3 kg, the standard wheel over 5.5 kg
  • exactly identical in construction to the series components, therefore easy replacement possible
  • it is not necessary to send us the original engine flywheel
  • higher contact pressure and less abrasion of the pressure plate
  • all our flywheels are made of chrome moly steel with quality G 1.75, extremely suitable for high-speed motors
  • significantly better acceleration due to less inertia
  • higher speeds possible
  • the engine runs faster
  • More direct response behaviour
  • suitable for motorsports, racing or serial vehicles
  • lower fuel consumption
  • significant reduction of the turbo lag
  • precision balancing, bearings are less affected
  • including ring gear
  • suitable for either a standard clutch or a high-performance clutch
  • made in Germany

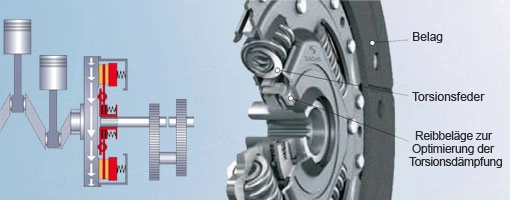

Advantages of the torsion spring clutch disc with organic performance clutch lining and the reinforced pressure plate

  • starting behavior similar to series
  • significantly higher transmittable torque
  • the torsional damping achieves a higher impact moment
  • better thermal resilience compared to organic friction coating/lining
  • longer lifetime
  • less lift
  • higher pressing force
  • higher speeds possible

Areas of application:

  • series and road vehicles
  • chip tuning, turbo and compressor conversions
  • vehicles with maximum loads
  • vehicles with trailer
  • 1/4 mile race
  • circuit racing (e.g. endurance racing, motor sport, cross)
  • rallies (e.g. category N)
  • hill climb, slalom, drift

Technical data:

  • transmittable torque[Nm]: 520
  • weight of the lightened single-mass flywheel: 3,3 Kg

Delivery:

  • 1x lightened high strength chrome molybdenum flywheel EPYTEC
  • 1x spring organic clutch disc SACHS
  • 1x clutch pressure plate, reinforced design SACHS
  • 1x release bearing

Technical data:

Manufacturer: Epytec
Manufacturer: Epytec

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Motor Motorcode
1.6 16V 9A|105PS(77KW)
1.6 16V 9N|105PS(77KW)
Motor Motorcode
1.6 GTI 60|125PS(92KW)
1.6 GTI 6E1|125PS(92KW)
1.6 GTI 6X1|125PS(92KW)
Motor Motorcode
1.6 16V 6L1|105PS(77KW)

Motor Motorcode
1.6 16V 9A|105PS(77KW)
1.6 16V 9N|105PS(77KW)

Motor Motorcode
1.6 GTI 60|125PS(92KW)
1.6 GTI 6E1|125PS(92KW)
1.6 GTI 6X1|125PS(92KW)

Motor Motorcode
1.6 16V 6L1|105PS(77KW)
