Drive shaft conversion DQ500 gearbox VW Golf 2 Golf 3 Golf 4 Audi S3 8L Tuning - Series: Audi S3 8L Quattro
£564.00*

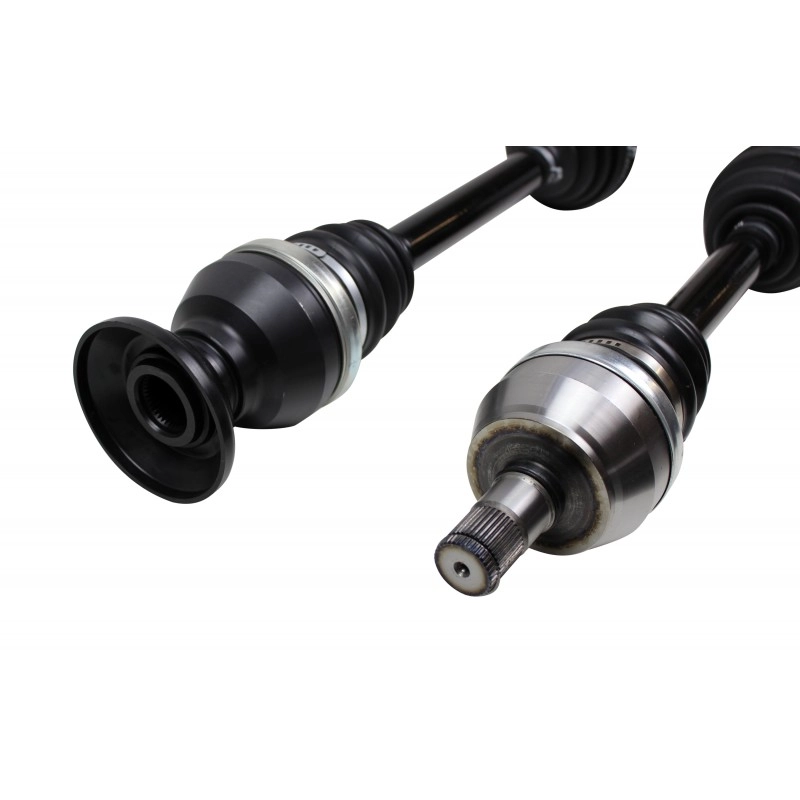

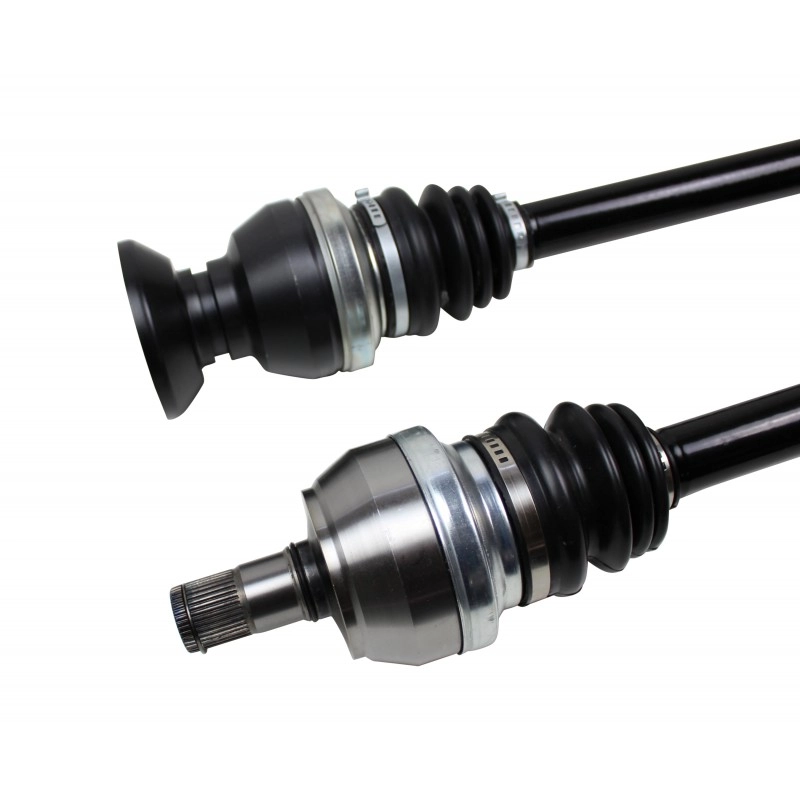

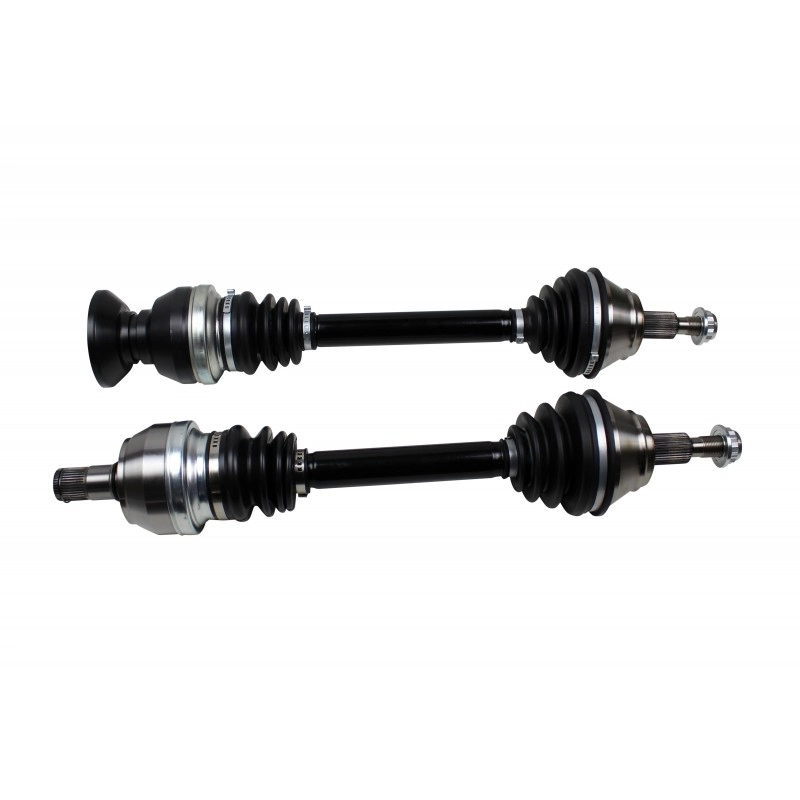

Drive shaft set for the Audi A3 8L all-wheel drive series. Essential if you want to convert your vehicle to the DQ500 / DSG 7-speed gearbox.
We do not use tripoid joints for our drive shafts, but our own customised joints, as these can withstand more torque.
Suitable for the following vehicles:
- Audi A3 8L 1.8T Quattro
- Audi S3 8L 1.8T Quattro
- Audi A3 8L 1.9TDI Quattro
Suitable for the following gearbox:
- DQ500 / DSG 7 speed all-wheel drive transmission
It is important that when installing the new drive shaft, no excess pressure in the sleeve. In our installation instructions you can see how to prevent this (click here).
Installing the thinner drive shaft saves you having to rework the body. This saves you time and nerves.
Advantages of the shafts:
- fits plug and play
- solid shaft made of special high strength material
- easy assembly
- Own reinforced joints installed for more torque
- no registration necessary, drive shafts are registration free
Scope of delivery:
1x drive shaft set for the Audi A3 8L all-wheel drive series.1x Antriebswellenset für die Audi A3 8L Allrad Baureihe.
Our drive shafts are registration-free and therefore do not need to be registered.Login
- What exactly is the benefit of a shorter drive shaft?
Lowering changes the axle geometry and the shaft presses on the wheel bearing, exposing it to high wear and possibly destroying it in the worst case. Therefore, it is absolutely necessary to relieve the pressure from the component. This is done by shortening the shafts.
- Do the reinforced drive shafts also have reinforced joints?
On the wheel side, the joints are also reinforced, but the inner joints are like the standard joints.
- Why are two bags of grease included in the package?
The grease is included so that additional greasing can be done, or if the gearbox flange is open at the back. In this case, greasing must still be done there. If the shaft is delivered completely closed, greasing is not necessary as it has already been done.
- Why are no backing plates (OE: 1K0407357D) included for mounting as they are originally available?
We do not supply the base plates, as we install the latest version of the bellows. With these, the base plates are no longer needed.
| Motor | Motorcode |
|---|---|
| 1.9 TDI quattro | 8L1|130PS(96KW) |
| S3 quattro | 8L1|210PS(154KW) |
| S3 quattro | 8L1|224PS(165KW) |
| 1.8 T quattro | 8L1|180PS(132KW) |
| 1.8 T quattro | 8L1|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI quattro | 8L1|130PS(96KW) |
| S3 quattro | 8L1|210PS(154KW) |
| S3 quattro | 8L1|224PS(165KW) |
| 1.8 T quattro | 8L1|180PS(132KW) |
| 1.8 T quattro | 8L1|150PS(110KW) |
- ✓ Conversion to 2WD front drive
- ✓ VR6 16V 1.8T G60
- ✓ 7-speed DSG/DQ500 02M gearbox
