Brake caliper adapter Z32 brake caliper 2-piston 350x20mm brake discs rear axle
- ✓ 350x20 43206JL00A Nissan 370Z brake disc
- ✓ 2-piston 440011EA5A / 440111EA5A Nissan 370Z brake caliper
- ✓ rear axle

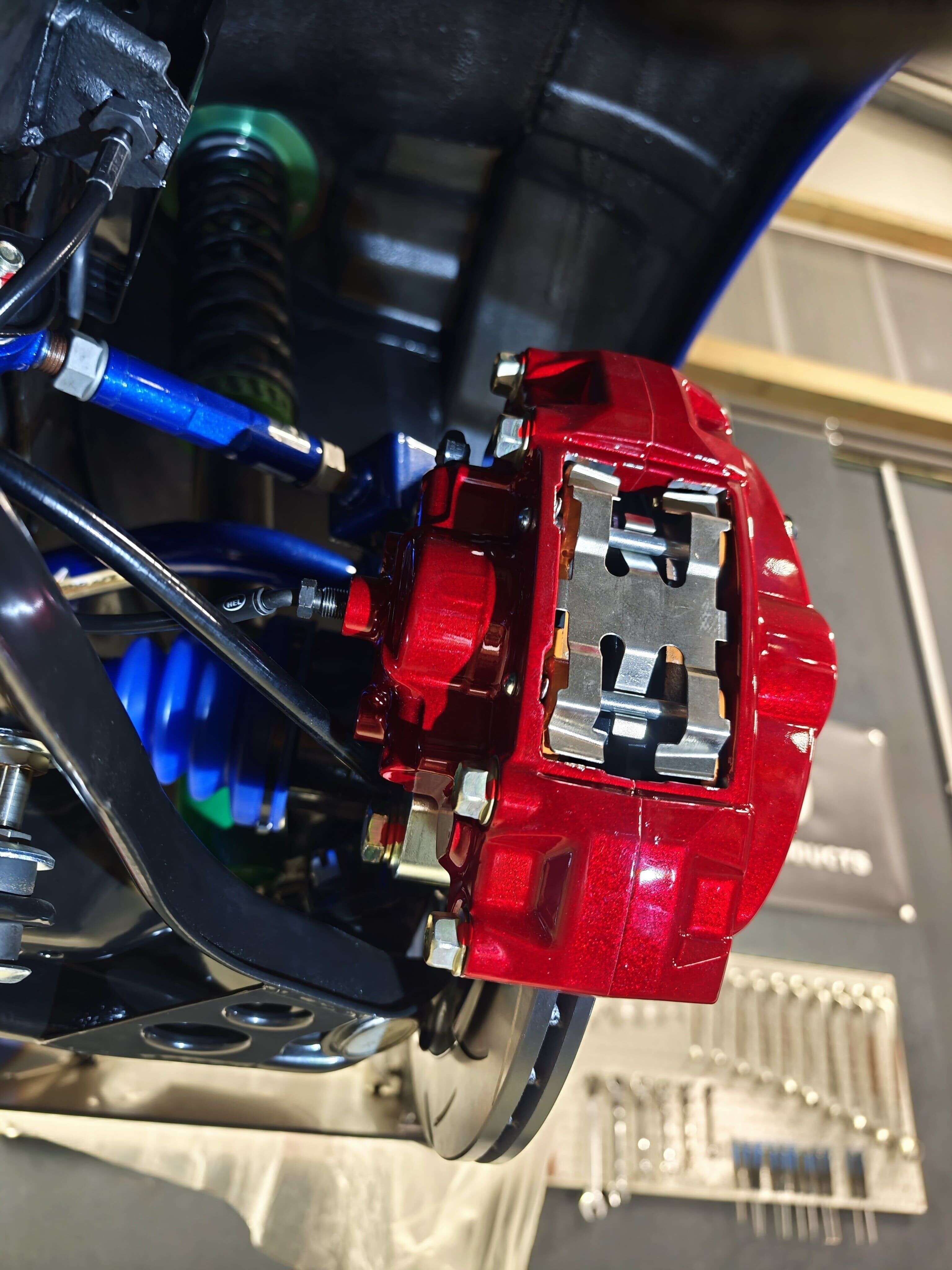

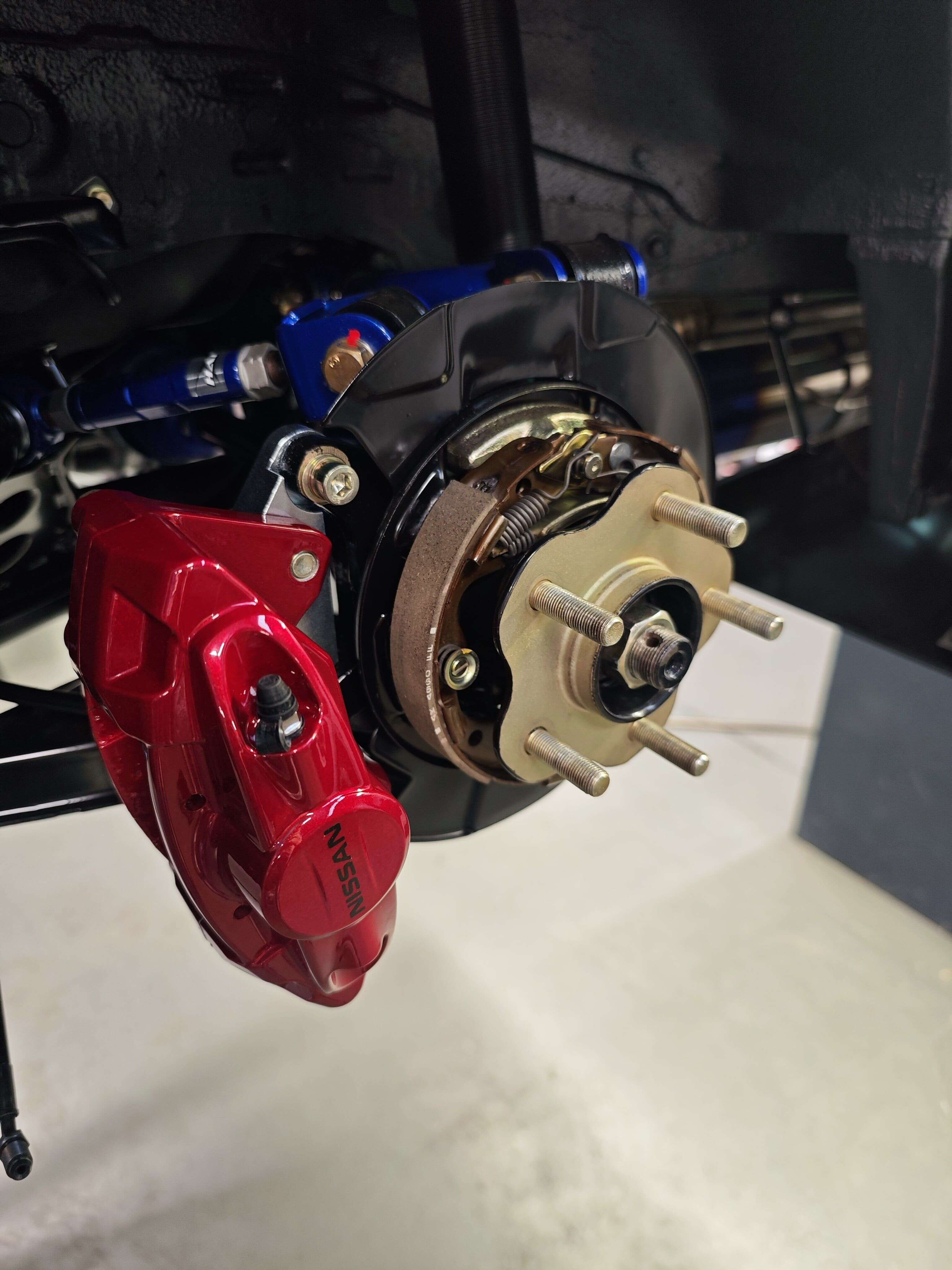

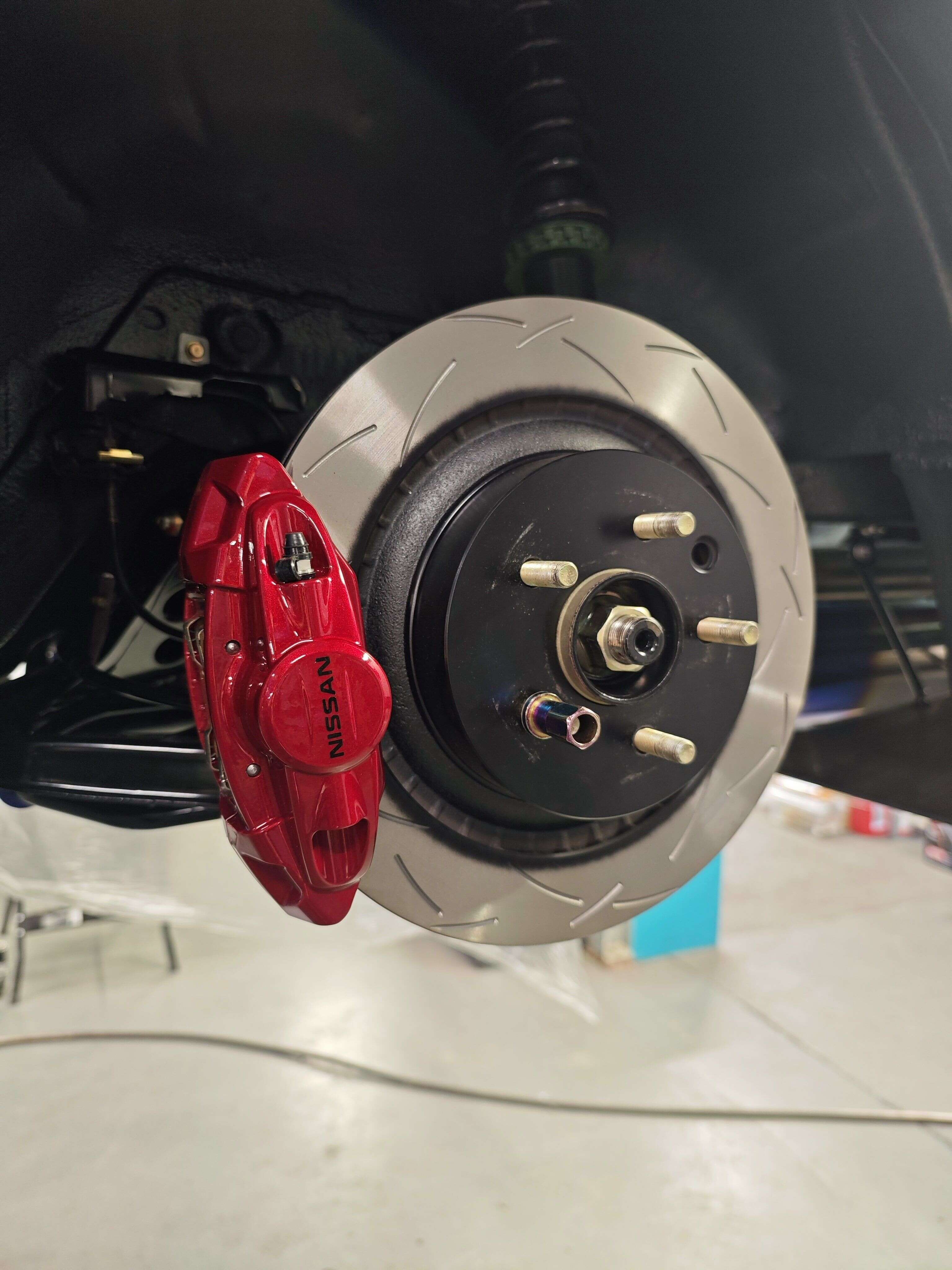

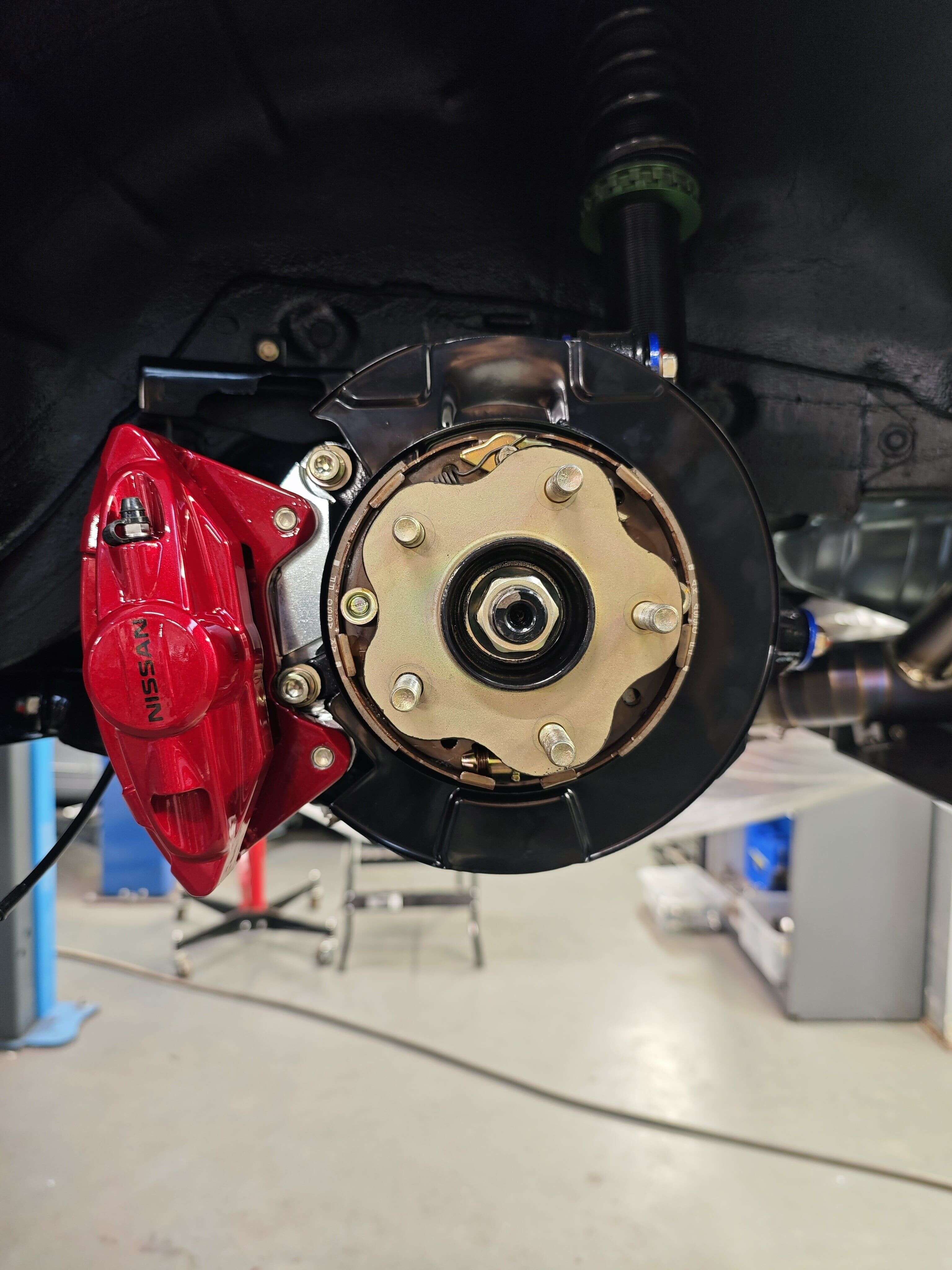

Brake caliper adapter to drive the rear 2-piston brake calipers from the Nissan 370Z in conjunction with the Nissan 370Z 350x20mm brake discs on the rear axle of the Nissan Z32.
Advantages of this brake system:
- Top deceleration values, no comparison with conventional rear brake discs
- Significantly improved fading due to internally ventilated discs
- a must for performance upgrades
- the material certificate included in the scope of delivery enables registration via individual approval, even for standard vehicles.
Required components:
- Brake callipers from Nissan 370Z, part number: Right 44001-1EA5A / Left 44011-1EA5A
- Brake pads, part number: D4060-JL00K
- Brake discs from Nissan 370Z 350x20mm, part number: 43206-JL00A
Scope of delivery:

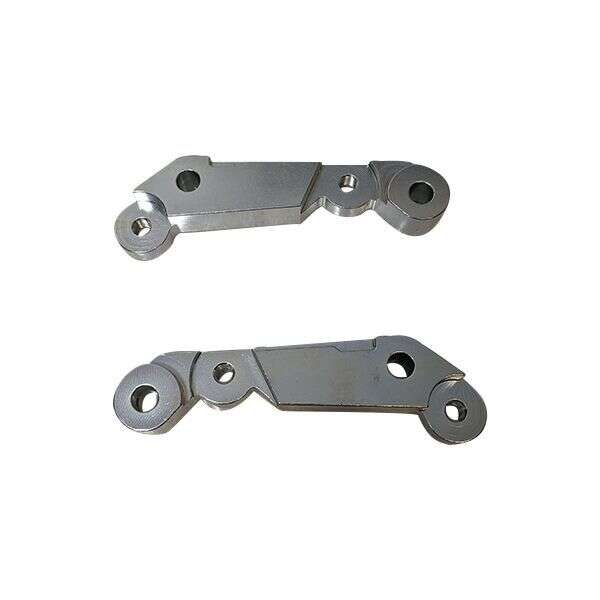

- 2x brake calliper adapter suitable for the Nissan Z32
- Material certificate
- Stress analysis / FEM calculation for registration
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
| Motor | Motorcode |
|---|---|
| 3.0 Twin Turbo | Z32|268PS(197KW) |
| 3.0 Twin Turbo | Z32|283PS(208KW) |
| Motor | Motorcode |
|---|---|
| 3.0 Twin Turbo | Z32|268PS(197KW) |
| 3.0 Twin Turbo | Z32|283PS(208KW) |
- ✓ 355x32 40206JL00A Nissan 370Z brake disc
- ✓ 4-piston 410011EA4A / 410111EA4A Nissan 370Z brake caliper
- ✓ front axle
- ✓ Registration-free
- ✓ Yellowstuff sports surface
- ✓ temperature up to 900°C
