Does the ABS still function after installing the camber correction?

Yes, basically the ABS will continue to function after installing a camber correction. The important thing is: If you significantly change the camber, the geometry between the ABS sensor and the ABS ring (impulse ring) can shift in such a way that the sensor no longer operates optimally "at the correct angle" or parallel to the ring.Why can there be problems?The ABS sensor reads the ABS ring with a defined distance and alignment angle. With a significant camber change (often from about 1°, depending on the vehicle and axle design), it can happen that:the sensor no longer lines up correctly, orthe air gap between the sensor and the ring is no longer within the target range.Then the ABS can basically continue to work, but there can be, for example, ABS/ESP warning messages, sporadic interventions, or error memory entries.What needs to be done then?If something like this occurs, a small adjustment is usually sufficient:Slightly correct the position of the ABS sensor (e.g., slightly reposition/align it on the mount)Check seating and attachment (sensor must be flat and securely seated)Check the air gap (not rubbing, not too large)Then it is best to read/clear the error memory and take a short test drive.Practical TipAfter the conversion, it is recommended to have an axle alignment. If you are using camber values in the range > 1°, it is advisable to check the ABS sensor area directly so that no surprises arise later.

Do I need longer screws or can the old ones remain.

With Epytec camber correction plates, you can continue to use the original screws up to +-2°. For camber correction plates over 2°, we recommend slightly sanding a washer and placing it under the screw head so that it continues to sit flush on the camber correction plate. Of course, if the camber correction plate is thicker, new screws may be needed directly.

Can camber correction plates be installed on drum brakes?

Yes, this is possible provided that a stub axle is installed on the rear axle. In this case, our Epytec camber correction plates can also be easily mounted on drum brakes. The functionality and installation are largely the same as for vehicles with disc brakes.It is important that the mounting points of the stub axle match the execution of the camber correction plates.

Vectra C Signum Camber Correction Plate Camber Adjustement Rear 1,0 Degree Positive

Name: Vectra C Signum Camber Correction Plate Camber Adjustement Rear 1,0 Degree Positive
Brand: EPYTEC
SKU: 603_10G
Price: 52.06 EUR
Availability: InStock
Rating: 4.8 (10 reviews)

Plates for camber correction / adjustment on rear axle. Thanks to our plates, you can modify the rear camber and give our vehicle 1,0° positive camber.

€52.06*

Prices incl. VAT plus shipping costs

13 Reviews

Available

Product number: 603_10G

Delivery by Tuesday, 14.07.2026 if you order within the next 9 Hours.

Ground

0,5 degree

1,0 degree

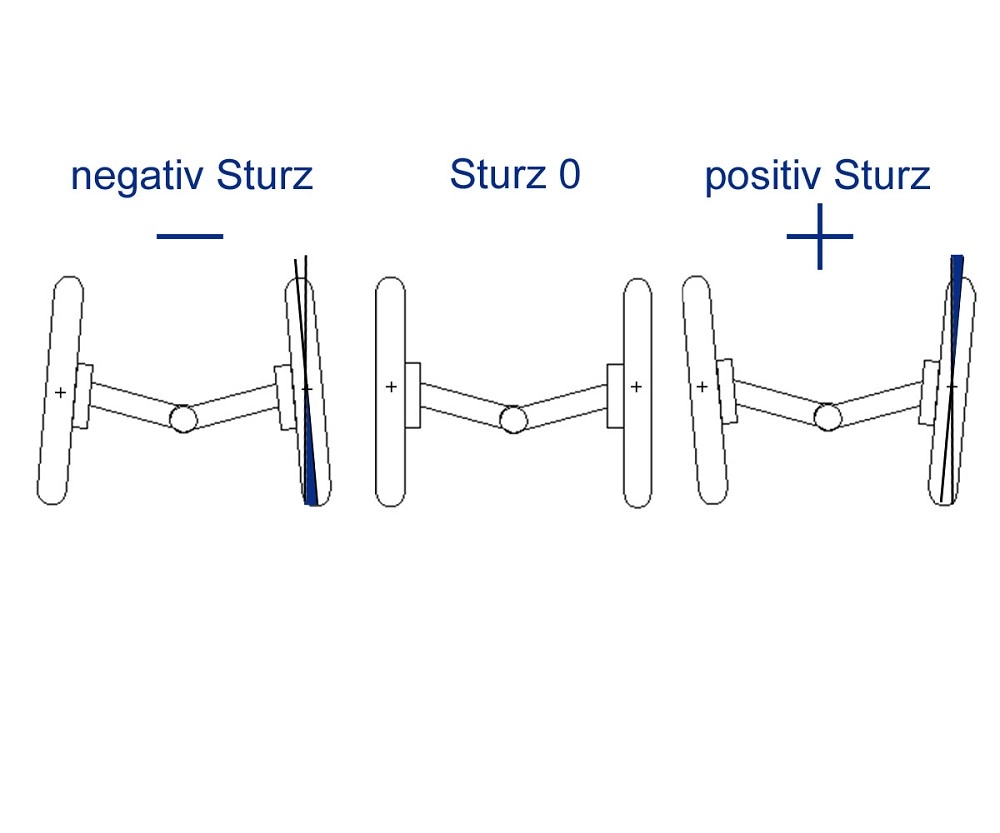

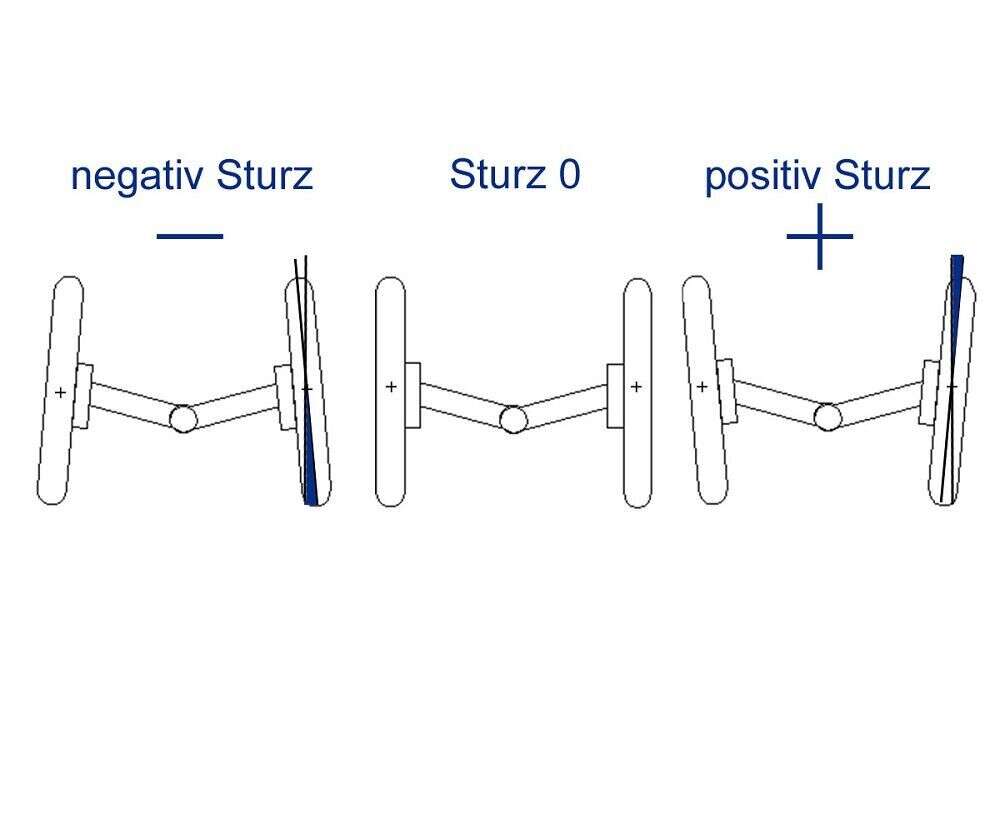

Direction of fall

Positive

Express shopping
Save your data and settings
Order overview and shipping information
Manage your newsletter subscription
19 Jahre Expertenwissen

Product information "Vectra C Signum Camber Correction Plate Camber Adjustement Rear 1,0 Degree Positive"

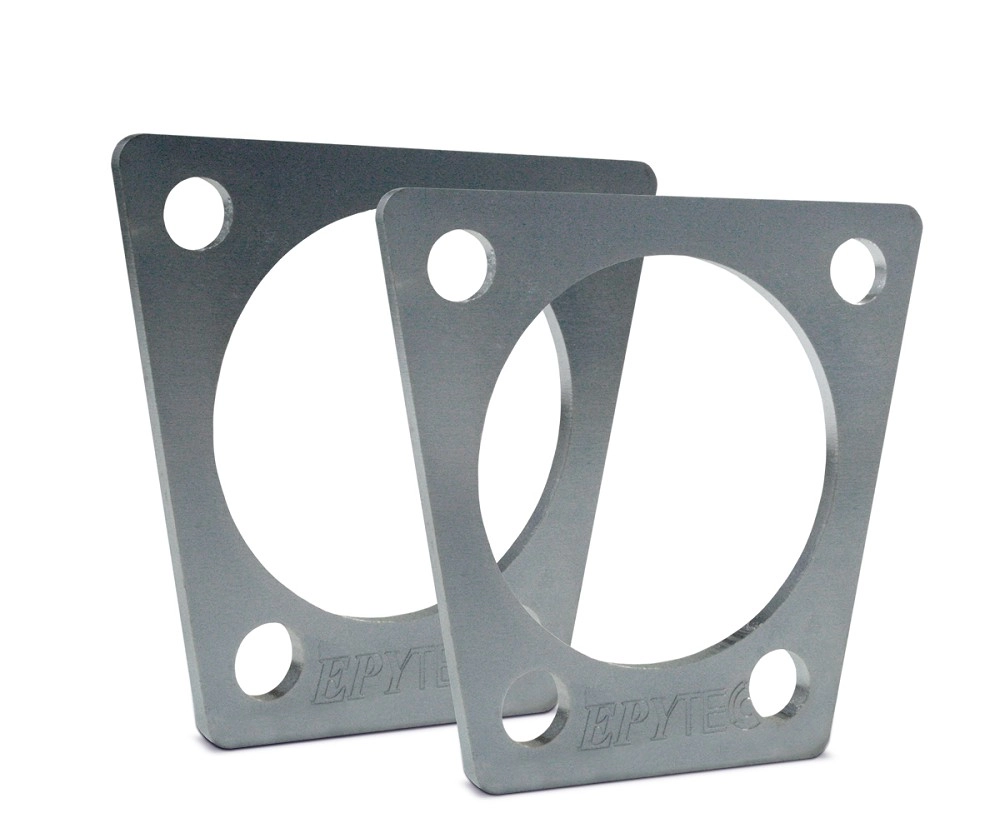

Plates for camber correction / adjustment on rear axle. Makes possible a camber correction / ajustement.

Thanks to our plates, you can modify the rear camber and give our vehicle 1,0° positive camber. Ideal for lowering the rear axle and correcting the angle defect if the tires are worn out only on one side.

Our plates are mounted between the pivot of the axle stub and the axle. Quick and easy assembly. The wheels are then moved 3mm outwards. The plates are manufactured with high precision

Its are made of steel and completely galvanized. Maximum anticorrosive protection and good optics.

Suitable for all Opel Vectra C and Signum models with hub and wheel bearing OE number: 1604 314

Delivery:

2x camber correction / adjustement plates, rear axle, right and leftt + 1,0°

We provide a material certificate for this adapter, allowing the TÜV inspector to easily register the adapter.

Geschliffen: 1,0Grad

Manufacturer: Epytec

Mounting location: rear!

Sturzrichtung: Positiv

camber correction: 1.0°

Motor	Motorcode
1.8 16V	Z02\|110PS(81KW)

Motor	Motorcode
2.2 DTi 16V	Z02\|117PS(86KW)

Motor	Motorcode
1.8 16V	Z02\|110PS(81KW)

Motor	Motorcode
2.2 DTi 16V	Z02\|117PS(86KW)
