Brake Caliper Adapter Audi TTRS Passat Audi Q3 Brake Disc 356x22 Audi A6 Porsche Cayenne 4-Piston Brake Caliper Tuning Adapter

  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
  • ✓ rear axle

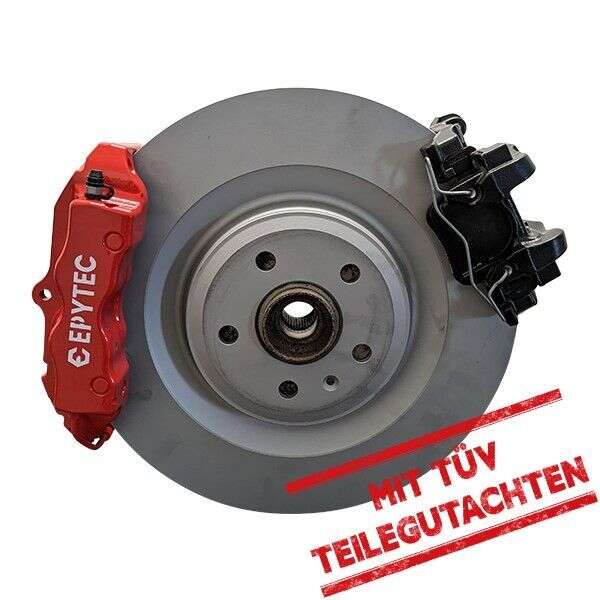

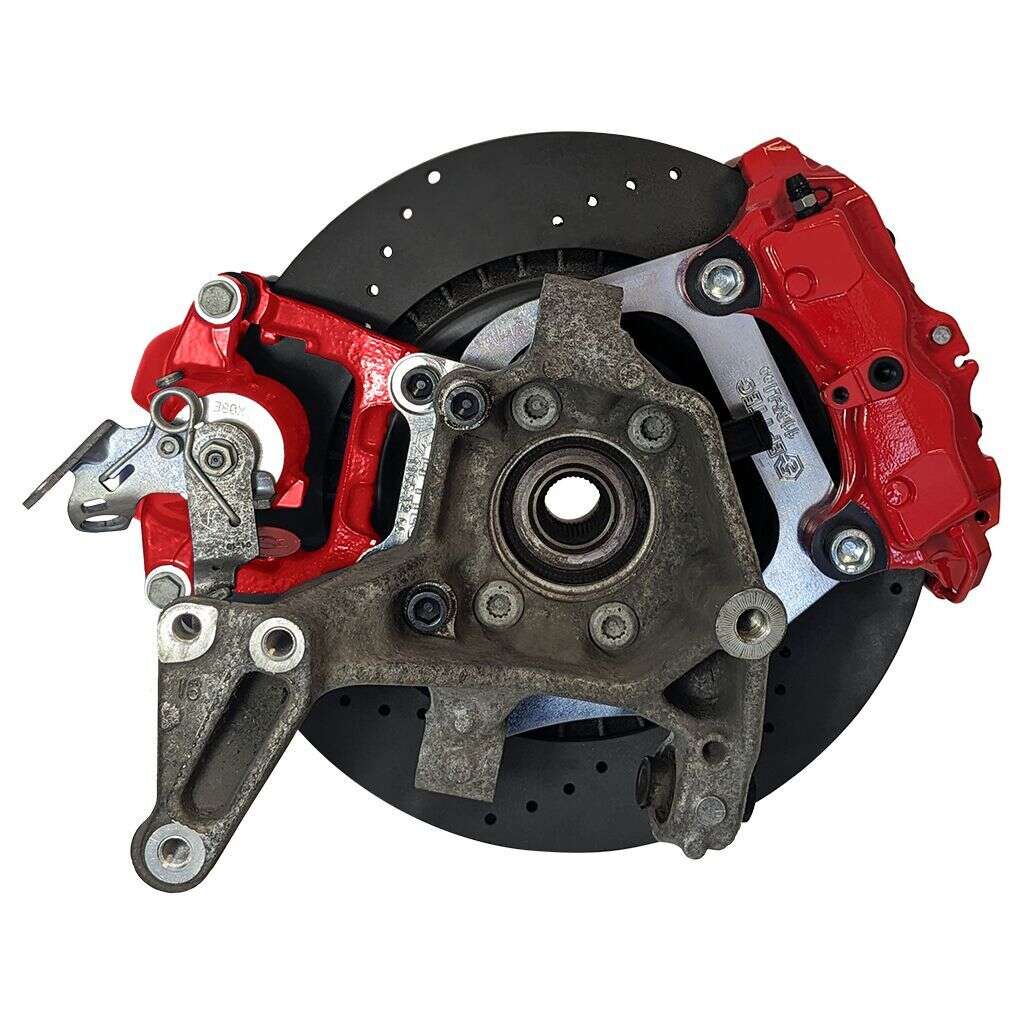

Brake caliper adapter to convert the rear axle of the Audi TT, VW Tiguan series to Porsche Cayenne brake calipers.

The combination is used in combination with the Audi A6 A7 brake discs 356x22 mm.

The Porsche calipers are connected to the car's hydraulics and can therefore develop enormous braking power. However, as these do not have handbrake functions, the rear Audi TT is also used as a handbrake caliper. The hydraulic connection is closed with a blind plug. This means that it only serves as a handbrake caliper.

Adapters are suitable for the following VW and Audi models with alloy axle

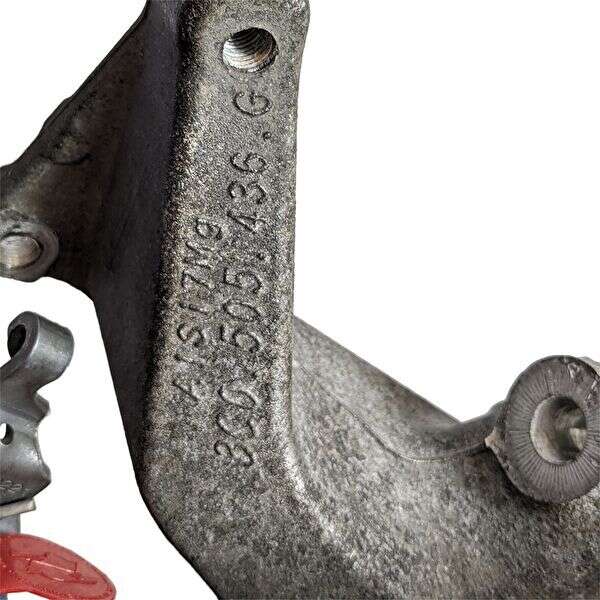

OE: 3C0505435G / 3C0505436G

  • VW Passat B6
  • VW Sharan
  • VW Tiguan
  • Audi Q3
  • Audi TTRS 8J
  • Audi TT 8J

Advantages of this brake system:

  • Top deceleration values, no comparison to conventional rear brake discs.
  • A musthave for performance upgrades
  • Material certificate is included

Required components:

  • Brake calipers from Porsche Cayenne from the rear axle Part No.: ( is written on the brake calipers, rear number distinguishes right and left caliper) 955.352.421 + 955.352.422 (only 100% suitable with the specified Porsche calipers) Brembo left: 20.7673.03 right: 20.7673.04
  • original brake calipers with carrier for handbrake from Audi TT partnumber: 1J0615423G / 1J0615424G carrier: 8J0615425G
  • original Audi A6 A7 brake disc 356x22 mm part number: 4H0 615 601 F

Installation:

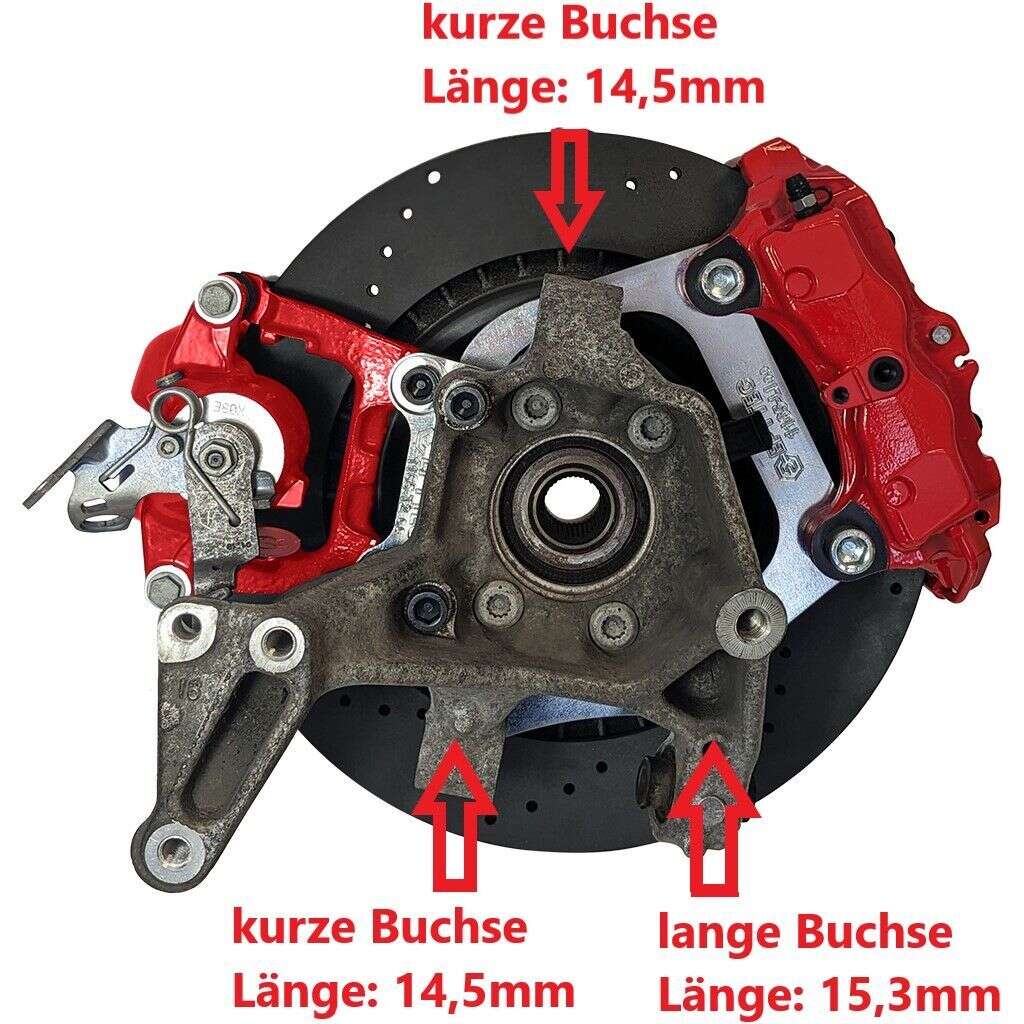

We supply 3 bushes so that the adapter can be additionally bolted to the mounts for the heat shield. Two of the bushings have a height of 14,5mm and one has 15,3mm. At the top of the picture you can see where they have to be mounted.

Scope of delivery:

  • 2x brake caliper adapter for rear axle Audi TTRS, Passat, Audi Q3 series
  • 2x fitting centring ring
  • high strength mounting bolts
  • Material certificate
  • Installation instructions (click here)

Tipps, Infos und Hinweise:

  • Zur besseren Belüftung der Bremsanlage empfehlen wir die Ankerbleche/Bremsstaubbleche zu entfernen.
  • Für eine einfache Montage der Felge, empfehlen wir, zwei unserer Radmontagehilfen gleich mit zukaufen >>hier gehts direkt zum Artikel<<
  • Welche Felgengröße du nach deinem Bremsenumbau fahren kannst, können wir pauschal nicht beantworten. Es gibt einfach zu viele unterschiedliche Felgen. Es kann in seltenen Fällen vorkommen, dass die Felgen am Bremssattel minimal anliegt, dann können einfach Spurverbreiterungen verwendet werden. >> Jetzt direkt zu Spurverbreiterungen nach Wunsch <<
  • Den Adapter mit den benötigten Komponenten zu verbauen, um anschließend zu prüfen, ob ggf. neue Bremsleitungen benötigt werden, da es je nach Modell sein kann, das die alten nicht lang genug sind, oder vom Anschluss her nicht passen. Wir empfehlen durch den deutlich besseren Wirkungsgrad auf Stahlflexleitugen zu wechseln, eigens für diese Funktionsweise haben wir dafür einen Stahlflexkonfigurator entwickelt, indem du diese nach deinen Wünschen zusammenstellen und anschließend verlegen kannst. Hier geht’s zum Stahlflexkonfigurator >> Stahlflex-Bremsleitung konfigurieren <<
  • Das Handbremsseil muss immer vom verbauten Sattel verwendet werden, das heißt, es kann sein, dass das neue Handbremsseil noch etwas angepasst werden muss. Bei Umbauten in dem der Original Sattel weiterverwendet wird und das Original Handbremsseil verwendet werden kann, kann es sein, dass du es auf direkterem Weg verlegen musst um den größeren Scheibendurchmesser und den längeren Weg auszugleichen

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Einbauort: hinten
Lochabstand Achsschenkel: 90mm
Lochabstand Bremssattel : 136mm
Einbauort: hinten
Lochabstand Achsschenkel: 90mm
Lochabstand Bremssattel : 136mm

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


  • Can I also use other brake discs as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

  • Can I also use other brake calipers as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:

Questions? Click here for the contact form

Average rating of 5 out of 5 stars

Steel Braided Brake Line VW Golf MK5 MK6 MK7 GTI R23 Audi A3 S3 V6 Brembo TTRS Brak Conversion Rear Axle
  • ✓ Length: 50cm
  • ✓ M10x1 curved on the outside
  • ✓ M10x1 straight on the inside

€98.40*
Item number: SF115
Brake systems KIT rear axle Golf 5 6 Audi A1 A3 Porsche Cayenne 4-piston caliper VW Golf 5R 6R handbrake caliper 356x22 brake disc
  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 996352421 / 996352422 Porsche Cayenne brake caliper
  • ✓ rear axle

€1,544.30*
Item number: 1190-KIT

Average rating of 5 out of 5 stars

2x Audi A6 A7 Sportback A8 S8 3.0 TDI TFSI quattro brake discs Zimmermann 356x22 100.3362.20
  • ✓ 356x22
  • ✓ 68mm centering
  • ✓ 36mm height

€193.61*
Item number: ZIM138
EBC brake discs rear axle 356x22 Premium Disc Audi A8 A6 A7 Sportback 4.0 TFSI quattro 4.2
  • ✓ 356x22
  • ✓ 68mm centering
  • ✓ 36mm height

€305.06*
Item number: D1848
Brake systems KIT rear axle Audi TT VW Tiguan Porsche Cayenne 4-piston caliper Audi TT handbrake caliper 356x22 brake disc
  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
  • ✓ rear axle

€1,483.11*
Item number: 1165-KIT

Average rating of 5 out of 5 stars

EBC brake pads Yellowstuff Audi Porsche VW Q7 Cayenne Touareg 3.0 TFSI 3.6 FSI 4.2
  • ✓ Registration-free
  • ✓ Yellowstuff sports surface
  • ✓ temperature up to 900°C

€272.38*
Item number: DP41474R
Brake systems KIT rear axle Audi TT VW Tiguan Porsche Cayenne 4-piston caliper Audi TT handbrake caliper 356x22 brake disc
  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
  • ✓ rear axle

€1,483.11*
Item number: 1165-KIT-Blank

Average rating of 5 out of 5 stars

EBC Brake Pads Greenstuff Rear Audi Q7 Porsche Cayenne
  • ✓ Registration-free
  • ✓ Greenstuff sports surface
  • ✓ temperature up to 650°C

€222.81*
Item number: DP61474

Average rating of 4.6 out of 5 stars

VW Golf 7 8 Seat Leon Audi A3 Cupra Leon Skoda Brake Caliper Adapter 375x36 Brake Disc Mercedes Porsche Panamera Caliper
  • ✓ 375x36 1664210912 Mercedes ML / GL brake disc
  • ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
  • ✓ front axle

€221.27*
Item number: 511
Brake systems KIT rear axle Audi TT VW Tiguan Porsche Cayenne 4-piston caliper Audi TT handbrake caliper 356x22 brake disc
  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
  • ✓ rear axle

€1,538.80*
Item number: 1165-KIT-RAL3001
Brake system KIT VW Golf 5 6 Plus Audi A3 Jetta Seat Leon Altea Porsche Panamera brake caliper 375x36mm brake disc
  • ✓ 375x36 1664210912 Mercedes ML / GL brake disc
  • ✓ 6-piston 7PP615149J / 7PP615150J brake caliper
  • ✓ front axle

€1,617.52*
Item number: 1065-KIT

Average rating of 5 out of 5 stars

Big Brake KIT VW Golf 7 8 Seat Leon Audi A3 Cupra Leon Skoda Porsche PanameraBrake caliper 375x36mm Brake disc
  • ✓ 375x36 1664210912 Mercedes ML / GL brake disc
  • ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
  • ✓ front axle

€1,576.06*
Item number: 511-KIT
Brake systems KIT rear axle Audi TT VW Tiguan Porsche Cayenne 4-piston caliper Audi TT handbrake caliper 356x22 brake disc
  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
  • ✓ rear axle

€1,765.24*
Item number: 1165-KIT-Wunschfarbe
Blindstopfen Verschlussstopfen Bremssättel M10 Regelgewinde Bremsleitungsverschluss Umbau Bremse VM Audi Seat Opel Porsche
  • ✓ Thread M10x1.5
  • ✓ Perfect for separate handbrake caliper
  • ✓ Quick installation

€5.01*
Item number: 1164
Brake systems KIT rear axle Golf 5 6 Audi A1 A3 Porsche Cayenne 4-piston caliper VW Golf 5R 6R handbrake caliper 356x22 brake disc
  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 996352421 / 996352422 Porsche Cayenne brake caliper
  • ✓ rear axle

€1,544.30*
Item number: 1190-KIT-Blank
Z18 Brake Caliper Epytec 4-Piston ZR18 ZL18 Porsche Cayenne VW Touareg Tuning Brake System Rear Axle
  • ✓ Choice of color
  • ✓ ZR18 / Z18 4-piston brake calipers
  • ✓ 955.352.421 / 955352421 955.352.422 / 955352422 7L6615423H / 7L6615423L / 7L6615423D / 7L6615423G

€481.39*
Item number: 1178
Brake pad Epytec for ZR18 brake caliper rear axle 4 pistons 4L0 698 451 D
  • ✓ 35% better braking performance
  • ✓ 75% more service life
  • ✓ low dust generation

€97.58*
Item number: 1173
Brake systems KIT rear axle Golf 5 6 Audi A1 A3 Porsche Cayenne 4-piston caliper VW Golf 5R 6R handbrake caliper 356x22 brake disc
  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 996352421 / 996352422 Porsche Cayenne brake caliper
  • ✓ rear axle

€1,584.95*
Item number: 1190-KIT-RAL3001
Z18 Brake Caliper Epytec 4-Piston ZR18 ZL18 Porsche Cayenne VW Touareg Tuning Brake System Rear Axle
  • ✓ Choice of color
  • ✓ ZR18 / Z18 4-piston brake calipers
  • ✓ 955.352.421 / 955352421 955.352.422 / 955352422 7L6615423H / 7L6615423L / 7L6615423D / 7L6615423G

€765.52*
Item number: 1178-Wunschfarbe
Brake systems KIT rear axle Golf 5 6 Audi A1 A3 Porsche Cayenne 4-piston caliper VW Golf 5R 6R handbrake caliper 356x22 brake disc
  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 996352421 / 996352422 Porsche Cayenne brake caliper
  • ✓ rear axle

€1,839.97*
Item number: 1190-KIT-Wunschfarbe
Brake systems KIT rear axle Golf 5 6 Audi A1 A3 Porsche Cayenne 4-piston caliper VW Golf 5R 6R handbrake caliper 356x22 brake disc
  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 996352421 / 996352422 Porsche Cayenne brake caliper
  • ✓ rear axle

€1,544.30*
Item number: 1190-KIT
Brake systems KIT rear axle Audi TT VW Tiguan Porsche Cayenne 4-piston caliper Audi TT handbrake caliper 356x22 brake disc
  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
  • ✓ rear axle

€1,483.11*
Item number: 1165-KIT
Brake systems KIT rear axle Audi TT VW Tiguan Porsche Cayenne 4-piston caliper Audi TT handbrake caliper 356x22 brake disc
  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
  • ✓ rear axle

€1,483.11*
Item number: 1165-KIT-Blank
Brake systems KIT rear axle Audi TT VW Tiguan Porsche Cayenne 4-piston caliper Audi TT handbrake caliper 356x22 brake disc
  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
  • ✓ rear axle

€1,538.80*
Item number: 1165-KIT-RAL3001
Brake systems KIT rear axle Audi TT VW Tiguan Porsche Cayenne 4-piston caliper Audi TT handbrake caliper 356x22 brake disc
  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
  • ✓ rear axle

€1,765.24*
Item number: 1165-KIT-Wunschfarbe
Brake systems KIT rear axle Golf 5 6 Audi A1 A3 Porsche Cayenne 4-piston caliper VW Golf 5R 6R handbrake caliper 356x22 brake disc
  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 996352421 / 996352422 Porsche Cayenne brake caliper
  • ✓ rear axle

€1,544.30*
Item number: 1190-KIT-Blank
Brake systems KIT rear axle Golf 5 6 Audi A1 A3 Porsche Cayenne 4-piston caliper VW Golf 5R 6R handbrake caliper 356x22 brake disc
  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 996352421 / 996352422 Porsche Cayenne brake caliper
  • ✓ rear axle

€1,584.95*
Item number: 1190-KIT-RAL3001
Brake systems KIT rear axle Golf 5 6 Audi A1 A3 Porsche Cayenne 4-piston caliper VW Golf 5R 6R handbrake caliper 356x22 brake disc
  • ✓ 356x22 4H0615601F Audi A6 A7 brake disc
  • ✓ 4-piston 996352421 / 996352422 Porsche Cayenne brake caliper
  • ✓ rear axle

€1,839.97*
Item number: 1190-KIT-Wunschfarbe

Average rating of 4.6 out of 5 stars

VW Golf 7 8 Seat Leon Audi A3 Cupra Leon Skoda Brake Caliper Adapter 375x36 Brake Disc Mercedes Porsche Panamera Caliper
  • ✓ 375x36 1664210912 Mercedes ML / GL brake disc
  • ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
  • ✓ front axle

€221.27*
Item number: 511

Average rating of 5 out of 5 stars

Steel Braided Brake Line VW Golf MK5 MK6 MK7 GTI R23 Audi A3 S3 V6 Brembo TTRS Brak Conversion Rear Axle
  • ✓ Length: 50cm
  • ✓ M10x1 curved on the outside
  • ✓ M10x1 straight on the inside

€98.40*
Item number: SF115

Average rating of 5 out of 5 stars

2x Audi A6 A7 Sportback A8 S8 3.0 TDI TFSI quattro brake discs Zimmermann 356x22 100.3362.20
  • ✓ 356x22
  • ✓ 68mm centering
  • ✓ 36mm height

€193.61*
Item number: ZIM138
EBC brake discs rear axle 356x22 Premium Disc Audi A8 A6 A7 Sportback 4.0 TFSI quattro 4.2
  • ✓ 356x22
  • ✓ 68mm centering
  • ✓ 36mm height

€305.06*
Item number: D1848

Average rating of 5 out of 5 stars

EBC brake pads Yellowstuff Audi Porsche VW Q7 Cayenne Touareg 3.0 TFSI 3.6 FSI 4.2
  • ✓ Registration-free
  • ✓ Yellowstuff sports surface
  • ✓ temperature up to 900°C

€272.38*
Item number: DP41474R

Average rating of 5 out of 5 stars

EBC Brake Pads Greenstuff Rear Audi Q7 Porsche Cayenne
  • ✓ Registration-free
  • ✓ Greenstuff sports surface
  • ✓ temperature up to 650°C

€222.81*
Item number: DP61474
Brake system KIT VW Golf 5 6 Plus Audi A3 Jetta Seat Leon Altea Porsche Panamera brake caliper 375x36mm brake disc
  • ✓ 375x36 1664210912 Mercedes ML / GL brake disc
  • ✓ 6-piston 7PP615149J / 7PP615150J brake caliper
  • ✓ front axle

€1,617.52*
Item number: 1065-KIT

Average rating of 5 out of 5 stars

Big Brake KIT VW Golf 7 8 Seat Leon Audi A3 Cupra Leon Skoda Porsche PanameraBrake caliper 375x36mm Brake disc
  • ✓ 375x36 1664210912 Mercedes ML / GL brake disc
  • ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
  • ✓ front axle

€1,576.06*
Item number: 511-KIT
Blindstopfen Verschlussstopfen Bremssättel M10 Regelgewinde Bremsleitungsverschluss Umbau Bremse VM Audi Seat Opel Porsche
  • ✓ Thread M10x1.5
  • ✓ Perfect for separate handbrake caliper
  • ✓ Quick installation

€5.01*
Item number: 1164

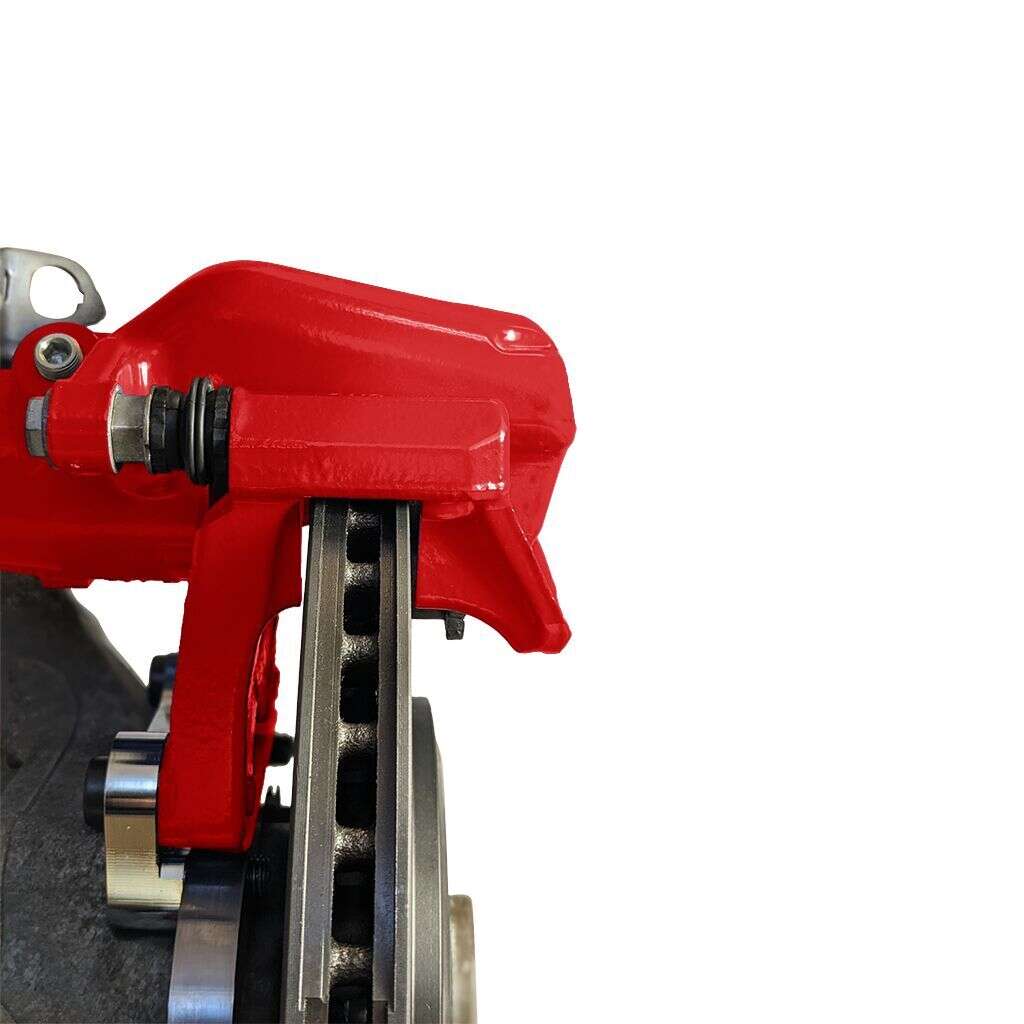

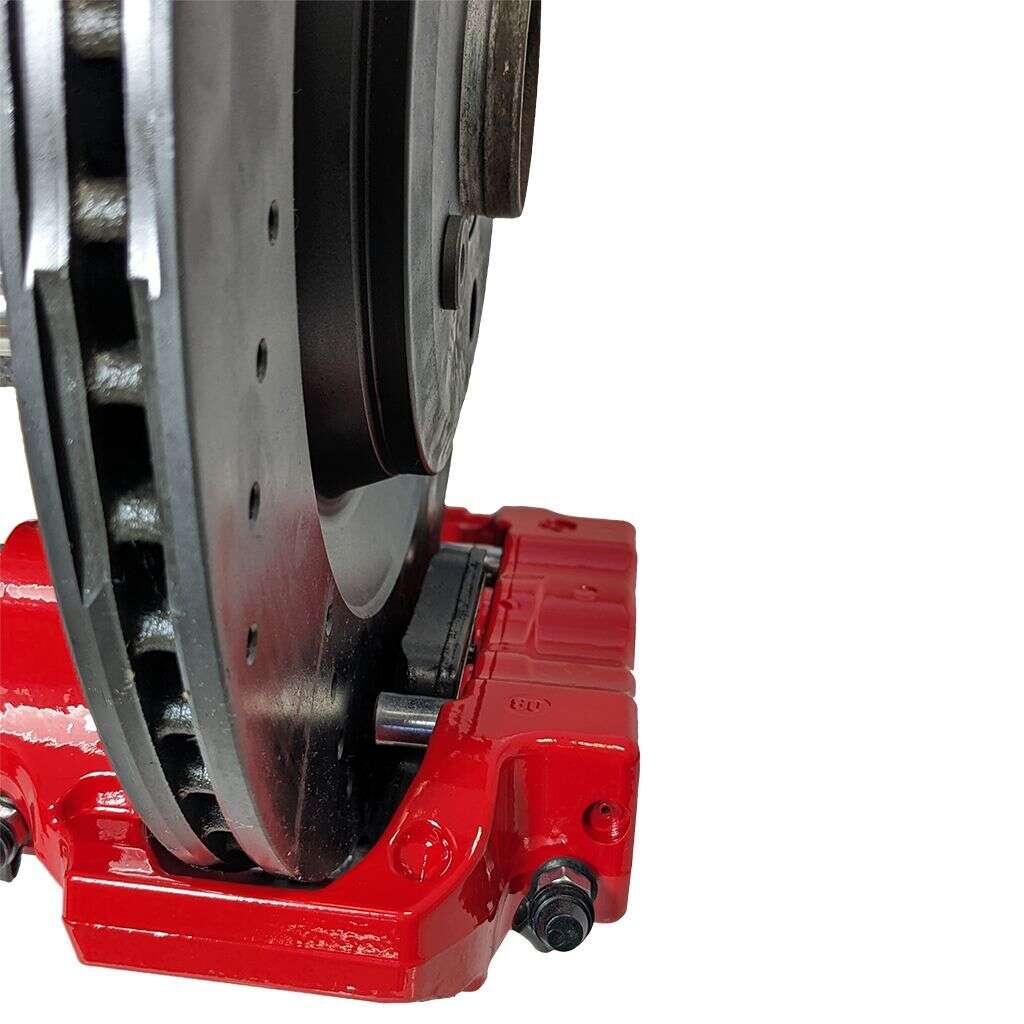

Z18 Brake Caliper Epytec 4-Piston ZR18 ZL18 Porsche Cayenne VW Touareg Tuning Brake System Rear Axle

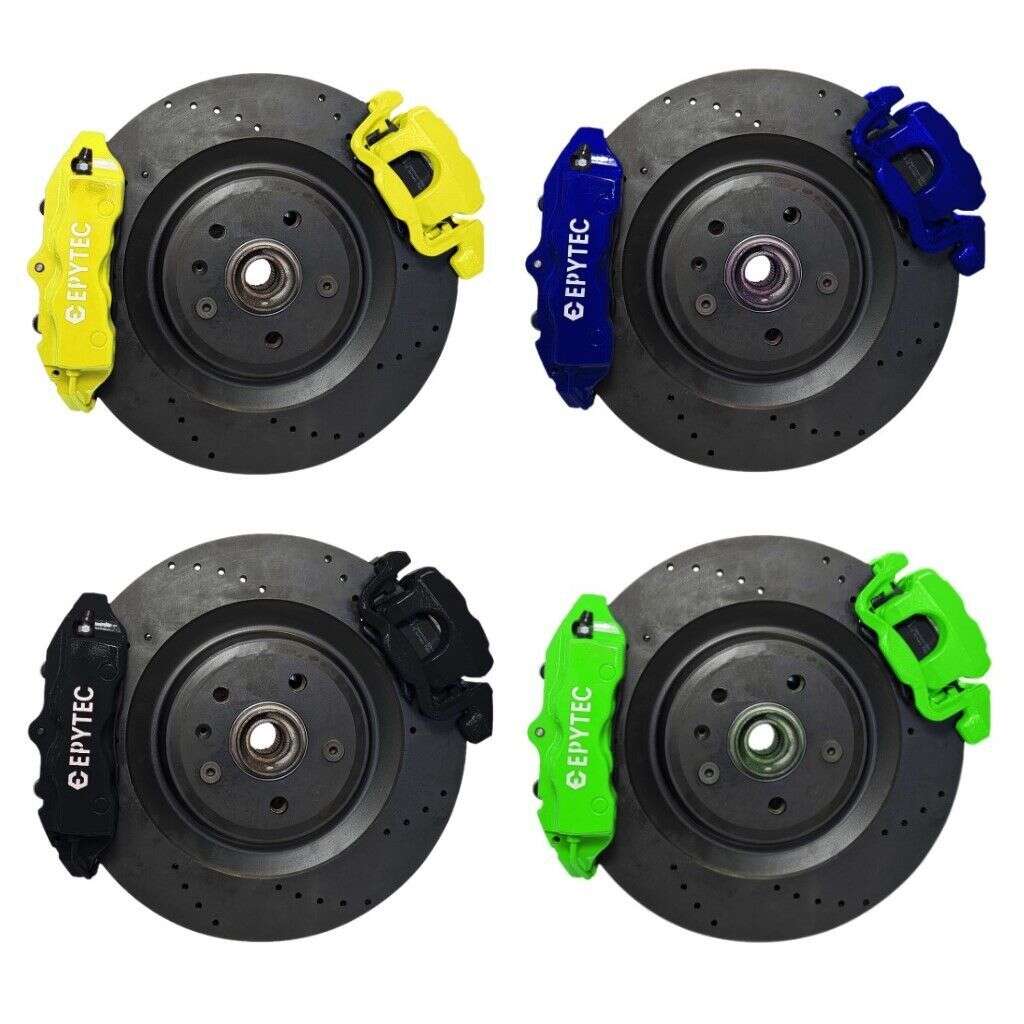

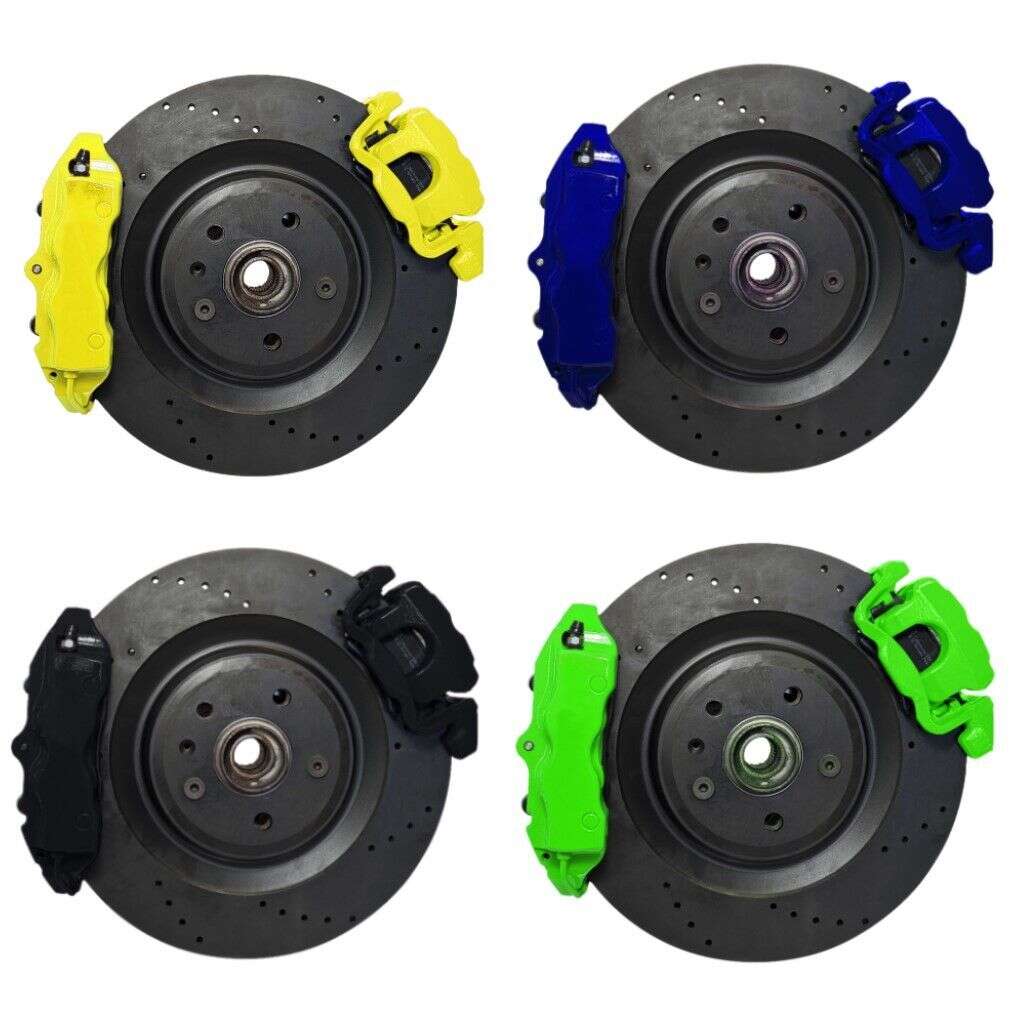

  • ✓ Choice of color
  • ✓ ZR18 / Z18 4-piston brake calipers
  • ✓ 955.352.421 / 955352421 955.352.422 / 955352422 7L6615423H / 7L6615423L / 7L6615423D / 7L6615423G

€481.39*
Item number: 1178
Brake pad Epytec for ZR18 brake caliper rear axle 4 pistons 4L0 698 451 D
  • ✓ 35% better braking performance
  • ✓ 75% more service life
  • ✓ low dust generation

€97.58*
Item number: 1173
