BMW E39 M5 V8 5th Brake Caliper Adapter M6 Brake System Brembo 6-piston Caliper E60 M5 374x36 Brake Disc
- ✓ 374x36 34112282806 BMW E60 M5 brake disc
- ✓ 6-piston 34117845747 / 34117845748 BMW M6 F10 brake caliper
- ✓ front axle
€214.57*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

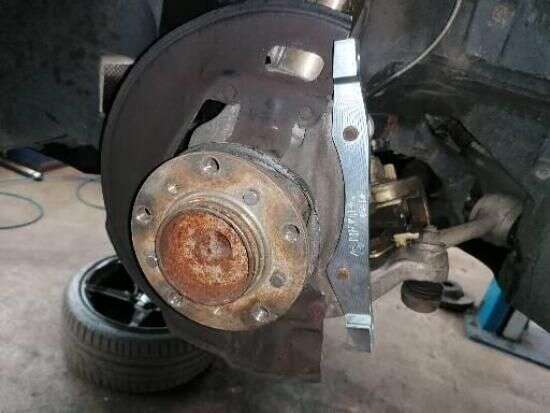

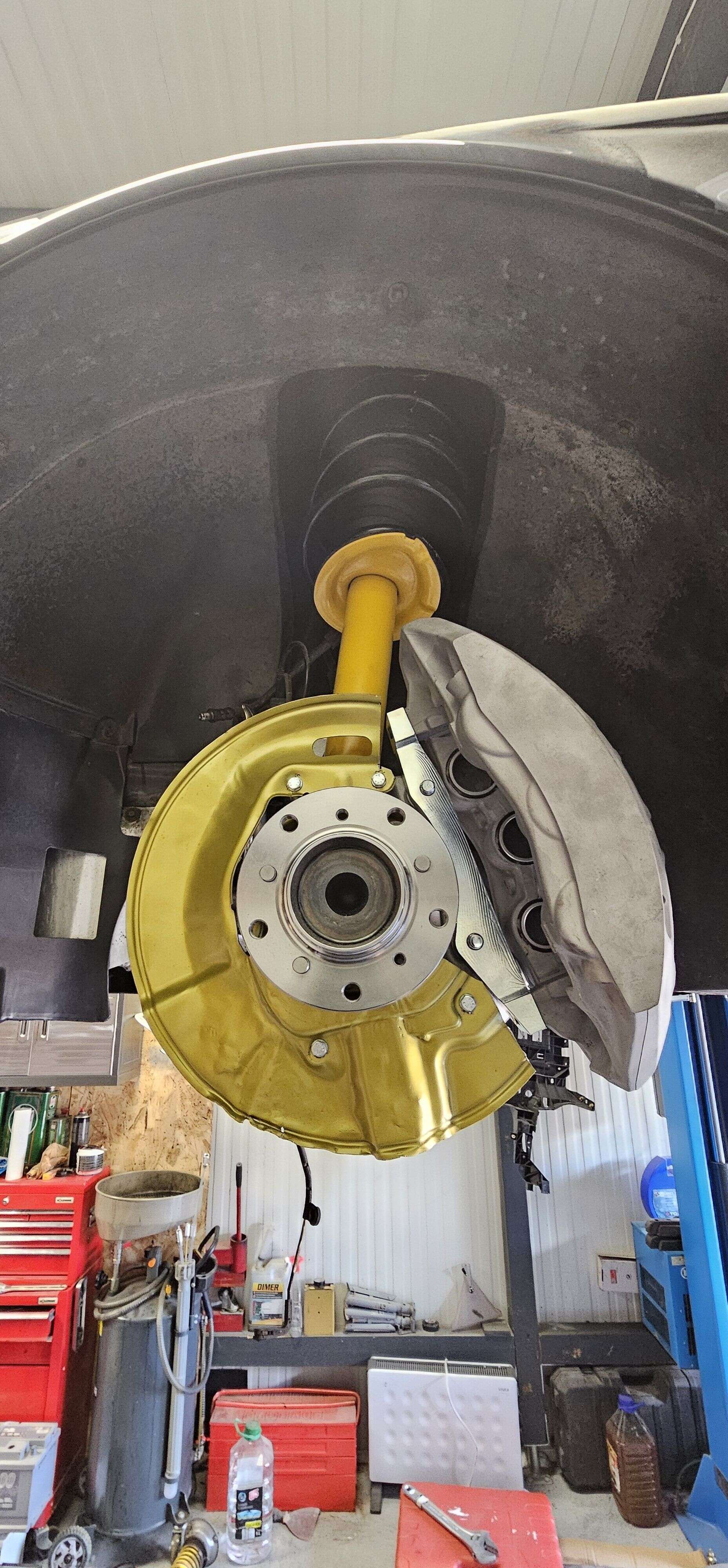

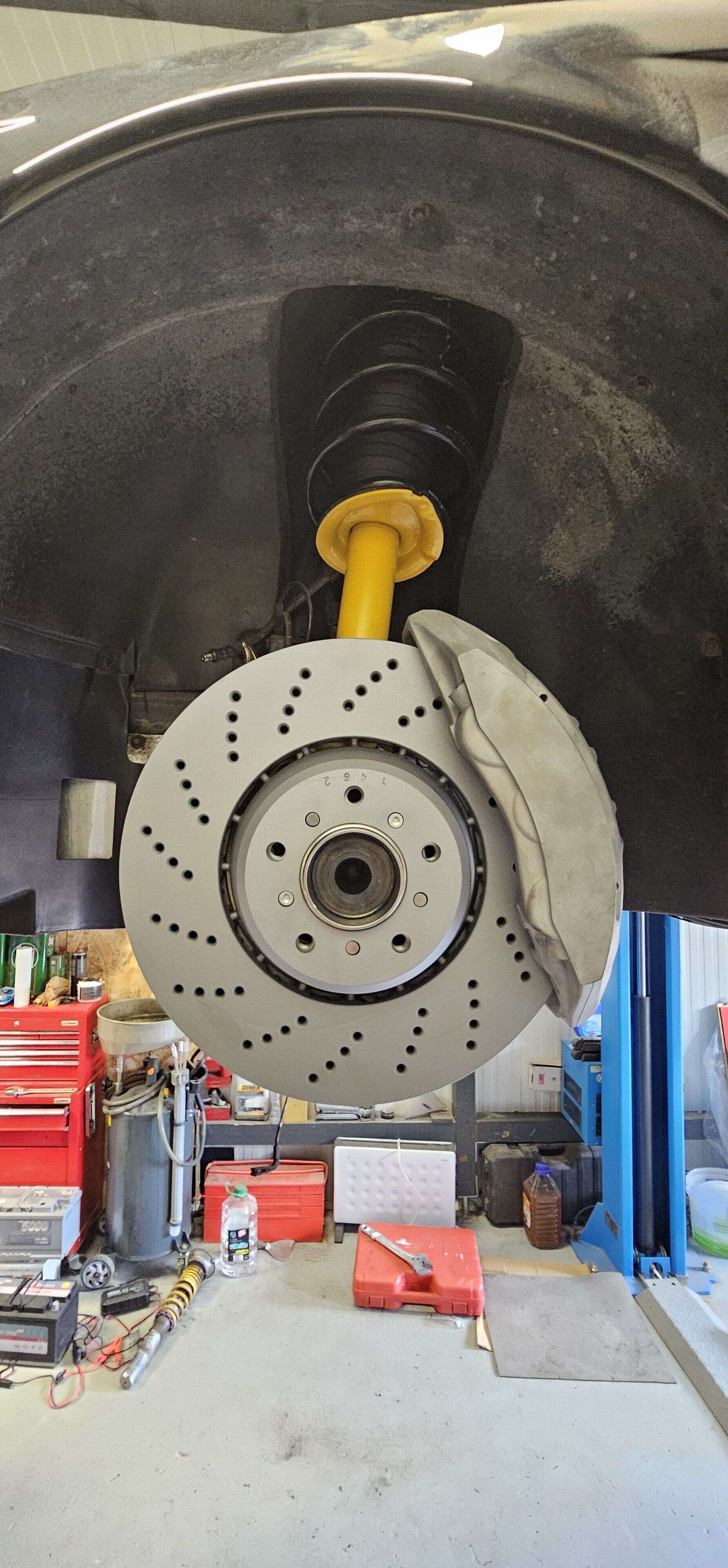

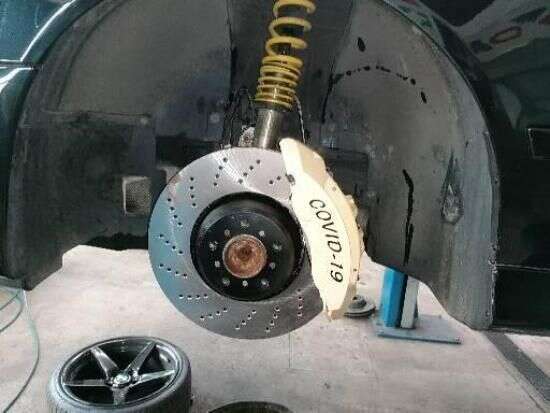

Brake caliper adapter, front axle, on models BMW E39 M5 for conversion to the large Brembo 6-piston caliper from BMW M6 F10 brake system, combined with the 374x36mm BMW E60 M5 brake discs.
Suitable for all BMW E39 M5 and V8
Advantages of this brake system:
- high deceleration
- thanks to the material certificate supplied with the order, it is possible to approve your purchase even for series vehicles
- directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
- our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling.
- Screws are included
Required components:
- brake disc: BMW E60 M5 mit 374x36mm, reference 34 11 2 282 806
- brake caliper: 6-piston Brembo BMW M6 F10, reference 34117845747 / 34117845748
Delivery:
- 2x brake caliper adapters for BMW E39 M5
- high-strength mounting screws
- material certificate
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
11 March 2024 07:58
Daniel M
Verarbeitung sieht top aus.
30 April 2021 03:07
Gianluca G
Extremely high quality, with perfect fitment on point. Awesome idea for a big Brake Kit
23 July 2023 11:33
Paul R
Die Serienbremse des E39 war nicht überzeugend. Schnell bin ich bei epytec fündig geworden. Die Qualität der Adapter ist sehr gut und auch bei Fragen oder Anregungen wird einem schnell und unkompliziert geholfen. Diese Adapter hier passen an allen V8 E39. Für die 6 Zylinder hat epytec andere Adapter im Sortiment. Vielen lieben Dank!
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
