Send technical drawing
You can just send us your technical drawing via our contact form. In addition, you can see here an example of how we have implemented such a project together with one of our customers.
Send us your technical drawing in at least one of the following formats:
- Parasolid (*.x_t)
- Step (*.step oder *.stp)
- Dimensioned PDF drawing
The customer's request / problem:
Our customer Michael would like to install the following gearbox and engine on his VW Golf 1:
- 02Q 6-speed gearbox from VW Golf 5 6 ect.
- VAG 4-cylinder engines, 16V 1.8T 1.9 TDI
Our realisation / solution:
- Michael has sent us a technical drawing how the gearbox holder for the 02Q 6-speed gearbox could look.
- We can transfer the technical drawing directly into our CAD program and use it to print a 3D model.
- If you also have a technical drawing, you can send it to us directly via our contact form.
3-D Prototyping
The final 3D prototype is sent to Michael in advance so that everything can be tested for a perfect fit and the 02Q 6-speed gearbox can be installed in combination with the 4-cylinder engine in the VW Golf 1. Michael also told us that 1-2 small changes have to be made to the tuning adapter so that everything fits 100%.
We always work with a 3D model in advance, because it always happens that certain dimensions and conditions cannot be taken into account on the tuning adapter in advance. With the 3D model, we can be sure that everything fits.
Production
After Michael's approval we manufacture the components for the gearbox tuning adapter suitable for the VW Golf 1, Scirocco, Caddy 14d bodies.
Afterwards, the individual assemblies are welded and then taken to the surface refiner.
Installation and test

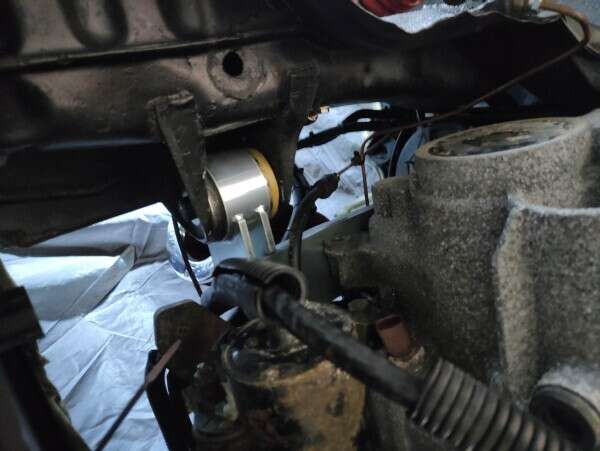

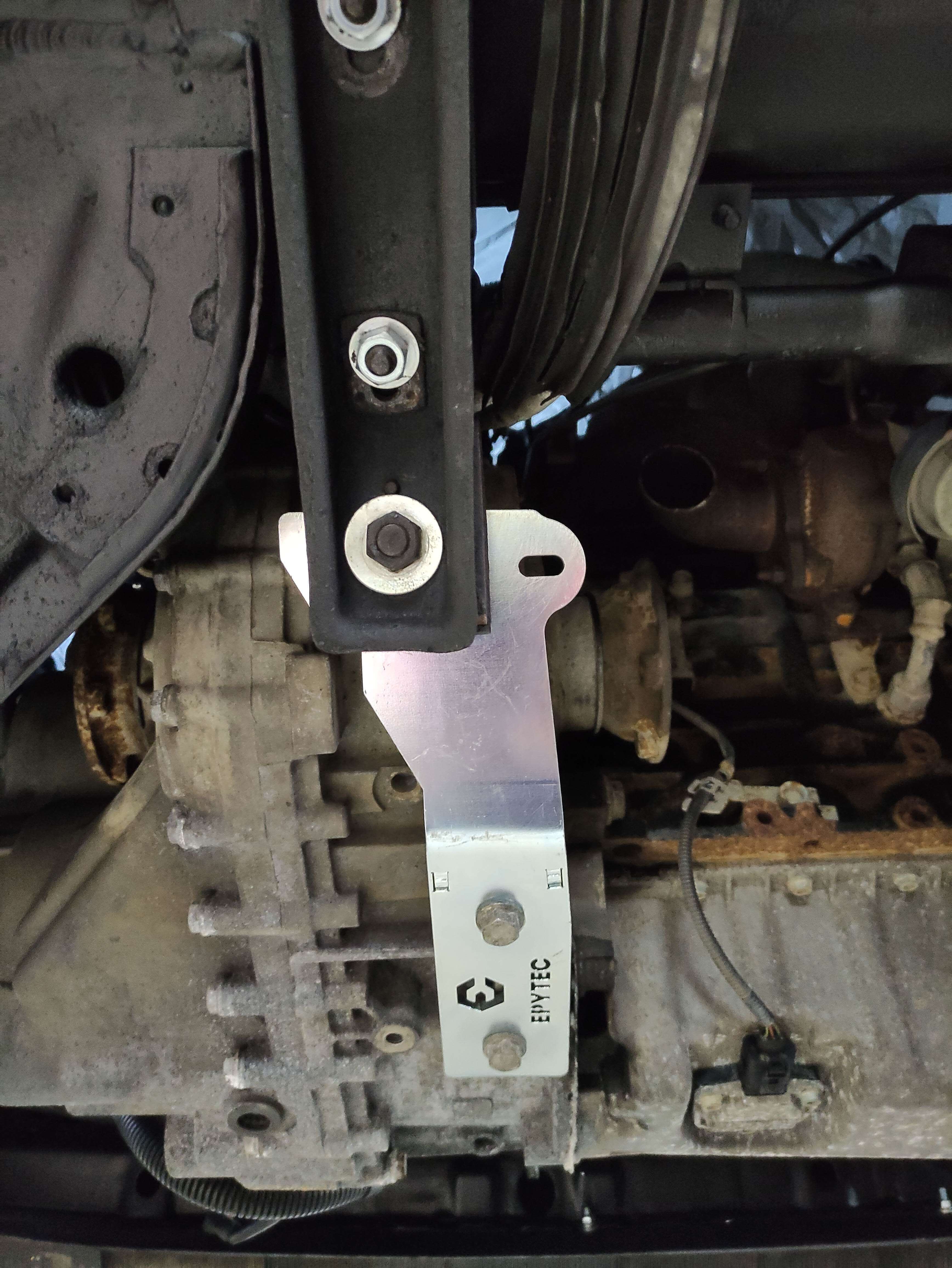

The gearbox tuning adapter arrived back from the surface refiner and was sent directly to Michael. He assembled everything and sent us great installation pictures of his new gearbox tuning adapter - many thanks for that!
We saw potential for other customers in Michael's conversion project to the 02Q 6-speed gearbox in combination with the 4-cylinder engine and therefore shared the development costs and included the gearbox tuning adapter directly in our range.
Click here for the product
6-gear Gearbox cradle for gearbox 02M on Golf Passat Corrado G60 16V Vr6 Gearbox Cradle Engine
- ✓ Golf 1, Caddy 14d, Scirroco 1, Jetta
- ✓ 02M 6-speed gearbox, R32 V6, 1.8T 1.9 TDI engine
- ✓ simple engine conversion
€168.07*
Item number: 542
contact form Epytec
We can help you with your individual solution
If you want, as Michael, to have your engine and gearbox tuned by us according to your wishes, just contact us via our contact form and we will help you to realise your dream. With more than 15 years of experience in the production of tuning parts, we can make your conversion quickly and cost-effectively. We look forward to your enquiry!
Would you like to have the same gearbox conversion for the VW Golf 1 series? Then you can go directly to the gearbox holder here (click here).
