Are the Epytec brake calipers in the blank version primed or completely untreated?

Our Epytec brake calipers in the "Bare / Uncoated" version are completely untreated – meaning not primed and deliberately uncoated. You really get them "raw," so you can have them painted or coated exactly to your liking.Note on Preparation (for a Clean Result)To ensure the coating lasts in the long term, we recommend the following before painting/coating:Thoroughly degrease the brake calipers (very important)Lightly sand the surface (for better adhesion)Use only heat-resistant brake caliper paint or a suitable coatingUse a primer only if specifically recommended by the paint/coating manufacturerThis way, you'll end up with a visually clean and durable surface – just the way you want it.

Can Epytec also paint brake calipers provided by customers?

No, we do not offer that. We paint exclusively our own brake calipers and do not undertake painting work on customer-owned parts.The reason for this is primarily due to our capacities and internal processes.To ensure consistently high quality, we focus exclusively on our own products in this area.If you wish to have your own brake calipers painted, we recommend that you contact a specialized paint shop in your area.

Which RAL colors can we not offer for the coating of our brake calipers?

We can paint your brake calipers in almost all common RAL colors. However, an exception is RAL fluorescent colors (neon/fluorescent colors) – we cannot offer these for brake caliper painting.The reason: fluorescent colors work technically different from normal RAL colors (they require special pigments/layer structures) and are significantly more sensitive in the "brake" application area. For a consistently clean, robust surface, we therefore rely on paint structures that have proven themselves in the brake area – and fluorescent RAL is excluded here.We do not offer these RAL fluorescent colors (examples)RAL 1026 Fluorescent YellowRAL 2005 Fluorescent OrangeRAL 2007 Fluorescent Light OrangeRAL 3024 Fluorescent RedRAL 3026 Fluorescent Light RedRAL 6038 Fluorescent GreenTip: If you want a "neon look," we often find a very similar non-fluorescent RAL alternative that is visually close and much more suitable for brake calipers.

What torque should be used to tighten the sealing nipples on the brake caliper?

We recommend tightening the sealing nipples on the brake caliper with 20 Nm.Why is this important?The correct torque ensures a secure seal. A too loose fit can lead to leaks, whereas over-tightening can damage threads or components.Should a torque wrench be used?Yes, for precise and safe installation, we recommend using a torque wrench.Should anything be checked after installation?Yes, the sealing nipple should be checked for tight fit and sealing afterward.

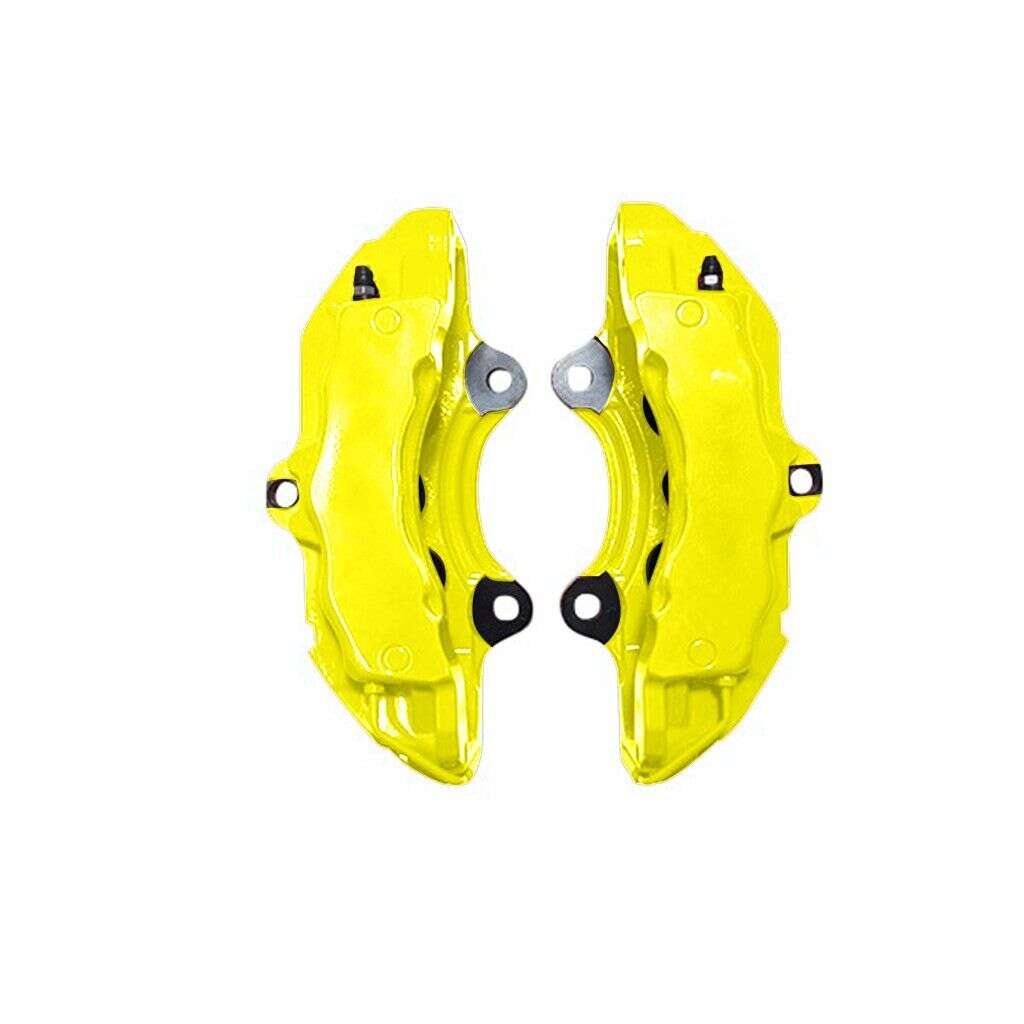

Z17 brake caliper Epytec 6-piston ZR17 ZL17 Porsche Cayenne VW Touareg tuning brake system - Colour: Painted in colour of choice

✓ Desired color can be selected
✓ ZR17 / ZL17 Cayenne brake calipers
✓ 95535142130 / 95535142131 / 95535142132 / 95535142133 / 955.351.421.33 95535142230 / 95535142231 / 95535142232 / 95535142233 / 955.351.422.33 7L6615105AQ / 7L6615123H / 7L6615123M / 7L6615123P / 7L6615123T

£790.86*

2-4 weeks Product will be made for you,

Product number: 1176-Wunschfarbe

Delivery by Monday, 10.08.2026 if you order within the next 1 Hour.

Color

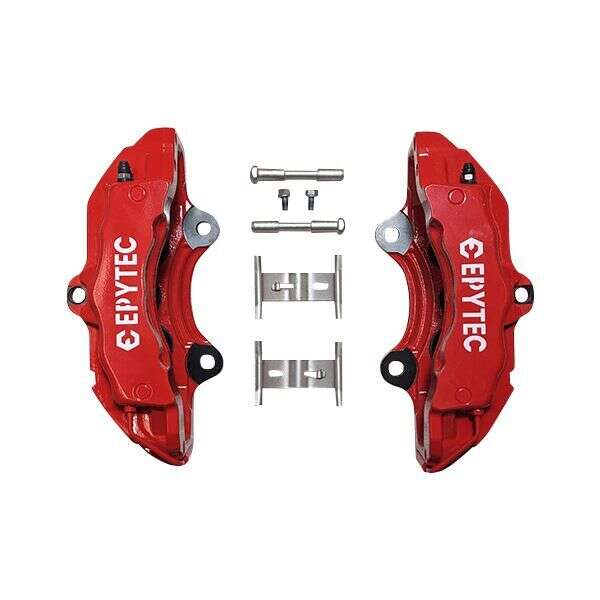

Red with Epytec logo

Painted in the color of your choice

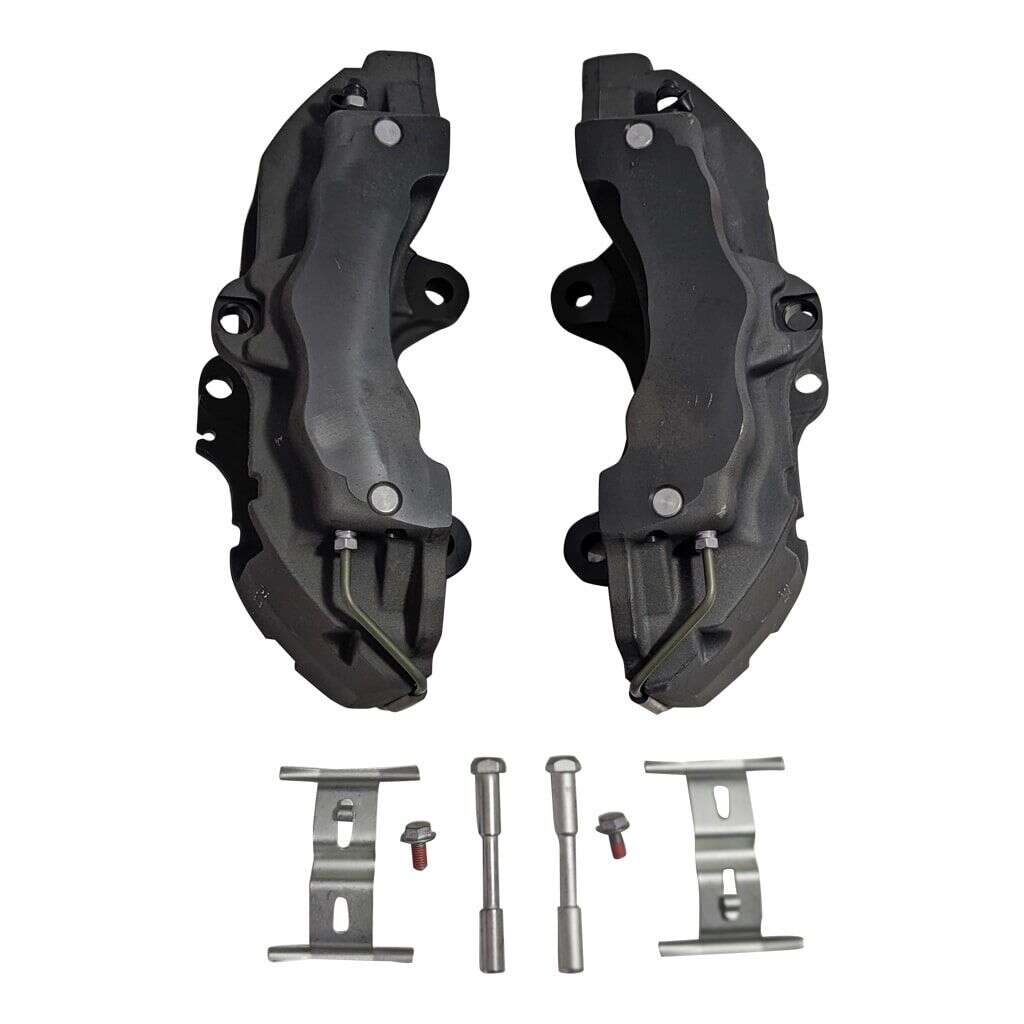

Blank without color

Repeated order: check settings carefully and change if necessary.

Desired color

maximum characters = 18, rest = 18

Price calculation

Pricebox
Name	Title	Surcharge
Desired color:

Your Price:

% £790.86 * £790.86 * ( 0% saved )

rounded up to minimum price

Prices incl. VAT plus shipping costs

* Configuration is incomplete - please check it!

Express shopping
Save your data and settings
Order overview and shipping information
Manage your newsletter subscription
19 Jahre Expertenwissen

Product information "Z17 brake caliper Epytec 6-piston ZR17 ZL17 Porsche Cayenne VW Touareg tuning brake system - Colour: Painted in colour of choice"

Experience impressive braking performance with this set of new Porsche ZR17 / ZL17 6-piston brake calipers for the front axle. These calipers are suitable for a wide range of models including the Porsche Cayenne, VW Touareg and many more. In combination with our brake caliper adapters, they are the ideal choice for a high-performance brake system.

Part number:

Porsche

OE Nr. links : 95535142130 / 95535142131 / 95535142132 / 95535142133 / 955.351.421.33
OE Nr. rechts: 95535142230 / 95535142231 / 95535142232 / 95535142233 / 955.351.422.33

Audi / VW

OE NR: 7L6615105AQ / 7L6615123H / 7L6615123M / 7L6615123P / 7L6615123T

Technical data:

Piston diameter: 34mm / 36mm / 38mm
For brake disc thickness : 28 to 32mm
Colour: Painted in the colour of your choice

Scope of delivery:

1 set (1x left and 1x right) brake callipers Porsche ZR17 / ZL17 Cayenne, VW Touareg for the front axle
Suitable retaining clips for the brake pads

Note:

Please note that these brake callipers are supplied in the colour of your choice

For optimal braking performance and durability, we recommend using our ARAMID ceramic brake pads in conjunction with these brake calipers. These brake pads are made of high-quality materials and offer excellent performance in all conditions.

Manufacturer: Epytec

Mounting location: front

Number of pistons: 6
