Fiat Punto Opel Corsa D Camber Adjustement Plates Rear Plates Camber Adjust Rear Axle Camber Correction - 2.0 degrees
- ✓ camber correction / adjustement plates for installation on rear axle. Thanks to this plate you can modify the camber of the rear wheel, negative or positive.
€33.40*
% €73.24* (54.4% saved)- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty
⚠️ Important Notice:
This item is produced exclusively upon request. As it is a made-to-order special production based on demand, there is no right of withdrawal pursuant to § 312g (2) No. 1 of the German Civil Code (BGB).
Therefore, returns or exchanges are excluded.
You do not want to spend money on tires that are worn only on one side, but you want more grip and better performance? Or do you just want to get the opposite? High curve speed and cool optics.
Then we have the product for you! With this product, you can adjust the camber according to your needs.

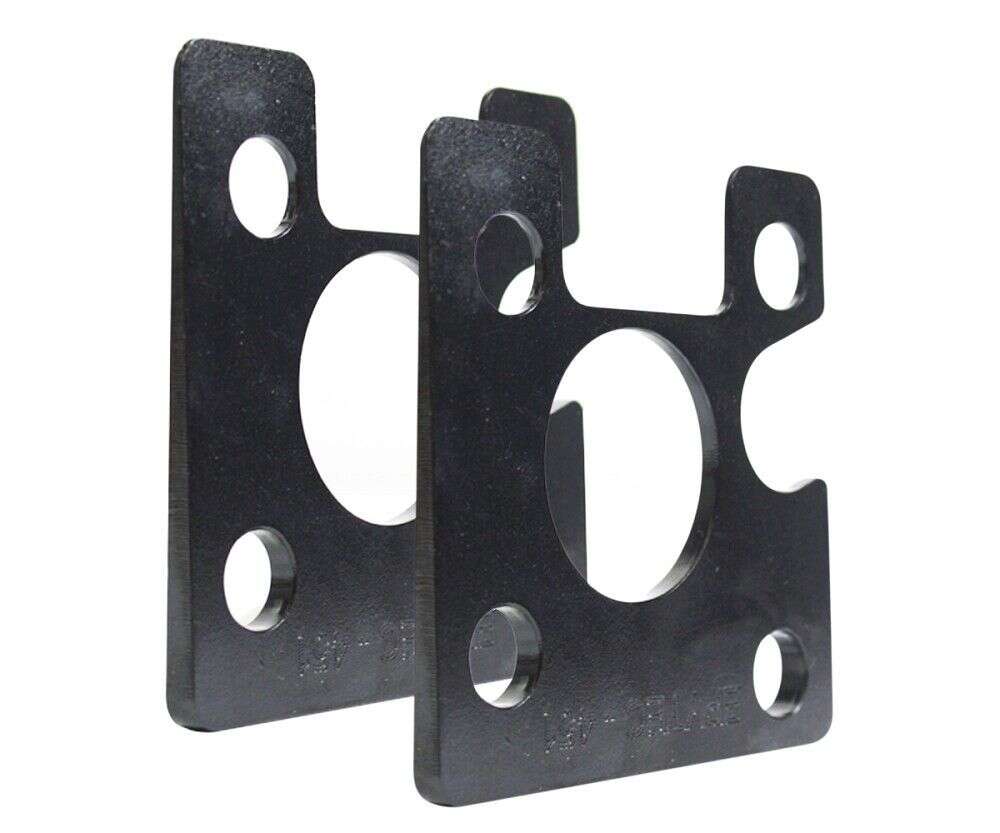

Kit of camber correction / adjustment plates for rear axle. Makes possible a camber correction / ajustement.
Thanks to our plates, you can modify the rear camber. Ideal for lowering the rear axle and correcting the angle defect if the tires are worn only on one side.
We recommend it for racing or slalom circuits. Or simply on the road, to take turns at a higher speed.
Our plates are mounted between the pivot of the axle stub and the axle. Quick and easy assembly. The wheels are then moved 3mm outwards. The plates are manufactured with high precision.
They are made of steel and completely galvanized. Maximum anticorrosive protection and good optics.
Suitable for all following models:
- Opel Corsa D
- Opel Corsa D Van
- Opel Adam
- Opel Corsa E
- Fiat Punto 199
- Alfa Mito
- Abarth Punto
- Punto Evo
- Grande Punto
Thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles.
Delivery:
- 2x plates, right and left
- material certificate
Login
28 January 2025 14:28
thomashenrykgarbicz
Einfach top!
28 May 2020 09:04
florian72252
Danke immer wieder gern . Top Firma !
20 January 2022 08:57
Siegfried K
Alles Top wie immer. Werde auch weiter hier einkaufen..
3 October 2024 09:17
Cristian G
Buena calidad del producto. Envio muy rapido y buena comunicación. Recomendado a mis compañeros.
18 January 2026 12:29
0bruhin123
Super Fast.Top
7 October 2022 10:56
mozartmozart51
tolle Verarbeitung,gerne wieder
6 April 2021 16:00
larwyparl-0
perfekt danke
27 May 2023 15:27
Hans Peter L
Alles okay. Gerne wieder. Vielen Dank.
23 August 2018 12:40
Giovanni L
Leider sind die Platten nicht wie auf dem Produktfoto schwarz. Das war nämlich einer meiner Aufgründe, schade. Dazu passte eine der Platten auf der Beifahrerseite so gut wie gar nicht. Die andere Seite ging förmlich von alleine drauf und man konnte die restlichen Bauteile einfach wieder Montieren. Die Beifahrerseite hat fast doppelt so lange gedauert auf Grund der "Passgenauigkeit"
- Does the ABS still function after installing the camber correction?
Yes, basically the ABS will continue to function after installing a camber correction. The important thing is: If you significantly change the camber, the geometry between the ABS sensor and the ABS ring (impulse ring) can shift in such a way that the sensor no longer operates optimally "at the correct angle" or parallel to the ring.
Why can there be problems?
The ABS sensor reads the ABS ring with a defined distance and alignment angle. With a significant camber change (often from about 1°, depending on the vehicle and axle design), it can happen that:
the sensor no longer lines up correctly, or
the air gap between the sensor and the ring is no longer within the target range.
Then the ABS can basically continue to work, but there can be, for example, ABS/ESP warning messages, sporadic interventions, or error memory entries.
What needs to be done then?
If something like this occurs, a small adjustment is usually sufficient:
Slightly correct the position of the ABS sensor (e.g., slightly reposition/align it on the mount)
Check seating and attachment (sensor must be flat and securely seated)
Check the air gap (not rubbing, not too large)
Then it is best to read/clear the error memory and take a short test drive.
Practical Tip
After the conversion, it is recommended to have an axle alignment. If you are using camber values in the range > 1°, it is advisable to check the ABS sensor area directly so that no surprises arise later.
- Do I need longer screws or can the old ones remain.
With Epytec camber correction plates, you can continue to use the original screws up to +-2°. For camber correction plates over 2°, we recommend slightly sanding a washer and placing it under the screw head so that it continues to sit flush on the camber correction plate. Of course, if the camber correction plate is thicker, new screws may be needed directly.
- Can camber correction plates be installed on drum brakes?
Yes, this is possible provided that a stub axle is installed on the rear axle. In this case, our Epytec camber correction plates can also be easily mounted on drum brakes. The functionality and installation are largely the same as for vehicles with disc brakes.
It is important that the mounting points of the stub axle match the execution of the camber correction plates.
| Motor | Motorcode |
|---|---|
| 1.4 16V | 199|105PS(77KW) |
| 1.3 D MultiJet | 199|84PS(62KW) |
| 1.3 D MultiJet | 199|69PS(51KW) |
| 1.6 D MultiJet | 199|120PS(88KW) |
| 1.3 D MultiJet | 199|90PS(66KW) |
| 1.3 D MultiJet | 199|75PS(55KW) |
| 1.3 D MultiJet | 199|95PS(70KW) |
| 1.4 Natural Power | 199|78PS(57KW) |
| 1.4 | 199|77PS(57KW) |
| 1.4 | 199|75PS(55KW) |
| 1.4 16V | 199|135PS(99KW) |
| Motor | Motorcode |
|---|---|
| 0.9 | 199|105PS(77KW) |
| 0.9 | 199|101PS(74KW) |
| 1.3 D MultiJet | 199|80PS(59KW) |
| 1.2 | 199|67PS(49KW) |
| 1.4 Bi-Fuel | 199|78PS(57KW) |
| 0.9 Bi-Fuel | 199|86PS(63KW) |
| Motor | Motorcode |
|---|---|
| 1.2 | X15|69PS(51KW) |
| 1.3 CDTi | X15|95PS(70KW) |
| 1.3 CDTi | X15|75PS(55KW) |
| 1.4 Turbo | X15|101PS(74KW) |
| 1.4 Turbo | X15|150PS(110KW) |
| 1.4 LPG | X15|90PS(66KW) |
| 1.0 | X15|90PS(66KW) |
| 1.4 | X15|90PS(66KW) |
| 1.4 | X15|75PS(55KW) |
| 1.0 | X15|115PS(85KW) |
| 1.6 Turbo | X15|207PS(152KW) |
| Motor | Motorcode |
|---|---|
| 1.4 S | M13|150PS(110KW) |
| 1.4 LPG | M13|87PS(64KW) |
| 1.4 | M13|101PS(74KW) |
| 1.0 | M13|90PS(66KW) |
| 1.4 | M13|87PS(64KW) |
| 1.0 | M13|115PS(85KW) |
| 1.2 | M13|69PS(51KW) |
| Motor | Motorcode |
|---|---|
| 1.6 Turbo | S07|211PS(155KW) |
| 1.2 LPG | S07|80PS(59KW) |
| 1.3 CDTi | S07|90PS(66KW) |
| 1.4 | S07|90PS(66KW) |
| 1.7 CDTi | S07|130PS(96KW) |
| 1.3 CDTi | S07|75PS(55KW) |
| 1.0 | S07|60PS(44KW) |
| 1.6 Turbo | S07|150PS(110KW) |
| 1.2 LPG | S07|86PS(63KW) |
| 1.4 LPG | S07|90PS(66KW) |
| 1.6 Turbo | S07|192PS(141KW) |
| 1.7 CDTi | S07|125PS(92KW) |
| 1.0 | S07|65PS(48KW) |
| 1.4 | S07|100PS(74KW) |
| 1.2 | S07|80PS(59KW) |
| 1.4 | S07|120PS(88KW) |
| 1.3 CDTi | S07|95PS(70KW) |
| 1.2 | S07|86PS(63KW) |
| 1.4 | S07|87PS(64KW) |
| 1.2 | S07|69PS(51KW) |
| Motor | Motorcode |
|---|---|
| 1.2 | S07|86PS(63KW) |
| 1.0 | S07|65PS(48KW) |
| 1.2 | S07|69PS(51KW) |
| 1.3 CDTi | S07|75PS(55KW) |
| 1.3 CDTi | S07|95PS(70KW) |
| 1.3 CDTi | S07|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.4 16V | 199|105PS(77KW) |
| 1.3 D MultiJet | 199|84PS(62KW) |
| 1.3 D MultiJet | 199|69PS(51KW) |
| 1.6 D MultiJet | 199|120PS(88KW) |
| 1.3 D MultiJet | 199|90PS(66KW) |
| 1.3 D MultiJet | 199|75PS(55KW) |
| 1.3 D MultiJet | 199|95PS(70KW) |
| 1.4 Natural Power | 199|78PS(57KW) |
| 1.4 | 199|77PS(57KW) |
| 1.4 | 199|75PS(55KW) |
| 1.4 16V | 199|135PS(99KW) |
| Motor | Motorcode |
|---|---|
| 0.9 | 199|105PS(77KW) |
| 0.9 | 199|101PS(74KW) |
| 1.3 D MultiJet | 199|80PS(59KW) |
| 1.2 | 199|67PS(49KW) |
| 1.4 Bi-Fuel | 199|78PS(57KW) |
| 0.9 Bi-Fuel | 199|86PS(63KW) |
| Motor | Motorcode |
|---|---|
| 1.2 | X15|69PS(51KW) |
| 1.3 CDTi | X15|95PS(70KW) |
| 1.3 CDTi | X15|75PS(55KW) |
| 1.4 Turbo | X15|101PS(74KW) |
| 1.4 Turbo | X15|150PS(110KW) |
| 1.4 LPG | X15|90PS(66KW) |
| 1.0 | X15|90PS(66KW) |
| 1.4 | X15|90PS(66KW) |
| 1.4 | X15|75PS(55KW) |
| 1.0 | X15|115PS(85KW) |
| 1.6 Turbo | X15|207PS(152KW) |
| Motor | Motorcode |
|---|---|
| 1.4 S | M13|150PS(110KW) |
| 1.4 LPG | M13|87PS(64KW) |
| 1.4 | M13|101PS(74KW) |
| 1.0 | M13|90PS(66KW) |
| 1.4 | M13|87PS(64KW) |
| 1.0 | M13|115PS(85KW) |
| 1.2 | M13|69PS(51KW) |
| Motor | Motorcode |
|---|---|
| 1.6 Turbo | S07|211PS(155KW) |
| 1.2 LPG | S07|80PS(59KW) |
| 1.3 CDTi | S07|90PS(66KW) |
| 1.4 | S07|90PS(66KW) |
| 1.7 CDTi | S07|130PS(96KW) |
| 1.3 CDTi | S07|75PS(55KW) |
| 1.0 | S07|60PS(44KW) |
| 1.6 Turbo | S07|150PS(110KW) |
| 1.2 LPG | S07|86PS(63KW) |
| 1.4 LPG | S07|90PS(66KW) |
| 1.6 Turbo | S07|192PS(141KW) |
| 1.7 CDTi | S07|125PS(92KW) |
| 1.0 | S07|65PS(48KW) |
| 1.4 | S07|100PS(74KW) |
| 1.2 | S07|80PS(59KW) |
| 1.4 | S07|120PS(88KW) |
| 1.3 CDTi | S07|95PS(70KW) |
| 1.2 | S07|86PS(63KW) |
| 1.4 | S07|87PS(64KW) |
| 1.2 | S07|69PS(51KW) |
| Motor | Motorcode |
|---|---|
| 1.2 | S07|86PS(63KW) |
| 1.0 | S07|65PS(48KW) |
| 1.2 | S07|69PS(51KW) |
| 1.3 CDTi | S07|75PS(55KW) |
| 1.3 CDTi | S07|95PS(70KW) |
| 1.3 CDTi | S07|90PS(66KW) |
