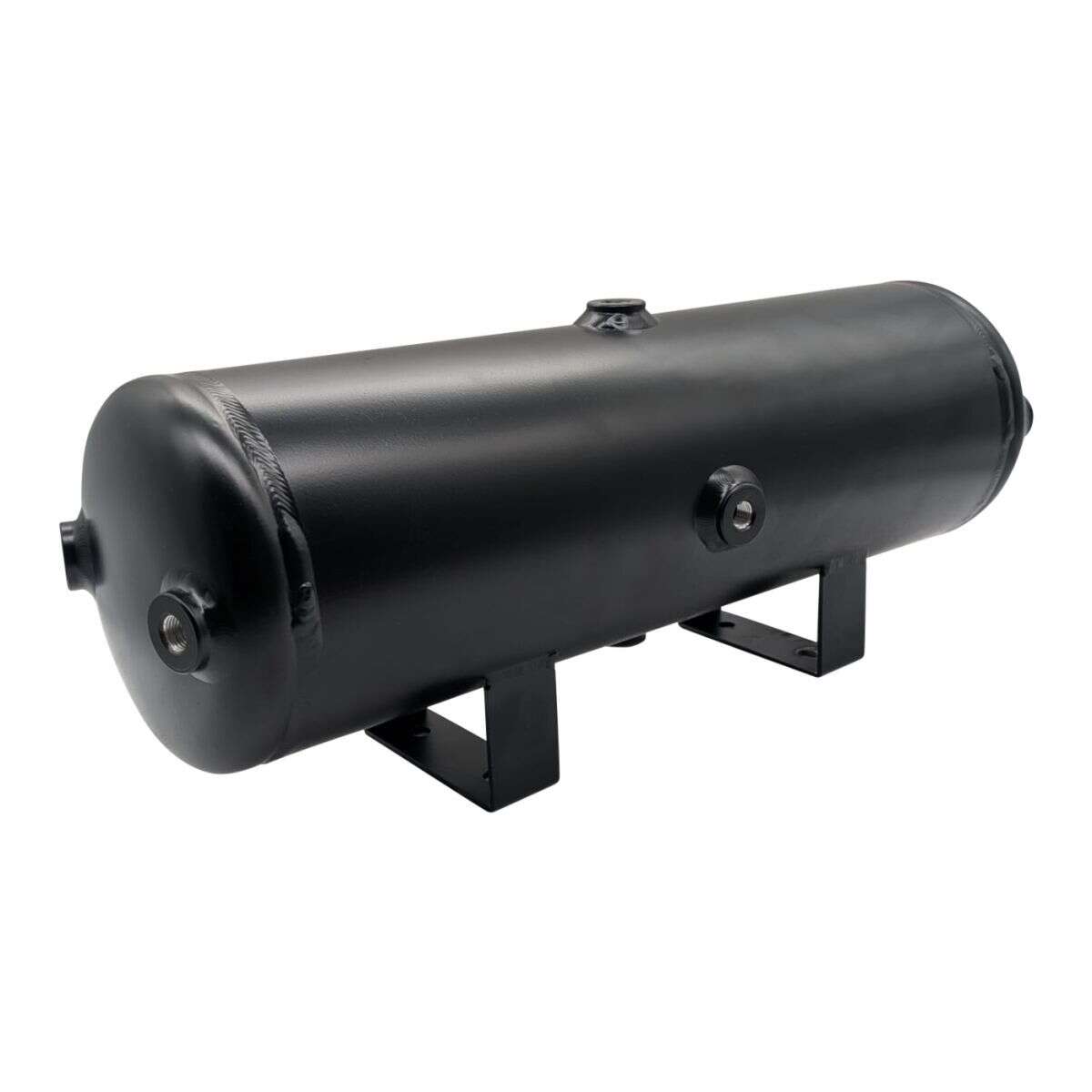

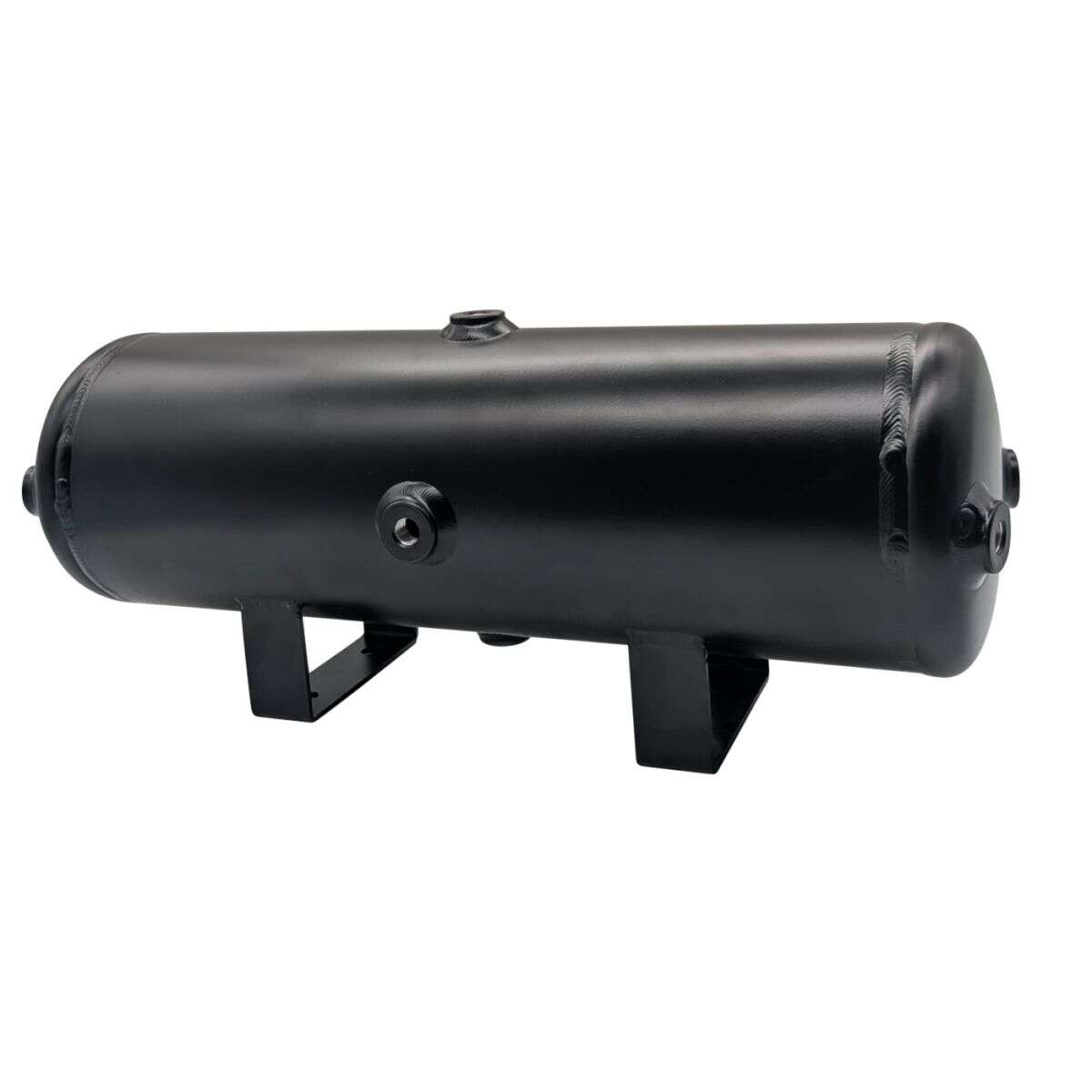

One compressed air tank – two installation options

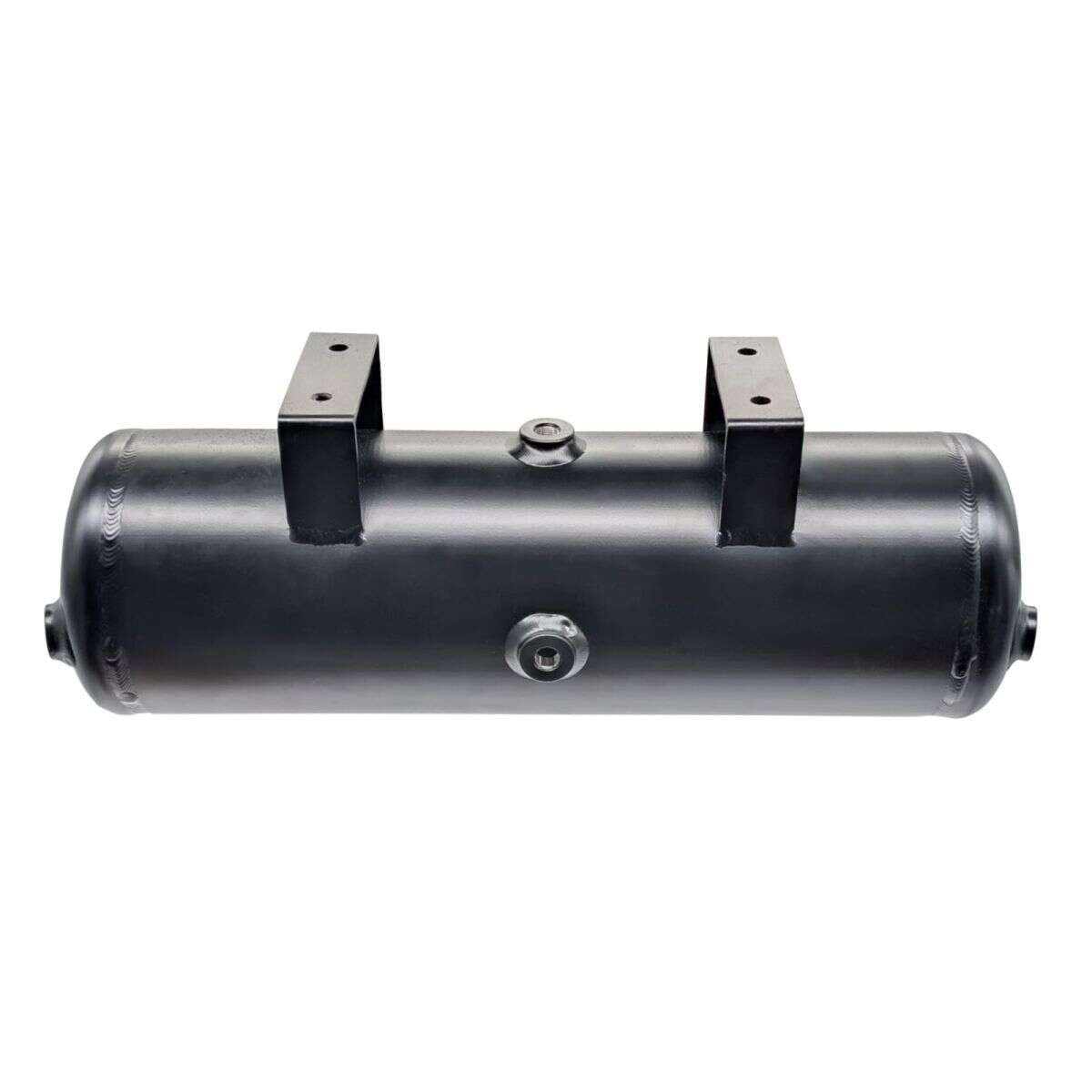

The EPYTEC aluminium compressed air tank was specially developed for air ride, air suspension and pneumatic systems. Its biggest advantage over conventional compressed air tanks: It can be installed both inside the vehicle and underneath the vehicle.

This is made possible by the unique design with connection options on the top and bottom. This ensures that the condensate drain plug is always located at the lowest point of the tank, regardless of the installation position, allowing condensate to be reliably drained.

This makes the tank the ideal solution for virtually any vehicle – from the VW Golf and Audi A3 to the VW T4, T5, T6, T6.1, Crafter, Mercedes Sprinter, Ford Transit or Fiat Ducato.

What makes the EPYTEC compressed air tank special

Underbody or interior – you decide

This is the key unique feature of the EPYTEC compressed air tank.

Many compressed air tanks are designed for only one installation position. If the tank is installed differently, the condensate drain is often no longer located at the lowest point. This makes it difficult to completely drain moisture and significantly limits the installation options.

The EPYTEC compressed air tank solves this problem.

Thanks to the connection threads on the top and bottom, the tank can be used optimally regardless of its installation position.

Examples:

Sports cars & saloons

• Installation in the interior or boot.
• The drain plug is positioned at the bottom, allowing condensate to be completely removed.

Campers & vans

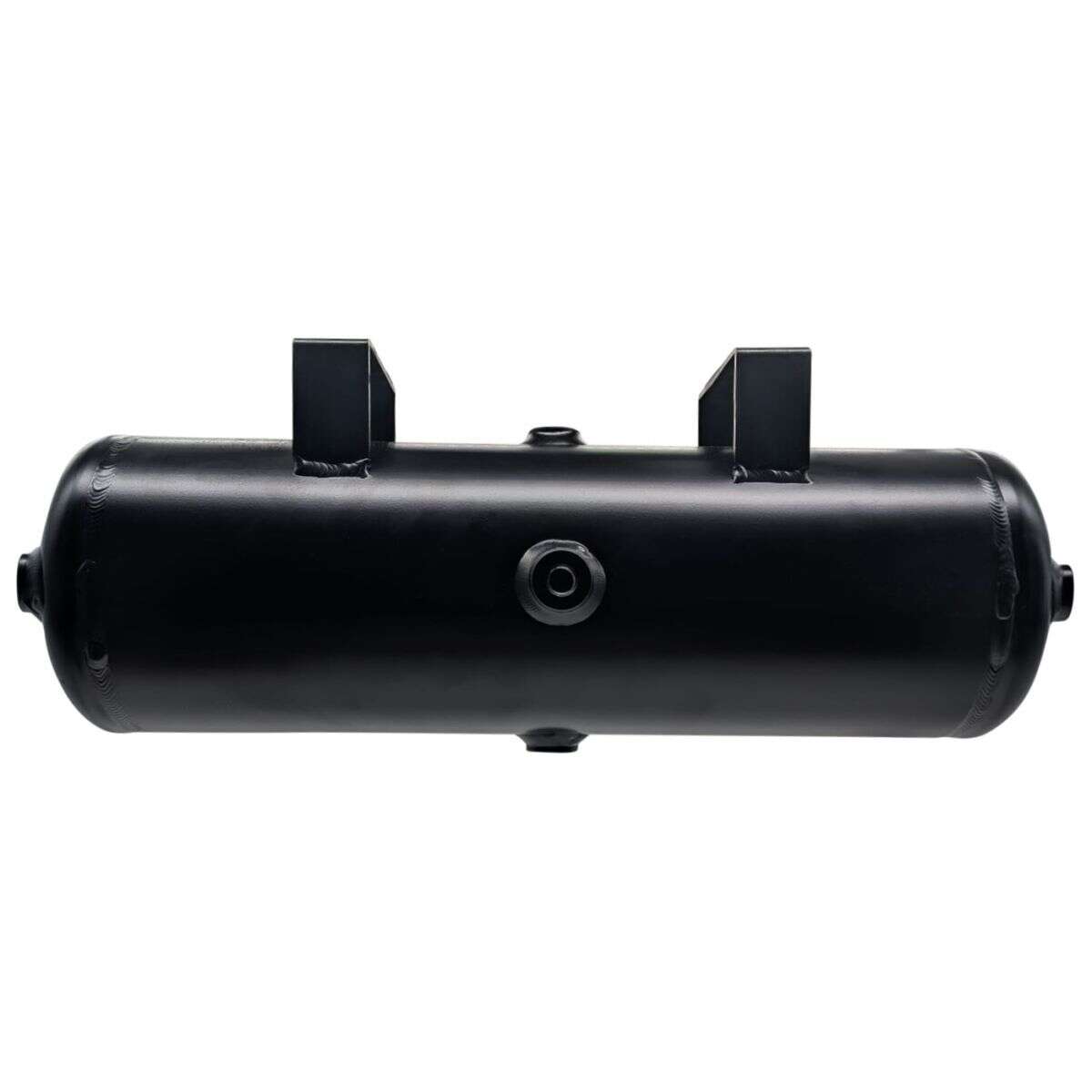

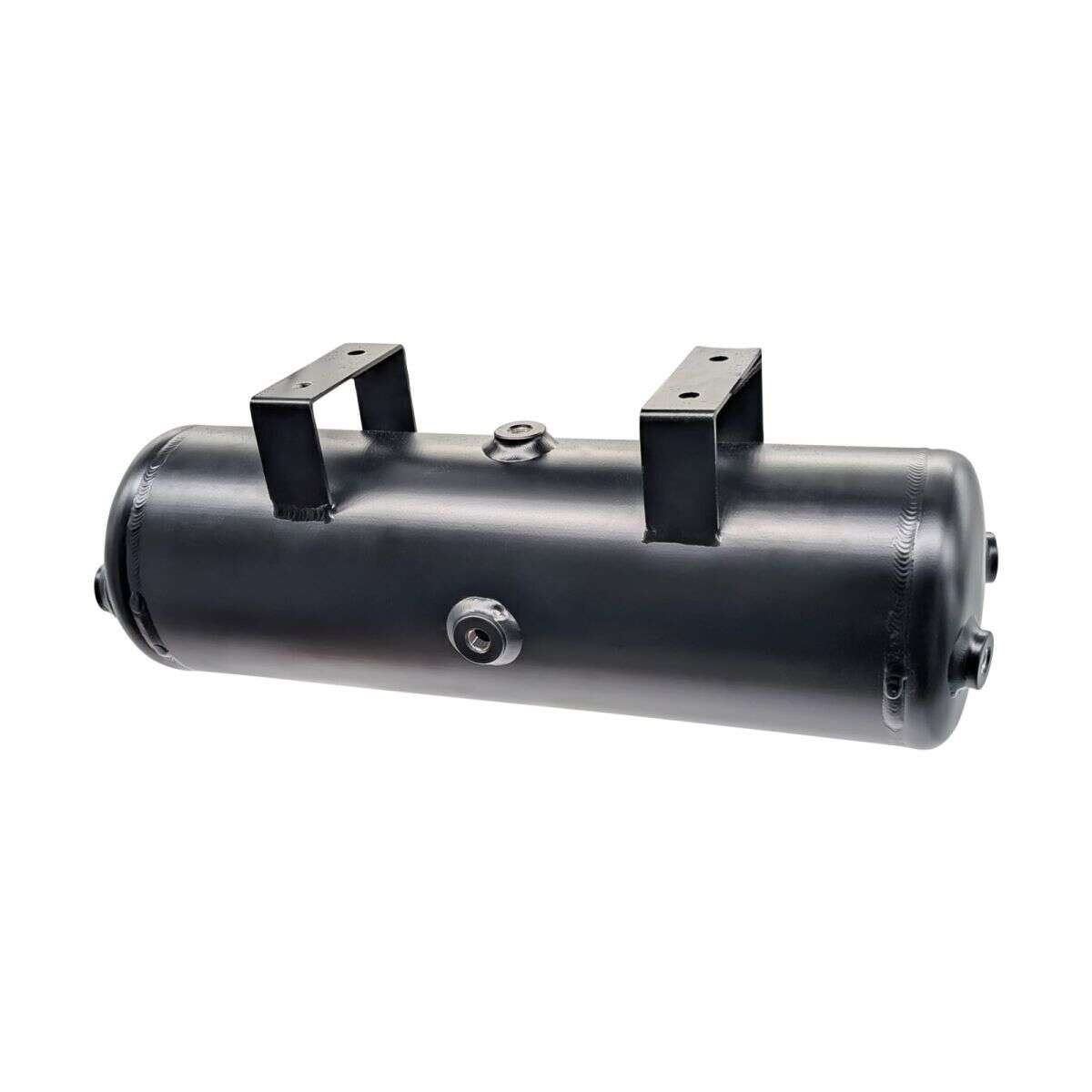

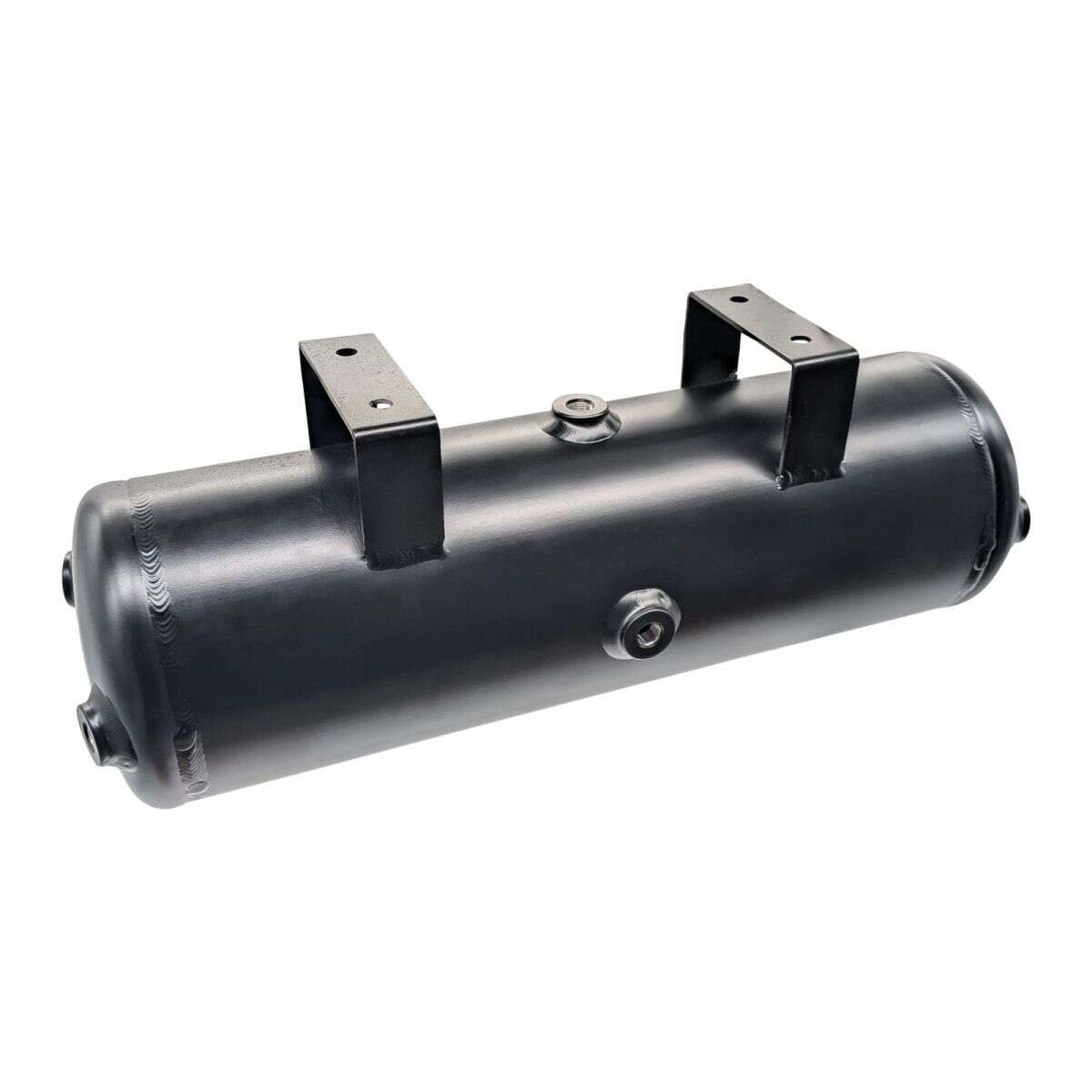

• Space-saving installation underneath the vehicle.
• The load area and entire interior remain free.
• Despite underbody installation, the drain plug remains at the lowest point.

This is an enormous advantage, especially for campers, vans and motorhomes, as no valuable storage space is lost.

Compact dimensions for flexible installation

With its compact dimensions, the EPYTEC compressed air tank offers numerous options for a clean and space-saving installation.

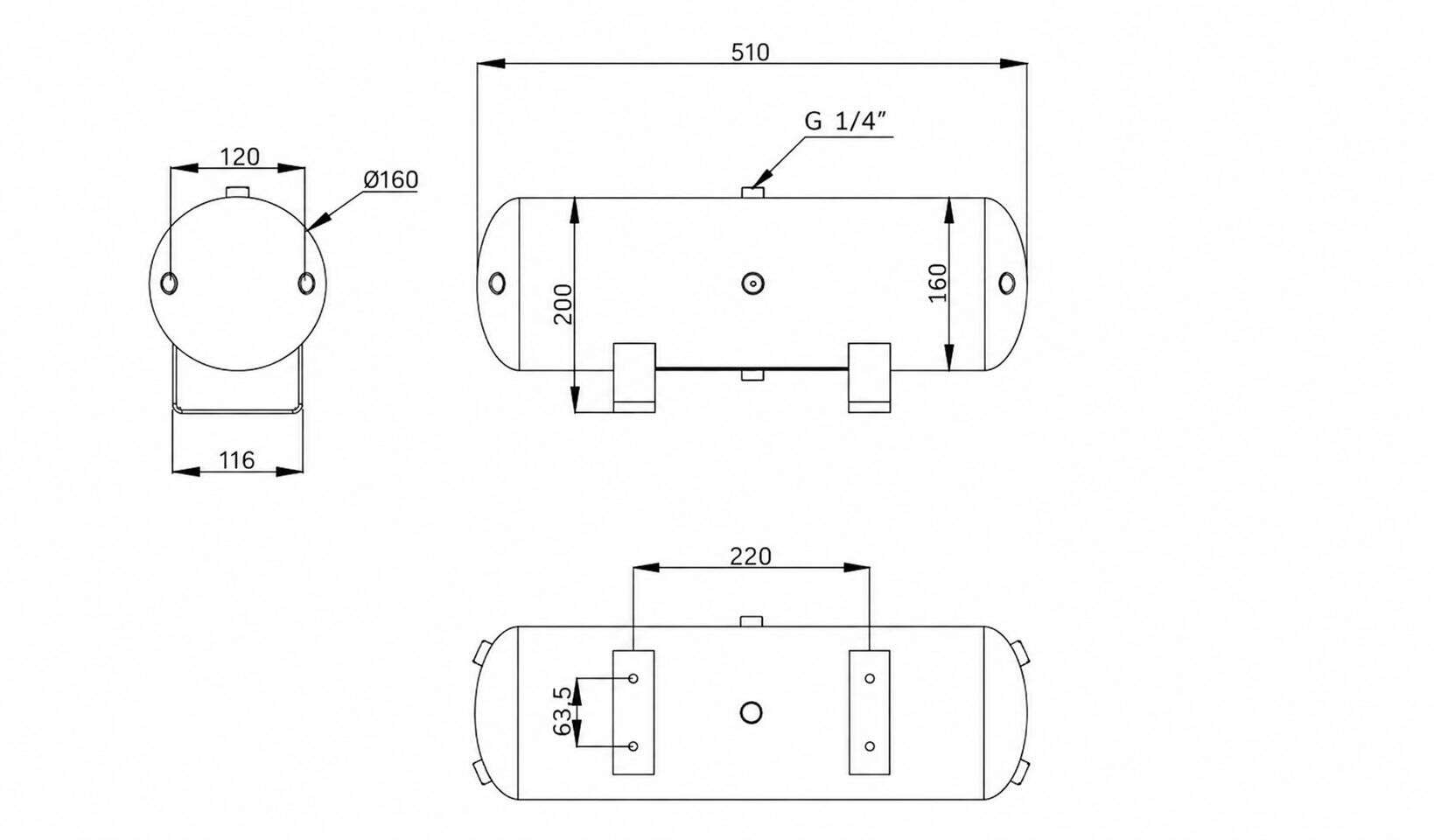

The tank has an overall length of 510 mm with a diameter of Ø 160 mm. The overall height including the bracket is approx. 200 mm. The distance between the two mounting brackets is 220 mm, while the hole spacing within the brackets is 63.5 mm. The bracket has a width of 116 mm.

This allows you to check before installation whether there is sufficient space at the desired mounting location.

A detailed technical drawing with all relevant dimensions and connection positions can be found in image 2.

7 × G 1/4" connections for maximum flexibility

In addition, the tank features seven connection ports, all equipped with a G 1/4" thread.

This means you only need a single thread size for the entire compressed air system.

Whether:

• Solenoid valves
• Pressure sensors
• Pressure gauges
• Safety valves
• Fittings
• Blanking plugs
• Condensate drain

– all components can be installed using the same G 1/4" thread.

Connections that are not required are simply sealed. This allows the tank to be individually adapted to virtually any air ride system.

Developed by EPYTEC

This compressed air tank was developed exclusively according to the requirements of EPYTEC.

In addition to flexible installation options, particular emphasis was placed on a durable design.

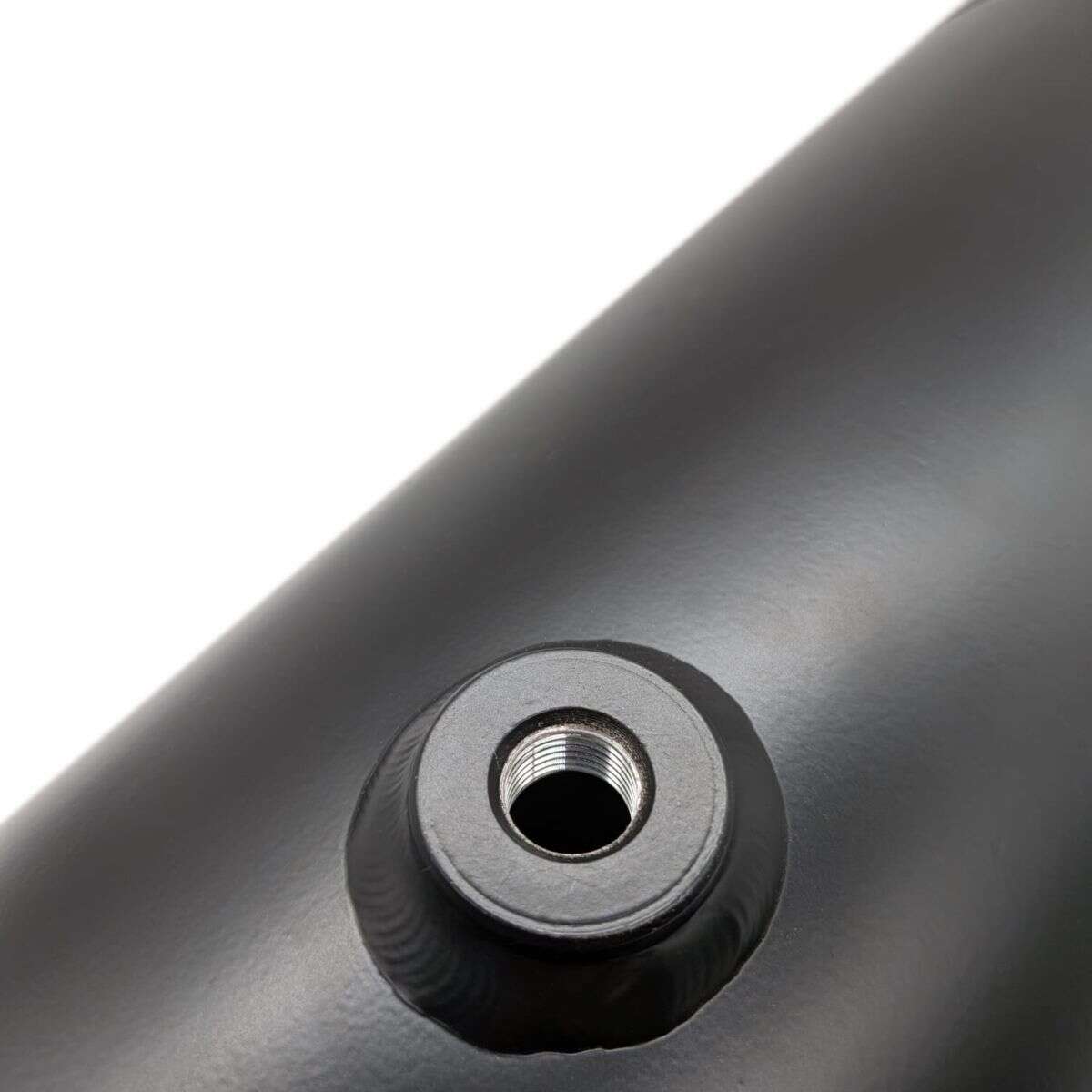

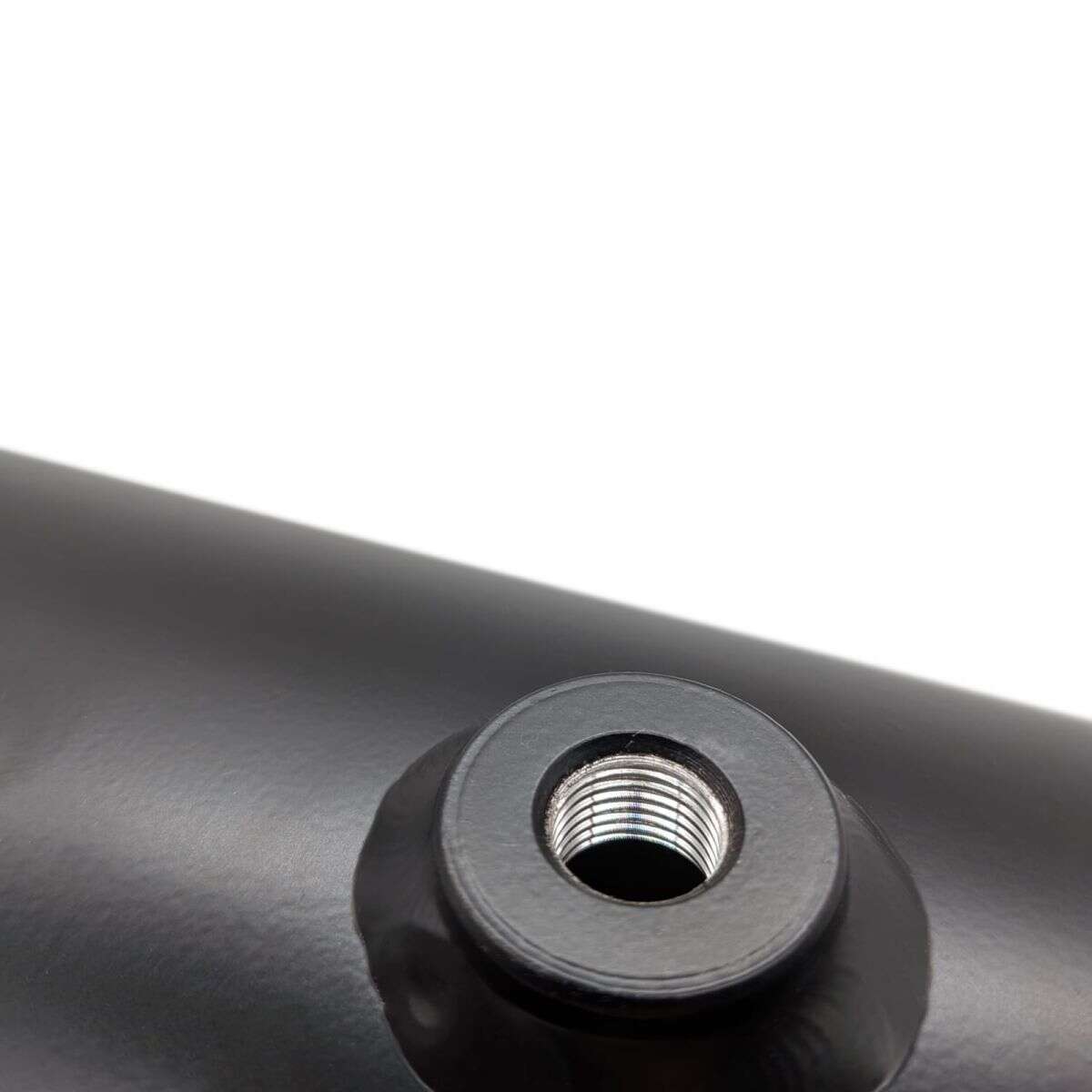

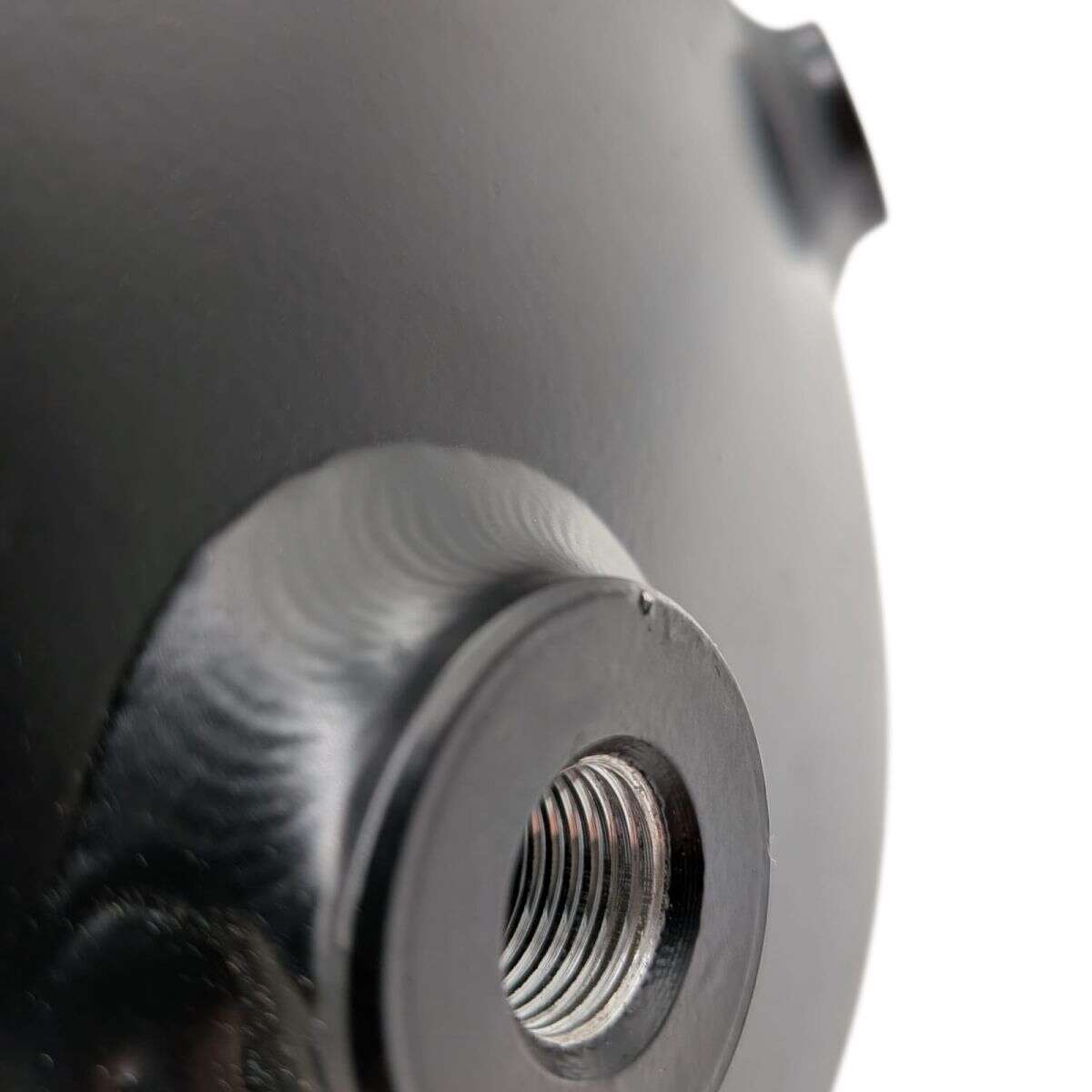

The threaded sockets are solidly constructed and welded to the aluminium tank to a high standard. This creates particularly robust connection points that remain permanently reliable even with frequent screwing in and unscrewing.

Your advantages at a glance

• One tank for two installation options
• Interior or underbody installation possible
• Connection threads on the top and bottom
• Condensate drain always at the lowest point
• 7 × G 1/4" connections
• Uniform thread on all connections
• Solid, high-quality welded threaded sockets
• Corrosion-resistant aluminium construction
• Specially developed for air ride, air suspension and pneumatic systems

Typical vehicles

Perfectly suitable for, among others:

• VW Golf
• Audi A3
• BMW
• Mercedes
• VW T4
• VW T5
• VW T6
• VW T6.1
• VW Caddy
• VW Crafter
• Mercedes Sprinter
• Mercedes Vito
• Ford Transit
• Fiat Ducato
• Peugeot Boxer
• Citroën Jumper

Technical data

Why EPYTEC?

While many conventional compressed air tanks dictate the installation position, the EPYTEC aluminium compressed air tank adapts to your vehicle – not the other way around.

Whether for a classic air ride conversion, show car, camper or van: thanks to the option of interior or underbody installation and the seven G 1/4" connections, you get a compressed air tank that offers maximum freedom during installation while also featuring high-quality workmanship.
